Boya BY-M1 Manuel utilisateur

BY-M1

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Introduction

Thanks for choosing BOYA!

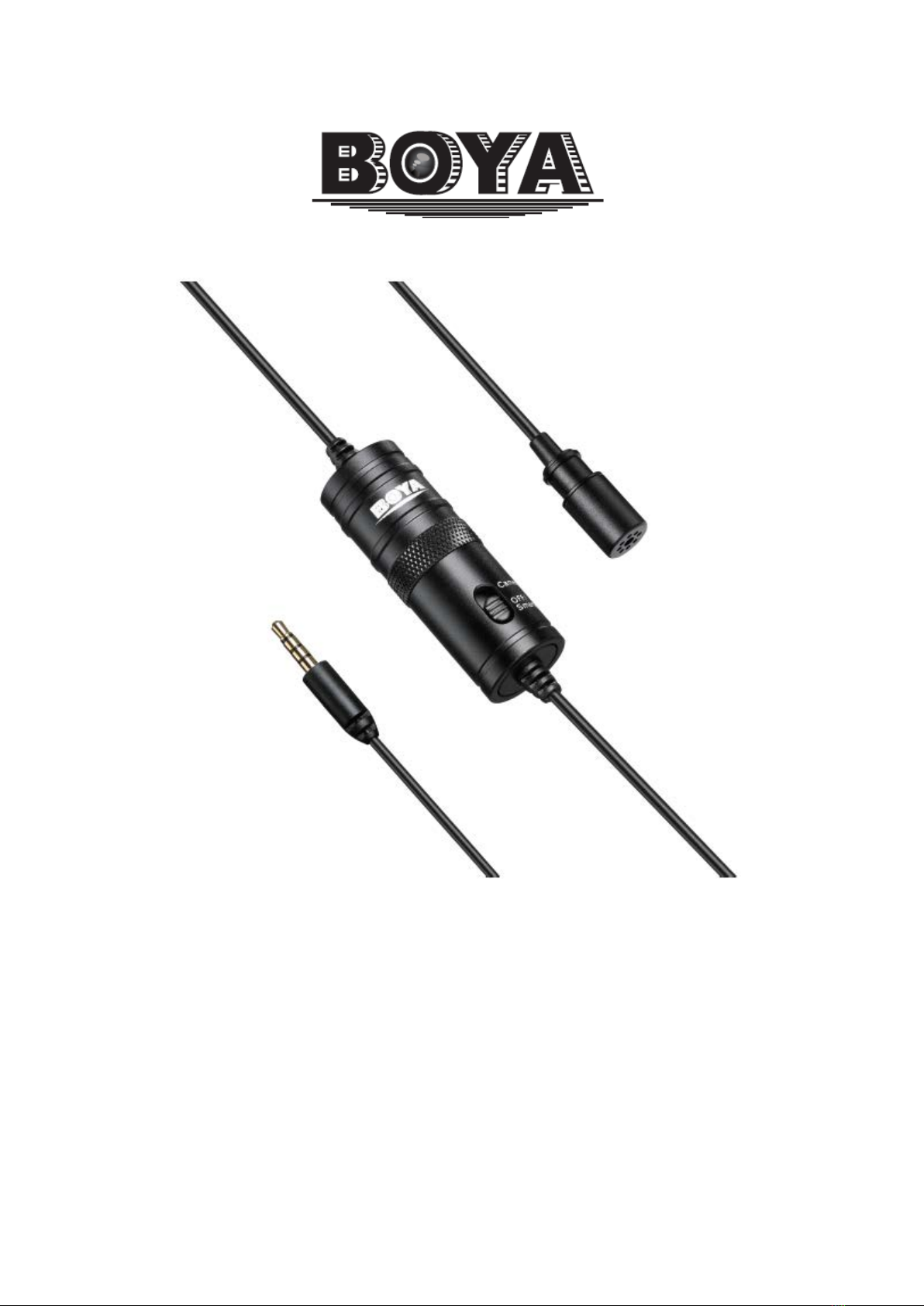

The BOYA BY-M1 is universal Livelier Microphone, which can be used with cameras,

smartphones, and other recording devices.

It is designed for reliable and trouble-free performance.

To ensure you have a good experience, please read this manual thoroughly and retain it

for future reference.

Package contents

•Lapel microphone

•Foam wind screen

•Clothing clip

•Battery (LR44)

•1/4" plug adapter

•User guide

Main features

Item

Description

Omni-directional

microphone

Picks up sound. The sound enters through the holes in

the top of the capsule.

Power pack

Provides power for the microphone for use with cameras

and other devices requiring a powered mic.

Camera setting

Turns power on to the microphone. For use with

cameras and other devices requiring a powered mic.

OFF/Smartphone

setting

Turns the power off to the microphone. For use with

Smartphones and other devices requiring an unpowered

mic.

Note: Keep the device on this mode when not in use to

save the battery.

3.5 mm connector

Connects the microphone to the Smartphone, camera,

camcorder, or other recording device.

Using the microphone

Attaching the microphone to the clothing clip

•Insert the microphone into the plastic loop on the clothing clip.

Notes:

•Attach the microphone upside down to reduce excessive breath noises and tonal

inconsistencies due to head movements.

•It is recommended that you always use the foam wind screen to avoid wind noise, even

when recording inside.

Mounting the microphone to your clothing

•Attach the microphone to the front of your clothing with the clothing clip, about

six inches (15-20 cm) from your face.

Notes:

•Tape a loose loop of the microphone cord to the inside of your clothing. This provides

additional strain relief for the microphone cord and isolation from unwanted noise.

•Before recording an important event, record and play back a short test clip with the

microphone attached to ensure audio recording is functioning properly.

Using the microphone with a camera

1. Plug the 3.5 mm connector into the audio input jack of your DSLR, Point and Shoot

camera, or camcorder.

2. Attach the microphone to your clothing (see previous instructions).

3. Move the switch on the power pack to the Camera (on) setting and being filming.

Note:

Not all cameras have a microphone input. Verify this with your camera manufacturer.

Many cameras have headphone, remote control, and other ports that look similar to a

microphone input. Make sure that you are using the correct one.

Using the microphone with a Smartphone

Caution:

Make sure that the microphone power pack is set to the OFF/Smartphone setting before

plugging it into your smartphone.

1. Plug the 3.5 mm connector into the audio jack of our smartphone.

2. Attach the microphone to your clothing (see previous instructions).

3. Open the audio-only or video recording app and being recording.

Using the microphone with other devices

1. Plug the 3.5 mm connector into the audio input jack of your device (audio recorder,

amplifier, PC, laptop).

Note:

On some devices, such as amplifiers, you may need to use the 1/4-in. adapter (included).

2. Attach the microphone to your clothing (see previous instructions).

3. Move the switch on the power pack to the Camera (on)setting, then begin recording.

Replacing the battery

1. Unscrew the two parts of the power pack and separate the pieces.

2. Remove the old battery from its compartment in the power pack.

Tip:

Use a non-metallic object, such a toothpick, to gently lift the battery straight up. Do not

push the battery side-to-side as you are lifting it, or it will bind inside the compartment.

3. Place the new battery, with the + and – oriented as indicated, into the battery

compartment in the power pack. The + symbol is stamped onside the compartment for

reference.

Troubleshooting

Problem

Solution

The microphone dose not turn

The battery may be incorrectly oriented in the

battery compartment. Open the battery

compartment and make sure the battery is correctly

installed.

The battery may be exhausted. Replace it with a new

one. See the Specifications section for compatible

replacements.

The battery terminals are dirty. Open the battery

compartment and clean the terminals with a cotton

swab.

The battery discharges too

quickly

The microphone is being left on (in the Camera

position). Turn off the microphone by moving the

switch to the OFF/Smartphone position.

You are using the microphone in extremely hot or

cold conditions which drains it quickly.

Too much ambience noise is

being picked up

Make sure that the microphone is as close as

possible to the subject. A certain amount of ambient

noise is unavoidable in loud environments.

Specifications

Transducer

Electret condenser

Polar pattern

Omni-directional

Frequency range

65 Hz ~18 kHz

Signal/Noise

74 dB SPL

Sensitivity

-30 dB ± 3 dB /0 dB=1V/Pa, 1kHz

Output impedance

1000 Ohms or less

Battery type

LR44 included (compatible with LR44, 357, and

SR44)

Connector

3.5 mm (1/8”) 4-pole gold plug

Dimensions

Microphone: 18.00mmH x 8.30mmW x 8.30mmD

Cable: 6.0m

Weight

Microphone: 2.5g

Power Module: 18g

Safety information

This symbol indicates that there are important operating and maintenance

instructions in the literature accompanying your microphone.

Important safety instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this microphone near water.

6. Clean only with a dry cloth.

7. Only use attachments/accessories specified by the manufacturer.

8. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

9. To protect the device from damage or malfunction, do not expose this device to rain,

moisture, or excessive humidity.

10. Batteries should not be exposed to excessive heat such as direct sunlight, fire, or

being left in a hot car.

11. Take great care when using the microphone around moving objects or in other

situations where the cable could be suddenly tugged or pulled.

12. NEVER wrap the microphone cable around your neck or any part of your body.

Warning

Danger of explosion if the battery is incorrectly replaced. Replace only with the same or

equivalent type.

Features

•Clip-on lapel microphone for Smartphones, cameras, camcorders, audio

recorders, PCs, and other audio/video recording devices

•High-quality condenser microphone, ideal for accurate voise recording

•Omni-directional pick-up pattern for flexible, easy use

•Low handling noise

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you

need repair or other services during the warranty period, contact the product seller

directly, you must provide the original proof of purchase with the date of purchase.

The following are considered to be a conflict with the warranty conditions, for

which the claimed claim may not be recognized:

•Using the product for any purpose other than that for which the product is intended

or failing to follow the instructions for maintenance, operation and service of the

product.

•Damage to the product by a natural disaster, the intervention of an unauthorized

person or mechanically through the fault of the buyer (e.g. during transport, cleaning

by inappropriate means, etc.).

•Natural wear and aging of consumables or components during use (such as

batteries, etc.).

•Exposure to adverse external influences, such as sunlight and other radiation or

electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,

electrostatic discharge voltage (including lightning), faulty supply or input voltage and

inappropriate polarity of this voltage, chemical processes such as used power

supplies, etc.

•If anyone has made modifications, modifications, alterations to the design or

adaptation to change or extend the functions of the product compared to the

purchased design or use of non-original components.

EU Declaration of Conformity

Identification data of the manufacturer's / importer's authorized representative:

Importer: Alza.cz a.s.

Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7

IČO: 27082440

Subject of the declaration:

Title: Microphone

Model / Type: BY-M1

The above product has been tested in accordance with the standard(s) used to

demonstrate compliance with the essential requirements laid down in the

Directive(s):

Directive No. (EU) 2014/30/EU

Directive No. 2011/65/EU as amended 2015/863/EU

Prague, 23.11.2020
