Instruction Manual

Thank you for purchasing BOYA BY-MM1!

The BOYA BY-MM1 is a cardioid microphone, which,specially design to improve

the sound quality of videos on the basis of build-in microphones.

With both TRS cable and TRRS output cable included,it can be used on Smartphones,

cameras, camcorders, .audio recorders, PCs, and other audio/video recording devices.

BY-MM1 comes out in compact size and light weight aluminium constructure ,it will

not be a heavy burden while shooting.Plug and play design,no need to worry the

battery status. Included inside with an anti-shock mount, which can effectively reduce

unwanted vibration,cable and handling noise. Also included a furry windproof

shield,which specially used for minimizing the wind and environmental noise for

outdoor recording , make sure the sound crystal clear.

Features

Compact on-camera microphone

Compatible with smartphones, DSLR cameras, Consumer Camcorders,PCs etc

Rugged metal construction

No battery required

Professional furry windshield included

Specifications

Transducer: Electret Condenser

Polar pattern: Cardioid

Frequency Response: 35-18KHz +/-3dB

Sensitivity: -42dB +/-1dB/0dB=1V/Pa,1kHz

Signal to Noise Ratio: 76dB SPL

Plug: 3.5mm TRS and TRRS connector

Dimensions: Ф22* 81mm

Net Weight: 86g

Please read these instructions for use thoroughly before you use this new

equipment for the first time. It contains everything you need to know in order to

avoid damage to persons or property.

Strictly follow all notes on safety in these instructions for use.

Keep these instructions for use in a safe place. If you sell your equipment or pass

it on to someone else, you should also pass on these instructions for use.

1.Understanding these instructions for use correctly

1.1 Markings on the device

This symbol indicates,that your device meets the safety requirements of all

applicable EU-directives.

Waste disposal and protection of the environment

Electric and electronic appliances as well as batteries must not be disposed of together

with domestic waste.The user is legally obliged to return electric and electronic

appliances as well as batteries to specially set up public collecting points or the sales

outlet once they have reached the end of their service life.Details are regulated by

national law. The symbol on the product,the instructions for use or the packaging

refers to these provisions. The recycling, the material-sensitive recycling or any other

form of recycling of waste equipment/batteries is an important contribution to the

protection of our environment.

What’s included

①Furry windshield

②Microphone

③3.5mm audio jacket

④Shock mount

⑤3.5mm audio output cable

⑥3.5mm to TRS audio output cable

⑦3.5mm to TRRS audio output cable

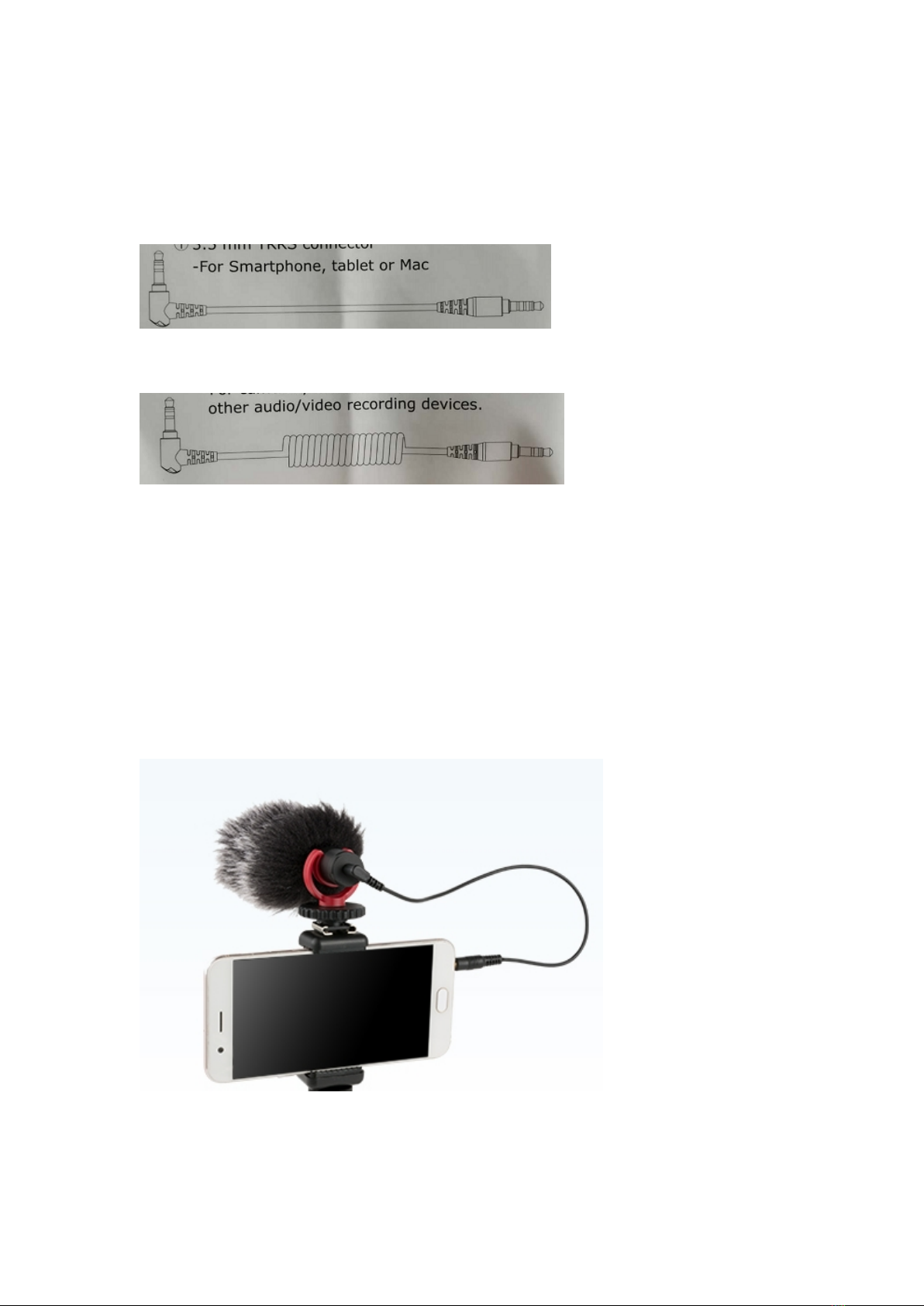

What's difference?

①3.5 mm TRRS connector

-For Smartphone, tablet or Mac

②3.5 mm TRS connector

-For cameras,camcorders,audio recorders and other audio/video recording devices.

Using the microphone with a Smartphone,tablet or Mac.

1.Plug the 3.5 mm TRRS connector into the audio jack of your smartphone,tablet or

Mac.

2.Open the audio-only or video recording app and begin recording.

Using the microphone with cameras,camcorders,audio recorders and other

audio/video recording devices.

1.Lock the microphone on the camera hot shoe

2.Plug the 3.5 mm TRS connector into the audio input jack of your device (audio

recorder,amplifier,PC,laptop).

Specifications

Troubleshooting

If you have any problem using the BY-MM1components,use the following checklist.

If any problem persist, please consult our local dealer,or contact us directly at

sales @boya-mic.com.

Problem

Solution

The microphone can't

work

Make sure that using the correct audio connector.

1)For smartphone,tablet or Mac,using 3.5mm flexible cable.

2)For others devices,using 3.5mm straight cable.

Too much ambience

noise is being picked

Make sure that the microphone is as close as possible to the

subject.

A certain amount of ambient noise is unavoidable in loud

environments.
