ZALMAN ZM80C-HP Manuel utilisateur

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

This Manual Contains the Following Languages for Pro uct

Installation :

●

English Language

●

󳣍For a better understanding of the installation process, watch the installation video

clip at our website (www.zalman.co.kr)

All manuals and user guides at all-guides.com

all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

1. Features

By using a heatpipe, heat from GPU(sometimes referred to VPU, Video Processing Unit) can be dissipated

efficiently without a cooling fan

he fanless design ensures complete noiselessness and semi-permanent, maintenance-free operation.

It can be used on virtually all kinds of graphics cards, so it can be reused with upgraded graphics cards.

Note : he graphics cards without the heatsink mounting holes or with components that interfere

with the heatsink cannot accommodate this product.

4) User can install the quiet cooling fan (ZM80C Option Package 'ZM-OP1', sold separately)

without using the bracket for fan attachment.

5) With the optional fan (ZM-OP1), the graphics card will operate in more stable condition by

cooling the memories on the card as well as VGA chipset.

2. Specifications

- Weight : 325g

- Heatpipe : Gold Plated Copper ube

- Dissip. Material : Aluminum

- Dissip. Area : 1200

Cm2

3. Usable Graphics Car Types

Cards with heatsink mounting holes

Note 1) When using this product with Matrox Parhelia series graphics cards or GeForce FX 5800 (or higher

model), the optional fan (ZM-OP1) must be used.

Note ) When installing on an A I Radeon 9800 Pro, it is recommended to use the quiet cooling

fan (ZM-OP1).

Note 3) If the components on the

graphics

card interfere in any way with the heatsink components, you cannot

use this heatsink. In such a case, you should immediately stop installation and return the product.

Note 4) Since the heatsink weighs 325g, the graphics card equipped with this heatsink should be attached

tightly inside the PC case with a screw when installing. Also special care should be taken while the

computer is moved. (Zalman ech. Co., Ltd. is not responsible for any damage to a system or a

graphics card occurring when moving a computer.)

Note 5) he heatsink occupies an adjacent PCI slot.

Note 6) Before using this product for any other VGA chipset, please check the compatibility at Zalman’s

website(www.zalman.co.kr)

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

Cautions on Installation an Use

1. he computer should be placed according to the following diagrams in order for the product to

function properly. If the set-up is so that the

graphics

card’s GPU faces upwards, then it is not

appropriate for this product. If you attempt to adjust the positioning of the computer by flipping it in a

reverse direction, the product will not function properly either, so you should place your computer

case in a normal position.

2. As shown in figure, if the northbridge cooler is 25mm tall(or bigger)and located within 5.5mm from

AGP slot, an interference may occur. When used with Zalman No Noise CNPS7000 series cooler,

if CPU retention guide is located within 35 mm from AGP slot, ZM80C-HP can not be installed.

Good (O)

(AGP Slot is

Under the CPU)

Good (O)

(AGP Slot is

Under the CPU)

Bad (X)

(AGP Slot is On

Top of the CPU)

Good (O)

(AGP Slot is to the

Right Side of the CPU)

CPU Here

AGP Slot

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

5. For a complete noiseless system, use the following Zalman products to achieve stable and silent

computing environment : ZM300A-APF power supply, CPU cooler of CNPS series, ZM-NB47J

mainboard northbridge chipset cooler, ZM-2HC1 heatpipe HDD cooler and ZM-F1 system fan.

4. While the ZM80C-HP can sufficiently cool itself without a

fan, it is designed to accommodate an 80mm fan directly

on the heatsink. herefore, a quiet cooling fan (ZM80C

Option Package) can be installed to increase

performance.

( he ZM80C Option Package (see Components

section, #9)

is composed of a slim 80mm fan [80x80x15], a fan grill,

and necessary parts for attaching. his product is sold

separately.)

3. he GPU (VPU) temperature can be lowered by 4~5℃

by opening up the slot covers on the case below the

AGP slot . AGP Slot

(Graphics Card)

open

Slot Covers

ZM300A-APF ZM-2HC1 ZM-NB47J ZM-F1

CNPS6000-XXXX CNPS6500B-XXXX CNPS7000-XXXX

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

Components

1) One (1) Front Side Heatsink 2) Front Side Heatsink Base Assembly A,B

3) One (1) Heatpipe

4) Back Side Heatsink Base Assembly A,B 5) One (1) Back Side Heatsink

Four (4)

Bolt-C

Four (4)

Bolt-B

Four (4)

Plate Link

Nipples

wo (2) Plate Link

(A) (B)

wo (2)

Nut-A

wo (2)

Rubber

Rings

wo (2)

Nipples

One (1)

hermal

Grease

wo (2)

Bolt-B

wo (2)

Bolt-C

wo (2)

Bolt-D

wo (2)

Nut-B

wo (2)

Rubber

Rings

One (1)

hermal

Grease

7) One Bag of Spare Parts

8) One (1) Screwdriver

9) ZM80C Option Package (ZM-OP1, Sold Separately)

6) One Bag of Assembly Parts

One(1) 80mm

Slim Fan

One(1)

Fan Grill

wo(2)

Fan Screws

wo(2)

Fan Bolts

wo(2) Fan

Nipples

One(1)

Multi Connector 1

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

Explo e View

Bolt-B

Front Side

Heatsink Base

Back Side Heatsink

Back Side Heatsink Base

Plate Link Nipple

Plate Link

Nut-A

Rubber Ring

Nipple

Heatpipe

Front Side

Heatsink

Bolt-B

Bolt-C

All manuals and user guides at all-guides.com

all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

How to Install

1. Spread the Thermal Grease on the GPU(VPU)

1) Clean off the surfaces of the GPU(VPU) and the Front Side Heatsink Base thoroughly.

2) Spread the thermal grease thoroughly on the GPU(VPU). Using a thick piece of paper is

recommended for spreading. Many GPUs(VPUs) are concave (center is lower than around

the edges), so you should apply more thermal grease at the center of the chip.

. Choosing the Front Side Heatsink Base Assembly

his package includes two Front Side Heatsink Base Assemblies. If your graphics card is based on

Geforce4 i or your graphics card has heatsink mounting holes that are spaced far apart, then it is

necessary for you to use the Front Side Heatsink Base Assembly B. Otherwise, use Front Side

Heatsink Base Assembly A. he only difference between the Front/Back Side Heatsink Base

Assembly A and B is the width(A is shorter than B).

GPU(VPU)

Front side heatsink base assembly A Front side heatsink base assembly B

hermal Grease

Protective Frame for Core

Graphics Core

< A I Radeon 9700 PRO>

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

4. Install the Front Side Heatsink Base Assembly

1) he Front Side Heatsink Base Assembly should be centered and tightly pressed onto the center

of the GPU(VPU).

2) Unscrew the Bolt-D half a turn, and rotate the plate spring to insert the Bolt-A into the heatsink

mounting hole. (Note : Do not unscrew the Bolt-D completely!)

3) After the Front Side Heatsink Base Assembly is in place, tighten the Bolt-D

Note) If the plate spring loosens from the base assembly, refer to the installation step #19 to

re-assemble it, and start again from the beginning.

Front

Plate Spring

Front Side Heatsink Base

Heatsink Mounting Hole

graphics Card

Heatsink Mounting Hole

Bolt-A

Bolt-D

3. Locate where the Front Side Heatsink Base Assembly is to be Installed

he arrow (FRON 󳦎) should be pointing in the direction of the slot connector when the front

side heatsink base is facing in the appropriate direction, as shown in the diagram below.

(Be sure to confirm the positioning. This is very important.)

Front Side Heatsink Base

Groove for Heatpipe

Slot Connector

Front

(O) (X)

Front Side of the Graphics Card [ with the GPU(VPU)]

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

5. Assemble the Rubber Rings and the Nipples

1) Slide a rubber ring onto each Bolt-A protruding out of the back of the card.

2) Screw the nipples onto the Bolt-A, and tighten it with a screwdriver.

Front

Back

Nipple

Bolt-A

Rubber Ring

Nipple

6. Choosing the Back Side Heatsink Base Assembly & Application of Sticker

1) Use the size that corresponds to the appropriate Front Side Heatsink Base Assembly.

2) After choosing a suitable Back Side Heatsink Base Assembly, attach the sticker (included with

product) on the assembly’s bottom surface as shown in the diagram.

Note)

Use only one sticker of which the size is suitable for the Back Side Heatsink Base.

Never use the sticker for the Front Side Heatsink Base.

Back side heatsink base assembly A Back side heatsink base assembly B

Sticker

bottom surface

All manuals and user guides at all-guides.com

www.zalman.co.kr www.zalmanusa.com

VGA Heatpipe Cooler

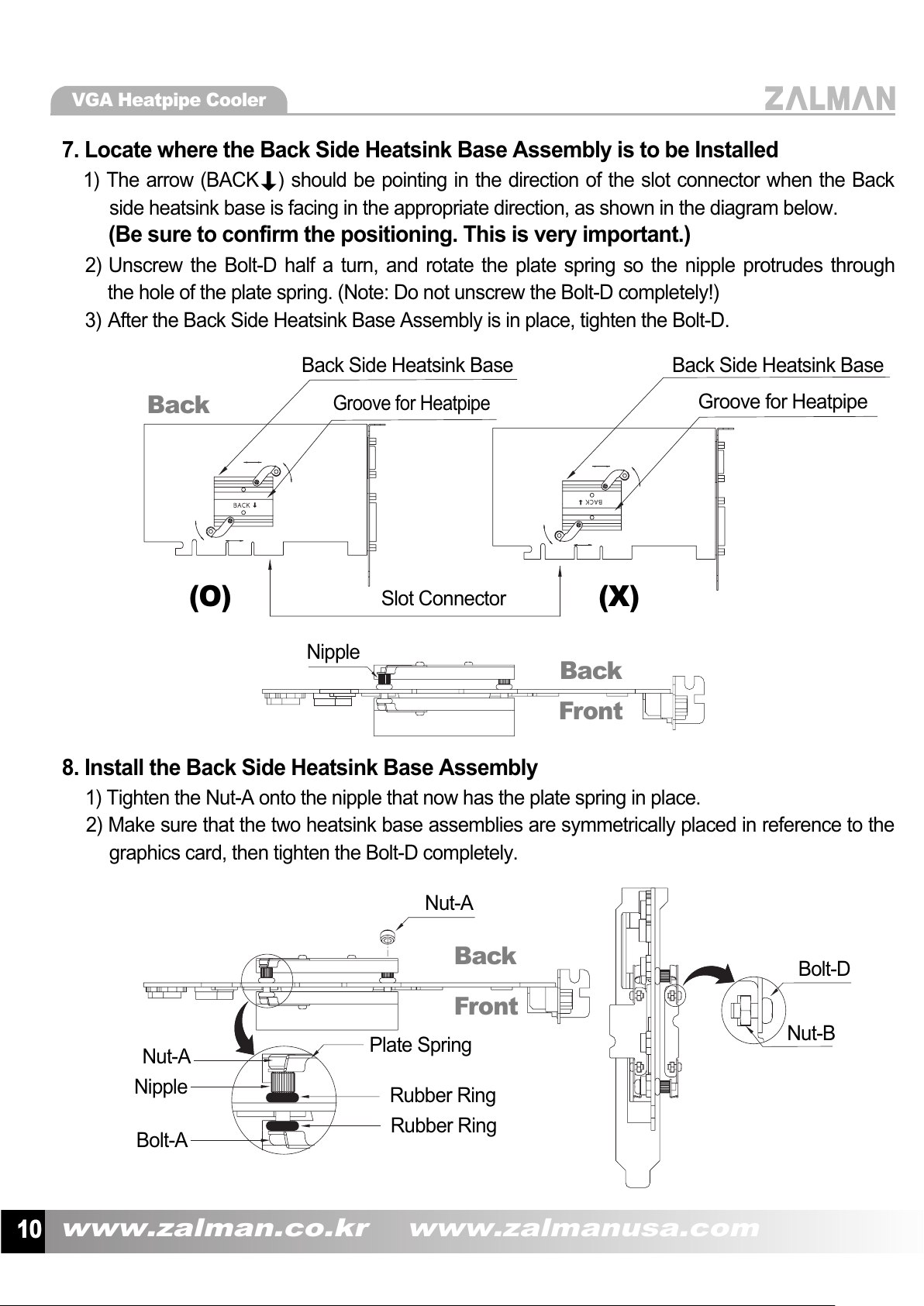

7. Locate where the Back Side Heatsink Base Assembly is to be Installed

1) he arrow (BACK󳦎) should be pointing in the direction of the slot connector when the Back

side heatsink base is facing in the appropriate direction, as shown in the diagram below.

(Be sure to confirm the positioning. This is very important.)

2) Unscrew the Bolt-D half a turn, and rotate the plate spring so the nipple protrudes through

the hole of the plate spring. (Note: Do not unscrew the Bolt-D completely!)

3) After the Back Side Heatsink Base Assembly is in place, tighten the Bolt-D.

8. Install the Back Side Heatsink Base Assembly

1) ighten the Nut-A onto the nipple that now has the plate spring in place.

2) Make sure that the two heatsink base assemblies are symmetrically placed in reference to the

graphics card, then tighten the Bolt-D completely.

Nipple

Nut-A

Bolt-D

Nut-B

Nipple

Nut-A

Bolt-A

Groove for Heatpipe

Back Side Heatsink Base

Groove for Heatpipe

Back Side Heatsink Base

(O) (X)

Back

Slot Connector

Front

Back

Front

Back

Rubber Ring

Plate Spring

All manuals and user guides at all-guides.com
