ZALMAN RESERATOR 1 Manuel utilisateur

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English Edition

Visit our website (www.zalman.co.kr) and watch the RESERATOR 1 installation

video to acilitate the installation process.

※Please read this manual thoroughly be ore installation.

※The speci ications o this product and its components may change without prior notice to improve the per ormance thereo .

All manuals and user guides at all-guides.com

all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

1. Make sure that the power source’s output voltage and requency are compatible with

the power input requirements o the water pump be ore installing. (Input voltage and

requency o the water pump can be located on the box and sink cover.)

2.Do not place in dusty or humid conditions, under direct sunlight, or near a heat source

such as a room heater.

3. Do not drop or subject to excessive orce.

4. Check CPU socket compatibility irst.

5. Familiarize yoursel with this manual.

6. Do not mix any contaminant with the coolant when illing, or it may cause product

ailure.

7. Use o a multiple-outlet power strip is recommended, or you can connect or disconnect

power to the PC and the Reserator 1’s pump simultaneously.

Cautions & Warnings

When nstalling

1. Always turn on the water pump irst be ore using the system.

2. I the coolant isn’t circulating or the pump is making a strange noise, turn o the pc

system immediately.

3. Do not place any object on the product.

4. Install on a lat sur ace with no vibration or slant; do not tilt or lay horizontally.

5. Use distilled or tap water or coolant, regularly check the amount o coolant, and

replenish as needed.

6. I a leak is ound, turn o the system immediately and examine the problem be ore

using the system again.

7. I the system will not be used or an extended period o time, turn o the water pump.

8. When moving the system, separate the reserator rom the PC case be ore moving.

9. Make sure to not let any air bubbles into the Water Block and tubes while in use.

10. Always check that the water pump is properly unctioning.

When in Use

All manuals and user guides at all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English

Reserator 1 is designed with an optimal heat dissipation area based on Zalman

Tech’s HCET (High Capacity Extrusion Technique) and high e iciency cooling

technology. As a result, this product achieves excellent cooling per ormance

even with natural convection, making it the world’s irst anless, noiseless water-

cooling system. The reservoir, radiator, and the water pump are conveniently

integrated into one assembly, and the heatsink is anodized to prevent corrosion

and rust. In addition, the kit includes the high-per ormance ZM-WB2 Gold water

block which is not susceptible to galvanic corrosion.

1. Features

Contents

Cautions & Warnings

Contents

1. Features

2. Speci ications

3. Installation View

4. Components

5. Installation

6. Installing External Water Pump

7. Separate Reserator and Water Block

8. FAQ

9. Exploded View

Zalman Noise Prevention System

All manuals and user guides at all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

1.1 Reserator (Reservoir + Radiator + Water Pump)

Reserator is a compound word derived rom ‘Reservoir’ and

‘Radiator’- it acts as a reservoir while radiating heat. This product

works well with natural convection and integrates a water pump

inside or convenience.

1.2 CPU Water Block(ZM-WB2 old)

The system includes Zalman’s new CPU cooling component,

ZM-WB2 Gold, which per orms superbly and installs easily.

1.3 Flow Indicator

This component is connected in-line with the circulation tube to

check the circulation o the coolant. When the coolant is actively

circulating, the cap inside the low indicator shakes rapidly,

providing easy indication o the circulation status.

2.1 Reserator (Reservoir + Radiator + Water Pump)

Dissipation Area : 1.274 ㎡

Weight : 6.5kg

Dimensions : 150(L) x 150(W) x 592(H) mm

Material : Anodized Pure Aluminum

Coolant Capacity : 2.5ℓMaximum

Integrated Water Pump : 5 W, Qmax 300ℓ/h(A type : 220 V-60 Hz, B type : 230 V-50 Hz,

C type : 120 V-60 Hz, D type : 110 V-60 Hz)

Maximum Li t : 0.5 m

2.2 CPU Water Block(ZM-WB2 old)

Weight : 447g

Material : Pure Aluminum Cover, Gold-Plated Pure Copper Base

Dimensions : 64 x 31mm

Compatibility : Intel Pentium 4 (Socket 478), AMD Athlon / Duron / Athlon XP (Socket 462),

AMD AMD64 (Athlon 64 / Athlon 64 FX / Opteron) (Socket 754 / 940)

2. Specifications

All manuals and user guides at all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English

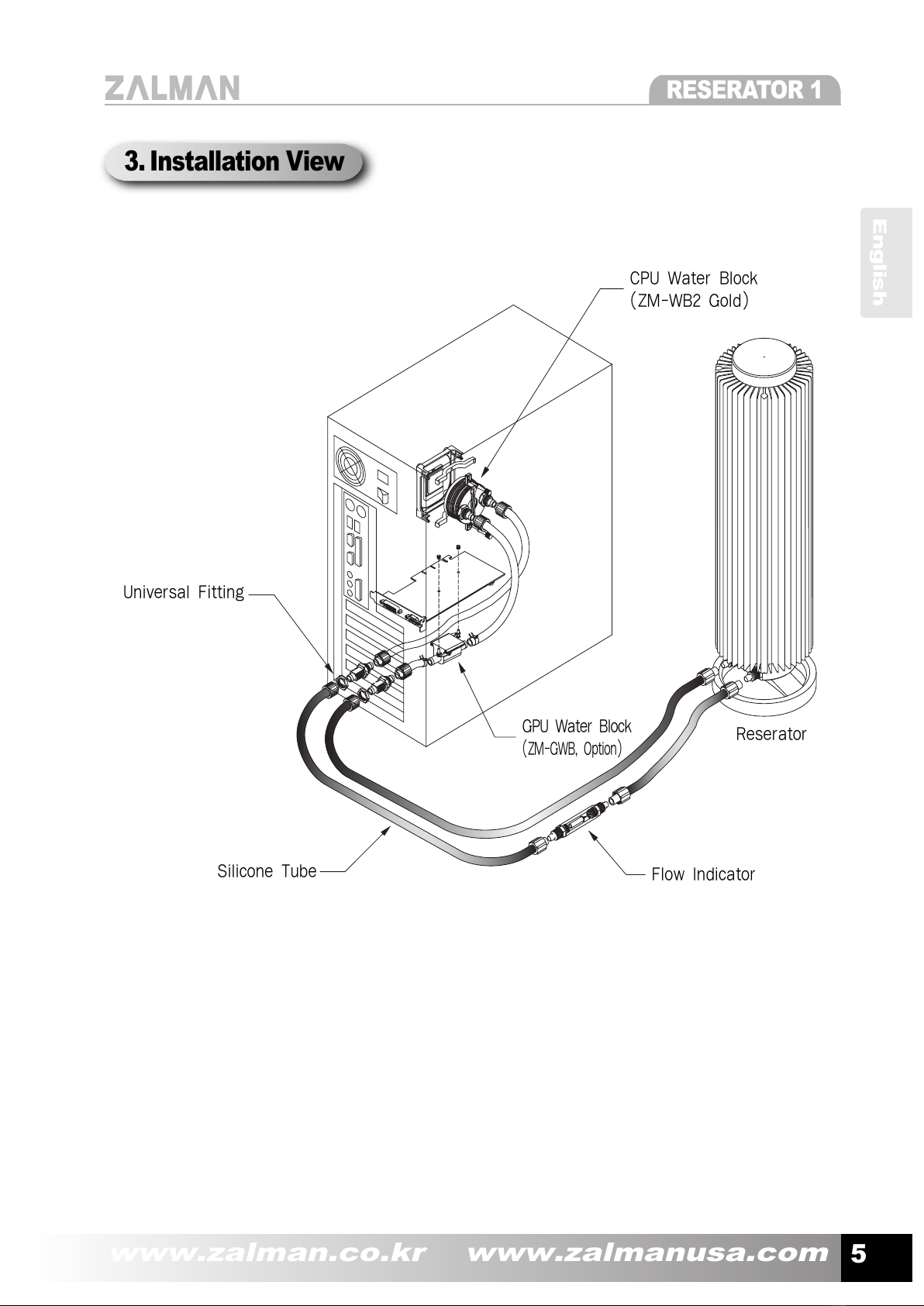

3. nstallation View

CPU Water Block

(ZM-WB2 Gold)

Universal Fitting

Silicone Tube Flow Indicator

Reserator

GPU Water Block

(ZM-GWB, Option)

All manuals and user guides at all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

4. Components

4.1 Reserator 1 Main Assembly 1SET

4.3 Flow Indicator 1EA

4.4 Universal Fitting 2EA

4.5 Silicone Tube 1SET

4.6 Spare parts

Sealing Bolt B 1EA Cable Fitting 1EA

Compression Fitting 1EA O-Ring B 1EA

4. 2 CPU Water Block

(ZM-WB2 old) 1SET

Please re er to the separately provided

manual or the ZM-WB2 Gold.

Silicone Tube 1SET

Clamp 4EA

All manuals and user guides at all-guides.com

all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English

Options

●●PU Water Block

Water block or cooling the GPU on a graphics card.

This product is sold separately and available in two

versions or compatibility with ATI Radeon and NVIDIA

GeForce GPUs.

●●ZM-WB2 old

Dual CPU users can buy an additional unit o ZM-WB2

Gold or installation on the second CPU.

●●Silicone Tube

I the included silicone tube is ound to be short or you

need to use the tube on another system, additional

tubes can be bought separately

(base length is 3 m, 12 x 8 mm).

●●Heatpipe HDD Cooler

This component cools the heat generated rom the hard

disk drive and reduces the vibration that is passed on to

the system case.

●●Power Supply Unit

By implementing heat-sensor circuitry that controls the

cooling an’s speed in relation to the temperature within

the power supply, emanating noise has been greatly

reduced, making this component suitable or noiseless

systems.

All manuals and user guides at all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

5. nstallation

5.1 Determine the Placement of the Reserator 1

The reserator’s placement should be determined with regard to the connected PC. Place it

upright next to or slightly above the PC. Note that i the Reserator is placed lower than the

PC, the silicone tube’s internal air pressure may prevent proper initial operation.

5.2 Install the CPU Water Block (ZM-WB2 old)

1) Re er to the manual included with ZM-WB2 Gold on how to install.

2) ZM-WB2 Gold can be installed on Socket 478, 462, 754, and 940.

3) I a water block rom another manu acturer is to be installed, re er to the manual included

with that product on how to install.

4) I inter erence occurs while installing, stop the installation.

5) Only 13 x 10 mm or 12 x 8 mm silicone tubes can be used with this product.

( X ) ( X ) ( X )

( O ) ( O )

Intel Pentium 4

Socket 478 CPU

AMD Athlon/Duron/Athlon XP

Socket 462 CPU

AMD AMD64(Athlon

64/Athlon 64 FX/Opteron)

Socket 754/940 CPU

All manuals and user guides at all-guides.com

I a GPU water block is installed, connect the CPU water block’s exit hole with the

GPU water block.

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English

5.3 Connect the CPU Water Block with the Universal Fitting

Use the silicone tubes to connect the CPU water block with the universal itting. Be care ul

with the tubes so that they are not twisted and not too long to inter ere with other components.

Slot Hole

CPU Water Block

(ZM-WB2 Gold)

CPU Water Block

(ZM-WB2 Gold)

GPU Water Block

(ZM-GWB, Option)

Universal Fitting

Fitting Cap

Slot Hole

Universal Fitting

All manuals and user guides at all-guides.com

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

5.4 Fasten the Universal Fitting

I you want to drill the holes in the

side o the case or astening, each

o them should be 16 mm in diameter.

The tube holes should be made at

the same height as the slot holes at

the back o the case.

Universal Fitting

Fitting Nut

Fitting Cap

I the universal itting is to be astened on the PCI slot hole in the back o the case, separate

the itting cap and the itting nut rom the universal itting. Then, insert the universal itting into

the PCI slot hole rom the inside towards the outside as shown and asten with itting nuts.

ф16 Hole
