Ruijie 5310-E Series Manuel d'installation et d'exploitation

Ruijie RG-S5300-E， 5310-E Series Switches

Hardware Installation and Reference Guide

Document Version: V1.04

Date: 2023.03.01

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by

vertical bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and

separated by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a

comment line.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Hardware Installation and Reference Guide Product Overview

1Product Overview

The RG-S5300-E and RG-S5310-E series switches are new generation layer 3 switches, providing high performance, consolidated

security and multiple services. The switches are mainly applied to the access layer to provide line-rate switching and complete QoS

policies, prioritizing some traffic over others to ensure important data transmission without lantency. The switches also support a wide

variety of Ethernet interfaces with flexible media options for network construction.

There are 12 models available now.

Model

10/100/1000Base-T

Adaptive Ethernet

Port

GE SFP

Port

10GE

SFP+

Port

Management

Port

USB

Port

Console

Port

RPS

RG-S5310-24GT4XS-E

N/A

Dual

Power

Supplies

RG-S5300-24GT2SFP2XS-E

Fixed

Power

Supply

RG-S5300-24GT4XS-E

N/A

Fixed

Power

Supply

RG-S5310-48GT4XS-E

N/A

Dual

Power

Supplies

RG-S5300-48GT2SFP2XS-E

Fixed

Power

Supply

RG-S5300-48GT4XS-E

N/A

Fixed

Power

Supply

RG-S5310-24GT4XS-P-E

24 (PoE+ Capable)

N/A

Dual

Power

Supplies

RG-S5300-24GT2SFP2XS-P-

24 (PoE+ Capable)

Fixed

Power

Supply

RG-S5300-24GT4XS-P-E

24 (PoE+ Capable)

N/A

Fixed

Power

Supply

RG-S5310-24SFP4XS-E

N/A

Dual

Power

Supplies

RG-S5310-48SFP4XS-E

N/A

Dual

Power

Hardware Installation and Reference Guide Product Overview

Supplies

RG-S5310-48GT4XS-P-E

48 (PoE+ Capable)

N/A

Dual

Power

Supplies

This is a Class A product. In a domestic environment this product may cause radio interference. In this case, users are advised to

take proper measures against the interference.

An SFP+ port supports both 10GBase-R and 1000Base-X.

The PoE+ port is backward compatible with the PoE standard.

Management port: The management port is a 10/100/1000Base-T Ethernet port that uses an RJ-45 connector. This port is

connected to an Ethernet port of a PC with an Ethernet cable for program downloading. You can manage and maintain the switch

remotely by connecting the management port to the Ethernet port of a PC with an Ethernet cable.

USB port: The USB port is the interface into which you plug your USB storage device for online upgrade or log storage.

Console port: The console port is an RS-232 port that uses an RJ45 connector. The console port is used to connect a PC directly

to the management system for debugging, configuration, maintenance, management and program loading.

1.1 RG-S5310-24GT4XS-E

Specifications

Model

RG-S5310-24GT4XS-E

CPU

Dual-core CPU with the clock speed of 1.2 GHz

BOOTROM

16 MB

Flash Memory

2 GB

SDRAM

1 GB

SFP Module Type

SFP+ Port:

SFP Modules and SFP BIDI Modules

SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules.

See Chapter 7 for details.

The module types may update without prior notification. Please contact Ruijie Networks for

details.

Power Supply Module

Slots

Power Supply Module

Model: RG-PA70IB

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 V AC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 2 A

Model: RG-PA150IB-F

Hardware Installation and Reference Guide Product Overview

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 V AC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 3 A

Model: RG-PD150IB-F

DC Input

Rated Voltage Range: -48 V DC to -60 V DC

Maximum Voltage Range: -36 V DC to -75 V DC

Rated Current Per Circuit: 5 A

SFP+ Port

10GBase-R Capable

1000Base-X Capable

RTC

Supported

PoE

Not Supported

Power Consumption

< 40 W

Operating Temperature

0ºC to 45ºC (32ºF to 113 ºF) at a height below 1800 m (1.12 miles) above the sea level

At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the maximum

operating temperature decreases by 1°C (1.8°F) every time the altitude increases by 220 m (721.78

ft.).

Storage Temperature

-40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

10% to 90% RH (non-condensing)

Operating Height

0 to 5000 m (3.11 miles) above the sea level

Storage Humidity

5% to 95% RH (non-condensing)

Fan

Fan Speed Control

Fan Fault Alarming

Temperature Alarming

Supported

EMI Certification

GB9254-2008CLASS A

Safety Regulation

Compliance

GB4943-2011

Dimensions

(W x D x H)

442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)

Weight

4 kg (8.82 lbs.)

Appearance

The front panel of the RG-S5310-24GT4XS-E switch provides 24 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports, one

management port, one Console port and one USB port. The back panel has two power supply module slots.

Figure 1-1 RG-S5310-24GT4XS-E Switch Appearance

Hardware Installation and Reference Guide Product Overview

Front Panel

Figure 1-2 Front Panel of RG-S5310-24GT4XS-E

1. System Status LED

2. MGMT Port LED

3. PWR1 Status LED

4. PWR2 Status LED

5. USB Port

6. Console Port

7. Management Port

8. 10/100/1000Base-T Ethernet Port

9. 10GE SFP+ Port

10. Port Status LED

Back Panel

Figure1-3 Back Panel of RG-S5310-24GT4XS-E

1. Grounding Stud

2. Power Supply Module Slot 1 (A filler panel is required if the

slot is vacant.)

3. Power Supply Module Slot 2 (A filler panel is required if the

slot is vacant.)

Power Supply Module

The RG-S5310-24GT4XS-E switch supports dual power supply modules. See Chapter 1.13 for details about the power supply modules.

The switch can be powered on by either one power supply module or dual power supply modules. If both power supply modules are

used, the switch works in the power redundancy mode.

Hardware Installation and Reference Guide Product Overview

Cooling

The RG-S5310-24GT4XS-E switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum

clearance of 100 mm (3.94 in.) around the device for air circulation.

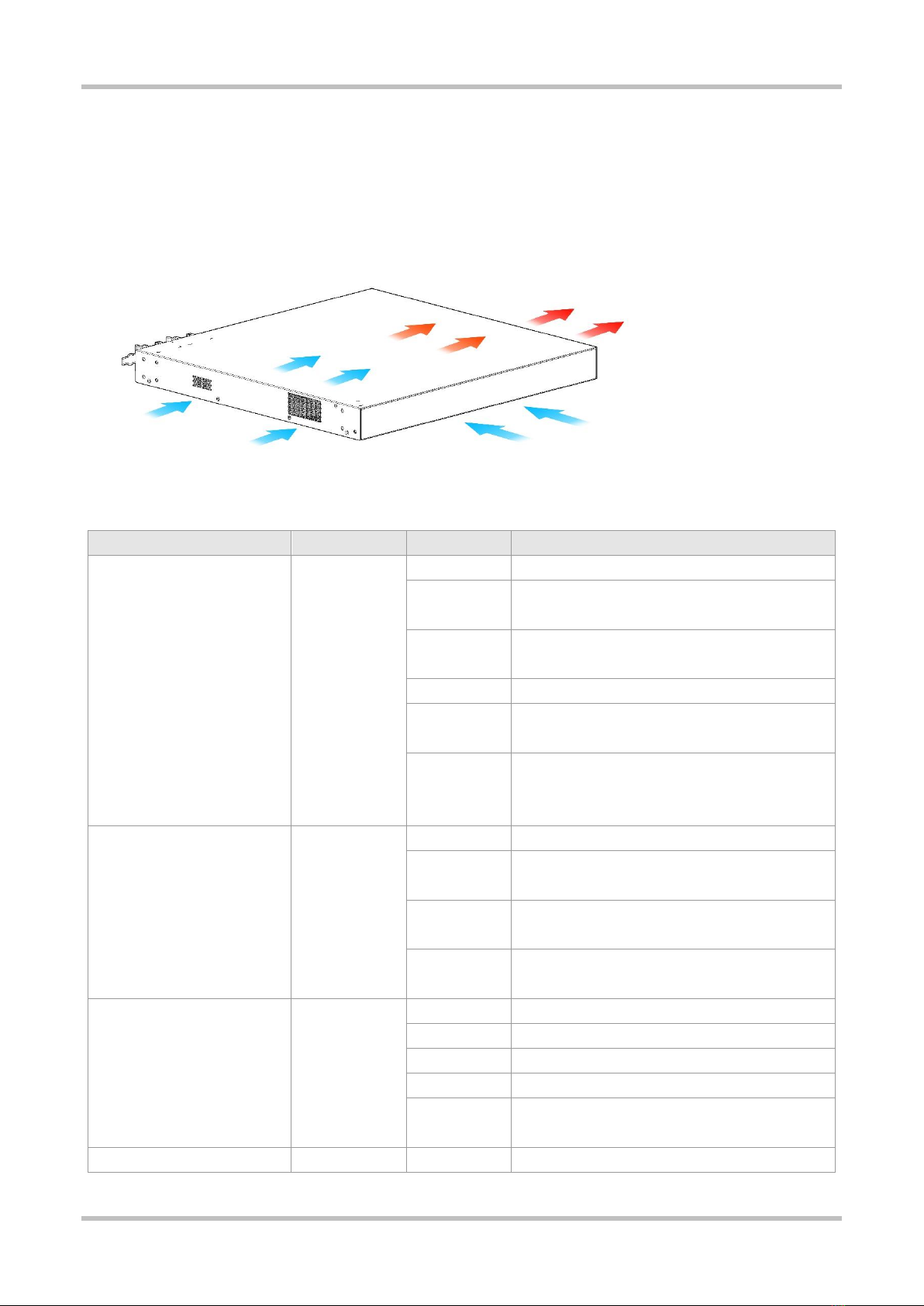

Figure 1-4 Airflow Direction

LED

Function

Panel ID

Color

Status

System Status LED

Status

Off

System is not powered on.

Blinking Green

(3 Hz)

System is being initialized. Continuous blinking

indicates a fault.

Blinking Green

(10 Hz)

System is being located.

Solid Green

System is operating normally.

Solid Yellow

The temperature at the air intake and exhaust vents

exceeds the threshold.

Solid Red

1. The temperature at the air intake and exhaust vents

well exceeds the threshold.

2. The system is not functioning properly.

Power Supply Status LED

PWR1/PWR2

Off

The power supply module is not seated.

Solid Green

The power supply module is seated and providing

power to the switch.

Solid Yellow

The model of the power supply module is not

supported or cannot be read.

Solid Red

The redundant power supply module is not functioning

properly or not connected with the AC power cord.

Management Port LED

MGMT

Off

No link is detected for this port.

Solid Green

The port has made a successful 1000 Mbps link.

Blinking Green

The port is sending and receiving traffic at 1000 Mbps.

Solid Yellow

The port has made a successful 10/100 Mbps link.

Blinking Yellow

The port is sending and receiving traffic at 10/100

Mbps.

10GE SFP+ Port LED

25F to 28F

Off

No link is detected for this port.

Hardware Installation and Reference Guide Product Overview

Solid Green

The port has made a successful 1/10 Gbps link.

Blinking Green

The port is sending and receiving traffic at 1/10 Gbps.

10/100/1000Base-T Ethernet

Port LED

1F to 24F

Off

No link is detected for this port.

Solid Green

The port has made a successful 10/100/1000 Mbps

link.

Blinking Green

The port is sending and receiving traffic at

10/100/1000 Mbps.

1.2 RG-S5300-24GT2SFP2XS-E

Specifications

Model

RG-S5300-24GT2SFP2XS-E

CPU

Dual-core CPU with the clock speed of 1.2 GHz

BOOTROM

16 MB

Flash Memory

2 GB

SDRAM

1 GB

SFP and SFP+ Module

Type

SFP Port:

SFP Modules and SFP BIDI Modules.

SFP+ Port:

SFP Modules and SFP BIDI Modules.

SFP+ Modules, SFP+ Cables and SFP BIDI Modules.

See Chapter 7 for details.

The module types may update without prior notification. Please contact Ruijie Networks for

details.

Built-in Power Supply

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 V AC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 1.5 A

SFP Port

1000Base-X Capable

SFP+ Port

10GBase-R Capable

1000Base-X Capable

RTC

Supported

PoE

Not supported

Power Consumption

< 40 W

Operating Temperature

0ºC to 45ºC (32ºF to 113 ºF) at a height below 1800 m (1.12 miles) above the sea level

At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the maximum

operating temperature decreases by 1°C (1.8°F) every time the altitude increases by 220 m (721.78

ft.).

Storage Temperature

-40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

10% to 90% RH (non-condensing)

Operating Height

0 to 5000 m (3.11 miles) above the sea level

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RGOS 11.X Manuel utilisateur

Ruijie

Ruijie RG-S7808C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6980-64QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S8600E Series Manuel de l'opérateur

Ruijie

Ruijie RG-S2600E Series Manuel utilisateur

Ruijie

Ruijie RG-S5000-24GT4MS-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2928G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P V2 Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS7003 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5200-24GT4XS-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6110 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6120 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SF2920U Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-S Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
