Ruijie RG-CS83 Series Manuel d'installation et d'exploitation

Ruijie RG-CS83 Series Switches

Hardware Installation and Reference Guide

Document Version: V1.0

Date: 2023.08.20

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Live Chat: https://www.ruijienetworks.com/rita

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by

vertical bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and

separated by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a

comment line.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Hardware Installation and Reference Guide

1 Product Overviews

The RG-CS83 series switches are new generation layer 3 switches, providing high performance, consolidated security and

multiple services. The switches are mainly applied to the access layer to provide line-rate switching and complete QoS

policies, prioritizing some traffic over others to ensure important data transmission without lantency. The switches also

support a wide variety of Ethernet interfaces with flexible media options for network construction.

There are 5 models available now.

Model

10/100/1000Base-T

Adaptive Ethernet

Port

GE SFP

Port

10GE

SFP+

Port

Managemen

t Port

USB

Port

RPS

Fan

Heat

Dissipation

RG-CS83-

12GT4XS-P

12 (PoE+ Capable)

N/A

Fixed

Power

Supply

Fixed

fan

module

Left- and front-

side intake and

right-side

exhaust

RG-CS83-

24GT4XS

N/A

Fixed

Power

Supply

N/A

Natural heat

dissipation

RG-CS83-

24GT4XS-P

24 (PoE+ Capable)

N/A

Fixed

Power

Supply

Fixed

fan

module

Left- and front-

side intake and

right-side

exhaust

RG-CS83-

48GT4XS

N/A

Fixed

Power

Supply

Fixed

fan

module

Left- and front-

side intake and

right-side

exhaust

RG-CS83-

48GT4XS-P

48 (PoE+ Capable)

N/A

Fixed

Power

Supply

Fixed

fan

module

Left- and front-

side intake and

right-side

exhaust

This is a Class A product. In a domestic environment this product may cause radio interference. In this case, users

are advised to take proper measures against the interference.

This device is not suitable for use in places where children may be present.

An SFP+ port supports both 10GBase-R and 1000Base-X.

The PoE+ port is backward compatible with the PoE standard.

USB port: The USB port is the interface into which you plug your USB storage device for online upgrade orlogstorage.

Console port: The console port is an RS-232 port that uses an RJ45 connector. The console port is used to connect

a PC directly to the management system for debugging, configuration, maintenance, management and program

Hardware Installation and Reference Guide

1.1 RG-CS83-12GT4XS-P

Specifications

Model

RG-CS83-12GT4XS-P

CPU

Dual-core CPU with the clock speed of 1.0GHz

BOOTROM

16MB

Flash Memory

512MB

SDRAM

1GB

SFP Module Type

SFP+ Port:

SFP Modules and SFP BIDI Modules

SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules.

See Chapter 7 for details.

The module types may update without prior notification. Please contact Ruijie Networks

for details.

Built-in Power Supply

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 VAC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 6 A

SFP+ Port

10GBase-R Capable

1000Base-X Capable

RTC

Supported

PoE

All RJ45 ports are PoE+ capable and each port provides up to 30 W of power.

The maximum power is 370W.

The PoE+ port is compliant with both the PoE (IEEE802.3af) and PoE+ (IEEE802.3at)

standards.

The maximum number of PoE devices supported by the switch is determined by the

available PoE consumption of the switch and the actual PoE consumption of each

device.

The PoE port is compliant withAlternative A.

Power Consumption

Without PoE Load: < 35 W

With PoE Full Load: < 405 W

Ambient Noise

32 dB(A)

Operating

Temperature

0ºC to 45ºC (32ºF to 113 ºF ) at a height below 1800 m (1.12 miles) above the sea level

At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the

maximum operating temperature decreases by 1°C (1.8°F) every time the altitude increases

by 220 m (721.78 ft.).

Storage Temperature

-40ºC ~ 70ºC

Operating Humidity

10% ~ 90% RH

Operating Height

0~5000m

Storage Humidity

5% ~ 95% RH

Hardware Installation and Reference Guide

Fan

Fan Speed Control (manual configuration not supported)

Fan Fault Alarming

Temperature

Alarming

Supported

EMI Certification

GB/T 9254.1

Safety Regulation

Compliance

GB 4943.1

Dimensions

(W x D x H)

442mm ×220mm ×43.6mm (17.4in x 8.66in x 1.72in )

Weight

3kg (6.61 lbs.) (The product information label is on the bottom of the switch.)

Appearance

The front panel of the RG-CS83-12GT4XS-P switch provides 12 10/100/1000Base-T Ethernet ports (PoE+ Capable), four

10GE SFP+ ports, one Console port and one USB port. The back panel has anAC power plug.

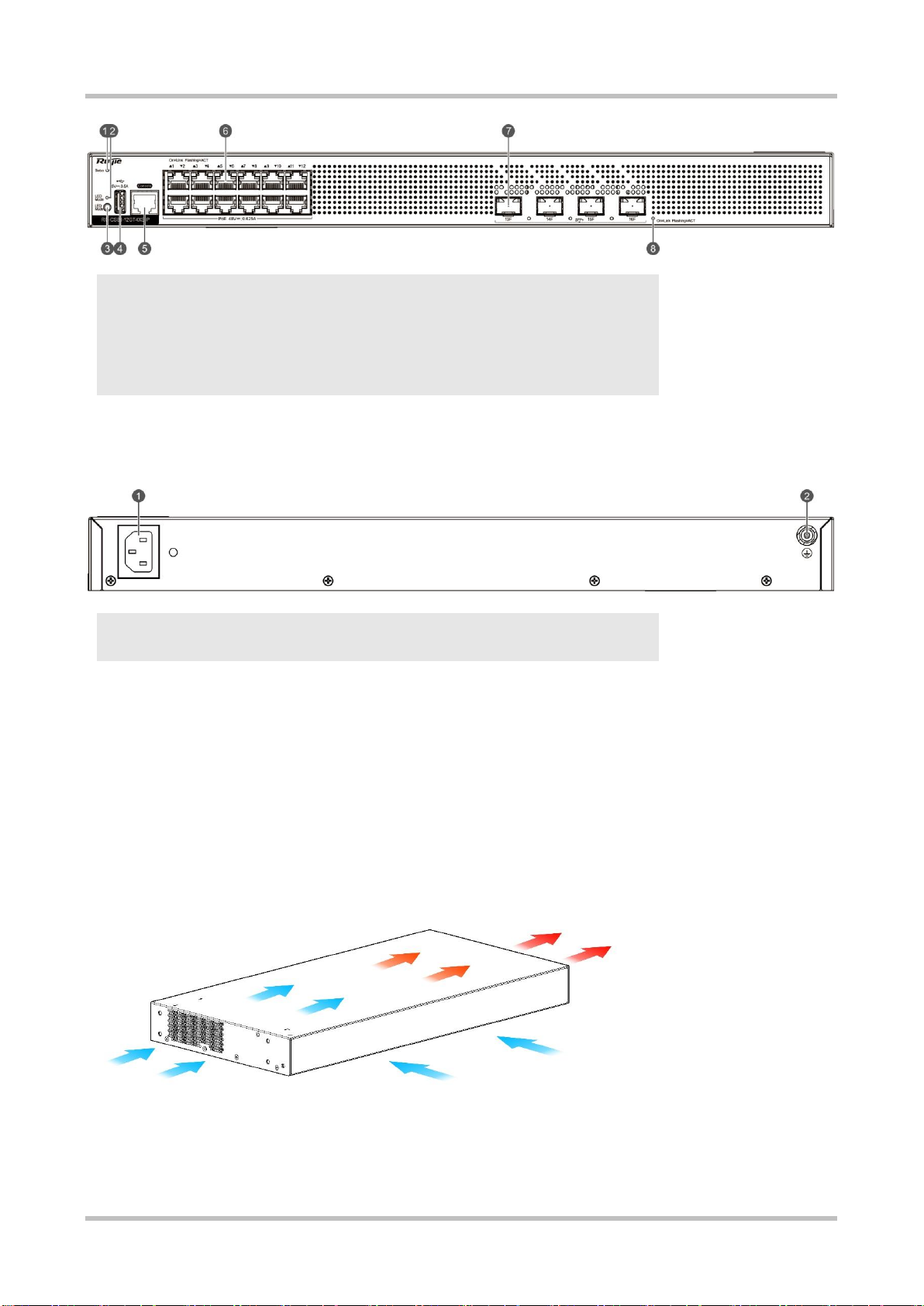

Figure 1-1 RG-CS83-12GT4XS-P Switch Appearance

Front Panel

Figure 1-1 Front Panel of RG-CS83-12GT4XS-P

Hardware Installation and Reference Guide

Note

1. System Status LED

2．LED Mode LED

3．LED Mode button

4．USB Port

5．Console Port

6．10/100/1000Base-T Ethernet

Port

7．10GE SFP+ Port

8．Port Status LED

Back Panel

Figure 1-2 Back Panel of RG-CS83-12GT4XS-P

Note

1．AC Power Plug

2．Grounding Stud

Power Supply Module

The RG-CS83-12GT4XS-P switch has a built-in power supply module. The back panel has an an AC power plug.

Cooling

The RG-CS83-12GT4XS-P switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a

minimum clearance of 100 mm (3.94 in.) around the device for air circulation.

Figure 1-3 Airflow Direction

LED

Hardware Installation and Reference Guide

Function

Panel ID

Color

Status

System Status LED

Status

Off

System is not powered on.

Blinking

Green (3

Hz)

System is being initialized. Continuous blinking

indicates a fault.

Blinking

Green (10

Hz)

System is being located.

Solid

Green

System is operating normally.

Solid

Yellow

The temperature at the air intake and exhaust

vents exceeds the threshold.

Solid Red

1. The temperature at the air intake and exhaust

vents well exceeds the threshold.

2. The system is not functioning properly.

LED Mode LED

LED Mode

Solid

green

The LED indicates the switching status.

Solid

yellow

The LED indicates the PoE power supply status.

10GE SFP+ Port LED

13F-16F

Off

No link is detected for this port.

Solid

Green

The port has made a successful 1/10 Gbps link.

Blinking

Green

The port is sending and receiving traffic at 1/10

Gbps.

10/100/1000Base-T Ethernet

Port LED

1-12

Off

No link is detected for this port.

Solid

Green

The port has made a successful 10/100/1000

Mbps link.

Blinking

Green

The port is sending and receiving traffic at

10/100/1000 Mbps.

RJ45 port PoE status LED

1-12

Off

PoE is not enabled.

Solid

Green

PoE is enabled. The port is operational.

Blinking

Green(3

Hz)

The port has a PoE fault of overload.

LED Mode Button：

The LED Mode button is used to switch the LED mode. The green LED Mode indicator indicates the switching status.

Press the LED Mode button, and the LED Mode indicator will turn yellow, indicating the PoE status. Press the LED

Mode button again, the indicator switches to indicating the switching status.

If you want to switch the LED mode, press the button for over two seconds.

Hardware Installation and Reference Guide

1.2 RG-CS83-24GT4XS

Specifications

Model

RG-CS83-24GT4XS

CPU

Dual-core CPU with the clock speed of 1.0GHz

BOOTROM

16MB

Flash Memory

512MB

SDRAM

1GB

SFP Module Type

SFP+ Port:

SFP Modules and SFP BIDI Modules

SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules.

See Chapter 7 for details.

The module types may update without prior notification. Please contact Ruijie Networks

for details.

When up to two SFP+ optical modules are configured with a maximum distance of 80

km (49.71 miles), the operating temperature range is 0ºC to 45 ºC (32ºF to 113ºF).

When three or four SFP+ optical modules are configured with a maximum distance of

80 km (49.71 miles), the operating temperature range is 0ºC to 40ºC (32ºF to 104ºF).

Built-in Power Supply

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 VAC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 0.6A

SFP+ Port

10GBase-R Capable

1000Base-X Capable

RTC

Supported

PoE

Not supported

Power Consumption

<25W

Ambinet Noise

＜20 dB (A)

Operating

Temperature

0ºC to 45ºC (32ºF to 113 ºF ) at a height below 1800 m (1.12 miles) above the sea level

At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the

maximum operating temperature decreases by 1°C (1.8°F) every time the altitude increases

by 220 m (721.78 ft.).

Storage Temperature

-40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Operating Height

0 to 5000 m (3.11 miles) above the sea level

Fan

No fans

Temperature

Alarming

Supported

EMI Certification

GB/T 9254.1

Autres manuels pour RG-CS83 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES109DS Manuel utilisateur

Ruijie

Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-XH Series Manuel d'installation et d'exploitation

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie RG-S2915-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES05 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-S Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES1 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NIS Series Manuel utilisateur

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83-24GT4XS-PD Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IS2712G Manuel d'installation et d'exploitation

Ruijie

Ruijie 5310-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie RG-S5000-E Series Comment utiliser

Ruijie

Ruijie RG-N18000-X Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
