Ruijie RG-SF2920 Series Manuel d'installation et d'exploitation

Ruijie RG-SF2920 Series Switches

Hardware Installation and Reference Guide

Document Version: V1.2

Date: 2022.03.30

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by

vertical bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and

separated by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a

comment line.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Hardware Installation and Reference Guide Product Introduction

1 Product Introduction

The RG-SF2920 series switches are simplistic optical switches released by Ruijie Networks for all-optical network

scenarios.

The switches adopt a new hardware architecture design to reduce noise, save energy, and implement flexible installation.

They are equipped with built-in power supplies, metal housings, and network ports, ensuring reliability and stability. They

are suitable for indoor scenarios.

With Ruijie's modular OS, the RG-SF2920 series switches support the simplistic optical Ethernet solution, and implement

lifecycle management, security control, plug and play, and intelligent O&M through software-defined networking (SDN).

Interfaces of the RG-SF2920 Series Switches

Model

10M/100M/100

0M Base-T

Port

5G/2.5G/1G

BASE-T Port

2.5G/1G

BASE-T

Port

SFP

Port

SFP+

Port

Console

Port

RG-SF2920-8GT2MG2XS

RG-SF2920-8GT2MG2XS-P

RG-SF2920-16GT2SFP

RG-SF2920-16GT2SFP-P

RG-SF2920-16GT2MG2XS

RG-SF2920-16GT2MG2XS-P

SFP+ optical ports are downward compatible with 1000Base-X ports. SFP optical ports support only 1000Base-X.

5GBase-T ports are downward compatible with 2.5GBase-T and 1GBase-T ports.

2.5GBASE-T ports are downward compatible with 1GBase-T ports.

1000Base-T ports are downward compatible with 100Base-T and 10Base-T ports.

Specifications of the RG-SF2920 Series Switches

Model

PoE-

support

ed Port

Maximum PoE

Power

Supported by

Port

Overall

Available

PoE Power

Dimensions

(W ×D ×H)

Heat

Dissipation

Mode

RG-SF2920-8GT2MG2XS

Not supported

210 mm ×235 mm ×

55 mm

Fanless design,

natural heat

dissipation

RG-SF2920-8GT2MG2XS-P

Ports 1–

30 W

125 W

210 mm ×235 mm ×

55 mm

Fanless design,

natural heat

dissipation

RG-SF2920-16GT2SFP

Not supported

210 mm ×235 mm ×

55 mm

Fanless design,

natural heat

dissipation

RG-SF2920-16GT2SFP-P

Ports 1–

30 W

125 W

210 mm ×235 mm ×

55 mm

Fanless design,

natural heat

dissipation

RG-SF2920-16GT2MG2XS

Not supported

210 mm ×235 mm ×

55 mm

Fanless design,

natural heat

dissipation

RG-SF2920-16GT2MG2XS-P

Ports 1–

30 W

125 W

210 mm ×235 mm ×

55 mm

Fanless design,

natural heat

dissipation

RG-SF2920-8GT2MG2XS/RG-SF2920-8GT2MG2XS-P/RG-SF2920-16GT2SFP/RG-SF2920-16GT2SFP-P/RG-

SF2920-16GT2MG2XS/RG-SF2920-16GT2MG2XS-P adopt the natural heat dissipation mode. The heat of the

devices is dissipated through the chassis housing. Do not touch the chassis housing for a long time because it is hot

during device running.

Hardware Installation and Reference Guide Product Introduction

1.1RG-SF2920-8GT2MG2XS

Specifications

Model

RG-SF2920-8GT2MG2XS

CPU

Built-in CPU, single-core processor, clock speed of 1 GHz

BOOTROM

Flash Memory

256 MB

SDRAM

DDRIII 512 MB

Supported Optical

Module Type

For details, see Appendix B.

The module types may update without prior notification. Please contact Ruijie Networks

for details.

SFP+ Port

10GBase-R and 1000Base-X supported

Power Supply

AC input:

Rated voltage: 200–240 V~

Rated frequency: 50/60 Hz

Rated current: 0.6 A

Leakage Current to

Ground

≤3.5 mA

EEE Function

Supported

PoE Function

Not supported

Power Consumption

Power consumption < 25 W

Operating

Temperature

Installed in a rack or unconfined space: 0ºC to 45ºC (0–1800 m altitude)

Installed on a workbench or weak-current box: 0ºC to 40ºC (0–1800 m altitude)

Note: Altitude 1800–5000 m. The maximum temperature decreases by 1°C each time the

altitude increases by 220 m.

Storage Temperature

–40°C to 70°C

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Fan

Fanless design, natural heat dissipation

Intelligent

Temperature Control

The temperature alarm and overheat protection functions are supported.

EMC

GB/T 9254-2008

Safety Regulation

Compliance

GB 4943.1-2011

Dimensions (W ×D ×

210 mm ×235 mm ×55 mm

Weight

2.75 kg (including the package)

RG-SF2920-8GT2MG2XS is a Class A product. In a domestic environment, this productmay cause radio interference.

In this case, users are advised to take proper measures against the interference.

Appearance

The RG-SF2920-8GT2MG2XS Ethernet switch provides 8 ×10/100/1000M Base-T Ethernet electrical ports, 2 ×1G/2.5G

Base-T Ethernet electrical ports, 2 ×SFP/SFP+ ports, 1 ×console port on the front panel, and the AC power input port on

the side panel.

Figure 1-1 Appearance of RG-SF2920-8GT2MG2XS

Hardware Installation and Reference Guide Product Introduction

Front Panel

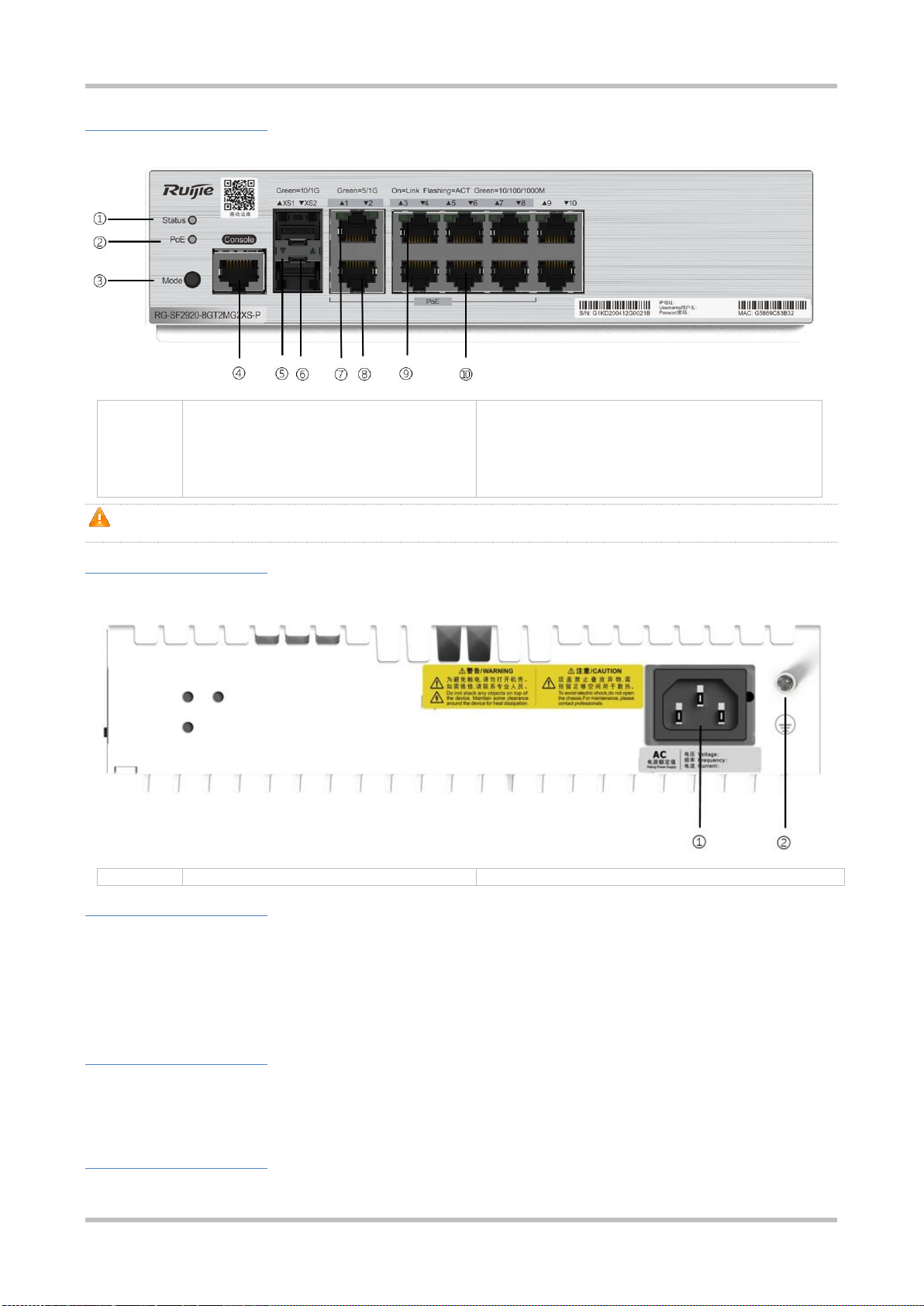

Figure 1-2 Front Panel of RG-SF2920-8GT2MG2XS

Remarks

1. System status indicator

2. Console port

3. Optical port indicator

4. SFP/SFP+ port

5. 1G/2.5GBase-T adaptive Ethernet port indicator

6. 1G/2.5GBase-T adaptive Ethernet port

7. 10/100/1000Base-T adaptive Ethernet port

indicator

8. 10/100/1000Base-T adaptive Ethernet port

Side Panel

Figure 1-3 Side Panel of RG-SF2920-8GT2MG2XS

Hardware Installation and Reference Guide Product Introduction

Remarks

1. Grounding connector

2. Power port

Power Supply

RG-SF2920-8GT2MG2XS adopts an AC power supply, with the rated values as follows:

Rated voltage: 200–240 V~

Rated frequency: 50/60 Hz

Rated current: 0.6 A

Power cord requirements: 10 A power cord

Cooling

The RG-SF2920-8GT2MG2XS adopts natural cooling to ensure that the device works properly under specified

environment. When placing a chassis, maintain sufficient space for heat dissipation on both sides and above the chassis.

For details, see chapter 3 "Product Installation". Dust the device every three months to avoid blocking ventilation openings

on the housing.

Indicators

Indicator

Identifier on the

Panel

Color

Status

System status indicator

Status

Off

The switch is not powered on.

Blinking

green

The switch is being initialized. Continuous

blinking indicates a fault.

Solid green

The switch is operating normally.

Solid yellow

A switch temperature alarm is generated.

Check the operating environment of the

switch.

Solid red

The temperature severely exceeds the

threshold and the system restarts.

Ethernet electrical port

indicator

1 - 2

Off

The port has no link.

Solid green

The port has a 2.5G/1G link up.

Blinking

green

The port is sending or receiving data at

2.5G/1G.

3 - 8

Off

The port has no link.

Solid green

The port has a 10/100/1000M link up.

Blinking

green

The port is sending or receiving data at

10/100/1000 Mbps.

SFP+ port indicator

XS1-XS2

Off

The port has no link.

Solid green

The port has a 10G/1G link up.

Blinking

green

The port is sending or receiving data at

10G/1G.

Solid red

An error occurs when the optical module

sends signals.

Solid yellow

An error occurs when the optical module

receives signals.

1.2RG-SF2920-8GT2MG2XS-P

Specifications

Model

RG-SF2920-8GT2MG2XS-P

CPU

Built-in CPU, single-core processor, clock speed of 1 GHz

BOOTROM

Flash Memory

256 MB

SDRAM

DDRIII 512 MB

Supported Optical

Module Type

For details, see Appendix B.

The module types may update without prior notification. Please contact Ruijie

Networks for details.

SFP+ Port

10GBase-R and 1000Base-X supported

Hardware Installation and Reference Guide Product Introduction

Power Supply

AC input:

Rated voltage: 200–240 V~

Rated frequency: 50/60 Hz

Rated current: 3 A

Leakage Current to

Ground

≤3.5 mA

EEE Function

Supported

PoE Function

Ethernet electrical ports 1–8 support PoE and Ethernet electrical ports 9–10 do not

support PoE.

Maximum overall PoE output power: 125 W

The maximum number of PoE devices supported by the switch is determined by the

PoE output power of the switch and the actual power of the PoE devices.

Power Consumption

Without PoE load: < 25 W

With PoE full load: <150 W

Operating Temperature

Installed in a rack or unconfined space: 0ºC to 45ºC (0–1800 m altitude)

Installed on a workbench or weak-current box: 0ºC to 40ºC (0–1800 m altitude)

Note: Altitude 1800–5000 m. The maximum temperature decreases by 1°C each time the

altitude increases by 220 m.

Storage Temperature

–40°C to 70°C

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Fan

No fan

Intelligent Temperature

Control

The temperature alarm and overheat protection functions are supported.

EMC

GB/T 9254-2008

Safety Regulation

Compliance

GB 4943.1-2011

Dimensions (W ×D ×H)

210 mm ×235 mm ×55 mm

Weight

3.1 kg (including the package)

RG-SF2920-8GT2MG2XS-P is a Class A product. In a domestic environment, this product may cause radio

interference. In this case, users are advised to take proper measures against the interference.

Appearance

The RG-SF2920-8GT2MG2XS-P Ethernet switch provides 8 × 10/100/1000M Base-T Ethernet electrical ports, 2 ×

1G/2.5G/5G Base-T Ethernet electrical ports, 2 ×SFP/SFP+ ports, 1 ×console port on the front panel, and the AC power

input port on the side panel.

Figure 1-4 Appearance of RG-SF2920-8GT2MG2XS-P

Hardware Installation and Reference Guide Product Introduction

Front Panel

Figure 1-5 Front Panel of RG-SF2920-8GT2MG2XS-P

Remarks

1. System status indicator

2. PoE indicator

3. Mode button

4. Console port

5. Optical port indicator

6. SFP/SFP+ port

7. 1G/2.5G/5GBase-T adaptive Ethernet port indicator

8. 1G/2.5G/5GBase-T adaptive Ethernet port

9. 10/100/1000Base-T adaptive Ethernet port

indicator

10. 10/100/1000Base-T adaptive Ethernet port

You can press the mode button to switch the port status indicator function (switch mode or PoE mode). Hold down

the button for more than 2 seconds to ensure successful switching.

Side Panel

Figure 1-6 Side Panel of RG-SF2920-8GT2MG2XS-P

Remarks

1. Grounding connector

2. Power port

Power Supply

RG-SF2920-8GT2MG2XS-P adopts an AC power supply, with the rated values as follows:

Rated voltage: 200–240 V~

Rated frequency: 50/60 Hz

Rated current: 3 A

Power cord requirements: 10 A power cord

Cooling

The RG-SF2920-8GT2MG2XS-P adopts natural cooling to ensure that the device works properly under specified

environment. When placing a chassis, maintain sufficient space for heat dissipation on both sides and above the chassis.

For details, see chapter 3 "Product Installation". Dust the device every three months to avoid blocking ventilation openings

on the housing.

Indicators

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6220-48XS6QXS-H Manuel d'installation et d'exploitation

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie Reyee RG-NBS7003 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5300-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RGOS 11.X Manuel utilisateur

Ruijie

Ruijie RG-S7600 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S29 Series Manuel d'installation

Ruijie

Ruijie RG-N18000-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6520 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Ruijie

Ruijie RG-S7808C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2600E Series Manuel utilisateur

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS5200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES126S-LP Manuel utilisateur

Ruijie

Ruijie XS-S1960-24GT4SFP-UP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES109DS Manuel utilisateur

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-S Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83 Series Manuel utilisateur

Ruijie

Ruijie RG-IS2700-P Series Manuel d'installation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
