Hardware Installation and Reference Guide Product Overview

- 1 -

1 Product Overview

The RG-S6110-48XS4QXS series switches are the high-density 10G layer 3 IPv6 cassette switches introduced by

Ruijie Networks. They are mainly applicable to the data center to provide the convergence access for the servers.

An SFP+ port supports both 10Gbase-R and 1000base-X.

A QSFP+ port support both 40G mode and 40 x 10G mode.

1.1 RG-S6110-48XS4QXS

Specifications

Model

RG-S6110-48XS4QXS

CPU

Dual-core CPU, each core with the clock speed of 1.0GHz

Bootrom

8MB

Flash Memory

512MB

SDRAM

2GB

Extension Module

Slot

Unsupported

Extension Module

Unsupported

Fan Slot

4 (support 3+1 redundancy, configure at least three fan modules in one switch)

Fan Module

M6110-FAN-F

Power Supply Slot

2 (support1+1 redundancy)

Power Module

RG-M6110-AC460E-F

Power Supply Input

AC input

Rated voltage range: 100 VAC to 240 VAC

Maximum voltage range: 90 VAC to 264 VAC

Frequency: 50 Hz to 60 Hz

Rated current: 5.29 A

High voltage direct current (HVDC) input:

Input voltage range: 192 VDC to 290 VDC

Input current range: 2.66 A to 2.03 A

Power

Consumption

Less than 250W

Optical Module

Refer to Appendix B

The supported modules update at any time, contact Ruijie Networks for details.

SFP+ Port

Supported

QSFP+ Port

Supported

10Gbase-T Port

Unsupported

EMC

GB9254-2008 CLASSA

EMI

GB4943-2011

Working

Temperature

0°C to 50°C

Storage

Temperature

-40°C to 70°C

Hardware Installation and Reference Guide Product Overview

- 2 -

Working Humidity

10% to 90% RH(non-condensing)

Weight

Net weight 9KG (including four fan modules and two power modules)

Dimensions

440 x 420 x 44 (L xW x H, mm),1RU

RG-S6110-48XS4QXS switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

The 10G or 40G Ethernet port of the RG-S6110-48XS4QXS switch supports direct attach copper (DAC) cable.

The SFP+ port supports 1-meter, 3-meter and 5-meter cable, and the QSFP+ port supports 3-meter cable. For a

detailed model and specification, refer to Appendix B.

Product Appearance

The hardware of the RG-S6110-48XS4QXS includes the chassis, the power supply system and the heat dissipation

system.

The power supply system: Provides two power supply slots, which support 1+1 power supply redundancy. It is

recommended users configure power supply redundancy.

The heat dissipation system: Provides four power supply slots, which support 3+1 fan redundancy. It is

recommended users configure all fans redundancy.

Figure 1-1 Appearance of the RG-S6110-48XS4QXS

Front Panel

Figure 1-2 Front Panel of the RG-S6110-48XS4QXS

Hardware Installation and Reference Guide Product Overview

- 3 -

Notes:

①Switch status indicator

②PWR1 status indicator

③PWR2 status indicator

④RCMI management interface

indicator

⑤Fan status indicator

⑥10G SFP+ port status indicator

⑦40G QSFP+ port status indicator

⑧10/100/1000Base-T RCMI Ethernet port

⑨Console

⑩10G SFP+ port

⑪40G QSFP+ port

The RG-S6110-48XS4QXS supports 10G SFP+ module and 1G SFP module. But the 10G SFP+ module cannot

function as the 1G SFP module.

Back Panel

Figure 1-3 Back Panel of the S6110-48XS4QXS

Notes:

①Power supply module slot

②Fan module slot

③USB2.0 interface

④Asset management label

⑤Grounding pole

Asset management label

The asset management label is at the lower-right corner of the switch back panel. The label is movable and can be

withdrawn from the device. Users can mark the information such as asset name, category, code and registration date

on the label which helps to improve asset management rate and efficiency.

Figure 1-4 Asset Management Label of the S6110-48XS4QXS

External Interface

The S6110-48XS4QXS provides the following interfaces:

Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions, warnings

and other diagnostic messages. Therefore, it is more convenient to upgrade the software version of the switch on

line and save the log information.

Hardware Installation and Reference Guide Product Overview

- 4 -

To protect the data and avoid device damage, use qualified USB flash disks of good brands. At the same time, the

local USB interface is compatible with most of the USB controllers except some USB flash disks.

Console port: Use RS-232 interface electrical level and standard RJ45 connector. This interface is connected with

the serial port of terminal PC to perform system debugging, configuration, maintenance, management, and host

software uploading.

10/100/1000M RCMI management port: This is an out-band Ethernet port, which uses standard RJ45 connector.

This interface is connected with Ethernet port of a PC to perform program downloading. Use standard network

cable when the interface is connected with the Ethernet port.

SFP+ port: There are 48 10G QSFP+ ports, which support optical modules and DAC copper cables, and are

compatible with 1000Base-X.

QSFP+ port: There are four 40G QSFP+ ports, which support optical modules and DAC copper cables. This port

can work in 4x10 mode.

Indicator

Panel

Identification

Status

Meaning

System indicator

Status

Off

The system is not powered up.

Solid red

1) One of the modules of the system fails.

2) The internal temperature exceeds the warning

working temperature, and the switching service

resets.

Blinking green.

The system is initializing.

Solid green

The system is working normally.

Power module 1

indicator

PWR1

Off

The power supply module is not in the position.

Solid red

The power supply module fails or it is not connected

with theAC power cord.

Solid green

The power supply module works normally.

Power module 2

indicator

PWR2

Off

The power supply module is not in the position.

Solid red

The power supply module fails

Solid green

The power supply module works normally.

RCMI port indicator

RCMI

Off

The port is not linked up.

Green

The port is linked up in 1000M mode.

Yellow

The port is linked up in 10M or 1000M mode.

Blinking

Data are transceiving at the port.

Fan module indicator

Fan

Solid green

All fan modules are in the position and working

normally.

Solid red

1) Afan fails.

2) The number of the fan module is less than three.

SFP+ port status

indicator

1F-48F

(Ethernet

mode)

Off

The port is not linked up.

Solid green

Port 10G/1G is linked up.

Blinking green

Port 10G/1G is transceiving data.

QSFP+ port status

49F-64F

Off

The port is not linked up.

Hardware Installation and Reference Guide Product Overview

- 5 -

indicator

(4 x 10G

mode)

Solid green

Port 10G is linked up.

Blinking green

Port 10G is transceiving data.

65F-68F

(1 x 40G

mode)

Off

The port is not linked up.

Solid green

Port 40G is linked up.

Blinking green.

Port 40G is transceiving data.

Power Supply

The RG-S6110-48XS4QXS series switches support power supply the RG-M6110-AC460E-F. The smart power supply

module supports power management, and the host can read input power, input current, and temperature in real time.

The power supply module supports hot plugging.

The RG-S6110-48XS4QXS series switches support power supply 1+1 redundancy. To improve the stability and

reliability of the entire system, it is recommended to configure power supply module 1+1 redundancy. When the

two power supply modules work normally, the switch is in the status of current sharing.

It requires at least one power supply module to work normally. Baffles need to be installed in the empty power

supply module slots to ensure ventilation and heat dissipation and avoid dusts.

Heat Dissipation

The working temperature of the RG-S6110-48XS4QXS switches is 0-50℃, and the heat dissipation design needs to

ensure the stability, safety and maintainability in such environment. The RG-S6110-48XS4QXS series switches adopt

fan ventilation and forced convection to ensure the device can work normally in specified environment. Dust the device

every three months to avoid blocking the ventilation openings.

The RG-S6110-48XS4QXS supports fan module M6110-FAN-F and provides fan speed regulation, fan failure warning,

and fan hot plugging.

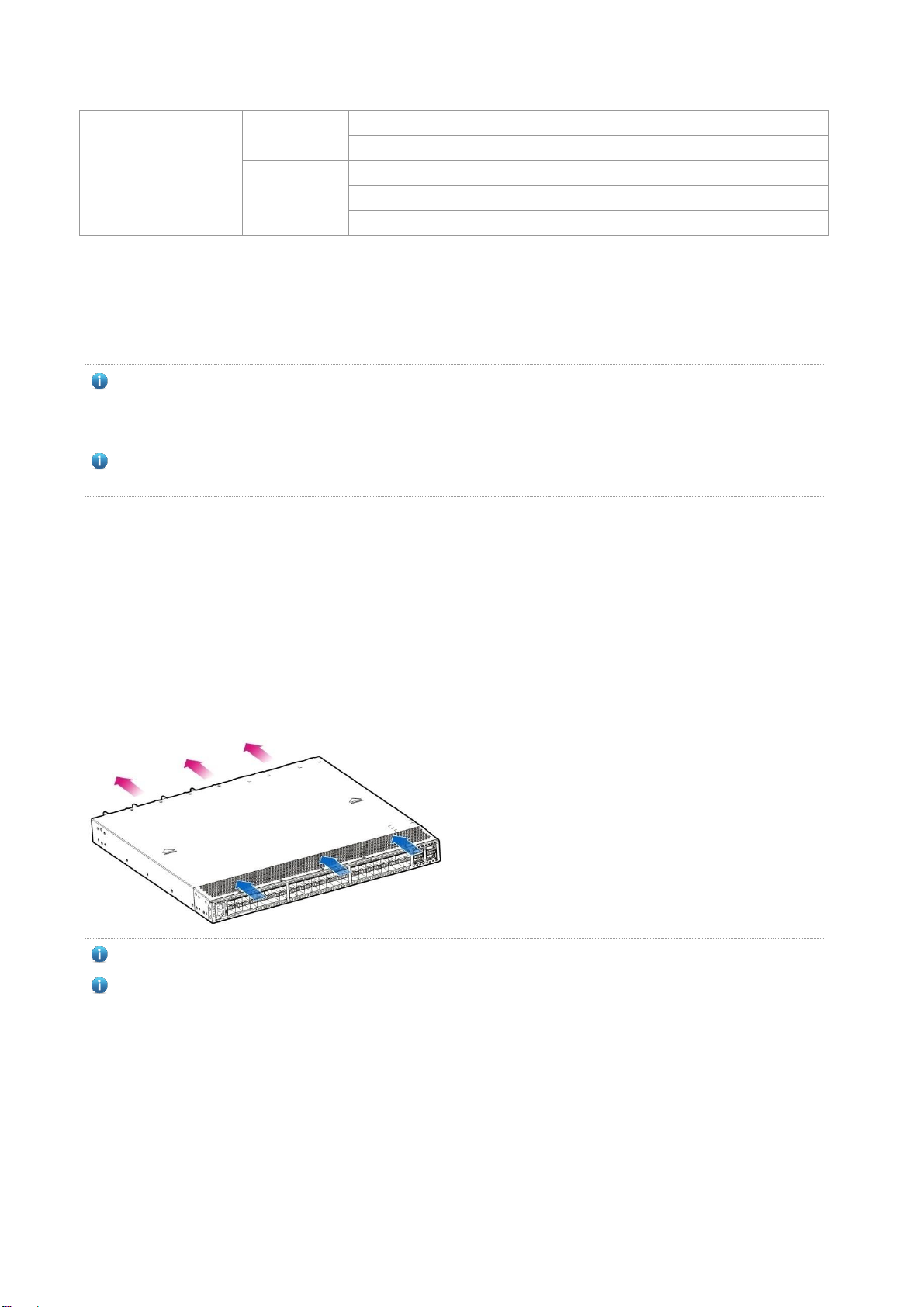

Figure 1-5 Ventilation and Heat Dissipation of the RG-S6110-48XS4QXS

Leave sufficient space in the front and at the back of the chassis (at least 20 cm) for ventilation.

It requires at least three fan modules to work normally. Baffles need to be installed in the empty fan module slots to

ensure ventilation and heat dissipation and avoid dusts.

1.2 Module

The RG-S6110-48XS4QXS series switches adopt modularization design. Strictly complying with the industrial standard,

the system modules are reasonably subdivided and the module interfaces are unified. All these ensure that the

RG-S6110-48XS4QXS series switches system is complete and all modules are independent.

Hardware Installation and Reference Guide Product Overview

- 6 -

The RG-S6110-48XS4QXS series switches support M6110-AC460E-F (power supply module) and M6110-FAN-F (fan

module).

1.2.1 M6110-FAN-F

The M6110-FAN-F is the fan module of the RG-S6110-48XS4QXS series. The M6110-FAN-F provides heat dissipation

system and ensures system satiability. The M6110-FAN-F supports speed regulation and hot plugging.

Module Appearance

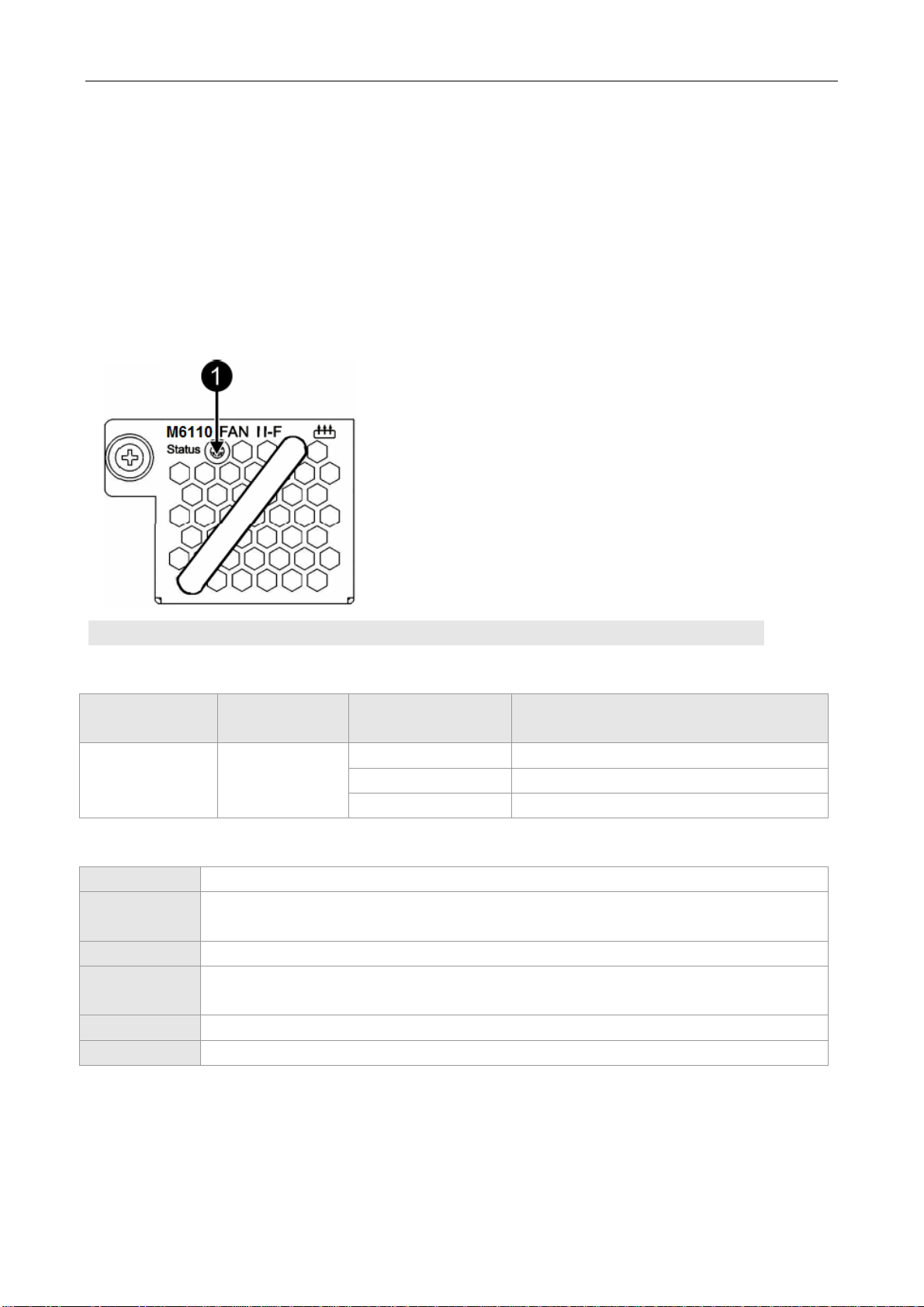

Figure 1-6 Appearance of the M6110-FAN-F

Notes:

①Status indicator

Indicator

Panel

Identification

Status

Meaning

Status Indicator

Status

Off

The fan is not powered up.

Solid green

The fan is working normally.

Solid red

The fan fails or stops.

Specifications

Fan Model

M6110-FAN-F

Ventilation

Indication

30 CFM

Max Speed

25000 RPM

Power

Consumption

15 W

Weight

Net weight: 0.25 kg

Dimensions

166 x 55.7 x 41.2 (L xW x H, mm)

1.2.2 M6110-AC460E-F

The M6110-AC460E-F is the power supply module of the RG-S6110-48XS4QXS series and provides power supply for

the RG-S6110-48XS4QXS series. The smart power supply module M6110-AC460E-F can access to information such

Hardware Installation and Reference Guide Product Overview

- 7 -

as the power supply status, output power and current, and working temperature at any time. The M6110-AC460E-F

supports both AC input and high voltage direct current (HVDC) input.

External Interface

The front panel of the power supplymodule provides a three-core power port, which can be connected to standard 10 A

power cord.

Indicator

Panel

Identification

Status

Meaning

Status Indicator

N/A

Off

No power input or the power supply fails.

Solid green

The power input is normal.

Specifications

Module Model

M6110-AC460E-F (AC input)

M6110-AC460E-F (HVDC input)

Rated Voltage

Range

100 VAC to 240 VAC; 50/60 Hz

N/A

Max Voltage

Range

90-264V~;47-63Hz

192 VDC to 290 VDC;

Max Power

Output

460 W

Weight

Net weight: 0.9 kg

Dimensions

243.2 x 86.4 x 39.9 (L x W x H, mm)

Power Cord

Requirement

10 A power cord

Make sure the power cord is removed before plugging or unplugging the power supply.

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS Series Manuel utilisateur

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES105D Series Manuel d'installation et d'exploitation

Ruijie

Ruijie 5310-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie S5750 Series Manuel utilisateur

Ruijie

Ruijie RG-S8600 Series Manuel utilisateur

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Comment utiliser

Ruijie

Ruijie RG-S6220-H Series Manuel utilisateur

Ruijie

Ruijie RG-S2915-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES1 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS85 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Comment utiliser

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie RG-ES126S-P Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
