RG-S2900G-E Series Switch

Hardware Installation and Reference Guide V1.25

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: http://www.ruijienetworks.com/

Service Email: [email protected]

Technical Support: http://www.ruijienetworks.com/service.aspx

Technical Support Hotline: +86-4008-111-000

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

1 Product Overview

RG-S2900G-E Series switch is a next-generation security and intelligent switch that features high performance, high

security, multiple services and ease of use to meet the needs of the current networks. The RG-S2900G-E switch can

provide the complete end-to-end Quality of Service (QoS), flexible and abundant security policies and policy-based

network management for various networks. They are the desired access devices for such applications as campus network,

enterprise network, government network, service network, residential broadband access and business building network,

providing high-speed, high-efficiency, secure and intelligent access solutions.

Table 1-1 RG-S2900G-E Series

Model

10/100/1000 Base-T Adaptive Ethernet Port

SFP Port

Console Port

Extension Module Slot

RG-S2928G-E

N/A

RG-S2952G-E

N/A

RG-S2928G-12P

N/A

RG-S2928G-24P

N/A

The four SFP ports support 100Base-FX/1000Base-X/1000Base-T, and the two SFP ports with larger port number

(27F and 28F for the S2928G Series, and 51F and 52F for the S2952 Series) also support 2.5 G stack modules.

Only the four SFP ports of the RG-S2928G-E V2.00 and RG-S2952G-E V2.00 and later, RG-S2928G-12P and

RG-S2928G-24P support 100Base-FX.

1.1 RG-S2928G-E

Technical Specifications

Model

RG-S2928G-E

CPU

Single-core CPU, clock speed of 600M

BOOTROM

Flash Memory

128M

SDRAM

DDRII 128MB

Supported SFP

Type

Gigabit Ethernet:

MINI-GBIC-SX-MM850

MINI-GBIC-LX-SM1310

MINI-GBIC-LH40-SM1310

MINI-GBIC-ZX50-SM1550

MINI-GBIC-ZX80-SM1550

MINI-GBIC-ZX100-SM1550

Fast Ethernet:

FE-SFP-LX-MM1310

FE-SFP-LH15-SM1310

1000Base-T:

Mini-GBIC-GT

2.5G stack module:

GE-SFP-STACK1.6M

The supported module type may change at any time. Consult us for the detailed change

information.

Only the four SFP ports of the RG-S2928G-E V2.00 and later support fast Ethernet SFP

modules.

SFP Port

Support 1000Base-X, 1000Base-T and 2.5 G stacked SFP module

Only the four SFP ports of the RG-S2928G-E V2.00 and later support 100Base-FX.

USB Port

One Type-A USB2.0 interface

Power Supply

AC input:

Rated voltage range: 100 V to 240 V

Maximum voltage range: 90 V to 264 V

Frequency: 50/60 Hz

Rated current: 2A

HVDC input:

Maximum voltage range: 192 V to 290 V

Rated current: 0.2 A to 0.12 A

EEE

Not supported on the RG-S2928G-E V1.00 and later.

Supported on the RG-S2928G-E V2.00 and later.

PoE

Not supported.

Power

Consumption

Less than 33 W on the RG-S2928G-E V1.00 and later.

Less than 27 W on the RG-S2928G-E V2.00 and later.

Working

Temperature

0ºC to 50ºC

Storage

Temperature

-40ºC to 70ºC

Working Humidity

10% to 90% RH

Storage Humidity

5% to 90% RH

Fan

N/A

Temperature

Warning

Supported

EMC Standards

GB9254-1998

Safety Standards

GB4943-2001

Dimensions

(W x D x H)

RG-S2928G-E V1.00 and later: 440 mm x 200 mm x 43.6 mm

RG-S2928G-E V2.00 and later: 440 mm x 260 mm x 43.6 mm

Weight

Less than 3.5 kg

RG-S2928G-E switch is a class A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

Product Appearance

The front panel of the RG-S2928G-E full gigabit Ethernet switch provides one Type-A USB2.0 interface, one RJ45

console port, 24 RJ45 10/100/1000Base-T Ethernet adaptive ports and four SFP ports. Figure 1-1 shows the appearance

of the RG-S2928G-E.

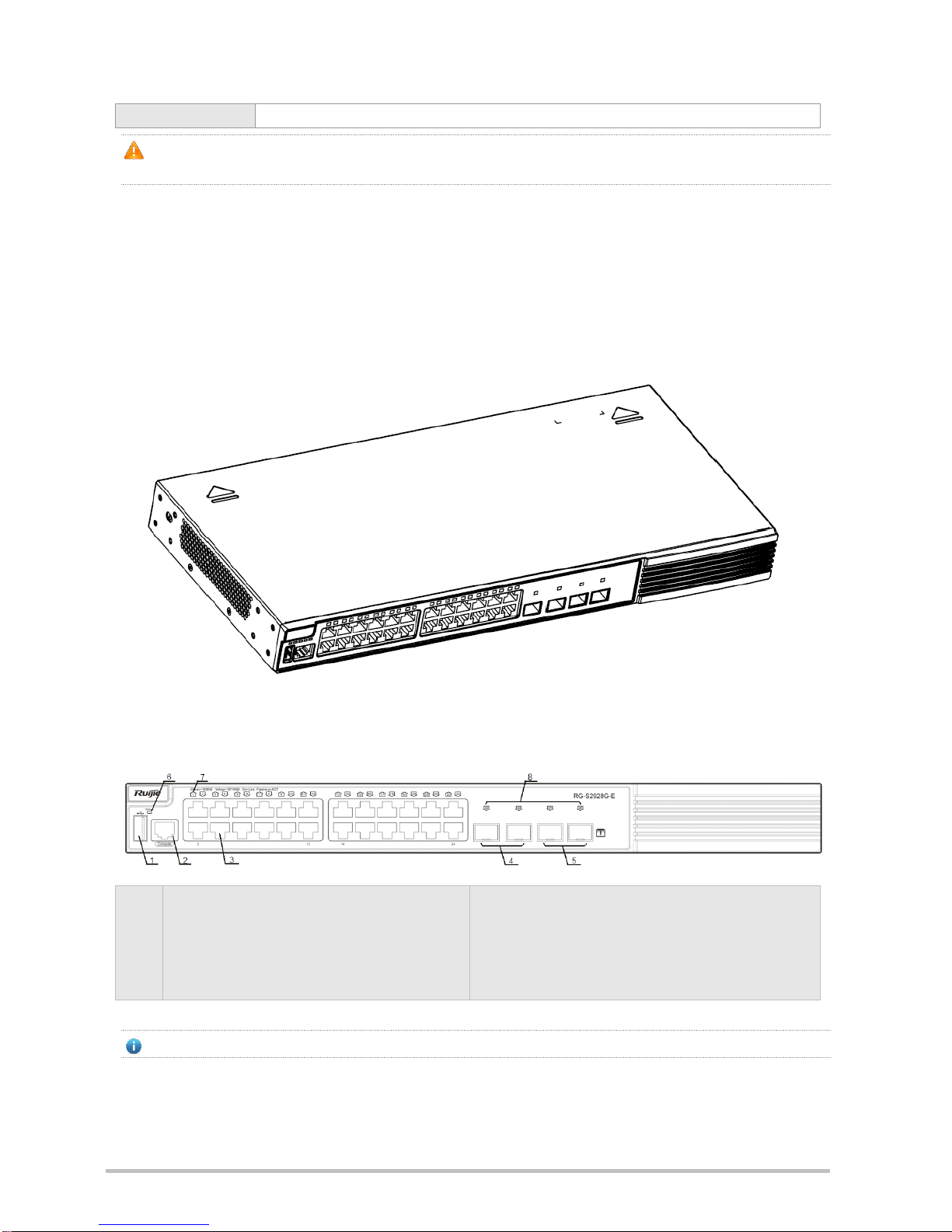

Figure 1-1 Appearance of the RG-S2928G-E

Front Panel

Figure 1-2 Front Panel of the RG-S2928G-E

Note:

1. USB2.0 port

2. RJ45 console port

3. RJ45 10/100/1000Base-T adaptive Ethernet

port

4. 100Base-FX/1000Base-X SFP port

5. 100Base-FX/1000Base-X SFP/2.5 G stack port

6. Switch system status indicator

7. 10/100/1000Base-T adaptive Ethernet port indicator

8. 100Base-FX/1000Base-X SFP/2.5 G stack port

indicator

Only the four SFP ports of the RG-S2928G-E V2.00 and later support 100Base-FX.

Back Panel

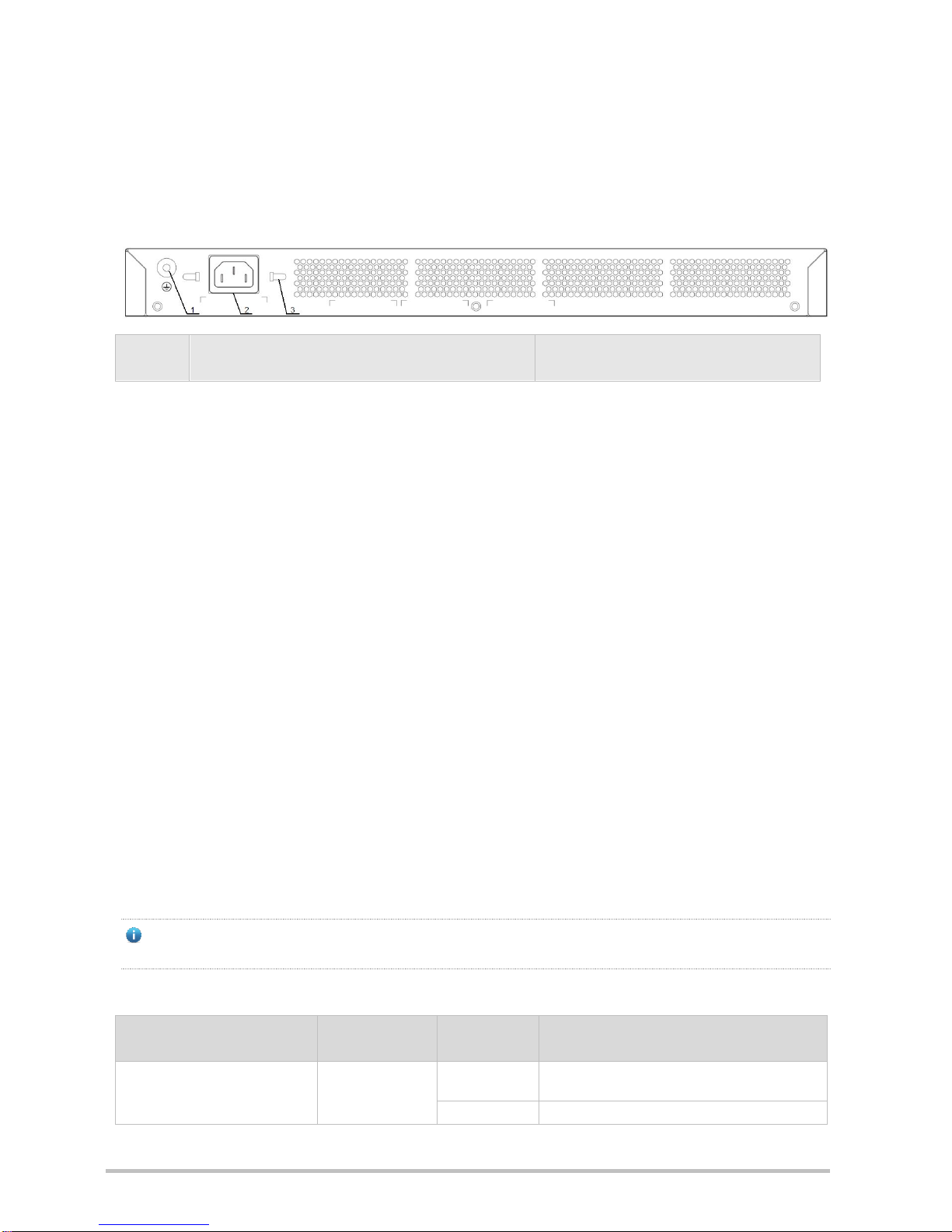

Figure 1-3 Back Panel of the RG-S2928G-E

Note:

1. Grounding pole

2. Three-hole AC power receptacle

3. Power cord retention clips

Power Supply

The RG-S2928G-E switch can be powered either with AC power or DC power.

AC input:

Rated voltage range: 100 V to 240 V

Maximum voltage range: 90 V to 264 V

Frequency: 50 Hz to 60 Hz

Rated current: 0.6 A

Power cord: 10A power cord

HVDC input:

Maximum voltage range: 192 V to 290 V

Rated current: 0.2 A to 0.12 A

Power cord: 10A power cord

Heat Dissipation

The RG-S2928G-E full gigabit switch is designed with no fans. To ensure good dissipation, sufficient space (10 cm

distance from both sides and the back panel of the chassis) should be reserved for ventilation. Dust the device every three

months to avoid blocking the ventilation openings.

When installing the device, sufficient ventilation space (1 U (44.45 mm) distance from the adjacent device) should be

reserved for the purpose of heat dissipation.

LED Indicators

Indicator

Faceplate

Marker

Status

Indication

Status indicator

Status

Blinking green

The system is being initialized.

Solid green

The system is in normal operation. .

Indicator

Faceplate

Marker

Status

Indication

Solid yellow

System over-temperature warning.

Solid red

Serious over-temperature, the system will stop

working forcibly by itself.

10/100/1000 Mbps RJ-45 port

indicator

1~24

Off

The port is NOT connected.

Solid green

The port is connected at 1000Mbps.

Solid yellow

The port is connected at 100/10Mbps.

Blinking

The port is transmitting or receiving data.

100Base-FX/1000Base-X/Stack

port indicator

(Note: Only the four SFP ports

of the RG-S2928G-E V2.00 and

later support 100Base-FX.)

25F~28F

Off

The port is NOT connected.

Solid green

The port is connected.

Blinking

The port is transmitting or receiving data.

1.2 RG-S2952G-E

Technical Specifications

Model

RG-S2952G-E

CPU

Single-core CPU, clock speed of 600M

BOOTROM

Flash Memory

128M

SDRAM

DDRII 128MB

Supported

SFP Type

Gigabit Ethernet:

MINI-GBIC-SX-MM850

MINI-GBIC-LX-SM1310

MINI-GBIC-LH40-SM1310

MINI-GBIC-ZX50-SM1550

MINI-GBIC-ZX80-SM1550

MINI-GBIC-ZX100-SM1550

Fast Ethernet:

FE-SFP-LX-MM1310

FE-SFP-LH15-SM1310

1000Base-T:

Mini-GBIC-GT

2.5 G stack module:

GE-SFP-STACK1.6M

The supported module type may change at any time. Contact us for the detailed change

information.

Only the four SFP ports of the RG-S2952G-E V2.00 and later support fast Ethernet SFP

modules.

SFP Port

Support 1000 Base-X, 1000 Base-T, 100 Base-FX and 2.5 G stacked SFP module

Only the four SFP ports of the RG-S2952G-E V2.00 and later support 100Base-FX.

USB Port

One Type-A USB2.0 interface

Power Supply

AC input:

Rated voltage range: 100 V to 240 V

Maximum voltage range: 90 V to 264 V

Frequency: 50/60 Hz

Rated current: 2 A

HVDC input:

Maximum voltage range: 192 V to 290 V

Rated current: 0.3 A to 0.17 A

EEE

Not supported on the RG-S2952G-E V1.00 and later

Supported on the RG-S2952G-E V2.00 and later

PoE

Not supported.

Power

Consumption

Less than 59 W on the RG-S2952G-E V1.00 and later

Less than 49 W on the RG-S2952G-E V2.00 and later

Working

Temperature

0ºC to 50ºC

Storage

Temperature

-40ºC to 70ºC

Working

Humidity

10% RH to 90% RH

Storage

Humidity

5% RH to 90% RH

Fan

Support adjustment of fan speed and warning of fan troubles.

Temperature

Warning

Supported

EMC

Standards

GB9254-1998

Safety

Standards

GB4943-2001

Dimensions

(W x D x H)

440 mm x 260 mm x 43.6 mm

Weight

Less than 4 kg

RG-S2952G-E switch is a class A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

Product Appearance

The front panel of the RG-S2952G-E full gigabit Ethernet switch provides one Type-A USB2.0 port, one RJ45 console port,

48 RJ45 10/100/1000Base-T adaptive Ethernet ports and four SFP ports. Figure 1-4 shows the appearance of the

RG-S2952G-E.

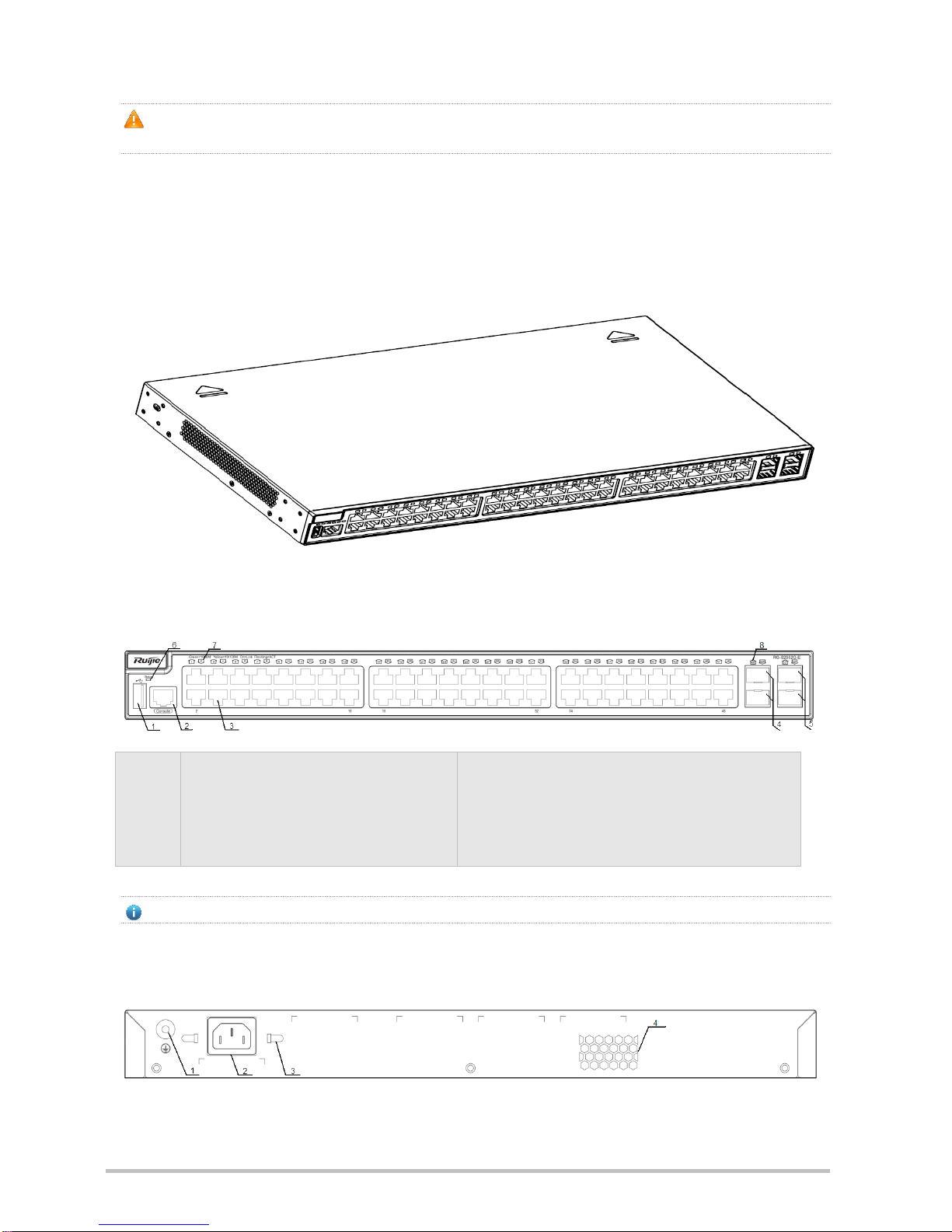

Figure 1-4 Appearance of the RG-S2952G-E

Front Panel

Figure 1-5 Front Panel of the RG-S2952G-E

Note:

1. USB2.0 port

2. RJ45 console port

3. RJ45 10/100/1000Base-T adaptive

Ethernet port

4. 100 Base-FX/1000 Base-X SFP port

5. 100 Base-FX/1000 Base-X SFP/2.5 G stack port

6. System status indicator

7. 10/100/1000 Base-T adaptive Ethernet port indicator

8. 100Base-FX/1000Base-X SFP/2.5 G stack port

indicator

Only the four SFP ports of the RG-S2952G-E V2.00 and later support 100 Base-FX.

Back Panel

Figure 1-6 Back Panel of the RG-S2952G-E V1.00 and Later

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1960-24GT4SFP-UP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6910-3C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900 Series Manuel utilisateur

Ruijie

Ruijie HS2310-16GH2GT1XS Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P V2 Manuel utilisateur

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5300-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IS2712G Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS86-20XS Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2600G-I Series Mode d’emploi

Ruijie

Ruijie Reyee RG-ES206GS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5100-24GT4SFP-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
