Ruijie RG-NBS5100 Series Switches

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

1 Product Overview

Ruijie RG-NBS5100 series switches are mainly applicable to the small and medium-sized enterprise (SME) networks to

provide services according to business needs to ensure the prompt transmission of key data. The RG-NBS5100 series

switches provide various interfaces to meet the requirement for interfaces in network constructions.

RG-NBS5100 Series Switches

Model

10/100/1000

Base-T Ethernet Port

1000Base-X SFP

Port

10G SFP+ Port

Console Port

Power

Supply

RG-NBS5100-2

4GT4SFP

N/A

Single

RG-NBS5100-4

8GT4SFP

N/A

Single

1000Base-T is downward compatible with 100Base-TX and 10Base-T.

1.1 RG-NBS5100-24GT4SFP

Technical Specifications

Model

RG-NBS5100-24GT4SFP

CPU

Built-in CPU, single-core processor, 800MHz

BOOTROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 512MB

Optical Module

See Appendix B.

The copper cable is not supported.

The supported module type may change at any time. Consult Ruijie Networks for the latest

information.

SFP Port

1000Base-X

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 1.5A

Input Leakage

Current

≤3.5mA

EEE

Supported

PoE

Not supported

Power

Consumption

28W

Temperature

Operating temperature: 0 ºC to 50ºC

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

Storage temperature: -40 ºC to 70ºC

Humidity

Operating humidity: 10% to 90% RH

Storage humidity: 5% to 95% RH

Fan

Supports adaptive speed adjustment

Temperature

Alarm

Not supported

EMC Standards

GB9254-2008

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55035:2017

ETSI EN 300 386 V2.1.1 (2016-07)

Security

Standards

GB4943-2011

EN 62638-1

Dimensions

(W x D x H)

440 mm x 207.5 mm x 43.6 mm (with front panel )

Weight

2.9 kg

Product Appearance

On the front panel, the RG-NBS5100-24GT4SFP Ethernet switch provides 24 10/100/1000Base-T Ethernet ports and 4

SFP ports. On the back panel, it provides an AC power port.

Figure 1-1 Appearance of RG-NBS5100-24GT4SFP

Front Panel

Figure 1-2 Front Panel of RG-NBS5100-24GT4SFP

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

Note:

1. Reset button

2. System status LED

3. 10/100/1000 Base-T Ethernet port

4. 1000Base-X SFP port

The switch reboots after the reset button is pressed for less than 2 seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the

status LED blinks).

Back Panel

Figure 1-3 Back Panel of RG-NBS5100-24GT4SFP

Note:

1. Power cord retention clips

2. Three-hole AC power receptacle

3. Protective earthing terminal

This device relies on the separate protective earthing terminal.

The device installation shall be permanently connected to building earth by a skilled person.

The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication

centre, a dedicated computer room, or a restricted access area).

Heat Dissipation

RG-NBS5100-24GT4SFP adopts side-to-rear heat dissipation, thereby ensuring normal function of the device in the

specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to

allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

Figure 1-4 Flow Scheme of Heat Dissipation

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switch is not receiving power.

Blinking green

(0.5Hz)

The switch is running, but is not connected to

Ruijie Cloud.

Blinking green

(10Hz)

The switch is being upgraded or initialized.

Solid green

The switch is connected to Ruijie Cloud.

10/100/1000Base-T

Ethernet port status

LED

1-24

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or transmitting traffic.

SFP port status LED

25F-28F

Off

The port is not connected.

Solid green

The port is connected.

Blinking green

The port is receiving or transmitting traffic.

1.2 RG-NBS5100-48GT4SFP

Technical Specifications

Model

RG-NBS5100-48GT4SFP

CPU

Built-in CPU, dual-core processor, 1GHz

BOOTROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 1GB

Optical Module

See Appendix B.

The copper cable is not supported.

The supported module type may change at any time. Consult Ruijie Networks for the latest

information.

SFP Port

1000Base-X

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 2A

Input Leakage

Current

≤3.5mA

EEE

Supported

PoE

Not supported

Power

Consumption

46W

Temperature

Operating temperature: 0 ºC to 50ºC

Storage temperature: -40 ºC to 70ºC

Humidity

Operating humidity: 10% to 90% RH

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

Storage humidity: 5% to 95% RH

Fan

Supports adaptive speed adjustment

Temperature

Alarm

Not supported

EMC Standards

GB9254-2008

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55035:2017

ETSI EN 300 386 V2.1.1 (2016-07)

Security

Standards

GB4943-2011

EN 62638-1

Dimensions

(W x D x H)

440 mm x 267.5 mm x 43.6 mm (with front panel )

Weight

3.6 kg

Product Appearance

On the front panel, the RG-NBS5100-48GT4SFP Ethernet switch provides 48 10/100/1000Base-T Ethernet ports and 4

SFP ports. On the back panel, it provides an AC power port.

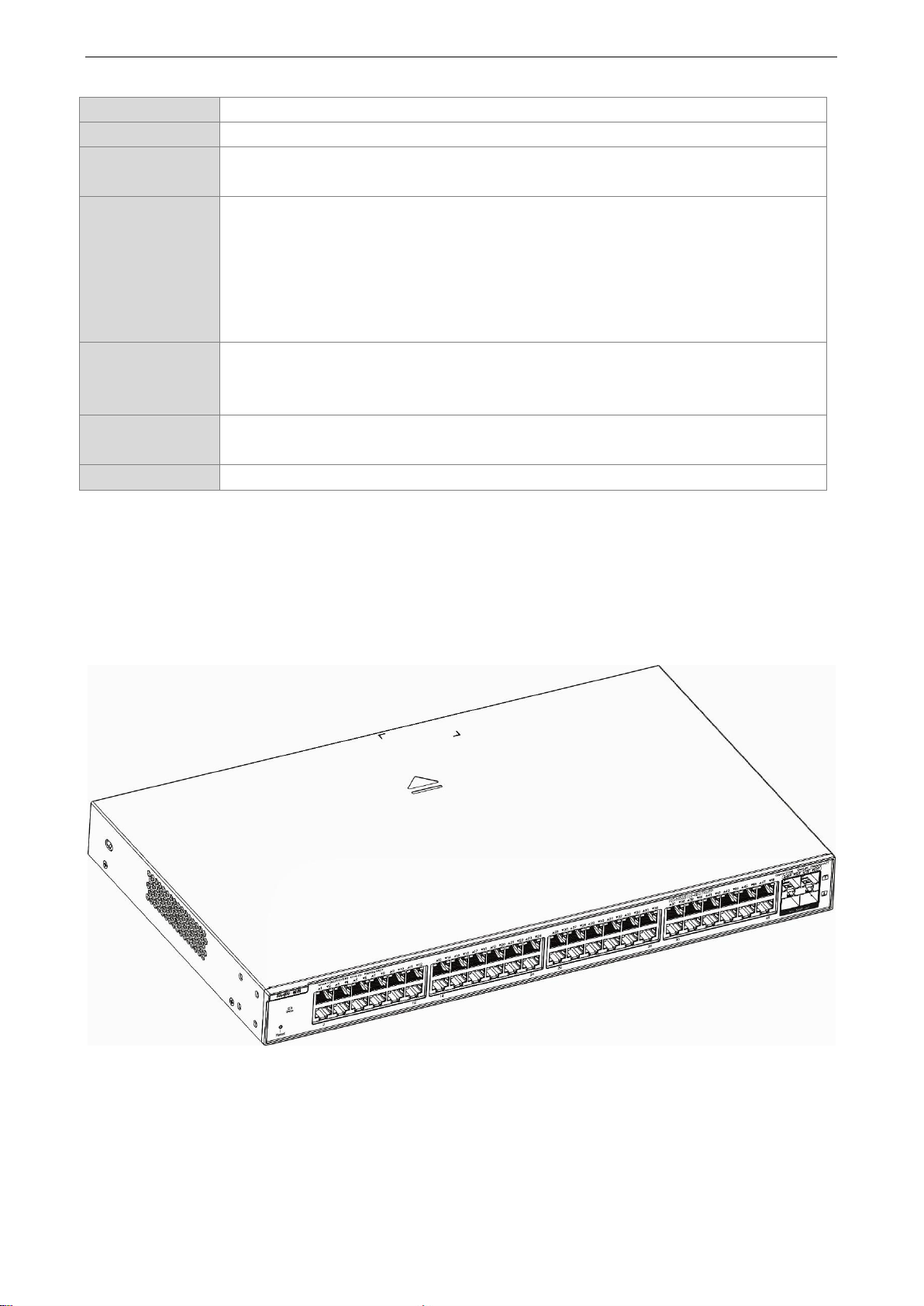

Figure 1-5 Appearance of RG-NBS5100-48GT4SFP

Front Panel

Figure 1-6 Front Panel of RG-NBS5100-48GT4SFP

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

Note:

1. Reset button

2. System status LED

3. 10/100/1000 Base-T Ethernet port

4. 1000Base-X port

The switch reboots after the reset button is pressed for less than 2 seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the

status LED blinks).

The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication

centre, a dedicated computer room, or a restricted access area).

Back Panel

Figure 1-7 Back Panel of RG-NBS5100-48GT4SFP

Note:

1. Power cord retention clips

2. Three-hole AC power receptacle

3. Protective earthing terminal

This device relies on the separate protective earthing terminal.

The device installation shall be permanently connected to building earth by a skilled person.

Heat Dissipation

RG-NBS5100-48GT4SFP adopts side-to-rear heat dissipation, thereby ensuring normal function of the device in the

specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to

allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

Figure 1-8 Flow Scheme of Heat Dissipation

Ruijie RG-NBS5100 Series Switches Hardware Installation and Reference Guide Product Overview

When you install devices, reserve 1U (44.45 cm) distance space between neighbor devices to allow air circulation.

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switch is not receiving power.

Blinking green

(0.5Hz)

The switch is running, but is not connected to

Ruijie Cloud.

Blinking green

(10Hz)

The switch is being upgraded or initialized.

Solid green

The switch is connected to Ruijie Cloud.

10/100/1000Base-T

Ethernet port status

LED

1-48

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or transmitting traffic.

SFP port status LED

49F-52F

Off

The port is not connected.

Solid green

The port is connected.

Blinking green

The port is receiving or transmitting traffic.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S5310-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RGOS 11.X Manuel utilisateur

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Comment utiliser

Ruijie

Ruijie RG-CS88-08 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S29 Series Manuel d'installation

Ruijie

Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-EG210G-P Manuel utilisateur

Ruijie

Ruijie XS-S1960-24GT4SFP-UP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS Series Manuel utilisateur

Ruijie

Ruijie RG-S1808 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie S8600E Series Manuel

Ruijie

Ruijie RG-S2915-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83-24GT4XS-PD Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Ruijie

Ruijie RG-S7800C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Comment utiliser

Ruijie

Ruijie RG-N18000-E Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
