Ruijie RG-CS86 Series Switches

Hardware Installation and Reference Guide

Document Version: V1.1

Date: 2023.07.13

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this

document or any portion of this document, in any form or by any means, without the prior written consent of

Ruijie Networks is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective

owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

Technical support hotline: 4008-111-000

http://webchat.ruijie.com.cn

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks website: https://www.ruijienetworks.com/

Technical support website: https://ruijienetworks.com/support

Case portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical support email: [email protected]

Skype: [email protected]

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by vertical

bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and separated

by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a comment

line.

2. Signs

The signs used in this document are described as follows:

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

Technical support hotline: 4008-111-000

http://webchat.ruijie.com.cn

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

- 1 -

1 Product Overview

RG-CS86 series multi-GE switches are the next-generation high-performance, high-security and multi-service

layer 3 Ethernet switches developed by Ruijie Networks. As aggregation switches in a campus network, this

series supports line-rate multi-layer switching, and is equipped with complete QoS policies for service-based

traffic prioritization, guaranteeing the transmission of critical traffic at almost zero latency.

RG-CS86-24MG4VS-UP provides 24 multi-GE ports (100ME/1GE/2.5GE/5GE), with each port supporting IEEE

802.3bt Type 4 (90 W) PoE, and four 25GE ports.

RG-CS86-48MG4VS2QXS-UPD provides 48 multi-GE ports (100ME/1GE/2.5GE/5GE), with the first 24 ports

supporting IEEE 802.3bt Type 4 (90 W) PoE, and the last 24 ports supporting IEEE 802.3at Type 2 (30 W) PoE.

It also provides four 25GE ports and two 40GE ports.

RG-CS86-24XMG4XS4VS-UPD provides 24 multi-GE ports (100ME/1GE/2.5GE/5GE/10GE), with each port

supporting IEEE 802.3bt Type 4 (90W) PoE. It also provides four 10GE ports and four 25GE ports.

Specifications of RG-CS86 series switches:

Model

100GE

QSFP28

Ethernet

Ports

40GE

QSFP+

Ethernet

Ports

25GE

SFP28

Ethernet

Ports

10GE

SFP+

Ethernet

Ports

100ME/1G

E/2.5GE/5

Multi-GE

Ethernet

Ports

Redundant

Fan

Modules

Redundant

Power

Modules

RG-CS86-24MG

4VS-UP

N/A

Fixed fan

modules

Fixed power

modules

RG-CS86-48MG

4VS2QXS-UPD

N/A

2+1

1+1

Model

100GE

QSFP28

Ethernet

Ports

40GE

QSFP+

Ethernet

Ports

25GE

SFP28

Ethernet

Ports

10GE

SFP+

Ethernet

Ports

100ME/1G

E/2.5GE/5

GE/10GE

Multi-GE

Ethernet

Ports

Redundant

Fan

Modules

Redundant

Power

Modules

RG-CS86-24XM

G4XS4VS-UPD

N/A

2+1

1+1

Note

Four 25GE/10GE SFP28 ports of the RG-CS86 series multi-GE switches must operate at the same rate (25

Gbps or 10 Gbps). Operation at mixed rates is not supported.

25GE SFP28 ports of the RG-CS86 series multi-GE switches, when operating at the rate of 25 Gbps, support

optical modules, but do not support DirectAttach Copper (DAC) cables. See Appendix B for supported

optical module models and specifications.

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

- 2 -

10GE SFP+ ports of the RG-CS86 series multi-GE switches support 10GBASE-R and 1000BASE-X

standards. When operating in 1000BASE-X mode, these ports support auto-negotiation without manually

configuring the rate and duplex mode.

40GE QSFP+ ports of the RG-CS86 series multi-GE switches support both 40GE mode and 4x10GE mode.

1.1 RG-CS86-24MG4VS-UP

Specifications

Model

RG-CS86-24MG4VS-UP

CPU

ARM processor, 1.25 GHz clock rate

BOOT ROM

16 MB

Flash Memory

1 GB

RAM

1GB DDR4, 32-bit bandwidth and 4-bit ECC

Expansion

Module Slot

Not supported

Fan Module

Slot

Fixed fan modules

Power Module

Slot

Built-in Power Supply

AC Input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current per circuit: 6A

Max. Power

Consumption

< 120 W

Supported

Optical Module

Types

For details, see Appendix B.

The supported optical module types may update without prior notice. Please contact Ruijie

Networks for details.

PoE

All RJ45 ports comply with the IEEE 02.3bt PoE standard. Each port can provide up to 90

W of power through PoE. The maximum power is subject to the actual power supply.

The maximum number of PoE devices supported by the switch is determined by the PoE

output power of the switch and the actual power of PoE devices.

POE Available

Power

370 W

PoE Power

Cable Pairs

Four pairs (1-2, 3-6, 4-5 and 7-8 pairs)

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

- 3 -

Temperature

Alarm

Support temperature alarm and over-temperature protection.

EMC

Certification

GB/T 9254.1 Class A

Safety

Regulation

Compliance

GB 4943.1

Altitude

0-5000 m (0-16404 ft.)

Operating

Temperature

0ºC to 45ºC (32ºF to 113 ºF) at a height below 3000 m (9842 ft.) above the sea level

Description

Altitude 3000 m (9842 ft.) to 5000 m (16404 ft): The maximum temperature decreases by

1°C (1.8°F) each time the altitude increases by 220 m (721 ft).

Storage

Temperature

-40ºC to +70ºC (-40ºF to +158ºF)

Operating

Humidity

10% to 90% RH (non-condensing)

Storage

Humidity

5% to 95% RH (non-condensing)

Weight

3.65 kg (8.82 lbs.)

Dimensions

(W ×D ×H)

442 mm ×220 mm ×43.6 mm (17.40 in. ×29.92 in. ×6.89 in.)

Caution

RG-CS86-24MG4VS-UP is a Class A product. In a domestic environment, this product may cause radio

interference. In this case, users are advised to take proper measures against the interference.

Note

During operation, if one fan module fails, the remaining two fan modules can still support the normal operation

of the device, provided that the faulty fan module is in place. If more than two fan modules fail, replace them

immediately.

Warning

This device is not suitable for use in places where children may be present.

Appearance

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

- 4 -

The front panel of the RG-CS86-24MG4VS-UP Ethernet switch is provided with 24 multi-GE electrical ports

(100ME/1GE/2.5GE/5GE), with each port supporting IEEE 802.3bt Type 4 (90 W) PoE, four 25G optical ports,

one management Ethernet electrical port (MGMT), one USB port, and one console port (Console). The

following figures show the product appearance.

LED

Panel ID

Color

Status

System

Status

LED

SYS

Off

System is not powered on.

Blinking

green (3 Hz)

System is being initialized. Continuous blinking indicates a

fault.

Blinking

green (10 Hz)

System is being located.

Solid green

System is operating normally.

Solid yellow

Temperature at the air intake and exhaust vents exceeds the

threshold.

Solid red

Temperature at air inlets and outlets exceeds the threshold.

System is faulty.

Power

Module

Status

LED

PWR1/PW

Off

The power module is not seated.

Solid green

The power module is seated and providing power to the

switch.

Solid yellow

The model of the power module is not supported or cannot be

read.

Solid red

The redundant power module is not functioning properly or

not connected to the AC power cord.

System

Fan

Module

Status

LED

FAN

Solid green

All fan modules are seated and functioning properly.

Solid red

One fan module is faulty.

Fan module model is not supported.

One fan module is not seated.

PoE

LED

PoE

Solid green

The LED indicates the switching status.

Solid yellow

The LED indicates the PoE power supply status.

MGMT

Port

Status

LED

MGMT

Off

No link is is established on this port.

Green

A 1000 Mbps link is established on this port.

Blinking

green

The port is sending and receiving traffic at 1000 Mbps.

Yellow

A 100/10 Mbps link is established on this port.

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

- 5 -

Blinking

yellow

The port is sending and receiving traffic at 100/10 Mbps.

RJ45

port LED

1-24

Off

No link is established on this port.

Solid green

A 1 Gbps/2.5 Gbps/5 Gbps link is established on this port.

Blinking

green

The port is sending or receiving traffic at 1/2.5/5 Gbps.

Solid yellow

A 100 Mbps link is established on this port.

Blinking

yellow

The port is sending and receiving traffic at 100 Mbps.

PoE

Status

LED

1-24

Off

PoE is disabled.

Solid green

PoE is enabled.

Solid yellow

The PoE port is overloaded or faulty.

SFP+

Port

Status

LED

25F-28F

Off

No link is is established on this port.

Solid green

A 10/1 Gbps link is established on this port.

Blinking

green

The port is sending and receiving traffic at 1/10 Gbps.

SFP28

Port

Status

LED

29F-32F

Off

No link is is established on this port.

Solid green

A 25/10 Gbps link is established on this port.

Blinking

green

The port is sending and receiving traffic at 25/10 Gbps.

Ruijie RG-CS86 Series Switches Hardware Installation and Reference Guide (V1.1)

- 6 -

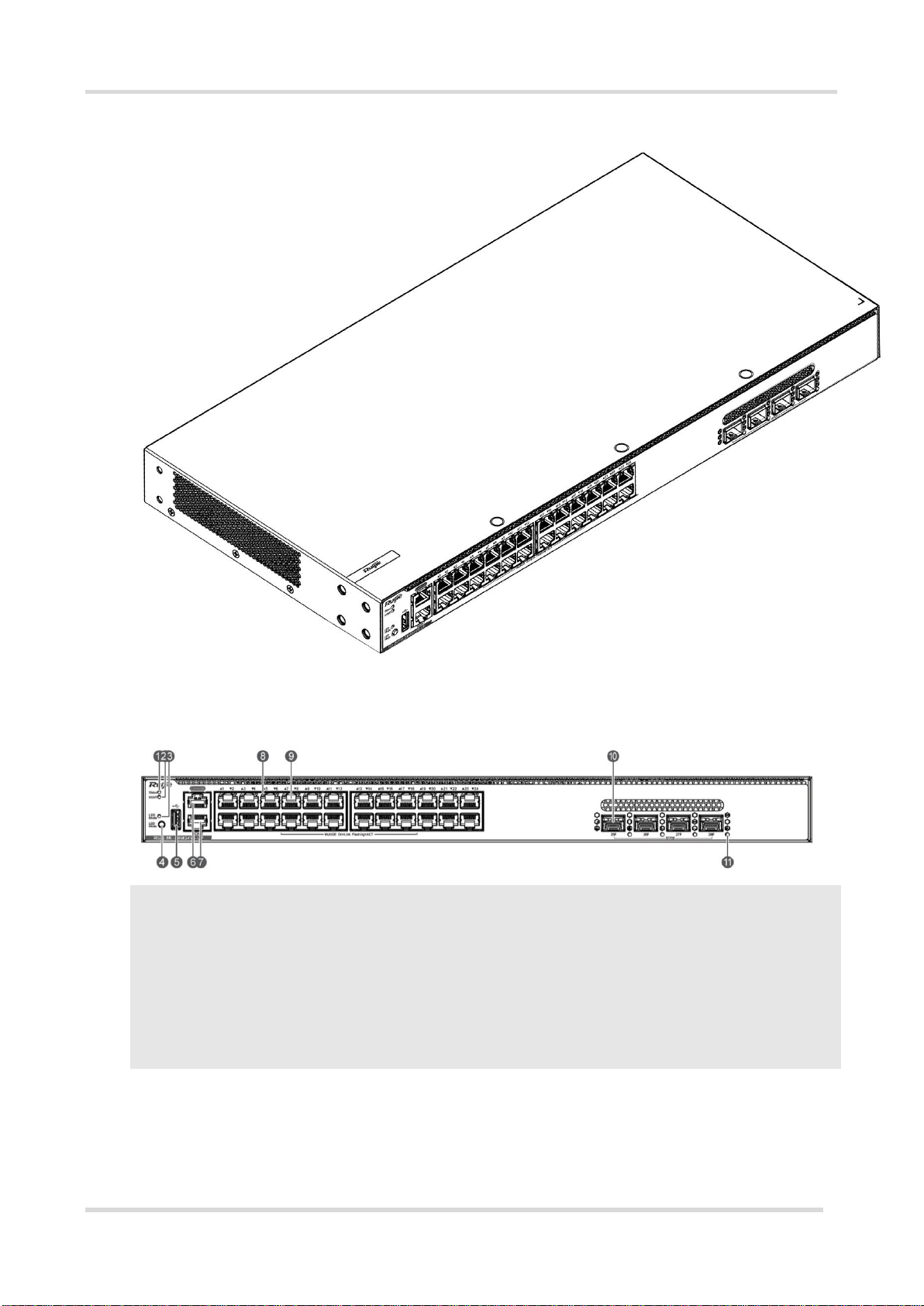

Figure 1-1 Appearance of an RG-CS86-24MG4VS-UP Switch

Front Panel

Figure 1-2 Front Panel of an RG-CS86-24MG4VS-UP Switch

Note

1. System status LED

2. MGMT interface status LED

3. LED mode LED

4. LED mode button

5. USB port

6. Console port

7. Ethernet port for management

8. Electrical port LED

9. 100ME/1GE/2.5GE/5GE multi-GE electrical

ports

10. SFP28 port

11. SFP28 port LED

Rear Panel

Ce manuel convient aux modèles suivants

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS5200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Comment utiliser

Ruijie

Ruijie RG-ES126S-LP Manuel utilisateur

Ruijie

Ruijie RG-PF2920U-4GT1MS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2928G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5000-E Series Comment utiliser

Ruijie

Ruijie Reyee RG-ES106D-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-S Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1960-48GT4SFP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES126S-LP V2 Manuel utilisateur

Ruijie

Ruijie RG-IF2920U-12GT1XS-DC Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1930J Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5310-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5200-48GT4XS-UP Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-EG210G-P Manuel utilisateur

Ruijie

Ruijie RG-CS83 Series Manuel utilisateur

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-ES105D Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
