Ruijie RG-CS83 Series Manuel utilisateur

Ruijie RG-CS83 Series Switches

Web-based Configuration Guide

Document Version: V1.0

Date: september 25, 2023

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form orby any means,without the prior written consent of Ruijie Networks

is prohibited.

Trademarks including , are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document areowned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Conventions

1. GUI Symbols

Interface

symbol

Description

Example

Boldface

1. Button names

2. Window names, tab name, field name and

menu items

3. Link

1. Click OK.

2. Select Config Wizard.

3. Click the Download File link.

Multi-level menus items

Select System >Time.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, description, port type, software interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Web-based Configuration Guide Login

1 Login

1.1 Configuration Environment Requirements

1.1.1 PC

Google Chrome, Internet Explorer 9.0, 10.0, and 11.0, and some Chromium/Internet Explorer kernel-based

browsers (such as 360 Extreme Explorer) are supported. Exceptions such as garble characters or format

error may occur if an unsupported browser is used.

1024 x 768 or a higher resolution is recommended. If other resolutions are used, the page fonts and formats

may not be aligned, the GUI is less artistic, or other exceptions may occur.

1.2 Logging in to the Web Page

1.2.1 Connecting to the Device

Use a network cable to connect the switch port to the network port of the PC, and configure an IP address for

the PC that is on the same network segment as the default IP of the device to ensure that the PC can ping

through the switch. For example, set the IP address of the PC to 10.44.77.100.

Table 1-1 Default settings

Feature

Default Value

Device IPAddress

10.44.77.200

Password

A username is not required when you log in for the

first time. The default password is admin.

1.2.2 Logging in to the Web Page

(1) Enter the IP address (10.44.77.254 by default) of the device in the address bar of the browser to open the

Note

If the static IP address of the device is changed, or the device dynamically obtains a new IP address, the new

IP address can be used to access the web management system of the device as long as the PC and the

device are on the same LAN, and their IP addresses are in the same network segment.

(2) Enter the password and click Log In to open the homepage of the web management system.

Web-based Configuration Guide Login

You can use the default password admin to log in to the device for the first time. For security purposes, you are

advised to change the default password as soon as possible after logging in, and to regularly update your

password thereafter.

If you forget the Device IP address or password, hold down the Reset button on the device panel for more than

5s when the device is connected to the power supply to restore factory settings. After restoration, you can use

the default IP address and password to log in.

Caution

Restoring factory settings will delete all configurations of the device. Therefore, exercise caution when

performing this operation.

1.2.3 Frequently-Used Controls on the Web Page

Web-based Configuration Guide Login

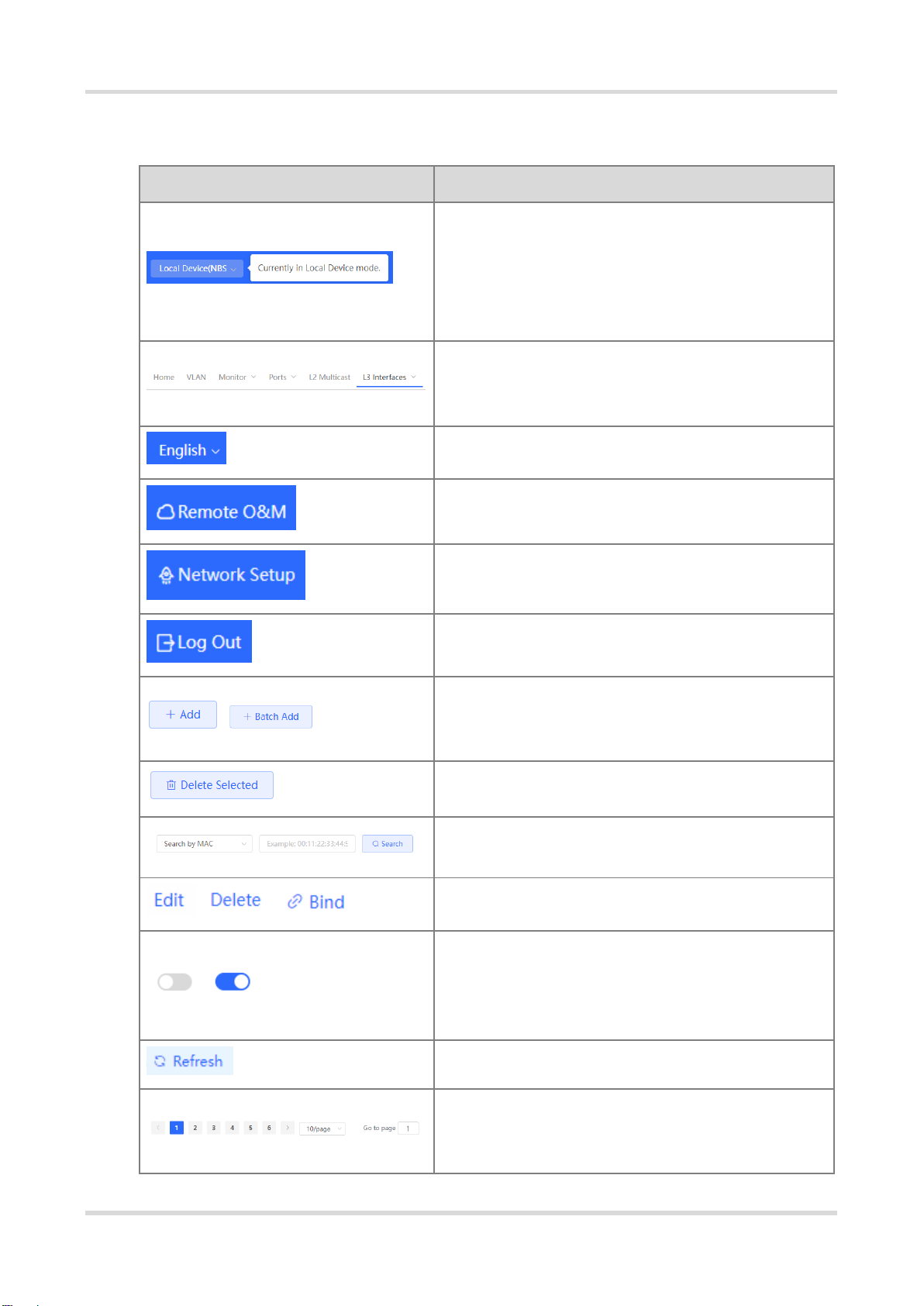

Table 1-2 Frequently-Used Controls on the Web Page

Control

Description

Local Device: Allows you to configure all functions of the

local device.

Network: Allows you to configure common functions of all

wired and wireless Reyee products in batches in an ad hoc

network.

The navigation bar is arranged horizontally on the top when

the device acts as a slave device, and vertically on the left

when the device acts as a master device.

Click it to change the language.

Click it to log in to the MACC for remote O&M through the

URL or by scanning the QR code.

Click it to access the network setup wizard.

Click it to log out of the web management system.

Click Add or Batch Add to add one or more table entries in

the dialog box that appears.After adding the table entries, you

can view the added table entries on this page.

Click it to delete the selected table entries in batches.

Quickly locate the table entry you want to find through the

drop-down list or by entering a keyword.

Click them to edit, delete, or bind a table entry.

If the toggle switch is displayed in gray and the button is on

the left, the related function is disabled. If the toggle switch is

displayed in blue and the button is on the right, the related

function is enabled.

Update data on the current page.

Set the number of table entries displayed on a page. Click a

page number or specify the page number to go to the

corresponding page.

Web-based Configuration Guide Login

1.3 Quick Setup

1.3.1 Configuration Preparations

Connect the device to the power supply, and connect the device port to an uplink device with a network cable.

1.3.2 Procedure

1. Adding Device to Network

By default, users can perform batch settings and centralized management of all devices in the network.

Therefore, before starting configuration, you need to check and confirm the number of online devices and

network status in the network.

Note

Under normal circumstances, when multiple new devices are powered on and connected, they will be

automatically interconnected into a network, and the user only needs to confirm that the number of devices is

correct.

If there are other devices in the network that are not added to the current network, you can click Add to My

Network and enter the management password of the added device to manually add the corresponding device

to the network where the device is located, and then start the network-wide configuration.

2. Creating a Web Project

Click Start Setup to set the networking modes and management password of the device.

(1) Network Name: Identify the network where the device is located.

(2) Internet: Select the networking mode.

○DHCP: An IPaddress is assigned to the device by the uplink DHCP server. Bydefault, the device detects

Web-based Configuration Guide Login

whether the IP address can be dynamically obtained. If the IP address is obtained successfully, there is

no need to manually set the IP address.

○Static IP: The user manually enter a specified IP address, subnet mask, gateway IP address, and DNS

address.

(3) Management Password: Set the password for logging in to the management page.

(4) Country/Region: Select the country or region where the device is located.

(5) Time Zone: Set the system time. The network time server is enabled to provide time services by default.

Please select your actual time zone.

Click Create Network & Connect to deliver related configuration for initialization and detect the network. After

completing the quick setup, the new device is connected to the Internet, and you can continue to bind the device

to the cloud account for remote management. For specific operations, please refer to the instructions on the page

to log in to the Noc Cloud platform for configuration.

Note

●Click Exit in the upper right corner and follow prompts to perform operations. Then, the device can skip

quick setup to go to the Eweb management system. To configure again after exiting or completing the quick

configuration, click the sign in the navigation bar at the top of the web page.

●After changing the management password, you need to re-visit the device management address and use

the new password to log in to the device.

1.3.3 Procedure for Configuring Hot Standby (VCS)

The VCS (Virtual Chassis System) is afeature that provides virtualization and clusteringcapabilities for switches.

VCS technology allows multiple physical switches to form a logically unified device, creating a virtual switch

stack. This stack is treated as a single entity with shared management and data planes.

Hot standby can improve data forwarding reliability when an NBS switch is used as the core switch. By stacking

two switches and automatically switching to thestandby switch when the active switch fails, hot standby ensures

uninterrupted data forwarding in the event of a single point of failure.

Web-based Configuration Guide Login

Caution

Hot standby is supported only on NBS7006 and NBS7003 series switches.

Only two switches are supported to form a hot standby group.

When multiple switches are configured, select 10GE interfaces as hot standby interfaces to connect the

member switches.

Stacking: refers to physically connecting multiple switches with stack cables, allowing them to operate as a

single logical unit for data forwarding.

(1) Enter the default IP address 10.44.77.200 in the address bar of your browser to go to the web management

interface of the NBS switch. Click the Hot Standby tab (or click Configure in the red box below if the

switch is not yet configured).

(2) Click Start Setup.
