Ruijie RG-S6150-X Series Switches

Hardware Installation and Reference Guide

Document Version: V1.01

Date: 2022.6.9

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: s[email protected]

Skype: [email protected]

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by

vertical bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and

separated by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a

comment line.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and theactual version,

the actual version prevails.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

RG-S6150-X series switches are new-generation Layer-3 switches released by Ruijie Networks, providing high

performance, consolidated security and multiple services. The switches are mainly applied to the convergence

layer of campus networks to provide line-rate switching and complete QoS policies, prioritizing some traffic over

others to ensure important data transmission without latency. RG-S6150-48VS8CQ-X switch has up to 48 25G

ports and eight 100G ports per device and RG-S6150-24VS8CQ-X switch has up to 24 25G ports and eight

100G ports per device.

Table 1-1 RG-S6150-X Series Switches

Model

100G

QSFP28

Ethernet

Port

25G/10G

SFP28

Ethernet

Port

10GBase-T

Ethernet

Port

Expansion

Module Slot

Redundant

Fan

Redundant

Power

Supply

RG-S6150-

48VS8CQ-X

N/A

3+1

1+1

RG-S6150-

24VS8CQ-X

N/A

3+1

1+1

Note

A 25G SFP28 port supports 25G/10Gbase-R and 1000base-X.

A QSFP28 port supports both 100G/40G mode and 4x25G/4x10G mode.

1.1 RG-S6150-48VS8CQ-X

Table 1-2 Technical Specifications

Model

RG-S6150-48VS8CQ-X

CPU

FT2000/4

BOOT ROM

16 MB

FLASH Memory

8 GB

SDRAM

DDR4 4 GB

Expansion Module Slot

Not Support

Expansion Module

Not Support

Fan Slot

4 (support 3+1 redundancy, configure at least 3 fan modules in one switch)

Hardware Installation and Reference Guide Product Overview

Fan Module

M1EFAN II-F

Power Supply Slot

2 (support 1+1 redundancy)

Power Supply Module

RG-PA550I II-F

Note

The power supply module is not delivered with the switch. Please purchase the

module separately to ensure normal operation of the device.

Power Supply Input

AC input:

Rated voltage range: 100 V AC to 240

V AC

Maximum voltage range: 90 V AC to

264 V AC

Frequency: 50 Hz/60 Hz

Rated current: 3.5 A to 7.2 A

HVDC input:

Rated voltage: 240 V DC

Maximum voltage range: 192 V DC to 288

V DC

Rated current: 3.6 A

Power Consumption

Less than 300 W

Optical Module

Refer to Appendix 7.2

Note

The supported modules update at any time, contact Ruijie Networks for details.

Temperature Warning

Support temperature warning and over-temperature protection.

EMC Certification

GB/T 9254.1-2021

Safety Regulation

Compliance

GB 4943.1-2011

Working Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

–40°C to 70°C (–40°F to 158°F)

Working Humidity

10% to 90% RH (non-condensing)

Weight

Net weight: 10 kg (20.05 lbs., with 4 fan modules and 2 power modules)

Dimensions

(W x D x H)

442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.), 1U

Caution

RG-S6150-48VS8CQ-X is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Hardware Installation and Reference Guide Product Overview

Note

The 25G/100G Ethernet port of the RG-S6150-48VS8CQ-X switch does not support direct attach copper

(DAC).

The 48VS port license supports 25G port and does not support FEC-RS.

Product Appearance

The hardware of the RG-S6150-48VS8CQ-X includes the chassis, the power supply system and the heat

dissipation system.

The power supply system: Provides two power supply slots, which support 1+1 power supply redundancy.

You are advised to configure power supply redundancy.

The heat dissipation system: Provides four fan module slots, which support 3+1 fan redundancy. You are

advised to configure all fans redundancy.

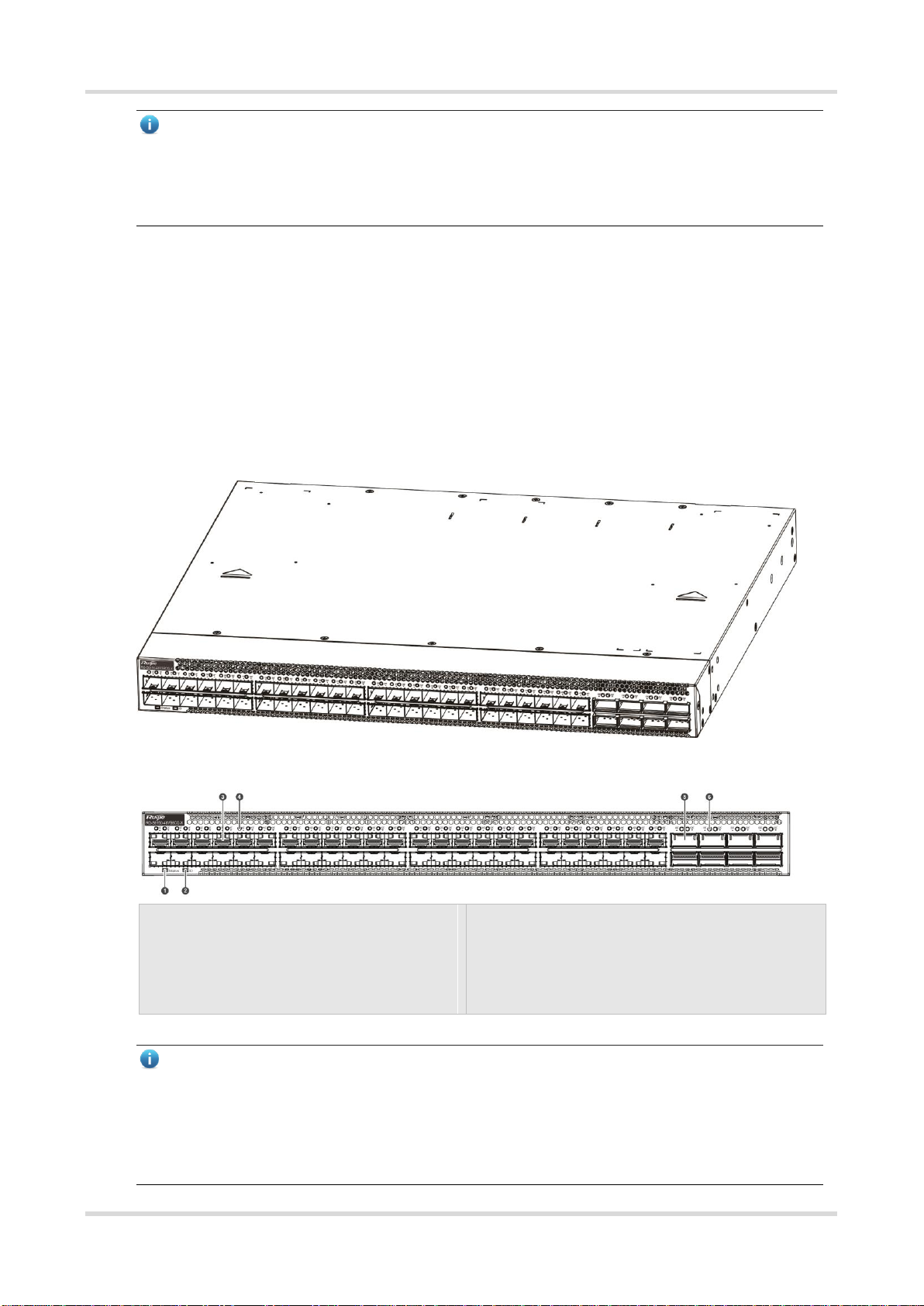

Figure 1-1 Appearance of the RG-S6150-48VS8CQ-X

Figure 1-2 Front Panel of the RG-S6150-48VS8CQ-X

1. System Status LED

2. Locator LED

3. SFP28 Port

4. SFP28 Port LED

5. QSFP28 Port

6. QSFP28 Port LED

Note

The RG-S6150-48VS8CQ-X supports 100GE QSFP28 module, 25GE SFP28 module, 10GE SFP+ module

and GE SFP+ module. For specific modules and specifications, refer to Appendix 7.2.

The speed of 48VS port is set to 10 Gbps by default. A license is needed for the port speed of 25 Gbps. The

48VS port does not support FEC-RS.

Hardware Installation and Reference Guide Product Overview

Back Panel

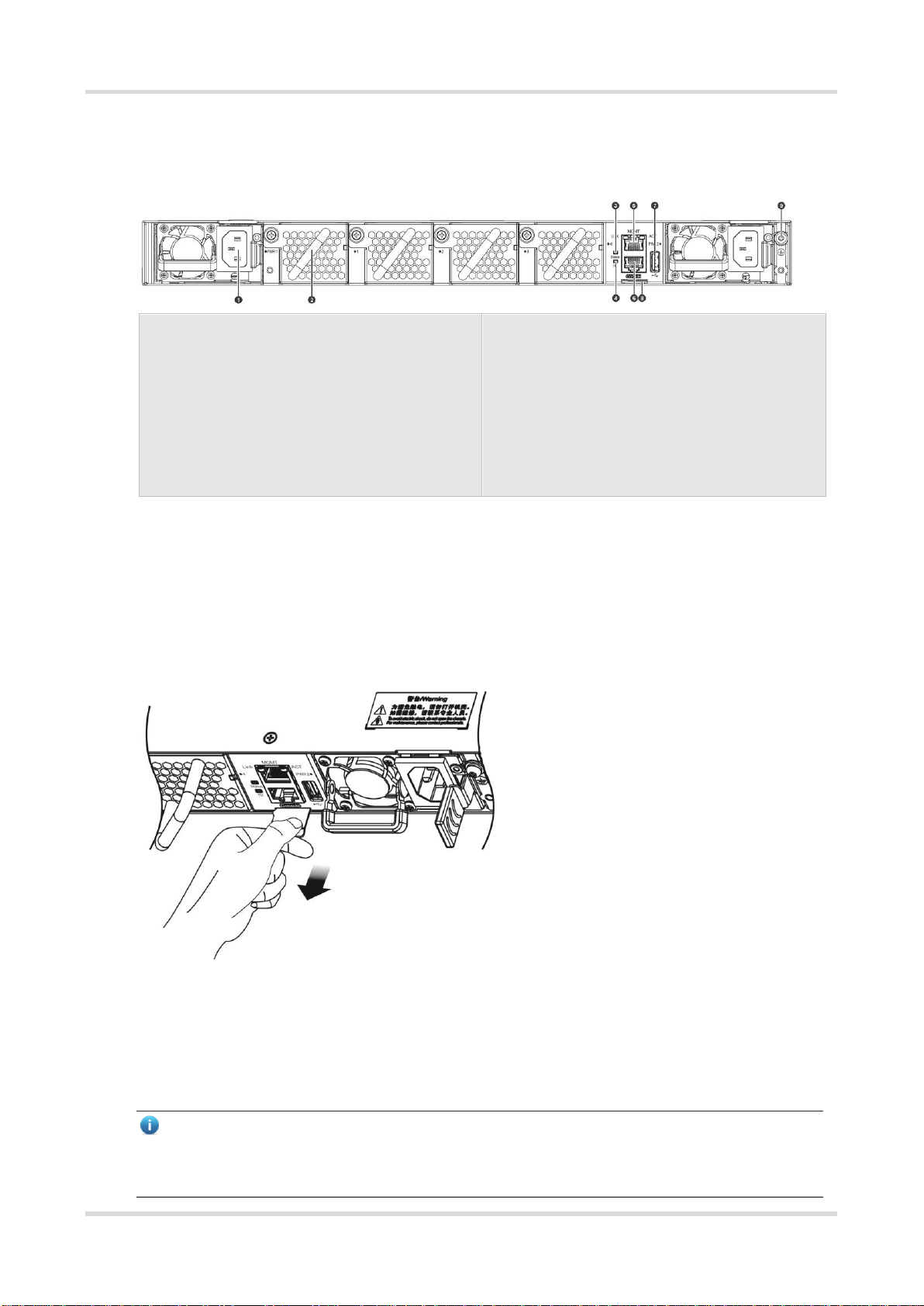

Figure 1-3 Back Panel of the RG-S6150-48VS8CQ-X

1. Power Module Slot

2. Fan Module Slot

3. System Status LED

4. Locator LED

5. MGMT Port

6. Console Port

7. USB 2.0 Port

8. Assess Tag

9. Grounding Stud

Asset Tag

The asset tag is at the bottom right corner of the switch back panel. The tag is movable and can be withdrawn

from the device. Users can mark the information such as asset name, category, code and registration date on

the tag which helps to improve asset management accuracy and efficiency.

Figure 1-4 Asset Tag of the RG-S6150-48VS8CQ-X

External Ports

The RG-S6150-48VS8CQ-X provides the following ports:

Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions,

warnings and other diagnostic messages. Therefore, it is more convenient to upgrade the software version

of the switch on line and save the log information.

Note

To protect the data and avoid device damage, use qualified USB flash disks of good brands. At the same time,

the local USB port is compatible with most of the USB controllers except some USB flash disks.

Hardware Installation and Reference Guide Product Overview

The RG-S6150-48VS8CQ-X switch supports debugging, configuration, maintenance, management and host

software uploading of Console ports.

Console port: Use RS-232 interface electrical level and standard RJ45 connector. This interface is

connected with the serial port of terminal PC to perform system debugging, configuration, maintenance,

management, and host software uploading.

MGMT port: This is an out-band Ethernet port, which uses standard RJ45 connector. This interface is

connected with Ethernet port of a PC to perform program downloading. The user can manage and maintain

the switch remotely through this interface. Use a standard Ethernet cable to connect the MGMT port and

the Ethernet port of the PC.

SFP28 port: There are 48 10G SFP28 ports (A license is needed for a 25G SFP28 port.), which support

optical modules.

QSFP28 port: There are 8 100G QSFP28 ports, which support optical modules. These ports can also work

in 4 x 25G mode.

LED

Table 1-3 LED

LED

Panel

Identification

Status

Meaning

System Status LED

(Front panel/Back

panel)

Status

Off

The system is not powered up.

Solid red

1. One of the modules of the system fails.

2. There are less than 3 fans.

3. The internal or partial temperature exceeds the

warning working temperature, and the switching

service resets.

Blinking green

The system is initializing.

Solid green

The system is operational.

Solid yellow

1. The temperature gets to the warning threshold.

2. Only 3 fans are in the position.

3. One of the dual powers is not connected with the

AC power cord.

Locator LED (Front

panel/Back panel)

Off

Locator LED is controlled by CPLD. Locating function

is disabled.

Solid blue

Device locating is enabled and the technical support

engineers turn on or off the locator LED remotely.

MGMT Port LED

MGMT

Off

The port is not connected.

Green

The port is connected at 10/100/1000 Mbps.

Hardware Installation and Reference Guide Product Overview

Blinking

The port is transmitting or receiving data.

SFP28 Port LED

1F-48F

Off

The port is not connected.

Solid green

The port is connected at 1/10/25 Gbps.

Blinking green

The port is transmitting or receiving data at 1/10/25

Gbps.

QSFP28 Port LED

49F-56F

Off

The port is not connected.

Solid green

The port is connected at 40/100 Gbps.

Blinking green

The port is transmitting or receiving data at 40/100

Gbps.

Heat Dissipation

The working temperature of the RG-S6150-48VS8CQ-X switch is 0°C to 45°C, or 32°F to 113°F, and the heat

dissipation design needs to ensure the stability, safety and maintainability in such environment. The RG-S6150-

48VS8CQ-X adopts fan ventilation and forced convection to ensure the device can work normally in specified

environment. Dust the device every three months to avoid blocking the ventilation openings.

The RG-S6150-48VS8CQ-X supports M1EFAN II-F, and provides fan speed regulation, fan failure warning, and

fan hot swapping.

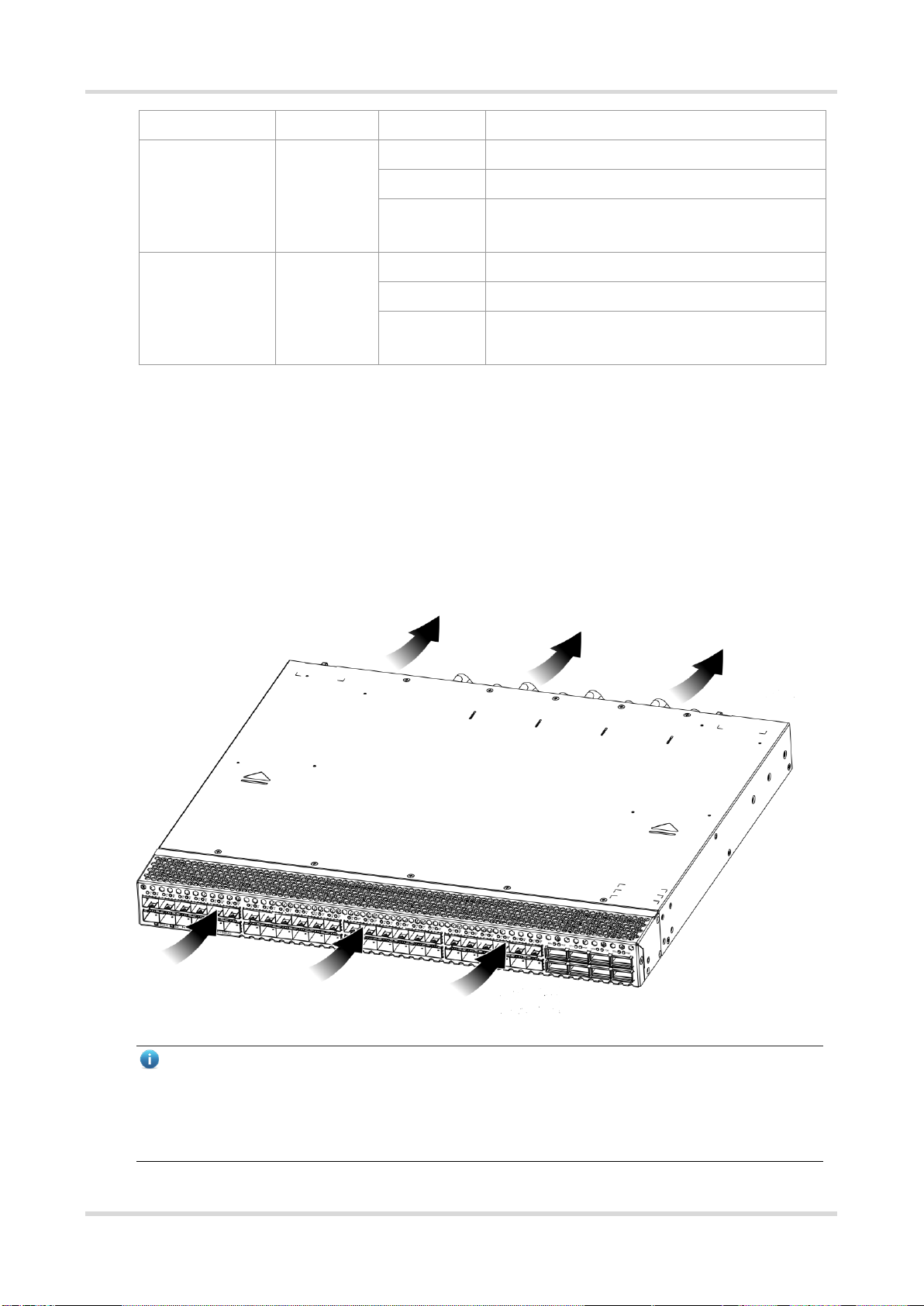

Figure 1-5 Airflow Direction of the RG-S6150-48VS8CQ-X

Note

Maintain a minimum clearance of 20 cm (7.87 in.) around the switch for ventilation.

It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan

module slots to ensure ventilation and heat dissipation and avoid dusts.

Out

Autres manuels pour RG-S6150-X Series

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S1808 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES109DS Manuel utilisateur

Ruijie

Ruijie HS2310-16GH2GT1XS Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5200-24GT4XS-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES1 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S7600 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IS2712G Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IF2920U-12GT1XS-DC Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES206GS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1960-24GT4SFP-UP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S3250E Series Manuel utilisateur

Ruijie

Ruijie XS-S1960-48GT4SFP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS86 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-XH Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2600E Series Manuel utilisateur

Ruijie

Ruijie RG-S8600 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
