Installation and Assembly: 32" - 60" Flat Panel TV Cart

Models: SR1G, SR560G

Max UL Load Capacity:

150 lb (68 kg) screen

50 lb (22.7 kg) per shelf

This product is UL Listed. It must be

installed by a qualified professional

installer.

2 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

NOTE: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List..........................................................................................................................................................................3, 4

AssemblingCart ...................................................................................................................................................................5

AttachingUniversalAdapterPlateorDedicatedAdapterPlate................................................................................................10

InstallingAdapterBrackets.................................................................................................................................................11

CordManagement................................................................................................................................................................13

Tools Needed for Assembly

•level

•phillipsscrewdriver

• Donot begin toinstall your Peerlessproduct until youhave read andunderstood the instructionsand warnings

containedin this InstallationSheet. If youhave any questionsregarding any ofthe instructions orwarnings, please

callPeerlesscustomer care at 1-800-729-0307.

• Thisproduct should onlybeinstalled by someoneof good mechanical aptitude,and fully understands

these instructions.

• Neverexceed the Maximum ULLoad Capacity on page1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screwsfirmly, but donotovertighten. Overtightening can damagetheitems, greatly reducing theirholding

power.

• The cart is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is shaken

or hit.Always monitor children and do not let children play alone around stand as they could get hurt by a falling

screen.Not recommended for use inareas with heavytraffic.

WARNING

3 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

Before you begin, make sure all parts shown are included with your product.

Parts may appear slightly different than illustrated.

SR1G SR560G

Black Black

Description Qty. Part Number Part Number

Ascreen mount bracket 1 201-1156 201-1156

Bhook plate 1 201-1157 201-1157

Cshelf support 1 201-1158 201-1158

Dshelf clamp bracket 1 201-1159 201-1159

Ebase 1 009-1223 009-1223

Funiversal plate 1 N/A 201-1110

Gadapter bracket 2 N/A 201-1510

Hupright 1 580-1180 580-1180

Iglass shelf 1 590-1208 590-1208

Jtop cover 1 590-1210 590-1210

Kbutton bumper 9 590-1209 590-1209

L1/4-20 x 12 mm decorative screw 14 520-2325 520-2325

M1/4-20 nut 12 530-1022 530-1022

N5/16" flat washer 10 540-9406 540-9406

O3/8-16 x 2.5" socket screw 3 520-9550 520-9550

P7/32" allen wrench 1 560-9715 560-9715

Q4 mm allen wrench 1 560-9646 560-9646

R6 mm allen wrench 1 560-9716 560-9716

Sleft leg 1 009-0220 009-0220

Tright leg 1 009-0218 009-0218

Uwheel caster 2 600-0044 600-0044

Vwheel caster/brake 2 600-0045 600-0045

Wjoint connector nut 4 530-1037 530-1037

X3/8-16 x 1.5" screw bolt 4 520-1329 520-1329

YM10 x .402 ID washer 3 540-9424 540-9424

Zend cap 4 590-1032 590-1032

AA 1/4-20 x 20 mm screw 2 520-2326 520-2326

BB 3/16 allen wrench 1 560-0071 560-0071

CC M4 x 12 mm serrated washer head socket pin screw 6 N/A 510-1079

DD M4 x 25 mm serrated washer head socket pin screw 4 N/A 510-1082

EE M5 x 12 mm socket pin screw 4 N/A 520-1064

FF M5 x 25 mm socket pin screw 4 N/A 520-1122

GG M6 x 12 mm socket pin screw 4 N/A 520-1050

HH M6 x 25 mm socket pin screw 4 N/A 520-1211

II M8 x 15 mm socket pin screw 6 N/A 520-1068

JJ M8 x 40 mm socket pin screw 4 N/A 520-1152

KK .219 ID x .5 OD x .5 HT spacer 4 N/A 540-1057

LL .344 ID x .75 OD x .5 HTspacer 4 N/A 540-1059

MM multi-washer 6 N/A 580-1036

NN M6 x 20 mm socket pin screw 4 N/A 520-9554

OO M6 x 30 mm socket pin screw 4 N/A 520-1067

PP M8 x 25 mm socket pin screw 4 N/A 520-1101

QQ M10 x 15 mm socket screw 4 520-9262 520-9262

Parts List

4 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

Some parts may appear slightly different than illustrated.

ABC

L NM

CC DD EE JJFF HH

KK NN PP F

Parts List continued

Universal Adapter Plate, Brackets and Hardware included with model SR560G only

5 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

1Insert four end caps (Z) into ends of left and right support legs (S & T)as shown.

Guide right leg (T) towards base housing (E) as shown in fig.2.1. Then line up holes in base housing with holes i right

leg. Fasten base housing to right leg using two 3/8-16 x 1.5" screw bolts (X) and two joint connectors (W), tighten

using 3/16"allen wrench (BB) and 7/32"allen wrench (P) as shown in fig.2.2. Repeat for left side with left leg (S).

fig. 2.2

fig. 2.1

6 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

3Insert and screw casters (V &U) into holes of support legs (S &T). Attach casters with brake (V)to the back of left

and right support legs (S &T). Attach casters without brake (U)to front of support legs (S &T) as shown.

NOTE:Lockbrakesoncasters,fornosudden movements during installation.

HANDTHREAD

HOLDWHEEL

Attach upright (H) to base (E), as shown in fig 4.2 using three 3/8-16 x 2.5" socket screws (O) and M10 x .402ID

lock washers (Y). Tighten screws using 7/32" allen wrench (P) shown in fig. 4.1.

fig. 4.1

fig. 4.2

CORDMANAGEMENT

HOLES

7 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

SLOT

fig 6

Loosely attach four 1/4-20 x 12 mm screws (L), washers (N), and 1/4-20 nuts (M) to shelf support (C).

Slide shelf support (C)onto upright (H) so that 1/4-20 nuts (M) slide into slots of upright (H) as shown in figure

6 and detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12 mm screws (L) using 4

mmallen wrench (Q).

NOTE: MAXIMUMOFTWO SHELVES

Max height of top shelf is 34" from base.

Max height of second shelf is 28" from base.

DETAIL 1

8 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

Insert three button bumpers (K) into bottom of shelf clamp bracket (D).

Attach shelf clamp bracket (D) to shelf support (C) using two 1/4-20 x 20 mm screws (AA) and two

1/4-20nuts (M).

For additional shelf installation, repeat steps 5 through 7.

Insert six button bumpers (K) into shelf support (C). Place glass shelf (I) on shelf support.

7-1

7-2

Attaching Glass Shelf

• Do not overtighten, may cause glass to shatter or

crack.

WARNING

9 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

Insert two 1/4-20 x 12 mm screws (L) into screen

mountbracket (A), leaving 3/16" ofexposed thread

as shown in figure 11 and detail 3.

Snaptop cover (J)ontoupright (H). 11

3/16"

fig. 11

DETAIL 3

Loosely attach six 1/4-20 x 12 mm screws (L),

washers (N), and 1/4-20 nuts (M) to screen mount

bracket(A).

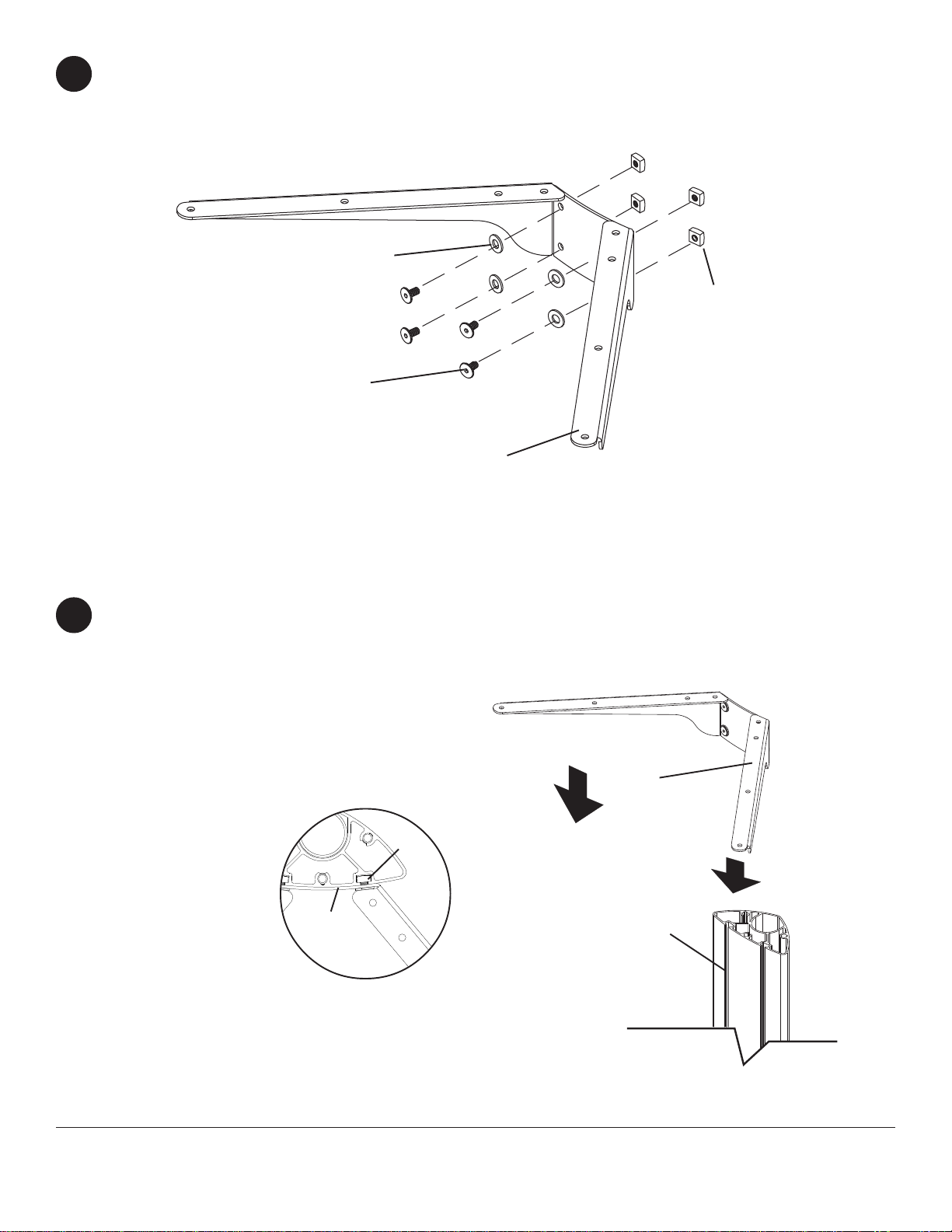

8Slide screen mount bracket (A) onto upright (H) so

that 1/4-20 nuts (M) slide into slots of upright (H) as

shown in figure 9 and detail 2. Slide screen mount

bracket to desired position, level, then tighten 1/4-20

x 12 mm screws (L) using 4 mm allen wrench (Q).

LNA

SLOT

fig. 9

DETAIL 2

10 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

NOTE:Refer to instructions included with

Dedicated Adapter Plate for assembly to screen.

Once attached, proceed to step 12.

AttachUniversalPlate (F) orDedicatedAdapter

Plate to hook plate (B) using four M10 x 15 mm

socket screws (QQ). Tighten screws using 6 mm

allenwrench(R).

Attaching Universal Adapter Plate or Dedicated Adapter Plate

13 Attach hook plate (B) to screen mount bracket (A).

2° Backward Tilt 5° Forward TiltNo Tilt

UNIVERSALPLATE

DEDICATEDADAPTERPLATE

(SOLDSEPARATELY)

14 Insert two 1/4-20 x 12 mm screws (L) into holes indicated below for desired screen orientation. Tighten all screws

using 4 mm allen wrench (Q).

UNIVERSAL

PLATE

SHOWN
