Installation and Assembly:

Articulating Wall Arm for LCD screens

Models: RTLA-100, RTLA-100S, SA 730P, SA 730P-S, D-LA-100, D-LA-100S

Features:

•Fits 10" - 20" LCD screens

• Pivotsandarticulatesinalldirections,evenaroundcornersandcabinets

• Frees up space by folding flat against the wall

• Keeps electronic wires routed internally to reduce clutter Max Load Capacity: 25 lb (11.3 kg)

2 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

Note: Read entire instruction sheet before you start installation and assembly.

For customer care call (800) 729-0307 or (708) 865-8870.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer service at 1-800-729-0307.

• This product should only be installed by a qualified professional.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity of 25 lb (11.34 kg).

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

Tools Needed for Assembly

• studfinder("edgetoedge"studfinderisrecommended)

• phillipsscrewdriver

• drill with 1/4" and 5/32" drill bits

Accessories

• Metal StudAccessory Kit (ACC 908) (Not evaluated by UL)

3 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

Black Silver

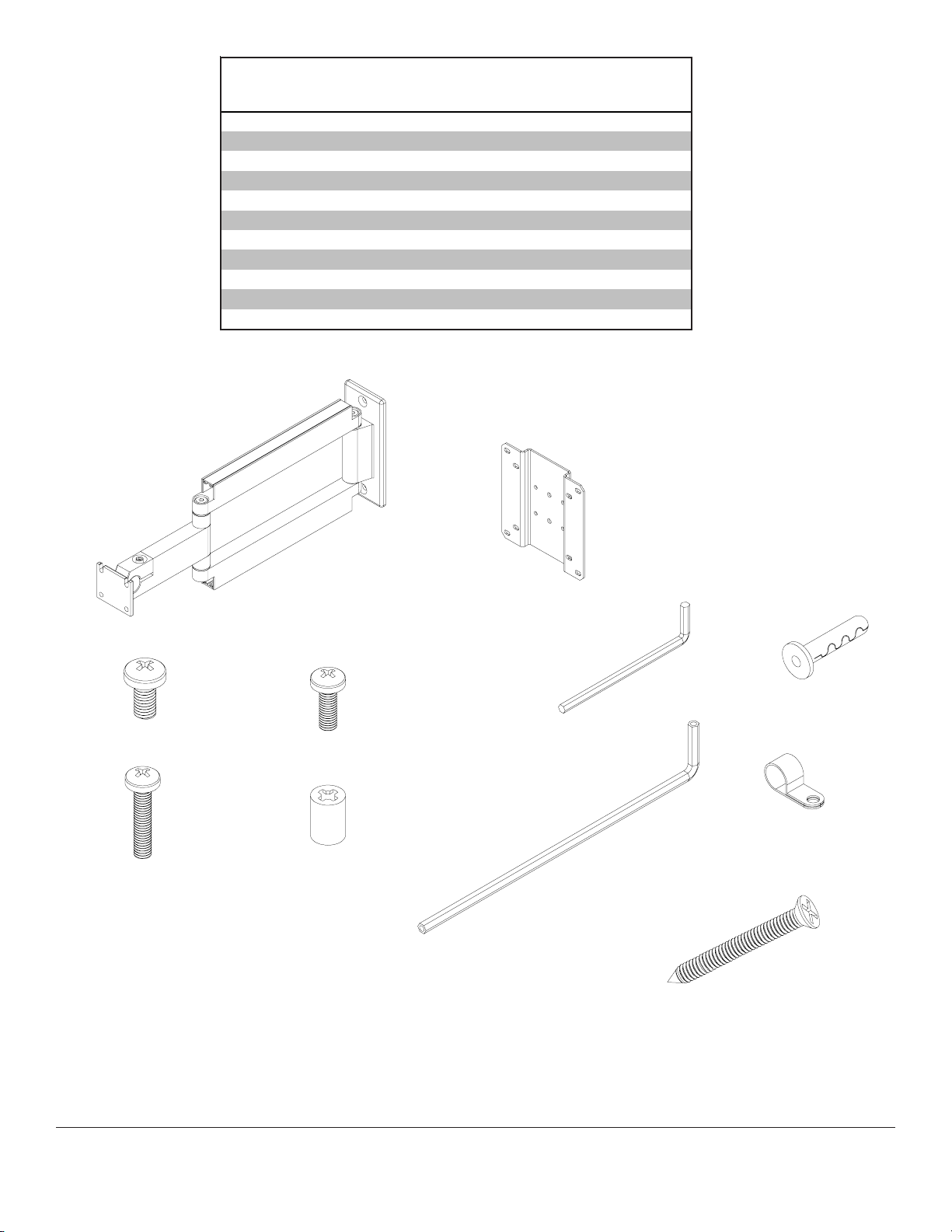

Description Qty. Part # Part #

Awall arm assembly 1 095-0278 095-0278-S

Badapter plate 1 095-1101 095-4101

CM5 x .8 x 10 mm phillips screw 4 520-9250 520-2005

D3/16" allen wrench 1 560-0071 560-0071

EAlligator® concrete anchor 2 590-0097 590-0097

F#14 x 2.5" flat head wood screw 2 520-1202 520-2165

G4 mm allen wrench 1 560-9646 560-9646

Hcord management clip 2 590-1264 590-2164

IM4 x .7 x 12 mm phillips screw 4 504-9013 504-2013

JM4 x .7 x 20 mm phillips screw 4 504-9020 504-2014

Kretaining spacer 4 590-5005 590-5003

Parts List

4 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components.

WARNING

• Tighten screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws,

greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder

is highly recommended.

WARNING

WOOD STUD

WALL

Remove cord covers from wall arm assembly (A) as shown in figure 1.1. Using a stud finder, locate and mark the

edges of the wood stud used in mounting this product. Use of an edge to edge stud finder is highly recommended.

Use a level to draw a vertical line down the center of the stud. Use wall plate as template to mark center of holes

along the vertical line. Drill two 5/32" (4 mm) dia. holes 2.5" (65 mm) deep.Attach wall arm assembly (A) to wall

using two #14 x 2.5" flat head wood screws (F) as shown in figure 1.2.

Skip to step 2 on page 6.

Installation to Wood Stud Wall

CORDCOVERS

fig. 1.1

fig. 1.2

5 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

concrete

wall

Drill holes

and insert

anchors.

Place wall

bracket over

anchor and

secure with

screw.

After

repeating

figure 1.2

tighten all

fasteners.

WALL PLATE

fig. 1.3

fig. 1.4

fig. 1.5

Installation to Solid Concrete and Cinder Block

Removecordcoversfromwallarm assembly (A)as

shownin figure 1.1. Level and use wall plate as

template to mark center of holes. Drill two 1/4" (6

mm) dia. hole to a minimum depth of 2" (51 mm).

Insert anchors (E) in holes flush with wall as shown

in fig 1.3. Place wall arm (A) over anchor and secure

with wood screw (F) as shown in figure 1.4. Make

sure wall arm is level, and tighten all fasteners. See

figure1.5.

• Concrete anchors are not intended for attachment to

concrete wall covered with a layer of plaster, drywall,

orother finishing material asshownbelow. Ifmounting

toconcretewall covered with plaster/drywall is

unavoidable,plaster/drywall(up to 5/8" thick) mustbe

counterboredas shown below.Besure concrete

anchorsdonot pull away fromconcretewhen tighten-

ing screws. If plaster/drywall is thicker than

5/8", custom fasteners must be supplied by installer.

WARNING

• Tighten screws so that wall plate is firmly attached,

but do not overtighten. Overtightening can damage

the screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to

avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and

components.

WARNING

fig. 1.6

CUTAWAY VIEW

CORRECT

concrete

plaster/

drywall

INCORRECT

concrete

plaster/

drywall

6 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

Screen may appear

slightly different than

illustrated

FOR VESA®75 MOUNTING PATTERN:

Choose hole pattern as shown below.Attach

adapter plate (B) to back of screen using four M4 x

12 mm screws (I) as shown below.

*Note: If hole pattern is in a pocket, attach adapter

plate (B) to back of screen using four M4 x 20 mm

screws (J)andfourretainingspacers(K) as

indicatedbelow.

Note: If the ball joint feels loose

or too easy to adjust, slightly

tighten cap socket screw until

ball joint feels firmly in place.

Insert two M5 x 10 mm screws

plate (B) leaving approximately

1/4" of exposed thread. With

slots facing upward, hook

screws onto wall arm ball joint

as shown in figure 3.1.

Insert one M5 screw (C)

through bottom hole of wall arm

ball joint into adapter plate (B)

as shown in figure 3.2.

fig. 3.1 fig. 3.2

1/4"

WALL ARM

BALL JOINT

CAP SOCKET

SCREW

fig. 2.1 fig. 2.2

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

*For screens with a

hole pattern in a

pocket, spacers (J)

go between adapter

plate (B) and screen.

FORVESA100MOUNTINGPATTERN:

Choosehole patternasshown below.Attach adapterplate

(B) to back of screen using four M4 x 12 mm screws (J) as

shownbelow.

Note: To add security, orderACC 918 for security screws. Refer toACC 918 instruction sheet for installing security screws.

7 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

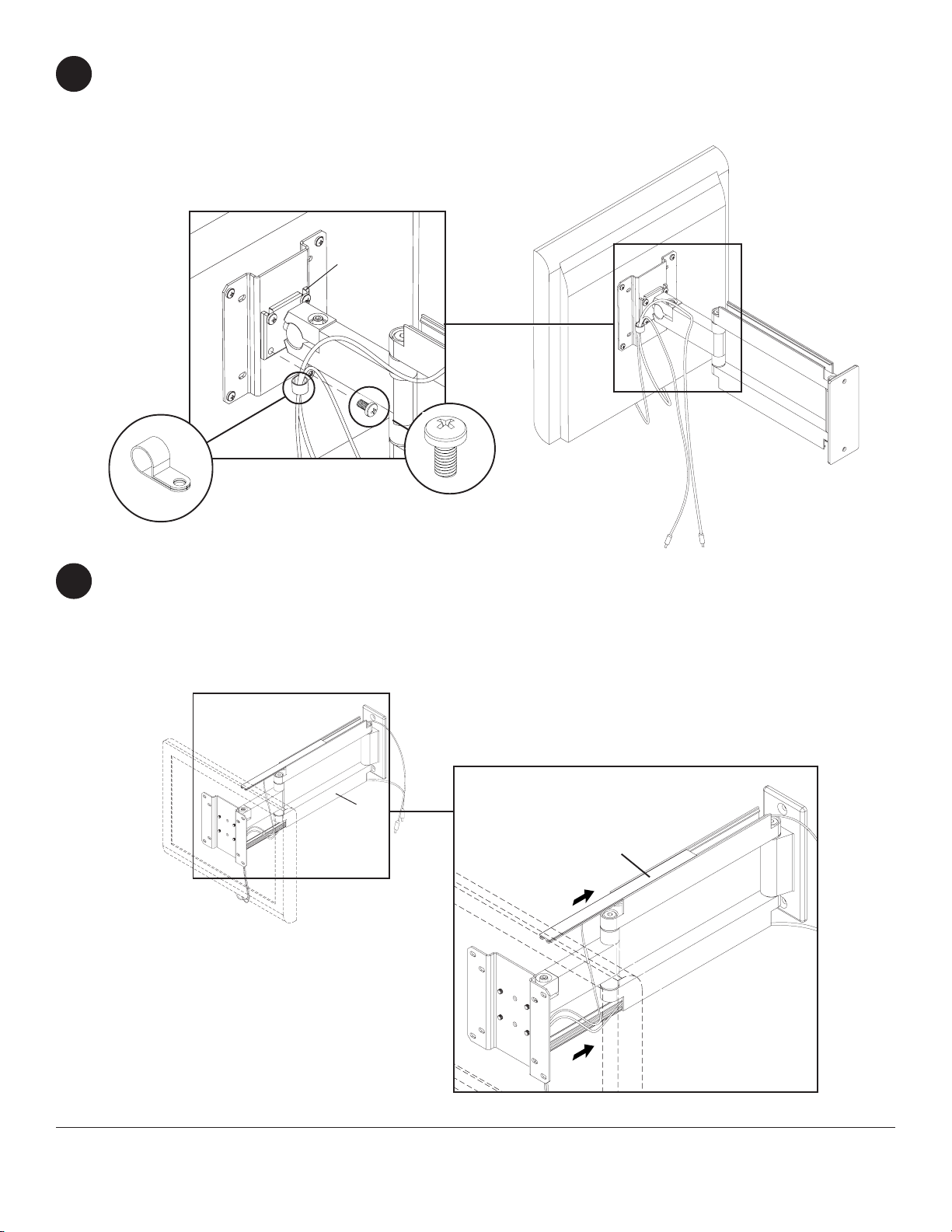

Route cords through center of cord management clip (H). Next, attach cord management clip (H) to wall arm ball

joint using M5 screw (C) as shown in detail 1. Tighten all four screws (C).

Note:Acord management clip (H) was added for additional cords. If you want to use this additional clip (H), remove

the opposite bottom screw and repeat this step on opposite side of wall arm ball joint.

WALL ARM

BALL JOINT

detail 1

5Note: Make sure cords have enough slack to allow full movement of the arm.

Route cords inside arm slots of wall arm assembly (A). Optional: Run power cord through one side of mount and

signalcable(s) through other sidetoavoid interference with thesignal.

Lock cords into place by sliding cord covers onto mount as shown in detail 2. Screen may have to be moved for better

access for sliding on the cord covers.

detail 2

CORDCOVERS

8 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

To get full range of motion and enough tension to hold the screen in any position, simply tighten or loosen cap socket

screw a few turns using 4 mm allen wrench (G).

CAP SOCKET SCREW

• Do not remove screw or loosen screw until it is no longer engaged with the mount. Doing so may cause the screen to fall.

WARNING

If more or less tension is desired in the arm pivot points, do the following:

• To increase tension, turn socket screw clockwise with 3/16" allen wrench (D).

• To reduce tension, turn socket screw counter-clockwise with allen wrench (D). Do not turn more than half a turn.

SOCKET

SCREWS

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

Ball join design at screen for easy side-to-side

movementand ±35°of tilt.

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

Installation et assemblage :

Bras mural articulé pour écrans à cristaux liquides

Modèles :RTLA-100, RTLA-100S, SA 730P, SA 730P-S, D-LA-100, D-LA-100S

Caractéristiques :

•Convient aux écrans à cristaux liquides de 25 à 50 cm (10 à 20 po)

• Pivote et s’articule dans toutes les directions, même autour des coins et

desarmoires

• Donne plus d’espace en se repliant à plat contre le mur

• Maintient les fils des fonctions électroniques à l’intérieur afin de réduire

l’encombrement Capacité de charge maximale :

11,3 kg (25 lb)

10 of 24 ISSUED: 05-09-05 SHEET #: 095-9224-4 08-23-05

Remarque : Lisez entièrement la fiche d’instructions avant de commencer l’installation et l’assemblage.

Pourleserviceàlaclientèle,appelezle 011+1+(708)865-8870.

Outils nécessaires pour l’assemblage

• localisateur de montants (le localisateur de montants « bord à bord » est recommandé)

• tourneviscruciforme

• perceuse à mèches de 6,35 mm (1/4 po) et 3,96 mm (5/32 po)

Accessoires

• Kit d’accessoires pour montants métalliques (ACC 908)

•Ne commencez pas à installer votre produit Peerless avant d’avoir lu et assimilé les instructions et les mises en

garde contenues dans cette fiche d’instructions. Pour toute question concernant les instructions ou les mises en

garde,appelezleservice à la clientèle de Peerless au 011+1+(708)865-8870.

•Ceproduitnedoitêtreinstalléqueparunepersonneayantdebonnesaptitudesenmécanique,expérimentéeen

travauxdeconstruction de base, et démontrant une parfaite compréhension de ces instructions.

•Assurez-vousquelasurfacedesupport pourra soutenir sans difficulté la charge combinée de l’équipement, de toute

sa visserie et de tous ses composants.

•Ne montez jamais ce produit sur un mur à montants métalliques sans vous assurer que le montant est en acier de

calibre 25 au minimum, que la cloison sèche a au moins 12,5 mm (1/2 po) d’épaisseur et sans utiliser le kit

d’accessoires Peerless pour montants métalliques.

•Ne dépassez jamais la capacité de charge maximum.

•Si vous effectuez le montage sur un mur à montants en bois, assurez-vous que les vis de montage sont ancrées au

centre des montants. L’usage d’un localisateur « bord à bord » est fortement conseillé.

•Pourleveretpositionnerl’équipement en toute sécurité, faites-vous toujours aider par une autre personne ou utilisez

unmatériel de levage mécanique.

• Serrez fermement les vis, mais sans excès. Un serrage excessif peut endommager les éléments et en réduire

considérablementlepouvoirde maintien. Référez-vous aux couples de serrage suggérés danscesinstructions,dans

les cas applicables.

AVERTISSEMENT !

Autres manuels pour RTLA-100

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS PARAMOUNT PF640 Mode d’emploi

PEERLESS

PEERLESS WSP 490 Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PA730 Mode d’emploi

PEERLESS

PEERLESS Paramount PRT2X2 Manuel utilisateur

PEERLESS

PEERLESS WSP700 Mode d’emploi

PEERLESS

PEERLESS A100IWBMOUNT Mode d’emploi

PEERLESS

PEERLESS VPM 25-W Mode d’emploi

PEERLESS

PEERLESS ACC 604 Mode d’emploi

PEERLESS

PEERLESS MSA-301 Mode d’emploi

PEERLESS

PEERLESS MIS488 Mode d’emploi

PEERLESS

PEERLESS SUF650P and assembly Mode d’emploi

PEERLESS

PEERLESS Smartmount ST670 Mode d’emploi

PEERLESS

PEERLESS WSP 716 Manuel utilisateur

PEERLESS

PEERLESS PJF2-UNV Mode d’emploi

PEERLESS

PEERLESS PLA 50-UNL Mode d’emploi

PEERLESS

PEERLESS DS 35 Mode d’emploi

PEERLESS

PEERLESS Paramount PPF Mode d’emploi

PEERLESS

PEERLESS ACC-V800X Mode d’emploi

PEERLESS

PEERLESS Smartmount SA752P Mode d’emploi

PEERLESS

PEERLESS WBK100-W Mode d’emploi

PEERLESS

PEERLESS DS-VW760 and assembly Mode d’emploi

PEERLESS

PEERLESS SmartMount D-FPF-320 Mode d’emploi

PEERLESS

PEERLESS SlimLine MOWV241/BK Manuel utilisateur

PEERLESS

PEERLESS SmartMount SA770PU Mode d’emploi

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
