Installation and Assembly:

Universal Tilt Wall Mount for 13" - 42" Screens

Models: ST 635, ST 635-S

Features:

• Fits 13" to 42" flat panel screens

• One-touchtilt foreffortless positioningand adjustmentof thescreen

• Easy access knob for fine tension adjustment

• Integratedsecurityfeatures provide effectivetheftdeterrence

This product is UL Listed. It must be

installed by a qualified professional

installer.

2 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

Note: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• studfinder ("edgeto edge"stud finderis recommended)

• 3/8"socket wrench(3/8" extendeddriver isrecommended)

•phillipsscrewdriver

•drill

•1/4" bit for concrete and cinder block wall

•5/32" bit for wood stud wall

•level

Accessories

• Metal Stud Fastener Kit (ACC 215) (Metal stud installation is not evaluated by UL)

Forcustomer care call (800) 729-0307or (708) 865-8870.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

callPeerless customer careat1-800-729-0307.

• Thisproduct should onlybe installedby a qualifiedprofessional.

• Makesure thatthe supportingsurface willsafely supportthe combinedload ofthe equipmentand allattached hard-

wareandcomponents.

• Neverexceed the Maximum ULLoadCapacity of 115 lb(52 kg).

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an

"edgeto edge"stud finder ishighly recommended.

• Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment to safely

handleplacement of thescreen.

• Tighten screwsfirmly, butdonot overtighten.Overtighteningcan damagetheitems, greatly reducingtheir holding

power.

WARNING

Table of Contents

Parts List..............................................................................................................................................................................3

Installation to Wood Stud Wall .............................................................................................................................................4

Installationto SolidConcrete andCinder Block ................................................................................................................5, 6

InstallingAdapterBrackets...................................................................................................................................................7

MountingandRemovingFlatPanelScreen...........................................................................................................................8

Adjusting the Horizontal Position of the Flat Panel Screen...................................................................................................8

Adjusting the Tilt of the Flat Panel Screen............................................................................................................................9

3 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

ST 635 ST 635-S

Description Qty. Part # Part #

Awall mount 1 201-0003 201-0004

Badapter bracket 2 200-0810 200-0812

CAlligator® anchor 3 590-0097 590-0097

D4 mm allen wrench 1 560-1131 560-1131

E#14 x 2.5" hex head screw 3 5S1-015-C03 5S1-015-C03

FM6 x 12 mm socket pin screw 4 520-1050 520-1050

GM6 x 20 mm socket pin screw 4 520-9554 520-9554

HM6 x 30 mm socket pin screw 4 520-1067 520-1067

IM4 x 10 mm socket pin serrated washer head screw 4 510-1060 510-1060

JM4 x 25 mm socket pin serrated washer head screw 4 510-1082 510-1082

Kretaining spacer 4 590-2021 590-2021

L#8 SAE washer 8 540-1001 540-1001

Parts List

BCD

FHI

K L

4 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

Installation to Wood Stud Wall

Using a stud finder, locate and mark the edges of the wood stud used in mounting this product. Use of an edge to

edge stud finder is highly recommended. Use a level to draw a level, vertical line down the center of the stud. Mark a

point on the stud centerline 2.75" (70 mm) up from center of screen. Mark two points on the stud centerline, exactly

1.5" (38 mm) and 5" (127 mm) below the first point as shown in figure 1.1. For reference to mount, see figure 1.2.

Drill three 5/32" (4 mm) dia. holes 2.5" (65 mm) deep.

Note: The wall mount may need to be tilted for access to holes on mount as shown in figure 1.3.

Loosely fasten wall mount (A) to wall using three #14 x 2-1/2" wood screws (E) as shown in figure 1.3. Level, hold,

and tighten all screws.

Skip to step 2 on page 7.

• Makesurethatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandallattachedhardwareand

components.

WARNING

fig. 1.1

fig. 1.2

fig. 1.3

CS = center of screen

CL = centerline

2.75"

(70 mm)

1.5"

(38 mm)

5.0"

(127 mm)

5.0"

(127 mm)

2.75"

(70 mm)

1.5"

(38 mm)

5/32"

(4 mm)

• Ifwallmountisnotlevel,itwillbecrookedwhenmounted.

CAUTION

WALL • Tighten screws so that wall plate is firmly attached,

butdonot overtighten. Overtightening candamagethe

screws,greatly reducing theirholdingpower.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Makesure thatmounting screws are anchored into

the center of the studs. The use of an "edge to edge"

studfinder is highlyrecommended.

WARNING

5 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

Installation to Solid Concrete and Cinder Block

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to

avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Makesure thatthe supportingsurface willsafely supportthe combinedload ofthe equipmentand allattached hard-

wareandcomponents.

WARNING

Determine the placement of your screen, mark the center of screen on the wall, and place a point 2.25" (57 mm)

down from center of screen for bottom hole of mount as shown in figure 1.4. For reference to mount, see figure 1.5.

Note: The wall mount may need to be tilted for access to holes on mount as shown in figure 1.7.

Drill one 1/4" (6 mm) dia. hole to a minimum depth of 2.5" (64 mm). Insert anchor (C) in hole flush with wall. Loosely

screw wall mount (A) to wall using one #14 x 2-1/2" wood screw (E) as shown in figures 1.6 and 1.7. Level, then

mark the top two holes circled in figure 1.5.

Continuedonfollowing page.

SOLIDCONCRETE

CINDERBLOCK

fig. 1.7

CUTAWAYVIEW

INCORRECT

concrete

plaster/

drywall

CORRECT

concrete

plaster/

drywall

fig 1.6

fig 1.4

2.25"

(57 mm)

CS = center of screen

• Concrete anchors are notintended forattachment to

concretewall covered witha layerof plaster, drywall,

orother finishing materialas shown right.If mounting

toconcrete wall coveredwith plaster/drywallis

unavoidable,plaster/drywall (up to 5/8" thick)must be

counterboredas shown right.Be sureconcrete

anchorsdo not pullaway fromconcretewhen tighten-

ing screws. If plaster/drywall is thicker than

5/8", custom fasteners must be supplied by installer.

WARNING

fig 1.5

2.25"

(57 mm)

5.00"

(127 mm)

9.50"

(241 mm)

6 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

Swing wall mount (A) out of the way and drill top two marked holes. Insert two anchors (C) in holes flush with wall as

shown in figure 1.8. Return mount to original position and loosely fasten wall mount (A) to wall using two #14 x 2-1/2"

wood screws (E) as shown in figure 1.9. Level, hold, and tighten all screws.

Installation to Solid Concrete and Cinder Block (Continued)

1-1

• If wall mount is not level, it will be crooked when mounted.

• When swinging wall mount out of the way, be careful not to scratch the wall.

CAUTION

• Tightenscrews sothat wallplate isfirmly attached,but donot overtighten.Overtightening candamage thescrews,

greatlyreducingtheirholding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING

SOLIDCONCRETE

CINDERBLOCK

fig. 1.8

fig. 1.9

SOLIDCONCRETE

CINDERBLOCK

7 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen

faceside down. Place and align adapter brackets (B)onback ofscreen to VESA hole pattern as shown in figure 2.1. For

additionalscreencompatibilitypleaserefertotheLCD interface list on our website:www.peerlessindustries.com.

Note: If mounting holes are not centered on back of screen, center brackets on back of screen as shown in figure 2.2.

Find the VESA®hole pattern below, and attach brackets to screen accordingly. Verify that all holes are properly

aligned, and then tighten screws using security allen wrench (D).

Note: "X"dimensions should beequal.

Installing Adapter Brackets

FORVESA75MOUNTINGPATTERN:

Attach adapter brackets (B) to back of screen using four M4 x 10 mm screws (I) and

fourupperwashers(L)asshownin figure 2.3.

*Note: If hole pattern is in a pocket, attach adapter brackets (B) to back of screen

usingfour M4x 25 mm screws (J),eight upper and lower washers(L), andfour retaining

spacers(K) as indicatedbelow.

FORVESA100MOUNTINGPATTERN:

Attach adapter brackets (B) to back of screen using four M4 x 10 mm screws (I) and

fourupperwashers(L)asshowninfigure2.3.

FORVESA200MOUNTINGPATTERN:

Attach adapter brackets (B) to back of screen using four M4 x 10 mm screws (I) and

fourupperwashers(L)asshowninfigure2.3.

*Note: If screw (I) gets less than three threads of engagement, attach adapter brackets

(B) to back of screen using four M4 x 25 mm screws (J), eight upper and lower washers

(L),andfourretainingspacers(K)asindicatedbelow.

FORVESA200x200MOUNTINGPATTERN:

Attach adapter brackets (B) to back of screen using four M6 x 12 mm screws (F) as

showninfigure2.3.

*Note: Ifscrew (F) gets less than three threads ofengagement, attach adapter

brackets (B) to back of screen using four M6 x 20 mm screws (G) as indicated below.

If screw (G) gets less than three threads of engagement, attach adapter brackets (B)to

back of screen using four M6 x 30 mm screws (H) as indicated below.

SCREWS

200

100

fig 2.1

fig 2.2

fig 2.3

UPPERWASHER(L)

LOWERWASHER(L)

• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to screen or product may fail. Contact customer care for correct hardware to use.

WARNING

8 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

Mounting and Removing Flat Panel Screen

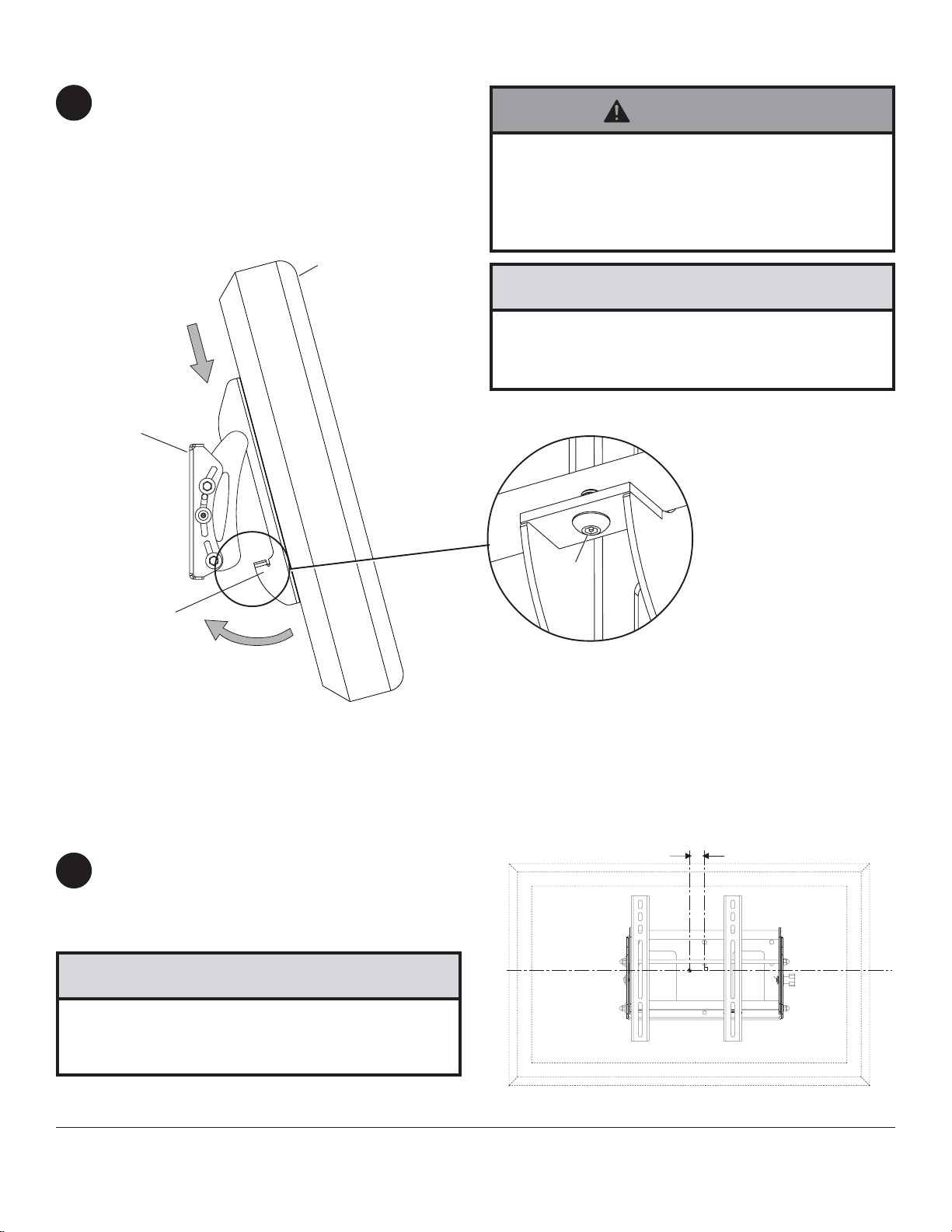

Hookadapter brackets(B) onto wallmount (A).Then

slowly swing screen in as shown in figure 3. Lock

adapter brackets with security screws, shown in detail 1,

usingwrench(D).

Toremove screen frommount,loosensecurityscrews,

swingscreenawayfrommount,andliftscreenoffof

mount.

• Do not lift more weight than you can handle. Use

additionalmanpower or mechanicalliftingequipment

to safely handle placement of the screen.

• Failure to lock brackets with security screws can

cause screen to come off mount if hit accidentally.

• Do not tighten screws with excessive force.

Overtighteningcancause damage tomount. Tighten

screws to 20 in. • lb (2.26 N.M.) maximum torque.

CAUTION

WARNING

For horizontal adjustment, loosen security screw,

slide screen to desired location, and then retighten

security screw. Center of screen can be positioned a

maximum of 2.6" from center of mount on either side

as shown in figure 4.

fig. 4

CS = center of screen

CM= center of mount

CS CM

2.6"

(66 mm)

Adjusting the Horizontal Position of

the Flat Panel Screen

DETAIL 1

fig. 3

SECURITY

SCREWS

SCREEN

• Center of screen can be no more than 2.6" from the

center of the mount. If screen is beyond 2.6", it may

sag sideways and restrict tilt movement.

CAUTION

9 of 9 ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

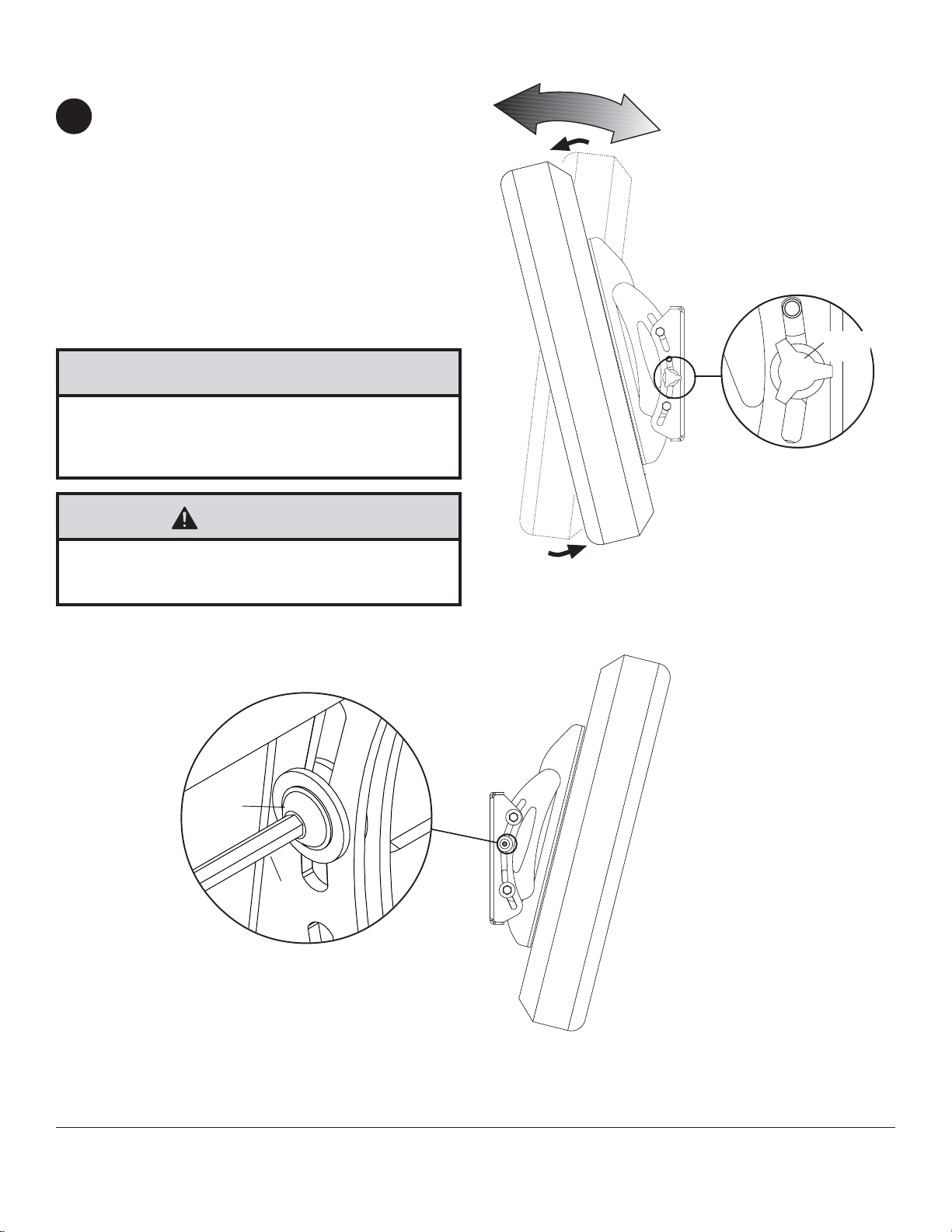

Adjust tension knob on right side of mount shown in

detail 2 to desired tension to balance your screen

size and weight.

Push or pull from top or bottom of screen to adjust

tilt as shown in figure 4.1. The tilt can be adjusted to

amaximum of15° forwardor 5°backward.

Note: To lock the screen into the desired tilt

position, tighten tension screw on left side of mount

shown in figure 4.2 and detail 3 using wrench (D).

fig 4.1

DETAIL 2

TENSION

SCREW

Adjusting the Tilt Angle of the Flat Panel Screen

• Becareful not topinch fingerswhen pushing screen

fromthe bottom.

CAUTION

• Do not tighten screws with excessive force.

Overtighteningcancause damage tomount. Tighten

screws to 40 in. • lb (4.5 N.M.) maximum torque.

CAUTION

fig 4.2

DETAIL 3

TENSION

KNOB

PeerlessisaregisteredtrademarkandSmartmountisatrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

Autres manuels pour SmartMount ST 635

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS PARAMOUNT PRA2X2 Manuel utilisateur

PEERLESS

PEERLESS Solid-Point PS 1 Mode d’emploi

PEERLESS

PEERLESS RTLA-100 Mode d’emploi

PEERLESS

PEERLESS SmartMount ST 635 Mode d’emploi

PEERLESS

PEERLESS Paramount PC930A Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PSP2-S Mode d’emploi

PEERLESS

PEERLESS DS246 Mode d’emploi

PEERLESS

PEERLESS Mobile Videowall Trolley PDVWM 2x2 46 55 L Mode d’emploi

PEERLESS

PEERLESS SUT632P Mode d’emploi

PEERLESS

PEERLESS ACC951 Mode d’emploi

PEERLESS

PEERLESS Smartmount D-FPF-220 Mode d’emploi

PEERLESS

PEERLESS ACC-V800X Mode d’emploi

PEERLESS

PEERLESS DS-VW660 and assembly Mode d’emploi

PEERLESS

PEERLESS HL4UN-002 Mode d’emploi

PEERLESS

PEERLESS SAL730P Mode d’emploi

PEERLESS

PEERLESS Paramount PP730 and assembly Mode d’emploi

PEERLESS

PEERLESS LMAM1940 Mode d’emploi

PEERLESS

PEERLESS LCT-202 Mode d’emploi

PEERLESS

PEERLESS SAL730P Mode d’emploi

PEERLESS

PEERLESS SF630-AB Mode d’emploi

PEERLESS

PEERLESS WSP 490 Mode d’emploi

PEERLESS

PEERLESS MIS 213 Mode d’emploi

PEERLESS

PEERLESS PTT188743 Series Manuel utilisateur

PEERLESS

PEERLESS LWB375 Mode d’emploi

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
