PEERLESS Solid-Point PLCM UN1 Mode d’emploi

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

1 of 9 ISSUED:09-07-07 SHEET #: 202-9199-1

Read instruction sheet before you start installation and assembly.

Model:PLCM UN1,

PLCM UN1 CP

Installation and Assembly - Solid•Point™Flat Panel Straight

Column Mount

This product is intended for use with UL

Listed products and must be installed by a

qualified professional installer.

• Installer must verify that the ceiling will safely support

thecombinedweightofallattachedequipmentand

hardware.

WARNING

Note: Installation for 32"-50" LCD and Flat Panel Screens

Model Max. Load Screen Size Range

PLCM UN1 125 lb. (56.7 kg.) 32'' - 50''

PLCM UN1 CP 125 lb. (56.7 kg.) 32'' - 50''

PLCM UN1PLCM UN1 CP

ISSUED:09-08-07 SHEET #: 202-9199-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

2 of 9

• Donot begin to install your Peerless productuntil you have read and understood theinstructions and warnings

containedin this Installation Sheet. If you have anyquestions regarding any of the instructions or warnings,please

callPeerlesscustomercareat1-800-729-0307.

• Thisproductshouldonly be installed by someone of good mechanical aptitude, and fully understands

these instructions.

• NeverexceedtheMaximumULLoadCapacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrewsfirmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• Installermustverifythatthe ceiling will safely support the combined weight of all attached equipment and hardware.

WARNING

Table of Contents

Parts List..............................................................................................................................................................................3

InstallingCeilingPlate(modelPLCM-UN1-CPonly)..............................................................................................................4

Installing Flat Panel Straight Column Mount to ceiling ..........................................................................................................5

InstallingAdapterPlate .........................................................................................................................................................6

InstallingAdapterPlate to Screen.....................................................................................................................................7, 8

Installation of Screen to Flat Panel Straight Column Mount ..................................................................................................9

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

3 of 9 ISSUED:09-07-07 SHEET #: 202-9199-1

Note: Some parts may

not appear exactly as illustrated.

#10washer (8)

540-9400

M4 x 10 mm(8)

520-1156

1/2"spacer(4)

540-1015

M8 x 40 mm (4)

520-1152

M5 x 12 mm (8)

520-1064

M8 x 15 mm (6)

520-1068

Description Qty Part #

Aceiling arm box 1 201-1062

Btilt bracket 1 200-1552

C33" support pipe 1 139-1088

Dretaining collar 1 1800-375

EM5 x 10 mm penta-pin™ screw 4 505-9010

F2.875 OD x 2.125 ID x .062 H fiber washer 1 540-9432

GM10 x 15 mm penta-pin screw 8 520-9263

HM10 x 2" penta-pin tool 1 520-9260

IM5 x 1" penta-pin tool 1 520-9249

JM5 x 8 mm phillips screw 4 520-1167

Kadapter bracket 1 200-0333

Lvertical bracket 2 200-1302

M10-32 x 3/8" socket pin serrated washer head screw 4 520-1151

N4 mm security allen wrench 1 560-9646

Before you begin, make sure all parts shown are included with your product.

PARTS LIST

1/4"washer(6)

540-9440

M8 x 25 mm (4)

520-1101

Adapter Bracket Fasteners

M6 x 12 mm (6)

520-1050

Additional parts for model PLCM-UN1-CP only

PARTS LIST

Description Qty. Part #

EM5 x 10 mm penta-pin™ screw 1 505-9010

P#14 x 2.5 wood screw 4 5S1-015-C03

Qend cap 2 2PT-22CA01D

Rceiling bracket 1 128-1039

ISSUED:09-08-07 SHEET #: 202-9199-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

4 of 9

ACC210

For Concrete Ceilings drill four 5/16" (8 mm)

dia. holes to a minimum depth of 1 3/4" (45

mm). Attach ceiling plate (R) using concrete

expansionanchorsas shown in 1-1 and 1-2.

Then snap end caps (Q) into place.

Align hole in ceiling plate with hole in ceiling.

Gentlyhammerinconcreteanchor.

Use a 10 mm wrench to tighten concrete

anchor to 80 in • lb (9 N.M.) maximum torque

toexpandanchors.

FORPRODUCTSAFETYUSE ONLYRAWL™

#5005OR HILTI™HL814CONCRETE

ANCHORS.Order accessory kit #ACC 210

which contains four .312 x 1.625

(8 mm x 41 mm) concrete expansion

anchors.

• Always attach concrete expansion anchors directly to

load-bearingconcrete.

• Neverattachconcreteexpansionanchorstoconcrete

coveredwithplaster,drywall,orotherfinishingmaterial.

WARNING

For Wood Joist Finished Ceiling, Exposed

Wood Joists, or Wood Beam Ceiling. Drill four

5/32" (4 mm) dia. holes to a minimum depth of 2.5"

(64 mm) INTO JOIST CENTERS.Attachceiling

plate (R) with four #14 x 2.5" (6 mm x 65 mm) wood

screws (P) using a 3/8" (10 mm) socket wrench.

Tighten wood screws (P) so ceiling plate is firmly

attached. Snap end caps (Q) into place.

• Tighten wood screws so that ceiling plate is firmly

attached,butdonot overtighten. Overtightening can

damagescrews,greatlyreducingtheir holding power.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Make sure that mounting screws are anchored into the

center of the joists. The use of an "edge to edge" stud

finderishighlyrecommended.

WARNING

Skip to page 5 for PLCM-UN-1

CONCRETE

PLASTER/

DRYWALL

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

5 of 9 ISSUED:09-07-07 SHEET #: 202-9199-1

ceiling plate (included with PLCM-UN1-CP)

Threadsupport pipe(C)intothreadedfittinginceilingplate (UL ListedCMJ470, includedwith PLCM-UN1-CP).

Tighten - four or five complete turns - leaving slot aligned with one small hole in the side of the ceiling plate

threadedfitting.Insertand tighten one M5 x 10 mm penta-pin screw (E) provided with ceiling plate as shown. Use

the M5 penta-pin tool (I) to tighten screw. BY HAND, insert four M10 x 1.5 x 15 mm penta-pin screws (G) into

threaded holes in the sides of ceiling arm box (A). Leave approximately 1/4" of exposed thread. Slide ceiling arm

box(A)andfiberwasher(F)ontoendofsupportpipe(C).Threadretainingcollar(D)ontothreadedendofsupport

pipe (C). Tighten - four or five complete turns. Slide ceiling arm box (A) down so that it is on top of retaining collar

(D). Insert and tighten one M5 x .8 x 10 mm penta-pin screw (E) into retaining collar (D) as shown. Insert one M5

penta-pin screw (E) through the tab on the back of ceiling arm box (A). Use M5 penta-pin tool (I) to tighten screw

just enough to stabilize support pipe (C).

Note: UL Listed ADJ or EXT extension columns series can be used in combination with, or in place of support

pipe(C)toachievedifferentlengths.

1/4”

BACKOF CEILING

ARMBOX

Installing Flat Panel Straight Column Mount to ceiling

ISSUED:09-08-07 SHEET #: 202-9199-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

6 of 9

Slide vertical brackets (L) onto c-channels as shown below. Refer to the table on the last page of the screen

compatibility chart to determine the proper assembly of the vertical bracket (L). For standard bracket mounting, see

figure3.1. For reverse bracket mounting, seefigure 3.2.

Example: For a Toshiba model 50 HP82 50" screen, assemble the vertical bracket (L)as shown in figure 3.2 below

(reversebracket mounting).

fig. 3.2

Bracket Mounting: Reverse

fig. 3.1

Bracket Mounting: Standard

c-channel

To assemble the adapter bracket (K) to your flat screen product, please refer to the compatibility chart and configurations

table on accompanying screen compatibility chart. First, locate your flat screen product in the compatibility chart using the

manufacturers name and model number. Next, note the configuration letter shown in the far right hand column. Finally, use

theconfigurations table, which appears after the compatibility chart, to determine the correct mountinghardware for your

flatscreen product.

Installing Adapter Plate

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

7 of 9 ISSUED:09-07-07 SHEET #: 202-9199-1

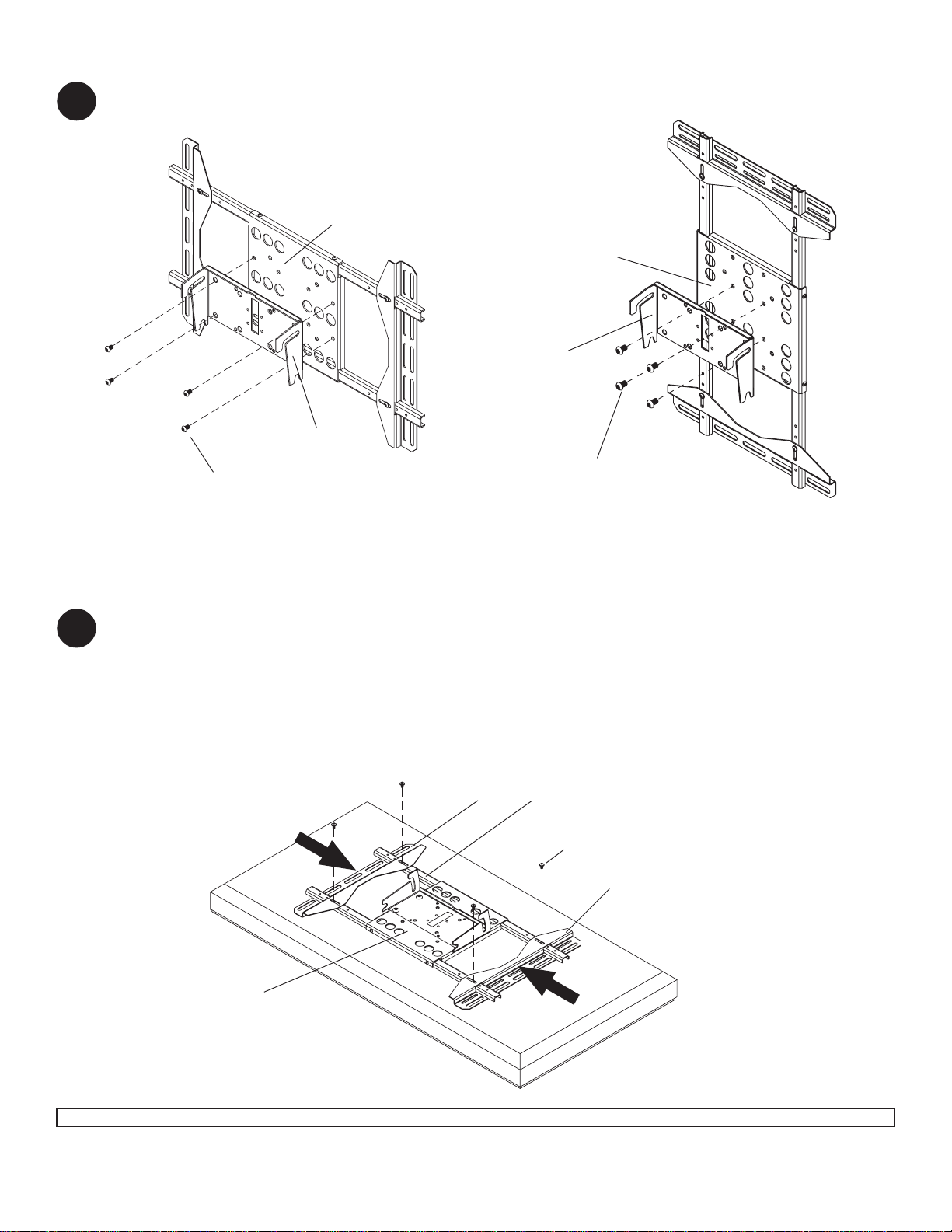

Attach tilt bracket (B) to adapter bracket (K) using four M10 x 15 mm penta-pin screws (G) as shown below.

Set a cloth on the floor to prevent scratching the screen. Place the screen on the floor face down. If the screen has

knobs on the back, remove them. Place adapter bracket (K) on the center of the screen. Slide the vertical brackets

(L) along the c-channels of the adapter bracket (K) until the slots on the back of the vertical brackets (L) are aligned

to the holes on the back of the screen. Fasten vertical brackets (L) to c-channels using four10-32 x 3/8" socket pin

serratedscrewhead(M).

Note: Do not fully tighten the screws (M) to allow the adapter bracket to slide along the vertical brackets (L) freely.

c-channel

Installing Adapter Plate to Screen

PORTRAIT

LANDSCAPE

ISSUED:09-08-07 SHEET #: 202-9199-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

8 of 9

Slide the vertical brackets (L) along the c-channels of the adapter bracket (K) until the slots on the back of the

vertical brackets (L) are aligned to the holes on the back of screen. Fully tighten the four 10-32 x 3/8" socket pin

serrated screw head (M) which hold the vertical brackets (L) to the c-channels. Refer to the accompanying screen

compatibility chart to determine the proper fasteners to use.Attach the assembled adapter bracket to the back of

the screen using screws, upper and lower spacers as pictured. Verify that all holes are properly aligned, then use

the security allen wrench (N) to tighten the screws.

Note: See figure 6 below for slot sizes.

Example: For a Toshiba model 50 HP82 50" screen, attach the vertical brackets (L) to the screen using eight

M4 x 10 mm serrated socket pin screws or M5 x 12 mm socket pin screws through the small slots on the vertical

brackets (L). Please refer to the corresponding configuration note for more details. Upper spacers are required for

thisconfiguration.

fig. 6

Mounting Slots

SMALLSLOTSAREUSED

FORM4ANDM5SCREWS.

LARGESLOTSAREUSED

FORM6ANDM8SCREWS.

SCREWS

UPPERSPACERS

LOWERSPACERS

C-CHANNEL

MOUNTINGSLOTS:

LARGE

MOUNTINGSLOTS:

SMALL

Installation of Screen to Flat Panel Straight Column Mount

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

9 of 9 ISSUED:09-07-07 SHEET #: 202-9199-1

Attach tilt bracket (B) to ceiling arm box (A) by sliding the tilt bracket (B) over four M10 x 15 mm socket pin serrated

washer head screw (G) as shown below. Set desired tilt and tighten all fasteners.

Note: Wall not shown for clarity.

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Solid•Pointis atrademark ofPeerless Industries,Inc.

Allotherbrand andproductnames aretrademarks orregisteredtrademarks oftheirrespective owners.
