PEERLESS SmartMount D-FPF-320 Mode d’emploi

Installation and Assembly:

Universal Flat Wall Mount for 32" to 63" Screens

Models: D-FPF-320, D-FPF-320S, SF 660P, SF 660P-S

Max Load Capacity: 200 lb (90.7 kg)

4900 Industry Drive • Central Point, OR 97502 • (800) 888-6024 or (541) 779-3763 • Fax: (541) 779-0829 • www.ergoindemand.com

ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

Features:

•For 32" to 63" flat panel screens

•Ultra-slim design holds the screen flat against the wall

•Screen simply hooks onto the wall plate for quick and easy installation

•Includes hardware for installation to wood studs, concrete, and cinder block

2 of 7 ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

Note: Read entire instruction sheet before you start installation and assembly.

For customer care call (800) 888-6024.

•Do not begin to install your product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call customer care at 1-800-888-6024.

• This product should only be installed by a qualified professional.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity of 200 lb (90.7 kg).

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

Accessories

•Metal Stud Fastener Kit (ACC 415)

Tools Needed for Assembly

•stud finder ("edge to edge" stud finder is recommended)

•drill

•1/4" bit for concrete and cinder block wall

•1/2" bit for metal stud wall

•5/32" bit for metal or wood stud wall

•3/8" socket wrench (socket with extended driver recommended)

•level

•24" straight edge

Table of Contents

Parts List ..............................................................................................................................................................................3

Installation to Wood Stud Wall .............................................................................................................................................4

Installation to Solid Concrete and Cinder Block Wall ...........................................................................................................5

Installing Adapter Brackets ..................................................................................................................................................6

Attaching Flat Panel Screen to Wall Mount..........................................................................................................................7

3 of 7 ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

D-FPF-320 D-FPF-320S

SF 660P SF 660P-S

Description Qty Part # Part #

AA wall plate 1 200-1796 200-4796

BB shallow adapter bracket 2 200-0754 200-0755

CC deep adapter bracket 2 200-0750 200-0751

DD #14 x 2-1/2" wood screw 4 5S1-015-C03 5S1-015-C03

EE Alligator® anchor 4 590-0097 590-0097

FF security allen wrench 1 560-1146 560-1146

Before you begin, make sure all parts shown are included with your product.

Parts List

BB CC

M4 x 12 mm (6)

504-9013

Adapter Bracket Fasteners

M4 x 25 mm (4)

504-1015 M5 x 12 mm (4)

520-1027 M5 x 25 mm (4)

520-9543 M6 x 12 mm (4)

520-1128 M6 x 25 mm (4)

520-1208

M6 x 20 mm (4)

520-9402 M6 x 30 mm (4)

510-9109

I.D. 5.6 mm (4)

540-1057

multi-washer (6)

580-1036

M8 x 15 mm (6)

520-9257

M8 x 40 mm (4)

520-1136

I.D. 8.7 mm (4)

540-1059

M8 x 25 mm (4)

520-1031

4 of 7 ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

Using a stud finder, locate the edges of the wood studs used in mounting this product. Use of an edge-to-edge stud

finder is highly recommended. Based on its edges and using a level, draw a vertical line down the center of each

stud. Mark a point (point 1) on the right stud centerline 4-5/8" above the center of screen as shown in figure 1.1.

Hold wall plate (AA) over point 1. Using a level to ensure plate is horizontal, mark three more points (points 2,3,

and 4) as shown in figure 1.2.

Drill 5/32" diameter holes 2-1/2" deep through studs at the four points.

Loosely fasten wall plate (AA) to wall using four #14 x 2-1/2" wood screws (DD) as shown in figure 1.3.

Note: For ease of installation, start with the top right wood screw first and work counterclockwise.

Level, hold, and then tighten all screws.

Skip to step 2 on page 6.

Installation to Wood Stud Wall

• Tighten wood screws so that wall plate is firmly

attached, but do not overtighten. Overtightening can

damage the screws, greatly reducing their holding

power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into

the center of the stud. The use of an "edge to edge"

stud finder is highly recommended.

WARNING

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

WARNING

fig 1.1

CS = center of screen

CL = stud centerline

4-5/8"

(117 mm)

POINT 1

fig 1.3

POINT 1

POINT 2

POINT 3 POINT 4

CL CL

fig 1.2

5 of 7 ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

Installation to Solid Concrete and Cinder Block Wall

CUTAWAY VIEW

INCORRECT

concrete

plaster/

drywall

CORRECT

concrete

plaster/

drywall

Position wall plate (AA) on wall so that upper slots are 4-5/8"

above desired center of screen. Use wall plate (AA), making

sure that it is level, as a template to mark holes. Drill four 1/4"

(6 mm) dia. holes to a minimum depth of 2-1/2" (64 mm).

Concrete must be 2000 psi density minimum. Insert anchors

(EE) in holes flush with wall as shown (right). Place wall plate

(AA) over anchors and secure with #14 x 2-1/2" (6 mm x 65

mm) wood screws (DD). Make sure wall plate is level and

tighten all fasteners.

concrete

wall

Drill holes and insert anchors

Place wall plate (AA) over anchors and secure with

screws (DD)

Tighten all fasteners

• Tighten wood screws firmly, but do not overtighten.

Overtightening can damage the screws, greatly

reducing their holding power.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

•When installing wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to

avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

WARNING

fig 1.4

• Concrete anchors are not intended for attachment to

concrete wall covered with a layer of plaster, drywall,

or other finishing material as shown right. If mounting

to concrete wall covered with plaster/drywall is

unavoidable, plaster/drywall (up to 5/8" thick) must

be counterbored as shown right. Be sure concrete

anchors do not pull away from concrete when

tightening screws. If plaster/drywall is thicker than

5/8", custom fasteners must be supplied by installer.

WARNING

fig 1.5

6 of 7 ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

Note: "X" dimensions should be equal.

• Tighten screws so adapter brackets are firmly

attached. Do not tighten with excessive force.

Overtightening can cause stress damage to

screws, greatly reducing their holding power

and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.)

maximum torque.

WARNING

Installing Adapter Brackets

Refer to Screen Compatibility Chart to determine the proper fasteners to use.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.

Place adapter brackets (BB or CC) on back of screen, align to holes, and center on back of screen as shown in

figure 2.1. Attach the adapter brackets to the back of the screen using the appropriate combination of screws, multi-

washers, and spacers as shown in figure 2.3.

Note: Top and bottom holes must always be used.

Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

• If screws don't get three complete turns in the screen

inserts or if screws bottom out and bracket is still not

tightly secured, damage may occur to screen or

product may fail.

WARNING

MEDIUM HOLE FOR M5

SCREWS

SMALL HOLE FOR M4

SCREWS

LARGE HOLE FOR M6 SCREWS

fig. 2.2

CENTER BRACKETS

VERTICALLY ON BACK OF

SCREEN

fig 2.1

Notes:

• The number of fasteners used will vary,

depending upon the type of screen.

• Multi-washers and spacers may not be

used, depending upon the type of screen.

• Use the corresponding hole in the multi-

washer that matches your screw size as

shown in figure 2.2.

SCREWS

SPACERS

BB or CC

fig 2.3

MULTI-

WASHER

MULTI-WASHER

7 of 7 ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05

Mounting and Removing Flat Panel Screen

Hook adapter brackets (BB or CC) onto wall mount (AA). Then slowly swing screen in as shown. Turn safety

screws clockwise at least six times to prevent screen from being removed as shown in detail 1.

Screen can be adjusted horizontally if desired.

Note: To lock the screen down, tighten safety screws to wall plate as shown in detail 1.

To remove screen from mount, loosen safety screws, swing screen away from mount, and lift screen off of mount.

BB or CC

DETAIL 1

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING

SAFETY

SCREWS

Peerless is a registered trademark and Smart mount is a trademark of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.

Autres manuels pour SmartMount D-FPF-320

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS SmartMount RTFPA45 Mode d’emploi

PEERLESS

PEERLESS HT642-002 Mode d’emploi

PEERLESS

PEERLESS DS-VL-H018 Mode d’emploi

PEERLESS

PEERLESS RTPLA 50 Mode d’emploi

PEERLESS

PEERLESS Paramount PP730 and assembly Mode d’emploi

PEERLESS

PEERLESS CMJ450 Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PT640 and assembly Mode d’emploi

PEERLESS

PEERLESS DS-VW660 and assembly Mode d’emploi

PEERLESS

PEERLESS Mobile Videowall Trolley PDVWM 2x2 46 55 L Mode d’emploi

PEERLESS

PEERLESS ACC605 Mode d’emploi

PEERLESS

PEERLESS ACC-V800X Mode d’emploi

PEERLESS

PEERLESS PTT188743 Series Manuel utilisateur

PEERLESS

PEERLESS SF630-AB Mode d’emploi

PEERLESS

PEERLESS SmartMount SF650 Mode d’emploi

PEERLESS

PEERLESS LDS 1920U Mode d’emploi

PEERLESS

PEERLESS WSP700 Mode d’emploi

PEERLESS

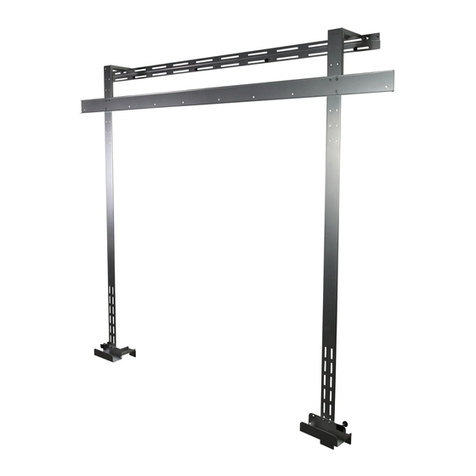

PEERLESS IWB600-WB Mode d’emploi
