PEERLESS DS415 Mode d’emploi

ISSUED: 03-05-09 SHEET #: 125-9051-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

1 of 5

Installation and Assembly - TV and PC Mount Model: DS415

Some parts may appear slightly different than illustrated.

Before you start make sure all parts listed are included with your product.

IMPORTANT! Read instruction sheet before you start installation and assembly.

MAX LOAD CAPACITY: 150 lb (68 kg)

A B

Safety Belt Kit (L)

BELT WITH CINCH BUCKLE

BELT WITHOUT CINCH BUCKLE

TRI-BAR BELT CLIP CLEAR STRIPS BELT GUIDE

Description Qty. Part #

Acover plate 2 201-1335

Bwall plate 1 201-1337

Cscreen plate 1 201-1649

Dbumper strip 1 570-1029

EM5 x 10 mm type-F socket pin screw 6 520-1164

F4 mm security allen wrench 1 560-9646

GM4 x 10 mm knurled knob 2 560-1151

HM4 x 12 mm phillips screw 4 504-9013

IM6 x 12 mm phillips screw 4 520-1128

J#14 x 2.5" wood screw 4 5S1-015-C03

Kaligator anchor 4 590-0097

Lsafety belt kit 2 170-8039-1

M4 pack of togglers (not shown) 1 ACC415

Parts List

ISSUED: 03-05-09 SHEET #: 125-9051-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

2 of 5

Installation to Double Wood Stud Wall

Wall plate (B) can be mounted to two studs that are 16" apart. Use a stud nder to locate the edges of the studs.

Use of an edge-to-edge stud nder is highly recommended. Based on their edges, draw a vertical line down each

stud’s center. Place wall plate on wall as a template. The top mounting slots should be 5.36" (136 mm) above the

desired screen center as shown in gure 1.1. Level plate and mark the center of the four mounting holes. Make

sure that the mounting holes are on the stud centerlines. Drill four 5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep.

Make sure that the wall plate is level, secure it using four #14 x 2.5" wood screws (J) as shown in gure 1.2.

Skip to step 2.

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all

attached hardware and components.

• Tighten wood screws so that wall plate is rmly attached, but do not overtighten. Overtightening can damage the

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud nder

is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-

ers are responsible to provide hardware for other types of mounting situations.

WARNING

g. 1.1

g. 1.2

CS = center of screen

BCS

5.36"

(136 mm)

STUD

ISSUED: 03-05-09 SHEET #: 125-9051-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

3 of 5

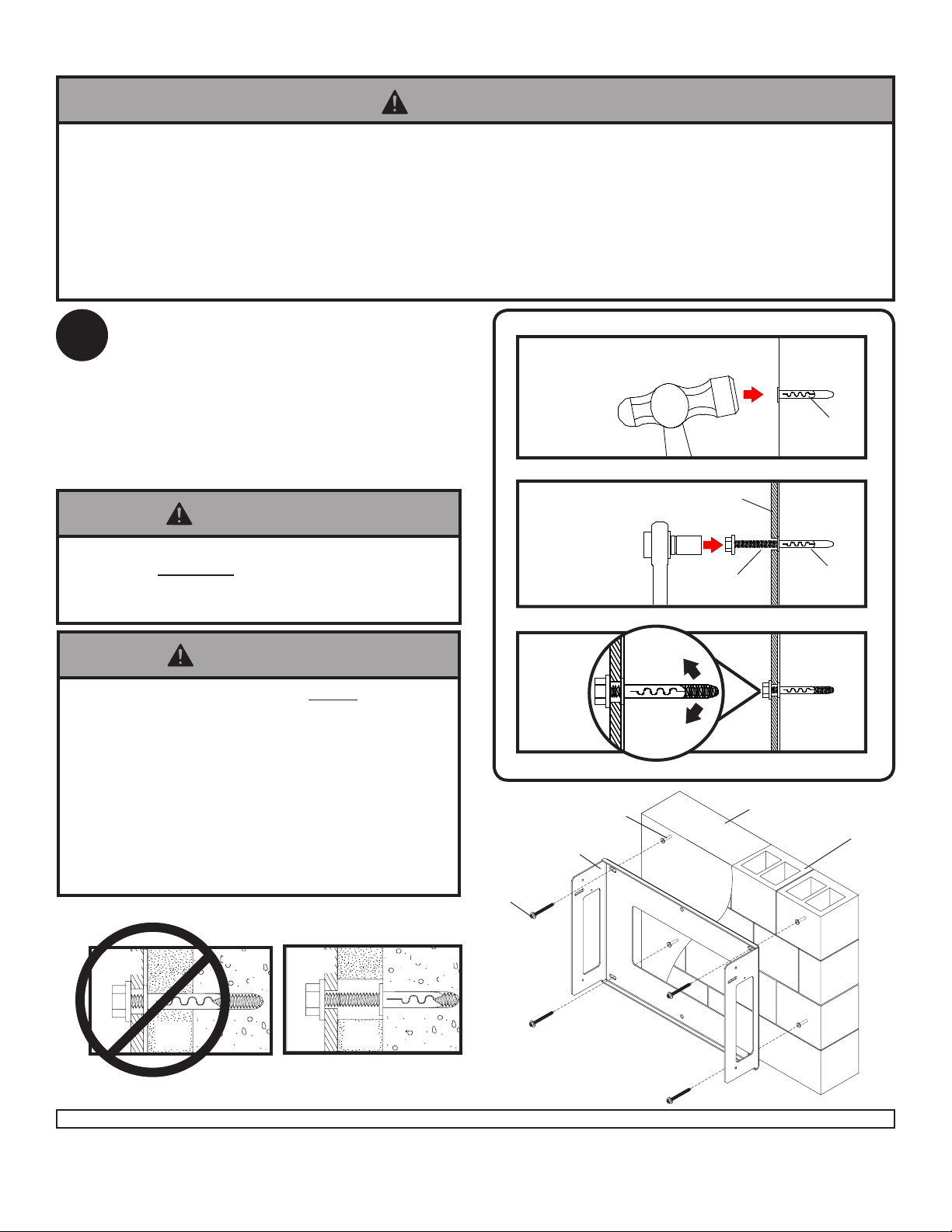

Installation to Solid Concrete or Cinder Block

Make sure that wall plate (B) is level, use it as a

template to mark four mounting holes. The top

mounting hole should be 5.35" (136 mm) above the

desired screen center as shown in gure 1.1 on page

2. Drill four 1/4" (6 mm) dia. holes to a minimum

depth of 2.5" (64 mm). Insert anchors (K) in holes

ush with wall as shown (right). Place wall plate over

anchors and secure with #14 x 2.5" screws (J). Level,

then tighten all fasteners.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to

avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

WARNING

concrete

surface

Drill holes and insert anchors (K).

Place plate (B)over anchors (K) and secure with screws (J).

Tighten all fasteners.

• Always attach concrete anchors directly to load-

bearing concrete.

• Never attach concrete anchors to concrete covered

with plaster, drywall, or other nishing material.

If mounting to concrete surfaces covered with

a nishing surface is unavoidable, the nishing

surface must be counterbored as shown below.

Be sure concrete anchors do not pull away from

concrete when tightening screws. If plaster/drywall

is thicker than 5/8", custom fasteners must be

supplied by installer.

WARNING

• Tighten screws so that wall plate is rmly attached,

but do not overtighten. Overtightening can damage

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING

solid concrete

cinder block

CUTAWAY VIEW

INCORRECT CORRECT

wall

plate

plaster/

drywall

concrete wall

plate

plaster/

drywall

concrete

ISSUED: 03-05-09 SHEET #: 125-9051-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

4 of 5

H or I

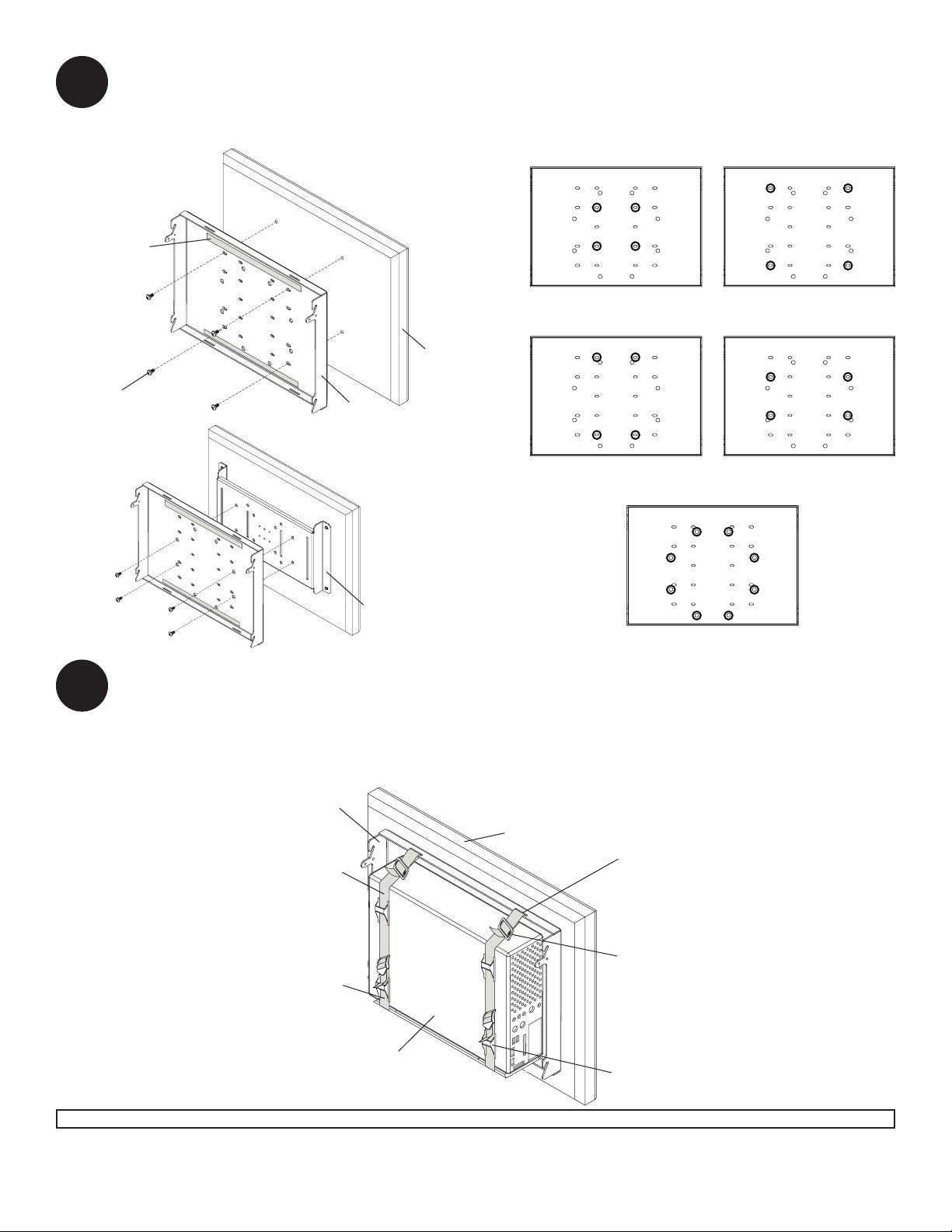

Attach screen plate (C) to screen using the conguration for your screen as shown in gure 2.1.

For VESA 200 x 100, VESA 100 x 200, and VESA 100 x 100 mounting patterns, use four M4 x 12 mm phillips

screws (H). For VESA 200 x 200 mounting pattern, use four M6 x 12 mm phillips screws (I).

NOTE: If attaching screen plate (C) to PLP plate as shown in gure 2.2, follow instructions provided with PLP

plate.

SCREEN

GENERIC PLP PLATE

VESA 100 x 100

VESA 100 x 200

PLP INTERFACE PATTERN

VESA 200 x 100

VESA 200 x 200

FIG. 2.1

FIG. 2.2

COMPUTER

NOTE: Use safety belt kit instructions in conjuction with this step.

Fasten clear strips to the four slots in screen plate (C). Set computer into screen plate (C). Fasten belt with cinch

buckle to belt without cinch buckle. Place tri-bar belt clips and belt guide onto belt as shown in the safety belt

instructions. Feed the ends of the belt through the screen plate (C) slots and through tri-bar belt clip. Cinch the

ends of the belt so that the computer is securely held.

NOTE: Trim off the end of the belt if necessary, then lightly burn the end of the belt to prevent fraying.

SCREEN

TRI-BAR BELT CLIP

BELT GUIDE

BELT WITH CINCH BUCKLE

BELT WITHOUT CINCH BUCKLE

CLEAR STRIPS

ISSUED: 03-05-09 SHEET #: 125-9051-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

5 of 5

Fasten four M5 x 10 mm type-F socket pin screws (E) into wall plate (B) as shown in g. 4.1. Hook screen

plate (C) onto wall plate (B) as shown in g. 4.2. Tighten two M5 x 10 mm type-F socket pin screws (E) into

screen plate (C) and wall plate (B).

NOTE: For tilt, after completing step 4, remove top two screws in g. 4.1. Loosen other top two M5 x 10 mm

type-F socket pin screws (E) till screen can be adjusted to desired tilt. Securely tighten top two M5 x 10 mm

type-F socket pin screws (E).

FIG. 4.1 FIG. 4.2

SUPPORTING SURFACE

NOT SHOWN

SCREEN NOT SHOWN FOR

CLARITY

SUPPORTING

SURFACE NOT SHOWN

Hook bottom of cover plate (A) into wall plate (B). Fasten cover plate (A)to wall plate (B) with two

knurled knobs (G)

SCREEN NOT SHOWN FOR

CLARITY

SUPPORTING SURFACE

NOT SHOWN

All other brand and product names are trademarks or registered trademarks of their respective owners.
