PEERLESS PARAMOUNT PRA2X2 Manuel utilisateur
ISSUED: 11-02-09 SHEET #: 095-9302-1
Paramount™ Pivot for 10" to 37"
LCD screens
Max UL Load Capacity: 80 lb (36 kg)
Model: PRA2X2
Installation Guide
©
UL
USC
I
D
:
0
0
0
0
0
1
8
7
6
2
This product was designed to be installed on wood stud walls and solid concrete (2000 psi
density minimum) or cinder block walls. Before installing make sure the supporting surface will
support the combined load of the equipment and hardware. Screws must be tightly secured. Do
not overtighten screws or damage can occur or product may fail. Never exceed the Maximum UL
Load Capacity. This product is intended for indoor use only. Use of this product outdoors could
lead to product failure or personal injury. For support please call customer care at 1-800-865-2112.
WARNING
2 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
Tools Needed for Assembly
phillips screwdriver
drill
hammer (optional)
A (1)
3 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
E()
F()
G()
M6 x 12 mm
H(2)
I()
M6 x 20 mm
C()
D(2)
J()
M6 x 30 mm
K(5)
M5 x 6 mm
L()
N(1)
O(1)
P(3)
Q(2)
B(2)
M(1)
4 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
M) from wall mount assembly prior to
installation.
A
M
SCREWS
1
5 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1

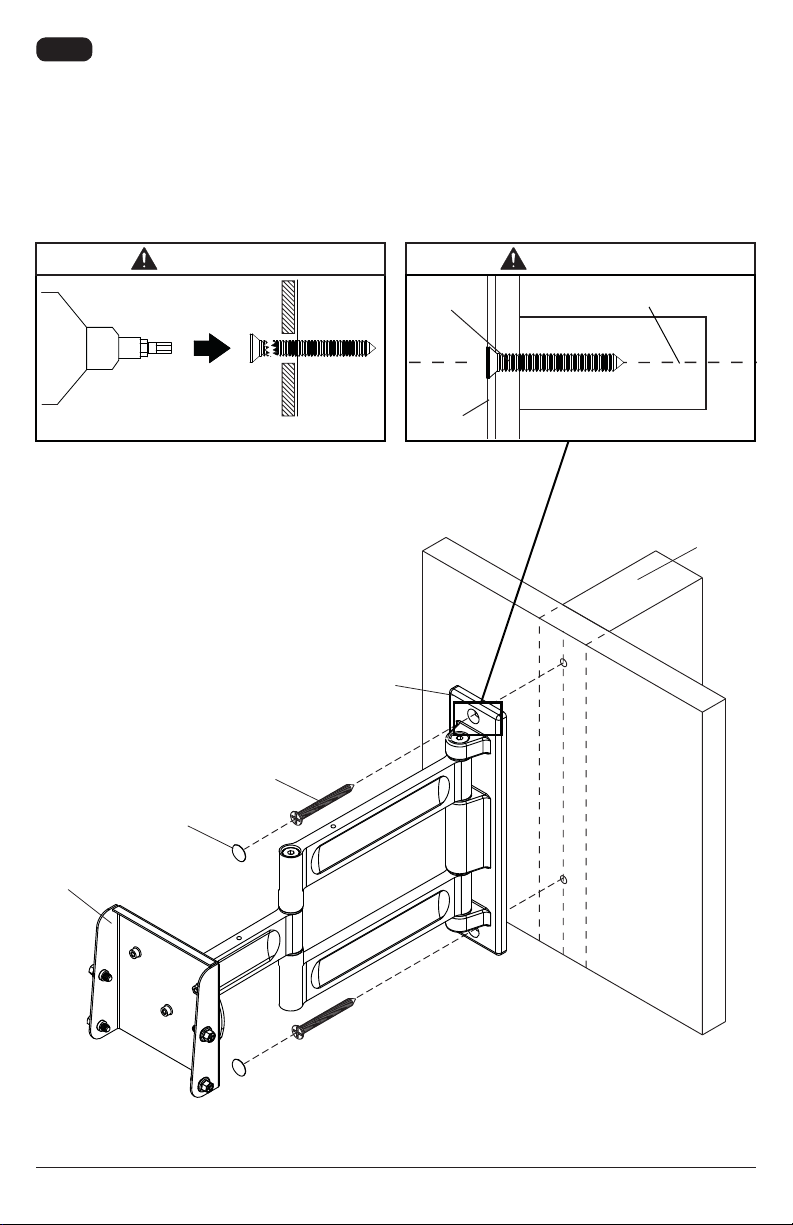

Installing to Wall
2
WOOD STUD WALL
Use wall mount (A) as a template, make sure it is level, and mark two mounting holes along the
(A) and attach to wall with two wood screws (H
T) into
wall plate mounting holes.
Do not over tighten screws, or damage may occur.
WARNING
H
ATOP CUTAWAY VIEW
Wood screws must
center in stud
STUD
WARNING
A
H
T
WOOD
STUD
WALL
PLATE
6 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
Installing to Solid Concrete or Cinder Block
2
Level wall mount (A
B) into holes and secure wall
mount (A) with two screws (H
(T) into wall plate mounting holes.
A
H
B
WALL PLATE
SOLID CONCRETE
CINDER BLOCK
T
7 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, gener-
hole instead of a hammer drill to avoid breaking out the back of the hole when entering a
void or cavity.
directly to load-bearing concrete.
WARNING
CUTAWAY VIEW
drywall
WARNING
wall plate
wall plate
drywall
CORRECT
INCORRECT
concrete
concrete
B
B
H
1
2A
Drill holes and insert anchors (B).
Place plate (A) over anchors (B). Secure with screws (H). Tighten screws.
concreto
8 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
Attach hook bracket (M) to adapter plate (N) using four M5 x 6 mm screws (K) and #10
washers (L) as shown.
Attaching Adapter Plate to Screen with VESA 200 x 100
or 200 x 200 Mounting
3
NOTE: For VESA 75 mm and 100 mm patterns, see page 10.
L
M
N
K
9 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
FOR VESA 200 x 100 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach adapter plate (N) to back of screen using four
E) as shown below.
*NOTE: If screw (E) gets less than three threads of engagement, attach adapter plate (N) to
F) and four spacers (C) as indicated below.
Skip to step 4 on page 12.
3
FOR VESA 200 x 200 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach adapter plate (N) to back of screen using four
M6 x 12 mm screws (G) as shown below.
*NOTE: If screw (G) gets less than three threads of engagement, attach adapter plate (N)
to back of screen using four M6 x 20 mm screws (I). If screw (I) still gets less than three
threads of engagement, use four M6 x 30 mm screws (J).
Skip to step 4 on page 12.
NE
*For screens with
a hole pattern in a
pocket, spacers (C)
go between adapter
plate (N) and screen. C
G
N
10 of 45 ISSUED: 11-02-09 SHEET #: 095-9302-1
FOR VESA®75 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook bracket (M) to back of screen using four
E) as shown below.
*NOTE: If hole pattern is in a pocket, attach hook bracket (M) to back of screen using four
F) and four retaining spacers (C) as indicated below.
Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern
3
FOR VESA 100 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook bracket (M) to back of screen using four
E) as shown below.
E
M
*For screens with a
hole pattern in a pocket,
spacers (C) go between
hook bracket (M) and
screen. C
M
E
