PEERLESS ACC 604 Mode d’emploi

Max Load Capacity For Floor Stand With ACC 604:

Four screens at 200 lb (90.7 kg) each

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 2006-02-14 SHEET #: 202-9111-3 (2020-06-04)

Installation and Assembly:

Floor Stand Carriage for Additional Screens

Model: ACC 604

ACC 604

FPZ-600

2 of 6 ISSUED: 2006-02-14 SHEET #: 202-9111-3 (2020-06-04)

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-729-0307.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

• Never exceed the Maximum Load Capacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

Table of Contents

Parts List .............................................................................................................................................................................. 3

Installing Carriage on Floor Stand ......................................................................................................................................... 3

Attaching Adapter Plate to Screen with VESA 100 Mounting Pattern ................................................................................... 4

Attaching Adapter Plate to Screen with VESA 200 Mounting Pattern ................................................................................... 4

Attaching Adapter Plate to Screen with VESA 200 x 200 Mounting Pattern ......................................................................... 5

Attaching Adapter Plate to PLP Adapter Bracket ................................................................................................................. 5

Installing Flat Panel Screen on Floor Stand .......................................................................................................................... 6

3 of 6 ISSUED: 2006-02-14 SHEET #: 202-9111-3 (2020-06-04)

For customer care call (800) 729-0307 or (708) 865-8870.

Description Qty. Part #

Acarriage 1 201-1020

Badapter plate 2 201-1022-1

C5/16-24 x 1/4" set screw 4 520-9566

DM6 x 20 mm serrated washer head socket pin screw 4 510-9554

EM10 x 15 mm socket head screw 4 520-9262

FM6 x 12 mm phillips screw 4 520-1128

GM6 x 20 mm phillips screw 4 520-9402

HM6 x 30 mm phillips screw 4 510-9109

IM4 x 10 mm phillips screw 4 504-9012

JM4 x 20 mm phillips screw 4 504-9020

K.198" ID x .313" OD x .437" H retaining spacer 4 590-5005

L6 mm non-security allen wrench 1 560-9716

M4 mm security allen wrench 1 560-9646

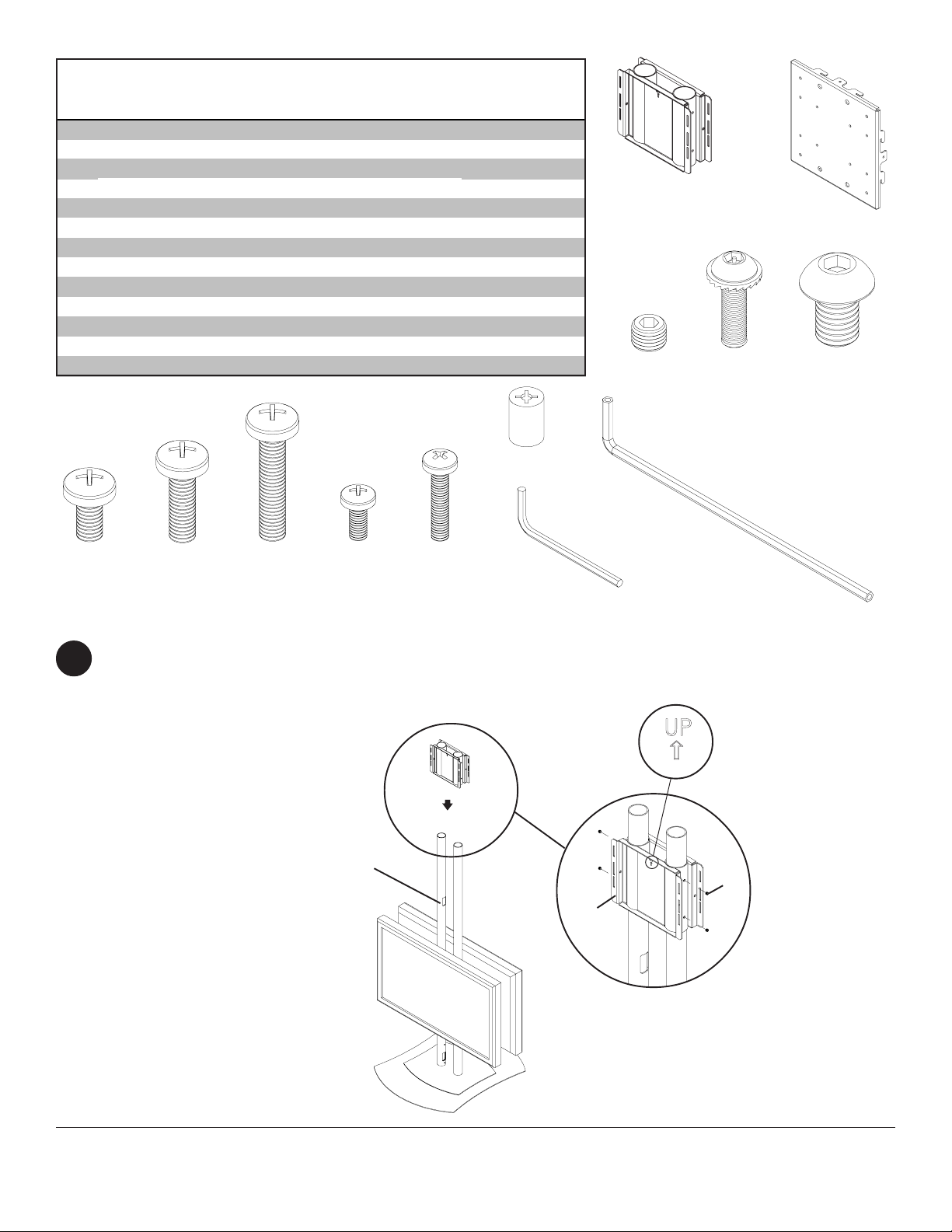

Parts List

GHI J

CD E

Make sure previously installed carriage and screen(s) are positioned low enough to allow carriage (A) and additional

screen(s) to be installed. Slide carriage (A) onto main tubes. Slide carriage to desired height and secure using four

set screws (C) as shown in figure 1 and detail 1. Tighten screws using 4 mm allen wrench (M).

Note: Orientation of "UP" arrow is critical.

MAIN TUBES

fig 1

DETAIL 1

4 of 6 ISSUED: 2006-02-14 SHEET #: 202-9111-3 (2020-06-04)

Choose hole pattern as shown in figure 2.2. Attach

adapter plate (B) to back of screen using four M4 x

10 mm screws (I) as shown.

Note: Orientation of "UP" arrow is critical.

*Note: If screw (I) gets less than three threads of

engagement, attach adapter plate (B) to back of

screen using four M4 x 20 mm screws (J) and four

spacers (K) as indicated below.

Skip to step 3 on page 6.

AttachingAdapter PlatetoScreen with VESA100 Mounting Pattern

• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to screen or product may fail.

WARNING

*For screens with a

hole pattern in a

pocket, spacers (K) go

between adapter plate

(B) and screen. K

AttachingAdapter Plate toScreen with VESA200 Mounting Pattern

• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to screen or product may fail.

WARNING

Choose hole pattern as shown in figure 2.1. Attach

adapter plate (B) to back of screen using four M4 x

10 mm screws (I).

Note: Orientation of "UP" arrow is critical.

Skip to step 3 on page 6.

fig 2.1

fig 2.2

5 of 6 ISSUED: 2006-02-14 SHEET #: 202-9111-3 (2020-06-04)

Choose hole pattern as shown in figure 2.3. Attach

adapter plate (B) to back of screen using four M6 x

12 mm screws (F) as shown.

Note: Orientation of "UP" arrow is critical.

*Note: If screw (F) gets less than three threads of

engagement, attach adapter plate (B) to back of

screen using four M6 x 20 mm screws (G). If screw

(G) still gets less than three threads of engagement,

use four M6 x 30 mm screws (H).

Skip to step 3 on page 6.

AttachingAdapter Plate to Screen with VESA200 x 200 Mounting Pattern

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

fig 2.3

For screen compatibility please refer to the plasma interface list on our website www.peerlessmounts.com or call

customer care for a screen specific adapter bracket (PLP models).

GENERICADAPTER

BRACKET

AttachingAdapterPlateto PLPModelAdapterBracket

fig 4.4

Note: Refer to PLP model adapter bracket instruction

sheet for attachment of adapter bracket to screen.

Choose hole pattern as shown in figure 4.4. Attach

adapter plate (D) to back of screen using four M10 x

15 mm screws (E) as shown. Tighten screws using 6

mm allen wrench (L).

Note: Orientation of "UP" arrow is critical.

6 of 6 ISSUED: 2006-02-14 SHEET #: 202-9111-3 (2020-06-04)

To install second screen, repeat steps four and five for back side of carriage (A).

Hook adapter plate (B) onto carriage (A) and secure using two M6 x 20 mm serrated washer head socket pin screws

(D) as shown in figure 3 and detail 2. Tighten screws using 4 mm security allen wrench (M).

DETAIL 2 fig 3
