PEERLESS SmartMount RTFPA45 Mode d’emploi

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

Features:

•U-groove and U-cap system for clean and simple cable management

•Single stud installation for optimal electrical access

•+15°/-5° of easy one-touch tilt

•Three pivot points with up to 180° swivel

Installation and Assembly:

SmartMount®Articulating Flat Panel Wall Mounts for

32" to 47" screens

Models:

This product is UL Listed.

It must be installed by a

qualified professional

installer.

UNIVERSALADAPTERBRACKET

INCLUDEDWITHRTFPA45U,

RTFPA45US,SA745PU,SA745PU-S

RTFPA45, RTFPA45S, RTFPA45U, RTFPA45US,

SA745P, SA745P-S, SA745PU, SA745PU-S

Maximum UL Load Capacity: 90lb (41 kg)

2 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

Note: Read entire instruction sheet before you start installation and assembly.

Forcustomercarecall(800)729-0307or(708)865-8870.

Table of Contents

Parts List.......................................................................................................................................................................... 3, 4

Installation to Single Wood Stud Wall................................................................................................................................... 5

Installation to Solid Concrete and Cinder Block .................................................................................................................... 6

InstallingUniversalAdapterBracket...................................................................................................................................... 8

Attaching Adapter Plate to Screen with VESA®Mounting Patterns .................................................................................... 12

InstallingandRemovalofFlatPanelScreen ....................................................................................................................... 13

Adjustment of Flat Panel Screen ........................................................................................................................................ 13

CableManagement ............................................................................................................................................................. 14

Tools Needed for Assembly

• studfinder ("edge to edge" stud finder is recommended)

• phillipsscrewdriver

• pencil

• drill

• 3/16" drill bit for wood studs, 5/16" drill bit for concrete

• 7/16" socket wrench or bit driver for wood screws

• level

• tapemeasure

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call

Peerless customer service at 1-800-729-0307.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardwareand components.

• NeverexceedtheMaximum ULLoad Capacity.

• If mounting to wood wall stud wall construction, make sure that mounting screws are anchored into the center of the

studs. Use of an "edge to edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power. Seesuggestedtorquevalueswhere applicable within these instructions.

WARNING

3 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

E FD

KLNM

Qty.

Aarm 1 201-0275 201-0275-S

universal adapter bracket 1 201-P1367 201-C4367

screen bracket 2 201-P1396 201-C4396

XXD

wall plate 1 201-P1277 201-C4277

E3 520-1243 520-2243

F3 590-1025 590-1025

M10 x15 mm socket screw 4 520-9262 520-9534

M5 x10 mm flathead phillips screw 4 520-1573 520-2573

XXI

5/16-18 x1.75"flathead socketscrew 2 520-1332 520-2332

6 mm allen wrench 1 560-9716 560-9716

XXL

3/16"allen wrench 1 560-9713 560-9713

XM 1 560-0073 560-0073

XXN

4 mm allen wrench 1 560-9646 560-9646

XXO

cable ties 12 590-1168 590-1168

3 mm allen wrench

RTFPA45, RTFPA45S,

SA745P, SA745P-S

alligator® anchor

with your product.

Parts may appear slightly different than illustrated.

5/16 x3" wood screw

Silver

Part #

Black

Part #

RTFPA45U, RTFPA45US,

SA745PU, SA745PU-S

Before you begin,make sure all parts shown are included

Parts List

Description

4 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

Adapter Bracket Fasteners

M4 x 12 mm (6)

(504-9013)

M4 x 25 mm (4)

(504-1015)

M5 x 12 mm (4)

(520-1027) M5 x 25 mm (4)

(520-9543)

M8 x 16 mm (6)

(520-9257) M8 x 40 mm (4)

(520-1136)

M8 x 25 mm (4)

(520-1031) I.D..34"(4)

(540-1059)

M10 x 15 mm (4)

(520-9262)BLK

(520-9534)SLV

I.D..22"(4)

(540-1057)

M6 x 30 mm (4)

(510-9109)

M6 x 12 mm (4)

(520-1128) M6 x 25 mm (4)

(520-1208)

M6 x 20 mm (4)

(520-9402)

multi-washer(6)

(580-1036)

M4 x 20 mm (4)

(504-9020)BLK

(504-2020)SLV

M4 x 30 mm (4)

(520-1133)BLK

(520-2133)SLV

M6 x 20 mm (4)

(520-9402)BLK

(520-2402)SLV

M6 x 30 mm (4)

(510-9109)BLK

(510-2109)SLV

M6 x 40 mm (4)

(520-1584)BLK

(520-1207)SLV

ID.128"(4)

(590-5005)BLK

(590-5003)SLV

5 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

fig. 1.1

(152 mm)

CS = center of screen

STUD

Using a stud finder, locate and mark the edges of the wood stud. Use of an edge to edge stud finder is highly

recommended. Use a level to draw a vertical line down the center of the stud. Use wall plate (D) as template to

mark center of holes along the vertical line. The top mounting holes should be 6" above the desired screen center

as shown in figure 1.1. Drill three 3/16" (5 mm) dia. pilot holes 3" (76 mm) deep. Attach wall plate (D) to wall using

three 5/16 X 3" wood screws (E) as shown in fig. 1.2. Level plate, then tighten all fasteners.

Installation to Single Wood Stud Wall

• Installermustverifythatthesupportingsurfacewill safely support the combined load of the equipment and all attached

hardwareand components.

• Tightenwoodscrewssothatwallplateisfirmlyattached,butdonotovertighten.Overtighteningcandamagethe

screws,greatlyreducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is

highlyrecommended.

• Hardwareprovidedisforattachment of mount through standard thickness drywall or plaster into wood studs. Installers

areresponsibleto provide hardware for othertypesofmounting situations.

WARNING

fig. 1.2

STUD

6 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

Installation to Solid Concrete or Cinder Block

Use wall plate (D) as template to mark mounting

holes.Thetopmounting hole shouldbe6"abovethe

desired screen center as shown in figure 1.1 on page 5.

Drill three 5/16" (8 mm) dia. holes 3" (76.2 mm) deep as

shown in fig. 1.3. Insert anchors (F) in holes flush with

wall as shown (right). Place wall plate over anchors and

secure with 5/16 x 3" screws (E). Level, then tighten all

fasteners.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications.

It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid

breakingoutthebackoftheholewhen entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Makesure that the supporting surface will safely supportthe combined load of the equipment and allattached hard-

wareand components.

WARNING

CUTAWAYVIEW

INCORRECT

concrete

surface

Drill holes and insert anchors (F).

CORRECT

Place wall plate (D) over anchors (F) and secure with screws (E).

Tighten all fasteners.

wallplate

plaster/

drywall

concrete wallplate concrete

plaster/

drywall

• Always attach concrete anchors directly to load-

bearingconcrete.

• Neverattach concrete anchors toconcretecovered

withplaster, drywall, orotherfinishingmaterial.If

mountingtoconcrete surfaces covered with a finishing

surfaceisunavoidable, the finishing surface must be

counterboredasshown below.Besure concrete

anchorsdonotpullawayfrom concrete when tighten-

ing screws. If plaster/drywall is thicker than 5/8",

custom fasteners must be supplied by installer.

(Notevaluated byUL)

WARNING

• Tighten screws so that wall plate is firmly attached,

butdo not overtighten. Overtighteningcandamage

screws,greatlyreducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING F

solid concrete

fig. 1.3

cinder

block

7 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

fig. 1.4

fig. 1.5

Support arm during install. Slide arm (A) onto wall plate (D) as shown in figure 1.4. Using 3/16" allen wrench (L),

secure arm (A) onto wall plate (D) with two 5/16-18 x 1.75" flat head socket screws (I) as shown in fig. 1.5.

1-1

8 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

Remove two M5 x 20 mm screws from the rollbrake. Lift

adapter plate out from tilt bracket as shown.

NOTE: M5 X 25 mm screw may need to be loosened a

fewturns to allow adapter bracket to be removed using

4mm allen wrench (N).

Remove bracket covers from screen brackets (C) as shown in fig. 3.1. Fasten two screen brackets (C) to the

gliders on universal adapter bracket (B)using four M5 x 10 mm flat head phillips screws (H) as shown in fig. 3.1.1.

3-1

BRACKET

COVER

GLIDERS

fig. 3.1.1

NOTE: If your screen has a VESA hole pattern skip to page 12.

Using the hole pattern shown in detail 1, attach the adapter plate to universal adapter

bracket (B) or dedicated adapter plate with four M10 x 15 mm screws (G) as shown.

Tighten screws using 6 mm allen wrench (K).

Installing Universal Adapter Bracket to Screen

ADAPTER

PLATE

ROLLBRAKE

TILT

BRACKET

M5 X 20 MM

SCREW

M5 X 25 MM

SCREW

HOLE PATTERN

FOR USE WITH

UNIVERSAL

ADAPTER

BRACKET OR

DEDICATED

ADAPTER PLATE

DETAIL 1

LARGE

HOLES

ADAPTERPLATE

DEDICATED

ADAPTERPLATE

fig. 3.1

9 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

3-2

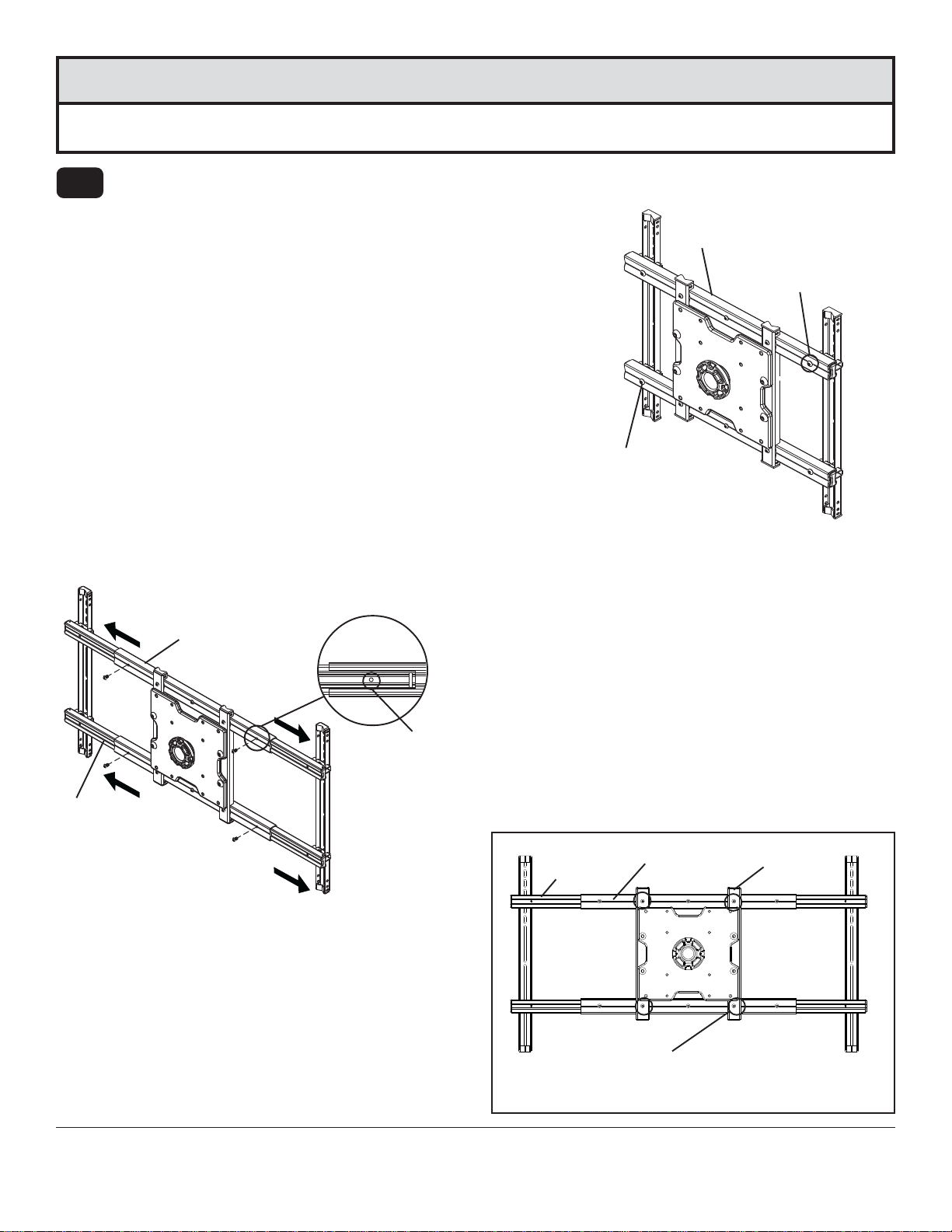

Adjusting Universal Adapter Bracket to Screen

• Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten M5 x 9 mm vertical

support screws and M5 x 9mm socket button head screws to 35 in. • lb (3.95 N.M.) maximum torque.

CAUTION

DETAIL 2

LOOSENVERTICALSUPPORT

SCREWSFOREXTENSION

BRACKETADJUSTMENT

THENRETIGHTEN

VERTICAL

SUPPORT

HORIZONTAL

SUPPORT

EXTENSION

BRACKET

REVERSE

VIEW

EXTENSION

BRACKET

HORIZONTAL

SUPPORT

EXTENDED

POSITION

FIXEDSTOPPOSITION

(THREADEDHOLE)

M5X 9MM BUTTON

SOCKETHEADSCREW

HORIZONTAL

SUPPORT

RETRACTED

POSITION

RETRACTED

FIXEDSTOP

POSITION

The universal adapter bracket has two fixed stop positions

which lock the extension brackets in the retracted position

(shown right) or extended position (shown below) using the

M5 x 9mm screws.

If the distance between mounting holes on the back of your screen

measure 17.5” (445mm) wide or lesskeep universal adapter

bracket in the retracted position. Skip to step 3-3.

If the distance between mounting holes on the back of your screen

measure wider than 17.5” (445 mm), remove four M5 x 9 mm

socketbutton head screws from universal adapter bracket using

3 mm allen wrench (M), as shown below. NOTE: You may need to

loosen four M5 x 9 mm vertical support screws, as shown in

detail 2, one full turn to adjust extension brackets. Extend both

extension brackets out to the fixed stop positions (threaded hole

showninreverse view below). Secure extension bracket to the

horizontal support by fully tightening M5 x 9 mm socket button

head screws into the fixed stop positions of the extension brackets

using 3 mm allen wrench (M) as shown in the reverse view.

Retighten M5 x 9 mm vertical support screws as shown in detail 2.

10 of 42 ISSUED: 03-08-07 SHEET #: 095-9271-2 10-26-09

NOTE:Refertopage9foradjustments ofuniversaladapterbracket(B)extensionbrackets.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screenfacesidedown.Refer toscreen manufacturersinstructions forremovalofknobs,base,cover, orscrew(s) onthe

back of the screen to prepare for mounting screen brackets (C) to screen.Adjust screen brackets (C) to align with

screen mounting holes as shown in fig. 3.4. Select the small, medium, large or extra large screws from the baffled

fastener pack then attach screen brackets (C) to screen following figure 3.5 or 3.6 on page 11. Retighten M5 x 16 mm

glider screws as shown in fig. 3.3.

NOTE:Topand bottom mounting holes must be used for attaching screen brackets.Middle holes should also be used

wherethe fasteners and screens allow. Verify that all holesareproperlyaligned, and then tighten screwsusingaphillips

screwdriver.

NOTE: For flat back screens proceed to step 3-5. For bump-out or recessed back screen skip to step 3-6

NOTES:

• Always use multi-washers when attaching

screen brackets (C) to your screen when using

small, medium or large screws. No multi-washer

is required for extra large (M8) screws.

• Use the corresponding hole in the multi-washer

that matches your screw size as shown.

MULTI-WASHER

MEDIUMHOLEFORM5SCREWS

LARGEHOLEFORM6SCREWS

SMALLHOLEFORM4SCREWS

Using 3 mm allen wrench (M), loosen screws

ofeachglideron the universal adapter bracket

until screen brackets (C)canmovewith ease

within extension bracket.

fig. 3.3 M5X 16MM SOCKET

BUTTONHEADSCREW

GLIDER

M5X 16MM SOCKET

BUTTONHEADSCREW

GLIDER

CENTERSCREENBRACKETS(C)VERTICALLYONBACKOFSCREEN

SCREEN

"Y" dimensions should be equal.

fig. 3.4 NOTE: "X"dimensions should beequal.

3-3

3-4

• Tighten screws so screen brackets are firmly attached to screen. Do not tighten with excessive force.

Overtighteningcancausestressdamagetoscrews,greatlyreducingtheirholding power and possibly causing

screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS Perfect Mount PMF2X2 Manuel utilisateur

PEERLESS

PEERLESS PJF2-UNV Mode d’emploi

PEERLESS

PEERLESS SmartMount D-FPF-320 Mode d’emploi

PEERLESS

PEERLESS HCW101 Manuel utilisateur

PEERLESS

PEERLESS CMJ 470W Mode d’emploi

PEERLESS

PEERLESS SmartMount ST 635 Mode d’emploi

PEERLESS

PEERLESS Smartmount SWS310/BK Mode d’emploi

PEERLESS

PEERLESS SmartMount SP740P Mode d’emploi

PEERLESS

PEERLESS ACC605 Mode d’emploi

PEERLESS

PEERLESS HDS-S Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PT650 and assembly Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PA730 Mode d’emploi

PEERLESS

PEERLESS RTLA-100 Mode d’emploi

PEERLESS

PEERLESS RTLA-100 Mode d’emploi

PEERLESS

PEERLESS LMAM1940 Mode d’emploi

PEERLESS

PEERLESS LCT Series Mode d’emploi

PEERLESS

PEERLESS SmartMount SP850-UNL Mode d’emploi

PEERLESS

PEERLESS Paramount PSP2 Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PT640 and assembly Mode d’emploi

PEERLESS

PEERLESS SlimLine MOWV241/BK Manuel utilisateur

PEERLESS

PEERLESS Solid-Point PS 1 Mode d’emploi

PEERLESS

PEERLESS DS-VW760 and assembly Mode d’emploi

PEERLESS

PEERLESS Paramount PPF Mode d’emploi

PEERLESS

PEERLESS COL 510P Mode d’emploi

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
