PEERLESS HT642-002 Mode d’emploi

Model: HT642-002

Installation and Assembly:

Wall Mount

Max Load Capacity: 75 lb (34 kg)

ISSUED: 03-02-11 SHEET #: 125-9192-1

Note: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• studnder("edgetoedge"studnderisrecommended)

• phillips screwdriver

• drillwith1/4"and5/32"drillbits

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Wood Stud Wall................................................................................................................................................4

Installation to Metal Stud Wall ................................................................................................................................................5

Installation to Solid Concrete and Cinder Block Wall .............................................................................................................6

Attaching Adapter Brackets to Screen....................................................................................................................................7

Attaching Mounting Bracket Using Hook On Option...............................................................................................................8

Attaching Mounting Bracket Using Tilt Option ........................................................................................................................9

• DonotbegintoinstallyourPeerlessproductuntilyouhavereadandunderstoodtheinstructionsandwarnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer service at 1-800-729-0307.

• Thisproductshouldonlybeinstalledbyaqualiedprofessional.

• Makesurethatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandallattachedhard-

ware and components.

• NeverexceedtheMaximumLoadCapacityof75lb(34kg).

• Ifmountingtowoodwallstuds,makesurethatmountingscrewsareanchoredintothecenterofthestuds.Useof

an"edgetoedge"studnderishighlyrecommended.

• Alwaysuseanassistantormechanicalliftingequipmenttosafelyliftandpositionequipment.

• Tightenscrewsrmly,butdonotovertighten.Overtighteningcandamagetheitems,greatlyreducingtheirholding

power.

• Thisproductwasdesignedandintendedtobemountedtothefollowingsupportingsurfacescheckedbelowwith

thehardwareincludedinthisproductasspeciedintheinstallationsheet.Tomountthisproducttoanalternative

supporting surface, contact Peerless customer care at 1-800-865-2112.

• Thisproductwasdesignedtobeinstalledonthefollowingwallconstructiononly;

WALL CONSTRUCTION ADDITIONAL HARDWARE REQUIRED

x WoodStud   None

x WoodBeam   None

x SolidConcrete   None

x CinderBlock   None

x MetalStud   None

Brick Contact Customer Service

Other or unsure? Contact Customer Service

WARNING

3 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

Some parts may appear slightly different than illustrated.

Before you start make sure all parts listed are included with your product.

C D E

G H I

Description Qty. Part #

Across support bracket 1 201-1881

Bwall plate 1 201-1678

C# 8 washer 4 540-1001

DM4 x 12 mm phillips screw 4 504-9013

EM6 x 16 mm phillips screw 4 520-9274

F4 mm allen wrench 1 560-9646

Gtoggler 4 560-9708

H1/4 - 20 phillips screw 4 520-9521

I#14 x 2.5 wood screw 4 5S1-015-C03

JM5 x 12 mm socket pin serrated washer head screw 6 510-1064

KAlligator® concrete anchor 4 590-0097

Ladapter bracket 2 201-1882

M1/4-20 nylock nut 4 530-9413

PARTS LIST

4 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

Installation to Wood Stud Walls

Useastudndertolocatetheedgesofthestud.Useofanedge-to-edgestudnderishighlyrecommended.

Based on its edges, draw a vertical line down the stud's center. Place wall plate (B) on wall as a template. Mark

thecenterofthefourmountingholes.Drillfour5/32"(4mm)dia.holes2-1/2"(65mm)deep.Securewallplate(B)

towoodstudusingfour#14x2-1/2"woodscrews(I) as shown. Skip to Step 2 page 7

• Installermustverifythatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandall

attached hardware and components.

• Tightenwoodscrewssothatwallplateisrmlyattached,butdonotovertighten.Overtighteningcandamagethe

screws, greatly reducing their holding power.

• Nevertighteninexcessof80in.•lb(9N.M.).

• Makesurethatmountingscrewsareanchoredintothecenterofthestud.Theuseofan"edgetoedge"studnder

is highly recommended.

• Hardwareprovidedisforattachmentofmountthroughstandardthicknessdrywallorplasterintowoodstuds.Install-

ers are responsible to provide hardware for other types of mounting situations.

WARNING

5 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

Installation to Metal Stud Walls

Rotate toggler (G)

clockwise to wedge it

against inside walls

of metal stud.

Push into hole.

Pivot end of

toggler (G).

Slide plastic cap

forward while pulling

backrmlyonring.

Break off excess.

FOR METAL STUD WALLS ONLY:Drillfour1/2"

(13mm) dia. holes through drywall and studs at lo-

cations corresponding to wall plate. Insert togglers

(G) as shown below...

Skip to Step 2 page 7

Align wall plate with

hole in wall and

fasten using 1/4-20 x

2.5"screw(H).

wall plate

• Productmustbemountedthroughdrywallthathasa

minimumthicknessof1/2"andintometalstuds,26

gauge or heavier.

• Makesurethattogglersareanchoredintothecenter

ofthestudsasshowningure1.Theuseofan

"edgetoedge"studnderishighlyrecommended.

WARNING

STUD

1-1

1-2

1-3

1-4

1-5

3-6

Skip to Step 5

g.1

6 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

Position wall plate (B) at desired position on wall.Use

wall plate (B), making sure that it is level, as a template

tomarkholes.Drillfour1/4"(6mm)dia.holestoamini-

mumdepthof2-1/2"(64mm).Concretemustbe2000

psi density minimum. Insert anchors (K)inholesush

withwallasshowningure1.3.Placewallplate(B) over

anchorsandsecurewithfour#14x2-1/2"(6mmx65

mm) wood screws (I)asshowningure1.4.Makesure

wall plate is level and tighten all fasteners.

Skip to Step 2 page 7

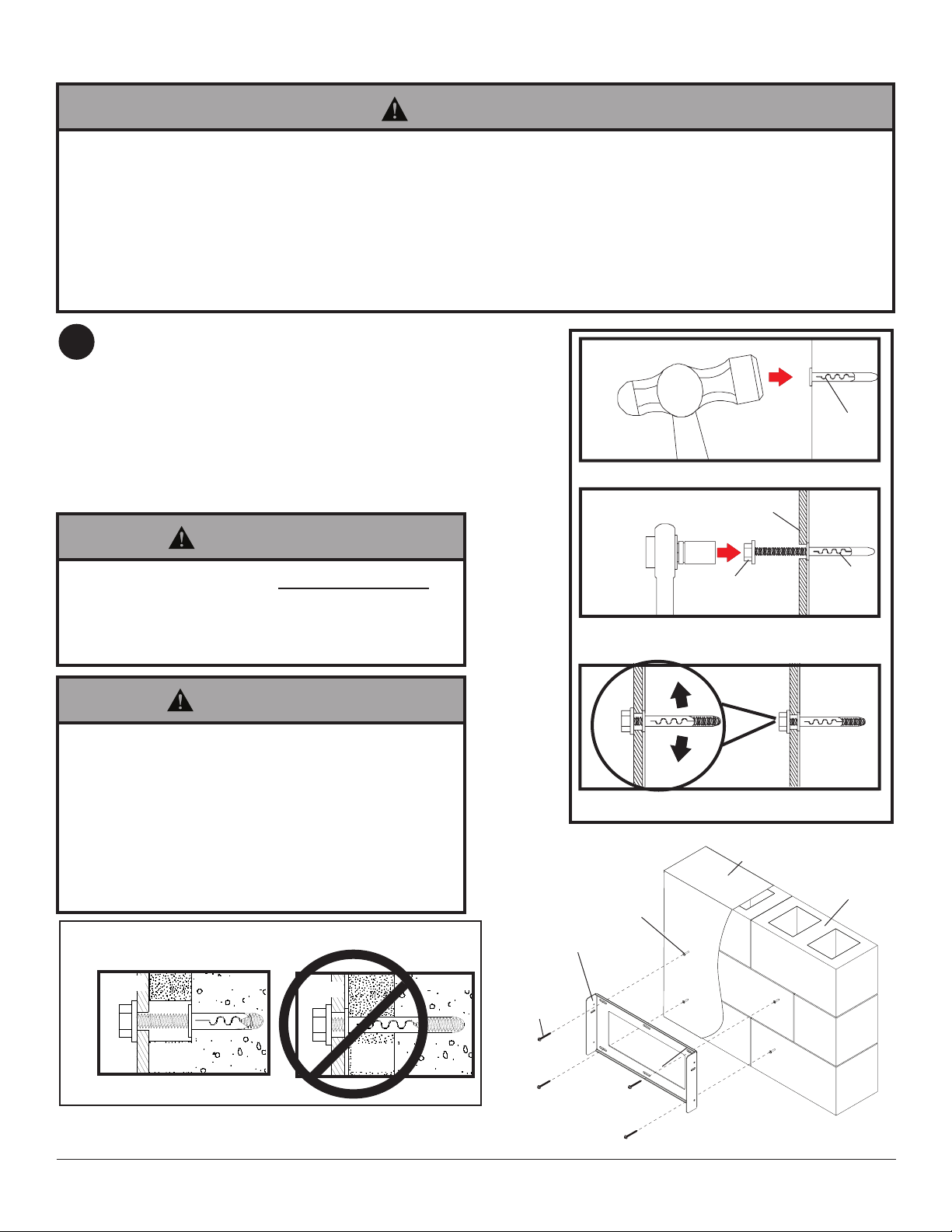

Installation to Solid Concrete and Cinder Block Wall

CUTAWAY VIEW

INCORRECT

concrete

plaster/

drywall

CORRECT

concrete

plaster/

drywall

concrete

wall

Drill holes and insert anchors

Place wall plate (B) over anchors and secure with

screws (I)

Tighten all fasteners

• Tightenwoodscrewsrmly,but do not overtighten.

Overtightening can damage the screws, greatly re-

ducing their holding power.

• Nevertighteninexcessof80in•lb(9N.M.).

WARNING

• WheninstallingPeerlesswallmountsoncinderblock,verifythatyouhaveaminimumof1-3/8"ofactualconcrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

partoftheblock,generally1"minimumfromthesideoftheblock.CinderblockmustmeetASTMC-90specica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to

avoid breaking out the back of the hole when entering a void or cavity.

• Concretemustbe2000psidensityminimum.Lighterdensityconcretemaynotholdconcreteanchor.

• Makesurethatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandallattachedhard-

ware and components.

WARNING

g1.3

g1.4

• Concreteanchorsarenot intended for attachment to

concrete wall covered with a layer of plaster, drywall,

orothernishingmaterialasshownbelow.Ifmount-

ing to concrete wall covered with plaster/drywall is

unavoidable,plaster/drywall(upto5/8"thick)must

be counterbored as shown below. Be sure concrete

anchors do not pull away from concrete when tight-

ening screws. If plaster/drywall is thicker than

5/8",customfastenersmustbesuppliedbyinstaller.

WARNING

CINDERBLOCK

SOLIDCONCRETE

7 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

Using information provided in detail 1 secure two adapter brackets (L) to back of display using four M4 x 12 mm

phillips screws (D) or four M6 x 16 mm phillips screws (E).

NOTE: When using M4 x 12 mm phillips screws (D), #8 washers (C) are required.

NOTE: Adapter brackets (L)have2"ofverticaladjustmentasshownindetail1.

200 mm

100 mm

BOTTOM OF DISPLAY

200 mm x 100 mm HOLE

PATTERNSHOWNABOVE

400 mm

200 mm

2"OFVERTICAL 

ADJUSTMENT

D or E

BOTTOM OF DISPLAY

200 mm x 100 mm

200 mm x 200 mm

400 mm x 200 mm

3Using information in hole pattern detail secure cross support bracket (A) to adapter brackets (L) with four

1/4-20 nylock nuts (M).

DETAIL1

8 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

MOUNTINGSURFACE

NOTSHOWNFORCLARITY

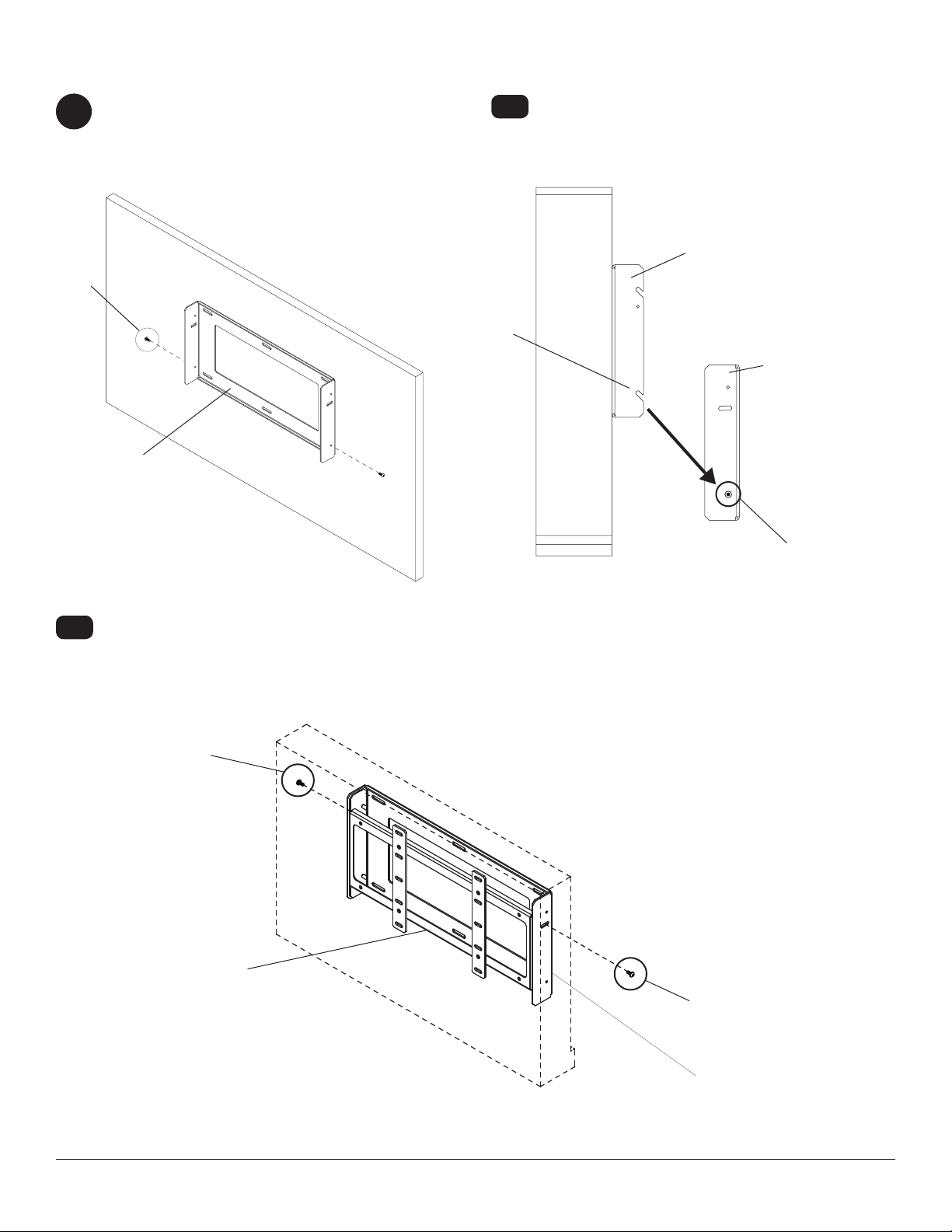

Position slots of adapter plate (A) onto the four

M5 x 12 mm serrated washer head socket pin

screws (J) attached to wall plate (B).

To secure wall plate (B) to adapter plate (A), attach two M5 x 12 mm serrated washer head socket pin screws

(J) through the slots on the sides of wall plate (B) and threaded holes of adapter plate (A). Tighten with the 4 mm

security allen wrench (F).

Attach four M5 x 12 mm serrated washer head

socket pin screws (J) to the holes on the sides of

wall plate (B) using the 4mm security allen wrench

(F)provided.

AttachingMountingBracketUsingHookOnOption

4-1

SLOT J

4-2

BOTTOM OF DISPLAY

9 of 9 ISSUED: 03-02-11 SHEET #: 125-9192-1

Attach two M5 x 12 mm serrated washer head

socket pin screws (J) to the bottom holes on the

sides of wall plate (B) using the 4mm security allen

wrench (F)provided.

Position slots of adapter bracket (A) onto the two

M5 x 12 mm serrated washer head socket pin

screws (J) attached to wall plate (B).

44-1

SLOT

AttachingMountingBracketUsingTiltOption

To secure wall plate (B) to adapter plate (A), adjust tilt as desired and attach two M5 x 12 mm serrated washer

head socket pin screws (J) into the slots on the sides of wall plate (A) and threaded inserts of adapter bracket (A).

Tighten with the 4 mm security allen wrench (F).

4-2

MOUNTINGSURFACE

NOTSHOWNFORCLARITY

BOTTOM OF DISPLAY

All other brand and product names are trademarks or registered trademarks of their respective owners.

Table des matières

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS FPZ-600 Mode d’emploi

PEERLESS

PEERLESS SF630P-S and assembly Mode d’emploi

PEERLESS

PEERLESS ESA746PU Mode d’emploi

PEERLESS

PEERLESS Slimline OP-LWB 530 Mode d’emploi

PEERLESS

PEERLESS PANA-85WM Mode d’emploi

PEERLESS

PEERLESS IWB600-WB Manuel utilisateur

PEERLESS

PEERLESS SF 24D Mode d’emploi

PEERLESS

PEERLESS WBK100-W Mode d’emploi

PEERLESS

PEERLESS WSP700 Mode d’emploi

PEERLESS

PEERLESS HCW101 Manuel utilisateur

PEERLESS

PEERLESS WSP 490 Mode d’emploi

PEERLESS

PEERLESS DS-VL-H018 Mode d’emploi

PEERLESS

PEERLESS SOLID POINT PLCM 1 Mode d’emploi

PEERLESS

PEERLESS DS-VW760 and assembly Mode d’emploi

PEERLESS

PEERLESS Smartmount Mode d’emploi

PEERLESS

PEERLESS SmartMount ST 635 Mode d’emploi

PEERLESS

PEERLESS Paramount PC930A Mode d’emploi

PEERLESS

PEERLESS MSA-301 Mode d’emploi

PEERLESS

PEERLESS SmartMount SA750P Mode d’emploi

PEERLESS

PEERLESS Smartmount SA752PU Mode d’emploi

PEERLESS

PEERLESS CMJ 470W Mode d’emploi

PEERLESS

PEERLESS SOLID-POINT PLCM1CP Mode d’emploi

PEERLESS

PEERLESS HCW201 Manuel utilisateur

PEERLESS

PEERLESS PTT188743 Series Manuel utilisateur
