Kramer 650T Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

650T

DVI–Coax Transmitter

650R

Coax–DVI Receiver

P/N: 2900-000536 Rev 10

650T/650R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 650T DVI-Coax Transmitter 4

3.2 650R Coax-DVI Receiver 5

4Your 650T/650R DVI/Coax Transmitter/Receiver 6

4.1 Your 650T DVI-Coax Transmitter 6

4.2 Your 650R Coax-DVI Receiver 7

5Connecting the 650T/650R 8

6Technical Specifications 10

Figures

Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver 6

Figure 2: 650R Coax-DVI Receiver 7

Figure 3: DVI-to-Coax Transmitter and Receiver System 9

650T/650R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix

Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and

GROUP 11: Sierra Products.

Thank you for purchasing the Kramer DigiTOOLS®650T DVI-Coax Transmitter

and/or Kramer DigiTOOLS®650R Coax-DVI Receiver, which are ideal for:

Boardroom and projection applications

Long-range multimedia extension for schools, hospitals, security, and stores

Upgrading a legacy analog installation to a digital installation

650T/650R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer 650T/650R away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

650T/650R - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

650T/650R - Overview

3 Overview

This section describes the:

650T DVI-Coax Transmitter, see Section 3.1

650R Coax-DVI Receiver, see Section 3.2

3.1 650T DVI-Coax Transmitter

The Kramer DigiTOOLS®650T is an DVI-coax transmitter that receives an DVI

signal, codes it, and transmits red, green, blue, clock and data signals, as well as

power, infrared and RS-232 control signals over coax cable to the 650R receiver.

Compatible with a Kramer transmitter and via a Kramer external remote IR receiver:

C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE.

The 650T features:

A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) and up

to 720P with HDCP

Digital signal transmission without compression or conversion

HDTV compatibility and HDCP compliance

EDID pass-through that passes the EDID between the source and display

Bi-directional IR (Compatible with a Kramer transmitter and via a Kramer

external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE)

and RS-232 interfaces

IR and RS-232 data is available only when using a 5-plug coax cable and the power

coax line is connected.

Power feeding to the 650R

Plug and Play installation with no adjustments

650T/650R - Overview

3.2 650R Coax-DVI Receiver

The Kramer DigiTOOLS®650R is a coax-DVI receiver that receives a coded coax

signal transmitted by the 650T. It decodes the R-G-B, clock and data components and

converts them to an DVI output.

The 650R features:

A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) and up

to 720P with HDCP

HDTV compatibility and HDCP compliance

EDID pass-through that passes the EDID between the source and display

Bi-directional IR (Compatible with a Kramer transmitter and via a Kramer

external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE)

and RS-232 interfaces

IR and RS-232 data is available only when using a 5-plug coax cable and the power

coax line is connected.

Power feeding to the 650T

Plug and Play installation with no adjustments

650T/650R - Your 650T/650R DVI/Coax Transmitter/Receiver

4 Your 650T/650R DVI/Coax

Transmitter/Receiver

This section defines the 650T DVI-Coax Transmitter (see Section 4.1) and the

650R Coax-DVI Receiver (see Section 4.2)

4.1 Your 650T DVI-Coax Transmitter

Figure 1 defines the 650T:

Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver

Feature

Function

RED Output BNC Connector

Transmits the red signal to the 650R

GREEN Output BNC Connector

Transmits the green signal to the 650R

BLUE Output BNC Connector

Transmits the blue signal to the 650R

CLK Output BNC Connector

Transmits the clock signal to the 650R

PWR Output BNC Connector

Transmits power and the IR signal to the 650R

12V DC

+12V DC connector for powering the unit

IR Connector

Connects to an IR sensor or transmitter

Compatible with a Kramer transmitter and via a Kramer

external remote IR receiver: C-A35M/IRR or C-A35M/IRE or

C-A35M/2IRE

IN / OUT LED

The IN LED Illuminates when an input source is

connected. The OUT LED illuminates when an output

acceptor is connected

RS-232 9-pin D-sub Connector

Connects to an RS-232 computer source

DVI IN Connector

Connects to a DVI source

ON LED

Illuminates when receiving power

650T/650R - Your 650T/650R DVI/Coax Transmitter/Receiver

4.2 Your 650R Coax-DVI Receiver

Figure 2 defines the 650R:

Figure 2: 650R Coax-DVI Receiver

Feature

Function

RED Input BNC Connector

Receives the red signal from the 650T

GREEN Input BNC Connector

Receives the green signal from the 650T

BLUE Input BNC Connector

Receives the blue signal from the 650T

CLK Input BNC Connector

Receives the clock signal from the 650T

PWR Input BNC Connector

Receives power and the IR signal from the 650T

12V DC

+12V DC connector for powering the unit

IR Connector

Connects to an IR sensor or transmitter

Compatible with a Kramer transmitter and via a Kramer

external remote IR receiver: C-A35M/IRR or C-A35M/IRE

or C-A35M/2IRE

IN / OUT LED

The IN LED Illuminates when an input source is

connected. The OUT LED illuminates when an

output acceptor is connected

RS-232 9-pin D-sub Connector

Connects to an RS-232 computer source

DVI OUT Connector

Connects to a DVI acceptor

ON LED

Illuminates when receiving power

Autres manuels pour 650T

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer Cobra TS2 Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer 691 Manuel utilisateur

Kramer

Kramer 622T Manuel utilisateur

Kramer

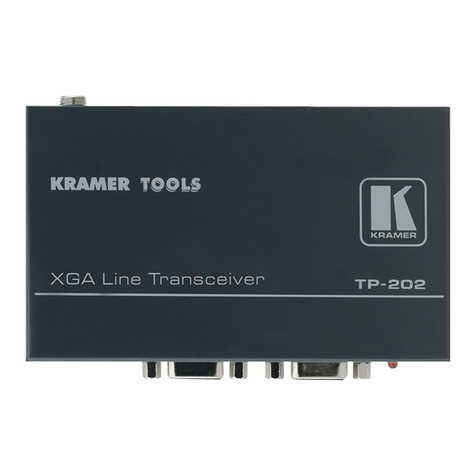

Kramer TP-202 Manuel utilisateur
