USER MANUAL







Models:

VP-200XLT,

XGA Line Amp / CAT5 Transmitter

VP-200XLTHD,

XGA Line Amp / CAT5 Transmitter

VP-300T,

1:2 XGA DA/CAT5 Transmitter

VP-5T,

1:4 VGA/UXGA Distributor/CAT5 Transmitter

VP-5T(HD),

1:4 VGA/UXGA Distributor/CAT5 Transmitter

VP-5R,

CAT5 Receiver / 1:5 VGA/UXGA Distributor

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 4

3.1

About the Power Connect Feature 4

3.2

Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 5

3.3

Recommendations for Achieving the Best Performance 5

Your VP-200XLT XGA Line Amp / CAT5 Transmitter 5

VP-200XLTHD XGA Line Amp / CAT5 Transmitter 7

Your VP-300T 1:2 XGA DA/ CAT5 Transmitter 9

6.1

Your VP-300T 1:2 XGA DA/ CAT5 Transmitter (Topside) 9

6.2

Your VP-300T 1:2 XGA DA/ CAT5 Transmitter (Underside) 10

Your VP-5T/VP-5T(HD) 1:4 VGA/UXGA Distributor / CAT5 Transmitter 11

7.1

Your VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter 11

7.2

Your VP-5T/VP5T(HD) (Underside) 13

Your VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor 14

8.1

Your VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor 14

8.2

Your VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) 15

Connecting the VP-200XLT 16

Connecting the VP-300T 18

Connecting the VP-5T and the VP-5R 20

11.1

Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors 22

Technical Specifications 23

Figures

Figure 1: VP-200XLT XGA Line Amp / CAT5 Transmitter 6

Figure 2: VP-200XLTHD XGA Line Amp / CAT5 Transmitter 7

Figure 3: VP-200XLTHD XGA Line Amp / CAT5 Transmitter 8

Figure 4: VP-300T 1:2 XGA DA/ CAT5 Transmitter (Topside) 9

Figure 5: VP-300T 1:2 XGA DA/ CAT5 Transmitter (Underside) 10

Figure 6: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter 12

Figure 7: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter (Underside) 13

Figure 8: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor 14

Figure 9: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) 15

Figure 10: Connecting the VP-200XLT 17

Figure 11: Connecting the VP-300T 19

Figure 12: Connecting the VP-5T and the VP-5R 21

Figure 13: CAT5 PINOUT 22

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Tables

Table 1: VP-200XLT XGA Line Amp / CAT5 Transmitter Features 6

Table 2: VP-200XLTHD XGA Line Amp / CAT5 Transmitter Features 8

Table 3: VP-200XLTHD XGA Line Amp / CAT5 Transmitter Features 8

Table 4: VP-300T 1:2 XGA DA/ CAT5 Transmitter (Topside) Features 10

Table 5: VP-300T 1:2 XGA DA/ CAT5 Transmitter (Underside) Features 10

Table 6: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter Features 12

Table 7: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter (Underside) Features 13

Table 8: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Features 15

Table 9: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Features 15

Table 10: CAT5 PINOUT 22

Table 11: Technical Specifications of the VP-200XLT (with 30m CAT5 cable) 23

Table 12: Technical Specifications of the VP-200XLTHD (with 30m CAT5 cable) 23

Table 13: Technical Specifications of the VP-300T (with 30m CAT5 cable) 24

Table 14: Technical Specifications of the VP-5T/VP-5T(HD) (with 60m CAT5 cable) 24

Table 15: Technical Specifications of the VP-5R (with 30m CAT5 cable) 25

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video, audio

and presentation professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 500-plus

different models now appear in 8 Groups

, which are clearly defined by function.

Congratulations on purchasing your Kramer: VP-200XLT XGA Line Amp /

CAT5 Transmitter, VP-200XLTHD

XGA Line Amp / CAT5 Transmitter,

VP-300T 1:2 XGA DA/ CAT5 Transmitter,VP-5T,VP-5T(HD)

1:4

VGA/UXGA Distributor / CAT5 Transmitter, and/or VP-5R

CAT5 Receiver /

1:5 VGA/UXGA Distributor, which are ideal for:

Presentation and multimedia applications

Long range graphics distribution for schools, hospitals, security, and stores

The package includes this user manual

, and one or more of the following:

VP-200XLT

/VP-200XLTHD

and/orVP-300T

, and/orVP-5T/(HD)

and/or VP-5R

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

The quick start charts summarize the basic setup and operation steps of the

VP-200XLT

, the VP-300T and the VP-5T/VP-5R.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 With a power adapter

4 With a power cord

5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

6 This quick start also applies to the VP-200XLTHD

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Computer

Graphics Source

Local

Display 4

Local

Display 1

Display 1 Display 5

VP-5T

VP-5R*

* Located up to 300ft (>100 meters)

away from the Computer Graphics

Source

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

This user manual describes the following products:

Kramer TOOLS VP-200XLT

XGA Line Amp / CAT5 Transmitter, which

accepts one computer graphics input and distributes the signal to its

high-density 15 pin “D” connector output, as well as transmitting it over

UTP cabling (CAT5 or similar) to its appropriate receiver, see section 4

Kramer TOOLS VP-200XLTHD

XGA Line Amp / CAT5 Transmitter,

which accepts one computer graphics input and distributes the signal to its

high-density 15 pin “D” connector output, as well as transmitting it over

UTPcabling (CAT5orsimilar)toitsappropriatereceiver, see section5

Kramer TOOLS VP-300T 1:2 XGA DA/ CAT5 Transmitter, which is a

distributor for computer graphics signals, accepting one input and

distributing the signal to its identical 2 outputs, as well as transmitting it

over CAT5 UTP cable to its appropriate receiver, see section 6

Kramer VP-5T/VP-5T(HD)

1:4 VGA/UXGA Distributor / CAT5

Transmitter, which is a distributor for computer graphics signals, accepting

one input, and distributing the signal to its identical 4 outputs, as well as

transmitting it over CAT5 UTP cable to its appropriate receiver, see section 7

Kramer VP-5R

CAT5 Receiver / 1:5 VGA/UXGA Distributor, which is a

distributor for computer graphics signals, receiving the computer graphics

signal via CAT5 UTP cable, and distributing the signal to 5 identical

HD15 outputs, see section 8

This section describes:

The power connect feature, see section 3.1

Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see

section 3.2

Recommendations for achieving the best performance, see section 3.3

3.1 About the Power Connect Feature

The Power Connect feature lets you power a transmitter / receiver system by

connecting just one power adapter— to either the transmitter or the receiver.

The other unit is fed via the cable connecting between the transmitter/receiver.

The Power Connect feature applies as long as the cable can carry power. The

distance does not exceed 50 meters on standard CAT5 cable, for longer

distances, heavy gauge cable should be used

For a CAT5 cable exceeding a distance of 50 meters, separate power supplies

should be connected to the transmitter and to the receiver simultaneously.

1 CAT5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

Your VP-200XLT XGA Line Amp / CAT5 Transmitter

3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

The decision whether to use shielded twisted pair (STP) cable or unshielded

twisted pair (UTP) cable depends on the nature of the application.

It is recommended that in applications with high interference, shielded twisted

pair (STP) cable is used. However, the shield itself does create a capacitance

that degrades the frequency response of the machines. For shorter distances, of

50m or so, shielded twisted pair (STP) cable is preferred because it provides

protection from interference (degradation is not apparent).

For long range applications, unshielded twisted pair (UTP) cable is preferred.

However, the unshielded twisted pair (UTP) cable should be installed far away from

electric cables, motors and so on, which are prone to create electrical interference.

3.3 Recommendations for Achieving the Best Performance

To achieve the best performance:

Connect only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching,

and elevated noise- levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position your

Kramer machines away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

4 Your VP-200XLT XGA Line Amp / CAT5 Transmitter

The VP-200XLT

is a high performance XGA line amp / CAT5 transmitter

that accepts one computer graphics (XGA

) input, provides necessary

buffering and isolation, and distributes the signal to its high-density 15 pin

“ D” connector output, as well as transmitting it over UTP CAT5 cable to its

appropriate receiver.

1 For example: model number AD2512C, part number 2535-000251

2 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector

having a resolution from VGA up to XGA

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-200XLT XGA Line Amp / CAT5 Transmitter

In particular, the VP-200XLT has:

A transmission range of more than 300 ft. (more than 100 meters) over

UTP cabling

Video bandwidth exceeding 400MHz, ensuring transparency even when

operating at the highest resolutions

Output level control, and cable equalization, using two rotary controls on

the side panel of the machine

Figure 1 and Table 1 define the VP-200XLT:

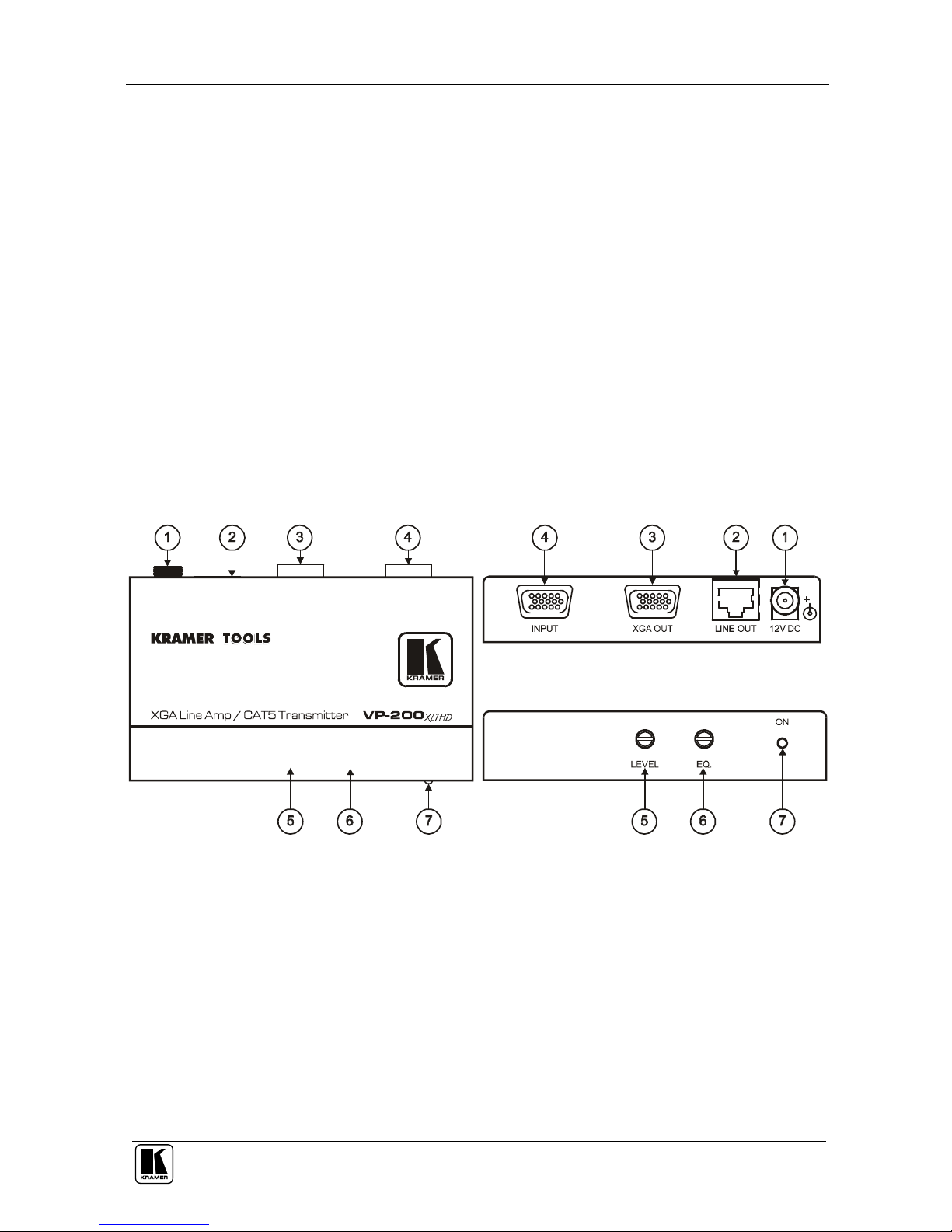

Figure 1: VP-200XLT XGA Line Amp / CAT5 Transmitter

Table 1: VP-200XLT XGA Line Amp / CAT5 Transmitter Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 LINE OUT RJ-45 Connector

Connects to

the LINE IN RJ-45 connector on the TP-120 XGA Line

Receiver

or the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor

3 XGA OUT HD15F Connector Connect to the XGA acceptor

4 INPUT HD15F Connector Connect to the XGA source

5 LEVEL Control knob Rotate to adjust the output signal level

6 EQ. Control knob Rotate to adjust the video EQ. (equalization) compensation

7 ON LED Illuminates when receiving power

1 Using a UTP CAT5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this

URL: http://www.kramerelectronics.com

VP-200XLTHD XGA Line Amp / CAT5 Transmitter

5 VP-200XLTHD XGA Line Amp / CAT5 Transmitter

The VP-200XLTHD

is a high performance XGA line amp / CAT5 transmitter

that accepts one computer graphics (XGA) input, provides necessary buffering

and isolation, and distributes the signal to its high-density 15 pin “ D”

connector output, as well as transmitting it over UTP CAT5 cable to its

appropriate receiver. In particular, the VP-200XLTHD:

Can also receive HD signals (high definition resolutions: 480p, 576p,

720p, 1080i and 1080p)

Has a transmission range of more than 300 ft. (more than 100 meters)

over UTP cabling

Has a video bandwidth exceeding 400MHz, ensuring transparency even

when operating at the highest resolutions

Includesoutputlevelcontrolandcableequalizationcontrol,viatwo

trimmers on the side panel of the machine

Figure 1 and Table 1 define the VP-200XLTHD:

Figure 2: VP-200XLTHD XGA Line Amp / CAT5 Transmitter

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer TP-112HD Manuel utilisateur

Kramer

Kramer 650T Manuel utilisateur

Kramer

Kramer VP-300THD Manuel utilisateur

Kramer

Kramer TP-15 Manuel utilisateur

Kramer

Kramer 617T Manuel utilisateur

Kramer

Kramer TP-780T Manuel utilisateur

Kramer

Kramer RC-116 Manuel utilisateur

Kramer

Kramer SID-X2N Manuel d'installation et d'exploitation

Kramer

Kramer WP-121 Manuel utilisateur

Kramer

Kramer SID-X1 Manuel utilisateur

Kramer

Kramer SID-X1N Manuel utilisateur

Kramer

Kramer 691 Manuel utilisateur

Kramer

Kramer PT-2UT/R-KIT Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer PT-572HDCP+ Manuel utilisateur

Kramer

Kramer TP-752T Manuel utilisateur

Kramer

Kramer TP-102HD Manuel utilisateur

Kramer

Kramer TP-125 Manuel utilisateur

Kramer

Kramer TP-210 Manuel utilisateur

Kramer

Kramer TP-581T Manuel utilisateur

Kramer

Kramer SID-VGA Manuel utilisateur

Kramer

Kramer TP-210A Manuel utilisateur

Kramer

Kramer 622T Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
