Kramer TP-752T Manuel utilisateur

TP-752T/TP-752R Quick Start

P/N:

2900- 301041QS

Rev:

Scan for full manual

TP-752T/TP-752R Quick Start Guide

This guide helps you install and use your TP-752T/TP-752R for the first time.

Go to www.kramerav.com/downloads/TP-752T, TP-752R to download the latest user manual and check

if firmware upgrades are available.

Step 1: Check what’s in the box

TP-752T 2-Wire Extra Range HD Transmitter /

TP-752R 2-Wire Extra Range HD Receiver

Power adapter

Bracket set

Quick start guide

Rubber feet

Step 2: Get to know your TP-752T/TP-752R

TP-752T 2-Wire Extra Range HD Transmitter

Feature

Function

RESET Recessed Button

Press to reset the device.

BAUD RATE DIP-switches

Set the RS-232 baud rate (baud rate on TP-752T and TP-752R should

be identical).

ON LED

Lights green when the device is powered.

LOOP OUT HDMI Connector

Connect to a local monitor.

HDMI IN Connector

Connect to an HDMI source.

TO TP-752R

CAT 5/6 RJ-45 Port

Connect to the RJ-45 port on TP-752R.

(Connect via

one of these

options)

HD15 15-pin HD Connector

Connect to the 15-pin HD connector on TP-752R.

A, B 2-pin TERMINAL BLOCK

Connector

Connect to the 2-pin terminal block connectors on TP-752R.

RS-232 9-pin D-sub Connector

Bi-directional RS-232 between the devices, allowing control of the

display from the source end/control of a source from the display end.

5V DC

+5V DC connector for powering the unit.

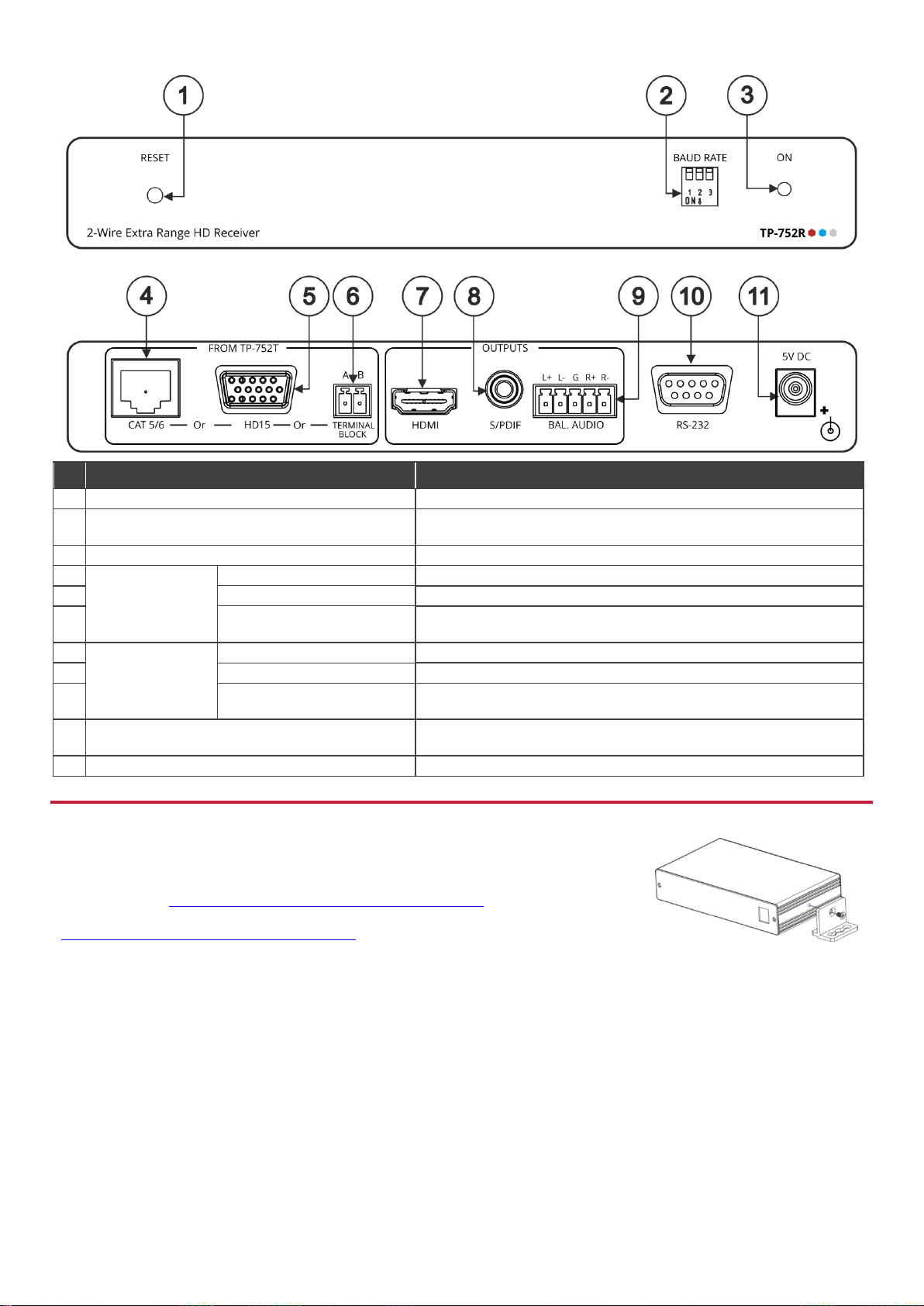

TP-752R 2-Wire Extra Range HD Receiver

Feature

Function

RESET Recessed Button

Press to reset the device.

BAUD RATE DIP-switches

Set the baud rate (baud rate on TP-752T and TP-752R should be

identical).

ON LED

Lights green when the device is powered.

FROM TP-752T

(Connect via one

of these options)

CAT 5/6 RJ-45 Port

Connect to the RJ-45 port on TP-752T.

HD15 15-pin HD Connector

Connect to the 15-pin HD connector on TP-752T.

A, B 2-pinTERMINAL

BLOCK Connector

Connect to the 2-pin terminal block connectors on TP-752T.

OUTPUTS

HDMI Connector

Connect to an HDMI acceptor.

S/PDIF RCA Connector

Connect to a digital audio acceptor.

BAL. AUDIO 5-pin Terminal

Block Connector

Connect to a stereo balanced audio acceptor.

RS-232 9-pin D-sub Connector

Bi-directional RS-232 between the devices, allowing control of the

display from the source end/control of a source from the display end.

5V DC

+5V DC connector for powering the unit.

Step 3: Install TP-752T/TP-752R

Install TP-752T/ using one of the following methods:

Attach the rubber feet and place the unit on a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more

information go to www.kramerav.com/downloads/TP-752T, TP-752R.

Mount the unit in a rack using the recommended rack adapter (see

www.kramerav.com/product/TP-752T, TP-752R.

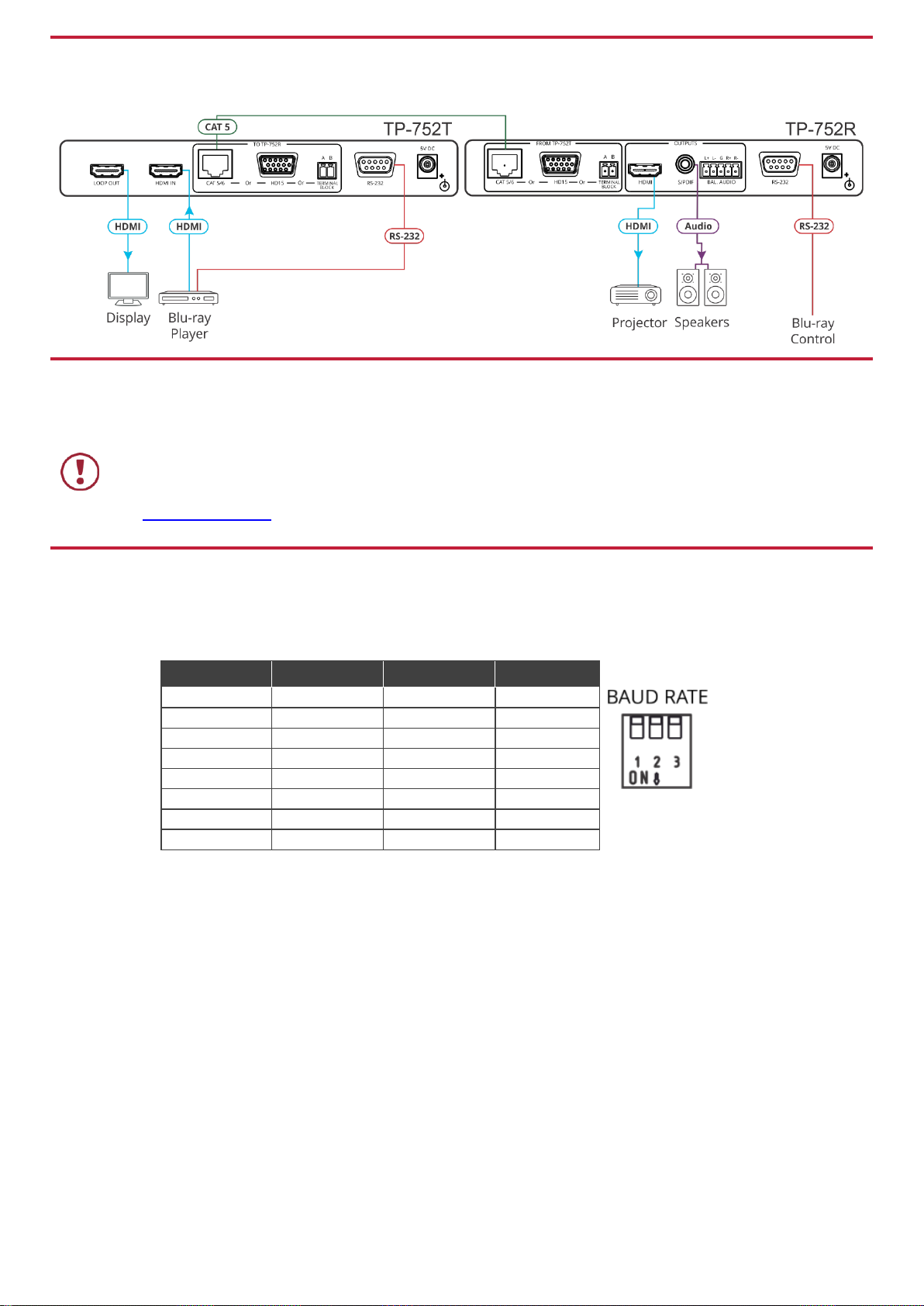

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your TP-752T/TP-752R devices. For best results, we

recommend that you always use Kramer high-performance cables to connect AV equipment to TP-752T/TP-752R.

Step 5: Connect the power

Connect the 5V DC power adapters to TP-752T/TP-752R and plug it into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power adapter that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Operate TP-752T/TP-752R

DIP-switch Setup:

A switch that is down is on; a switch that is up is off. By default, all the switches are down (ON).

Video Switching Selection:

DIP-switch 1

DIP-switch 2

DIP-switch 3

Baud Rate

OFF (up)

2400

ON (down)

OFF (up)

4800

OFF (up)

ON (down)

OFF (up)

9600

ON (down)

OFF (up)

19200

OFF (up)

ON (down)

28800

ON (down)

OFF (up)

ON (down)

38400

OFF (up)

ON (down)

57600

ON (down)

115200

Technical Specifications

TP-752T

Inputs

1 HDMI

On a female HDMI connector

Outputs

1 LOOP HDMI

On a female HDMI connector

CAT 5/6

On an RJ-45 connector

VGA

On a 15-pin HD connector

2-wire

On a 2-pin terminal block connector

Ports

RS-232

On 9-pin D-sub connector for serial link extension

TP-752R

Inputs

CAT 5/6

On an RJ-45 connector

VGA

On a 15-pin HD connector

2-wire

On a 2-pin terminal block connector

Outputs

1 HDMI

On a female HDMI connector

1 S/PDIF

On an RCA connector

1 Balanced Stereo Audio

On a 5-pin terminal block connector

Ports

RS-232

On 9-pin D-sub connector for serial link extension

General

Video

Max Resolution

1080p60

Compliance

HDCP 1.4

Audio

Support

2.0 channel PCM, 48kHz/44.1kHz sampling rate

Bandwidth

12kHz

Analog THD + NOISE

0.08% @1kHz at nominal level

Extension Range

Full HD (1080p @60Hz)

Up to 600m (2000ft)

Extended RS-232

Baud Rate

2400 to 115200, selectable

Controls

Front Panel

ON LED indicator

Baud rate DIP-switches

Reset recessed button

Power

Consumption

5V DC, 1.5A

Source

5.2V DC, 4A

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory

Compliance

Safety

CE, UL

Environmental

RoHs, WEEE

Enclosure

Size

Mega Tool

Cooling

Convection ventilation

General Information

(per device)

Net Dimensions (W, D, H)

18.75cm x 11.5cm x 2.54cm (7.4" x 4.5" x 1")

Shipping Dimensions (W, D, H)

34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2.1")

Net Weight

0.46kg (1lbs) approx.

Shipping Weight

0.96kg (2.1lbs) approx.

Type

Aluminum

Accessories

Included

2 Power adapters, 2 power cords

Specifications are subject to change without notice at www.kramerav.com
