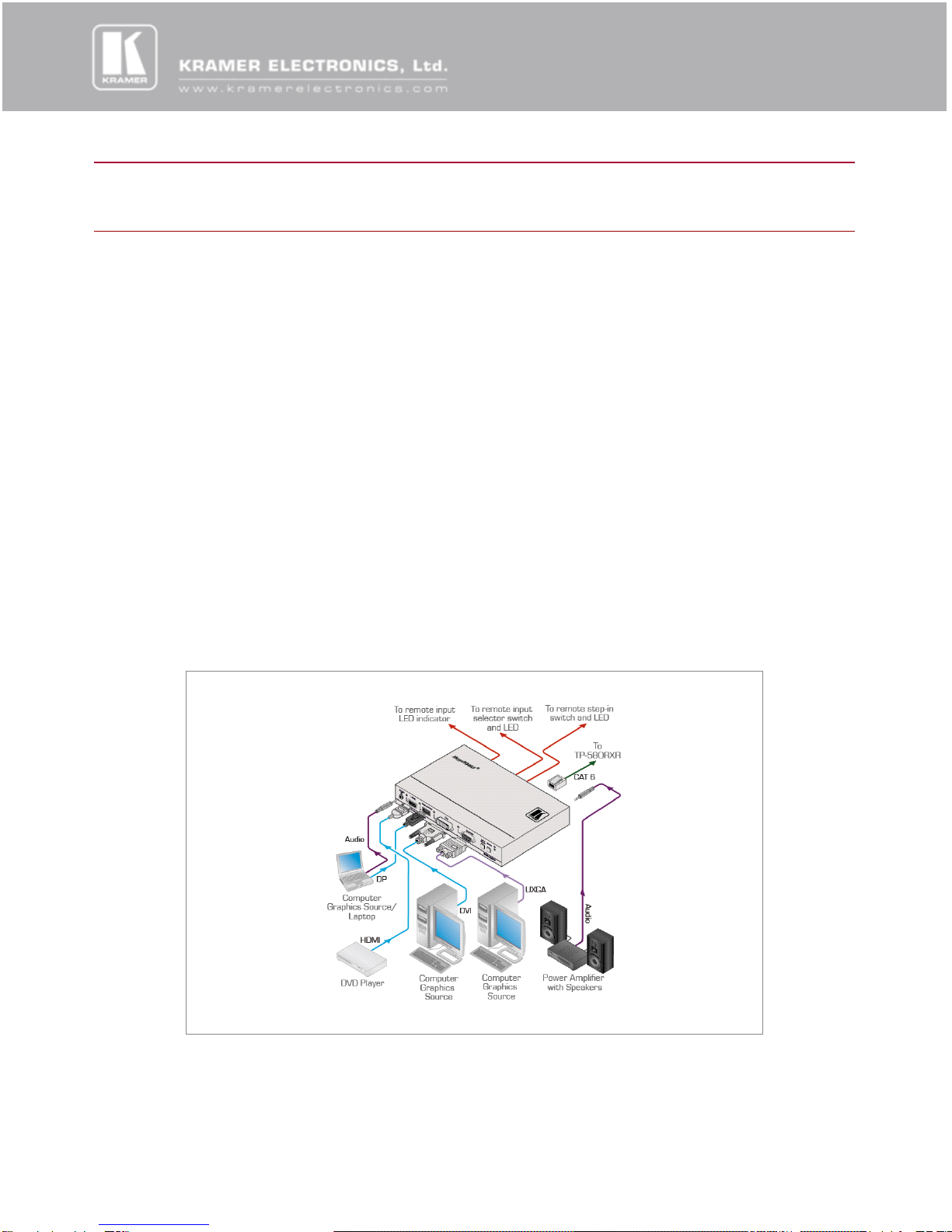

Kramer SID-X2N Manuel d'installation et d'exploitation

SID

X2N

4−Input Multi−Format Video over HDBaseT Transmitter & Step−

IN Commander

The SID−X2N is an HDBaseT twisted pair

transmitter and step−in commander for

computer graphics video, HDMI, DVI,

DisplayPort and unbalanced stereo audio

signals.

Max. Data Rate

6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz

24bpp) in ultra mode.

HDTV Compatible.

HDCP Compliant.

Works with sources that support HDCP repeater mode.

HDMI Support

Deep Color, x.v.Color™ and 3D.

-EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling & processing algorithm ensures Plug

and Play operation for HDMI systems.

Data Equalization and Reclocking.

Input Signal Detection

Based on video clock presence.

Automatic Input Selection

Based on manual selection or last connected input.

Automatic Analog Audio Detection and Embedding.

Local Balanced Audio De-Embedding.

Support for Digital Audio Formats.

Lockable EDID.

System Range

Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when

using BC−HDKat6a cables.

Local Step-In Switching

Button & contact closure.

Power Supply

Requires independent power supply.

FEATURES

SID

X2N

TECHNICAL SPECIFICATIONS

INPUTS:

1 HDMI, 1 DVI on a Molex 24−pin connector, 1 DisplayPort, 1 UXGA on a 15−pin HD connector, 1

unbalanced stereo audio on a 3.5mm mini jack.

OUTPUT:

1 DGKat on an RJ−45 connector, 1 unbalanced stereo audio on a 3.5mm mini jack.

STANDARDS:

HDMI with x.v.Color™ and 3D; HDCP: works with sources that support HDCP repeater mode.

MAXIMUM STEP

DISTANCE:

50m (164ft) up to 1080p @60Hz.

POWER

CONSUMPTION:

12V DC, 820mA.

OPERATING

TEMPERATURE:

0° to +40°C (32° to 104°F).

STORAGE

TEMPERATURE:

−40° to +70°C (−40° to 158°F).

HUMIDITY:

10% to 90%, RHL non−condensing.

DIMENSIONS:

18.8cm x 11.3cm x 2.5cm (7.4" x 4.5" x 1") W, D, H.

WEIGHT:

0.48 kg (1.1lbs) approx.

INCLUDED

ACCESSORIES:

Power supply.

OPTIONS:

RK−T2B 19" rack adapter, RTBUS−12, RTBUS−22, SID−X1BP Kit (substitute black top plate for

the SID−X1N that blends with the color of the modular TBUS−10xl), RC−10TB remote contact

closure switch.
