Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video, audio

and presentation professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 350-plus

different models now appear in 8 Groups

, which are clearly defined by function.

Congratulations on purchasing your Kramer TOOLS: TP-112HD XGA / HD

Line Transmitter - DA, which is ideal for:

 Presentation and multimedia applications

 Long range graphics distribution for schools, hospitals, security, and stores

The package includes the following:

 TP-112HD XGA / HD Line Transmitter - DA

 Power adapter (12V DC Input)

 This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

3 Overview

This section describes:

 The power connect feature, see section 3.1

 Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see

section 3.2

 A summary of the TP-112HD, see section 3.3

 Recommendations for achieving the best performance, see section 3.4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3.1 About the Power Connect Feature

The Power Connect feature lets you power a transmitter / receiver system by

connecting just one power adapter to either the transmitter or the receiver.

The other unit is fed over the same cable. The Power Connect feature applies

as long as the cable is heavy gauge cable (that is, it can carry power). The

distance does not exceed 50 meters on standard CAT5 cable.

For a distance of 100 meters, separate power supplies must be connected to

the transmitter and to the receiver simultaneously, unless using heavy gauge

cable.

3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

The decision whether to use shielded twisted pair (STP) cable or unshielded

twisted pair (UTP) cable depends on the nature of the application.

It is recommended that in applications with high interference, shielded

twisted pair (STP) cable is used. However, the shield itself does create a

capacitance that degrades the frequency response of the machines. For shorter

distances, of 50m or so, shielded twisted pair (STP) cable is preferred because

it provides protection from interference (degradation is non apparent).

For a long range application, unshielded twisted pair (UTP) cable is preferred.

However, the unshielded twisted pair (UTP) cable should be installed far away

from electric cables, motors and so on, which are prone to create electrical

interference.

3.3 About the TP-112HD

Your Kramer TOOLS TP-112HD XGA / HD Line Transmitter - DA:

 Receives a computer graphics

/ HD

signal and transmits it over two

CAT5 cables to appropriate receivers

 Has a video bandwidth of 150MHz, with a transmission range of more

than 300 ft. (more than 100 meters)

 Includes the Power Connect feature

 Is 12VDC fed

1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector

having a resolution from VGA up to UXGA

2 The TP-112HD accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p

3 Note that the CAT5 connectors exclude audio

Your TP-112HD XGA / HD Line Transmitter – DA

3.4 Recommendations for Achieving the Best Performance

Achieving the best performance means:

 Connecting only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

 Avoiding interference from neighboring electrical appliances that may

adversely influence signal quality, and positioning your TP-112HD away

from moisture, excessive sunlight and dust

4 Your TP-112HD XGA / HD Line Transmitter – DA

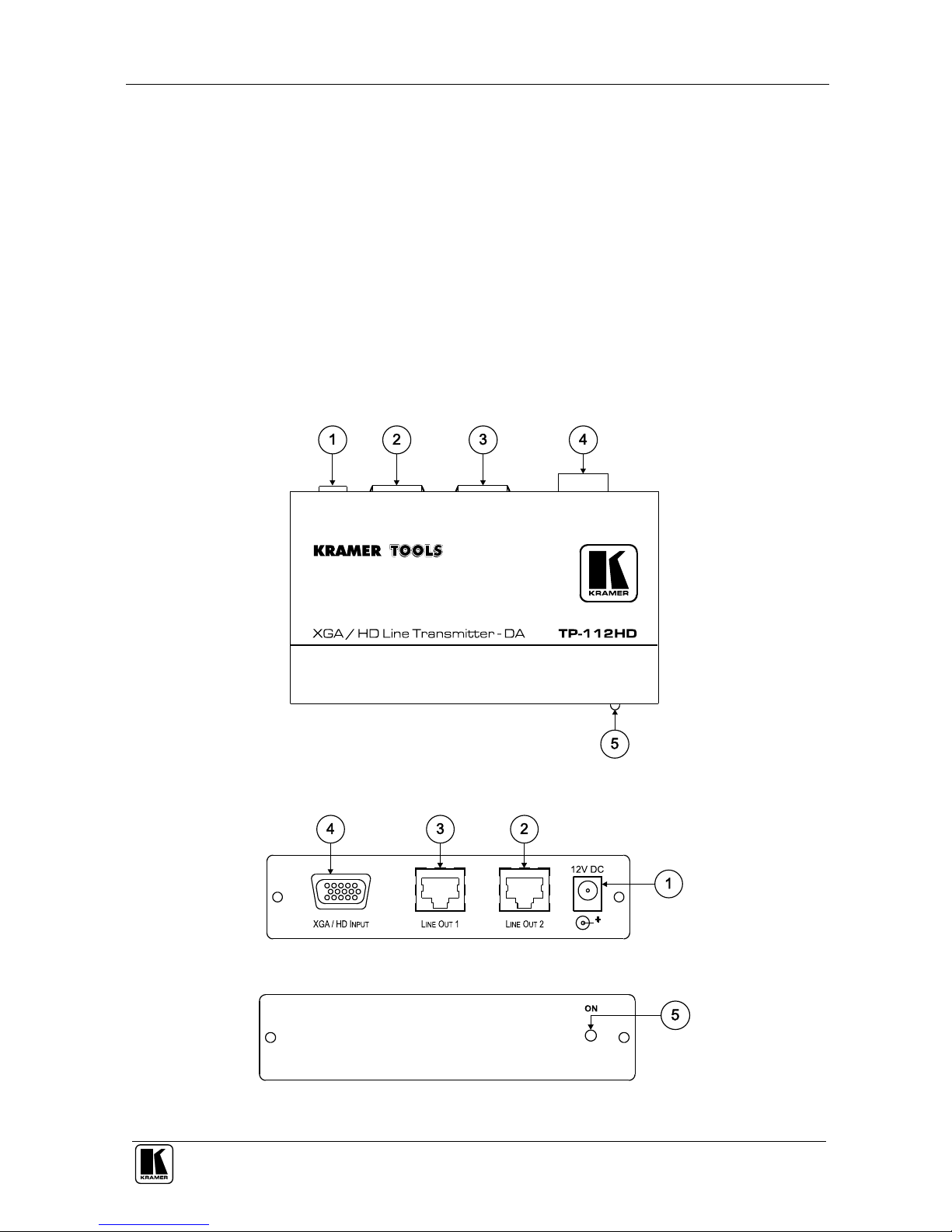

Figure 1, Figure 2, Figure 3 and Table 1 define the TP-112HD:

Figure 1: TP-112HD XGA / HD Line Transmitter – DA

Figure 2: TP-112HD (Top Side Panel)

Figure 3: TP-112HD (Lower Side Panel)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your TP-112HD XGA / HD Line Transmitter – DA

Table 1: TP-112HD XGA / HD Line Transmitter - DA Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 LINE OUT 2 RJ-45 Connector Connects to

the LINE IN RJ-45 connector on the (second)

TP-120 XGA Line Receiver

3 LINE OUT 1 RJ-45 Connector Connects to

the LINE IN RJ-45 connector on the (first) TP-120

XGA Line Receiver

4 XGA /HD INPUT HD15F Connector

Connect to the XGA source

5 ON LED Illuminates when receiving power

Figure 4 and Table 2 define the TP-112HD underside panel:

Figure 4: TP-112HD (Underside Panel)

Table 2: TP-112HD (Underside Panel) Features

# Feature Function

1 VS Switch Slide the switch to the left

to change the VS polarity to NEGATIVE polarity

; slide

the switch to the right (to NORMAL) to retain the polarity

2 HS

Switch Slide the switch to the left

to change the HS polarity to NEGATIVE polarity

; slide

the switch to the right (to NORMAL) to retain the polarity

1 Using a UTP CAT5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 6)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this

URL: http://www.kramerelectronics.com. Also, see the example illustrated in Figure 5

3 By default, both switches are set to the right

4 Downgoing syncs

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

5 Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

You can use the TP-112HD XGA / HD Line Transmitter – DA with two

TP-120 XGA Line Receiver units

to configure a 1:2 XGA / HD-to-Twisted

Pair DA system. This will let you transmit a computer graphics / HD signal to

two displays via long line CAT5 UTP cabling.

To connect the TP-112HD to two TP-120 units, as the example in Figure 5

illustrates, do the following:

1. On the TP-112HD, connect the XGA / HD source (for example, a computer

graphics / HD source) to the XGA / HD INPUT HD15F connector, and

connect the line output RJ-45 connector

 OUT 1 connector to the LINE IN RJ-45 connector on the first TP-120

 OUT 2 connector to the LINE IN RJ-45 connector on the second TP-120

2. On the two TP-120 units, connect the:

 XGA OUT HD15F connector of the first TP-120 unit to the XGA / HD

acceptor (for example, Display 1)

 XGA OUT HD15F connector of the second TP-120 unit to the XGA /

HD acceptor (for example, Display 2)

3. On each of the three Kramer TOOLS, connect the 12V DC power adapter

to the power socket and connect the adapter to the mains electricity.

The signal from the XGA source is transmitted via the two CAT5 cables,

decoded and converted at the each of the XGA OUT HD15F connectors

to the XGA acceptors.

4. On the TP-120 units, if necessary:

 Set the H SYNC and V SYNC switches

on the underside

 Adjust

the video output signal level and/or cable compensation

equalization level

5. On the TP-112HD, if necessary, set the VS and HS switches

on the

underside

1 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this

URL: http://www.kramerelectronics.com

2 Via UTP cabling (with a range of more than 300ft (>100m)). For details of how to wire a CAT5 LINE IN / LINE OUT

RJ-45 connector, see section 5.1

3 By default, both switches are set down (for negative V SYNC and H SYNC polarity)

4 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level

5 By default, both switches are set to the right (to NORMAL) to retain the V SYNC and H SYNC polarity

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

Figure 5: Configuring a 1:2 XGA / HD to Twisted Pair Transmitter / Receiver / DA

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

5.1 Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors

Table 3 and Figure 6 define the UTP CAT5 PINOUT, using a straight pin to

pin cable with RJ-45 connectors:

Table 3: CAT5 PINOUT

EIA /TIA 568A EIA /TIA 568B

PIN Wire Color PIN Wire Color

1 Green / White 1 Orange / White

2 Green 2 Orange

3 Orange / White 3 Green / White

4 Blue 4 Blue

5 Blue / White 5 Blue / White

6 Orange 6 Green

7 Brown / White 7 Brown / White

8 Brown 8 Brown

Pair 1 4 and 5 Pair 1 4 and 5

Pair 2 3 and 6 Pair 2 1 and 2

Pair 3 1 and 2 Pair 3 3 and 6

Pair 4 7 and 8

Figure 6: CAT5 PINOUT

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Technical Specifications

6 Technical Specifications

Table 4 includes the technical specifications

of the TP-112HD.

Table 4: Technical Specifications of the TP-112HD (with 100m CAT5 cable)

INPUT: 1 XGA / HD on an HD15F connector

OUTPUTS: 2 RJ-45 OUT connectors

MAX. OUTPUT LEVEL: 1.7Vpp

HIGHEST RESOLUTION

: UXGA, 1080P

DIFF. GAIN

: 4%

DIFF. PHASE

: 0.3 Deg

K-FACTOR

: 0.1%

S/N RATIO

: 65dB

CONTROLS

: 2 switches for sync inversion

COUPLING

: AC

POWER SOURCE: 12 VDC 522mA

DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08"), W, D, H

WEIGHT: 0.3 kg. (0.67 lbs.) approx.

ACCESSORIES: Power supply

1 Specifications are subject to change without notice

2 For the TP-112HD Transmitter/ TP-120 Receiver SETUP

3 Sufficient for feeding two receivers via CAT5

Autres manuels pour TP-112HD

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer EXT3-C-WP-XR-T Manuel utilisateur

Kramer

Kramer TP-121EDID Manuel utilisateur

Kramer

Kramer TP-580TD Manuel utilisateur

Kramer

Kramer SID-X2N Manuel d'installation et d'exploitation

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer 671T Manuel utilisateur

Kramer

Kramer SID-X3N Manuel d'installation et d'exploitation

Kramer

Kramer TP-114 Manuel utilisateur

Kramer

Kramer SID-X3N Manuel utilisateur

Kramer

Kramer VP-200XLTHD Manuel utilisateur

Kramer

Kramer WP-871xr Manuel utilisateur

Kramer

Kramer Cobra TS2 Manuel utilisateur

Kramer

Kramer 650T Manuel utilisateur

Kramer

Kramer TA-110HD Manuel utilisateur

Kramer

Kramer SID-X1N Manuel utilisateur

Kramer

Kramer 611T Manuel utilisateur

Kramer

Kramer TP-410 Manuel utilisateur

Kramer

Kramer TP-581T Manuel utilisateur

Kramer

Kramer TP-583T Manuel utilisateur

Kramer

Kramer TP-205A Manuel utilisateur

Kramer

Kramer 691 Manuel utilisateur

Kramer

Kramer WP-121 Manuel utilisateur

Kramer

Kramer 610R Manuel utilisateur

Kramer

Kramer TP-590Txr Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
