Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups1that are clearly

defined by function.

Thank you for purchasing the Kramer F-110 XGA Line Transmitter on

dual-slot wall-plate insert which is ideal for:

•Presentation venues

•Multimedia applications

•Long range graphics distribution for schools, hospitals, security, and

stores

The F-110 can be mounted on Kramer2:

•Wall-plate insert mounting frames for Ackermann floor boxes

•TBUS table connection buses connecting surfaces

•Wall plate insert frames

The package includes the following items:

•F-110

•Power adapter (12V DC Input) and this user manual3

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 The complete list of Kramer products can be found on our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

The Kramer F-110 dual-slot wall-plate insert is an XGA line transmitter

that accepts up to a UXGA video signal, encodes it to a twisted pair (TP)

signal, and transmits the TP signal to a compatible TP receiver1.

In particular, the F-110:

•Has a resolution of up to UXGA

•Includes the Kramer Power Connect™ feature

•Has a 12V DC power supply

•Fits into various insert mounting surfaces2

3.1 About the Power Connect Feature

The Power Connect feature applies as long as the cable can carry power.

This feature is available when using STP cable and the distance does not

exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge

cable should be used3.For units which are connected via RJ-45 connectors,

make sure that the shield of the STP cable is connected to the metal casing

of the connectors on both ends of the cable. For units which are connected

via terminal block connectors, the shield of the STP cable must be

connected to a ground terminal on the units at both ends (use the ground

terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies

should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable. There are

different levels of STP cable available, and we advise you to use the best

quality STP cable that you can afford. Our non-skew-free cable, Kramer

BC-STP is intended for analog signals where skewing is not an issue. For

cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP,

may be used. Bear in mind, though, that we advise using STP cables where

possible, since the compliance to electromagnetic interference was tested

using those cables.

Although Unshielded Twisted Pair (UTP) cable might be preferred for long

range applications, the UTP cable should be installed far away from electric

1 For example, the Kramer TP-120 or PT-120

2 For example, TBUS units, wall plate frames or Ackermann insert mounting frames (see section 6 )

3 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

Overview

cables, motors and so on, which are prone to create electrical interference.

However, since the use of UTP cable might cause inconformity to

electromagnetic standards, Kramer does not commit to meeting the standard

with UTP cable.

3.3 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables1to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low-quality cables).

•Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer F-110

away from moisture, excessive sunlight and dust

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your F-110 XGA Line Transmitter

4 Your F-110 XGA Line Transmitter

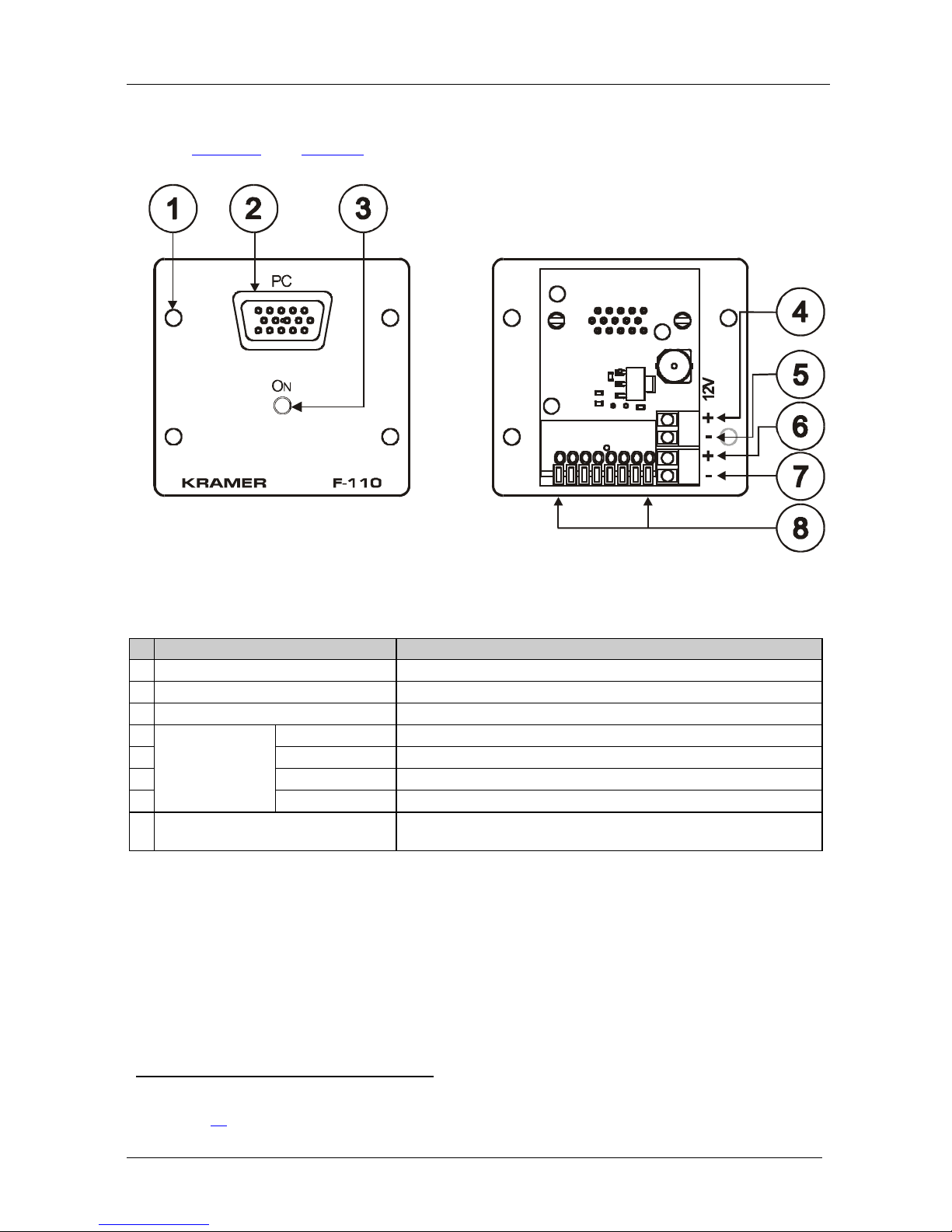

Figure 1 and Table 1 define the F-110:

Figure 1: F-110 XGA Line Transmitter

Table 1: F-110 Features

# Feature Function

1 Screw holes (4) Fix the wall plate to the connecting surface

2 PC INPUT 15-pin HD F Connector Connect to the XGA source

3 ON LED Lights green when receiving power

4 12V DC + PIN1Connect (+) to the connector for powering the unit

5 - PIN Connect (-) to the Ground

6 + PIN1Connect (+) to the connector for powering the unit

7 - PIN Connect (-) to the Ground

8 Line output 8-pin terminal block

Connector2Connects to the LINE IN RJ-45 connector on the Kramer PT-120

or TP-120 XGA Line Receiver

1 One set is used to power the F-110 and the other set can be used to power an adjacent insert

2 See section 5.1

Connecting the F-110

5 Connecting the F-110

The Kramer F-110 together with the Kramer PT-120 or TP-120 XGA line

receivers constitute a VGA/XGA-to-twisted pair transmitter and receiver.

To connect the F-110, do the following:

1. Unscrew the two screws that fasten each of the two adjacent blank

plates to the connecting surface and remove them.

2. Place and align the F-110 dual-slot wall-plate insert over the opening.

3. Connect the cables to the rear side of the insert, that is, attach the:

Terminal block line output of the F-110 to the pre-installed UTP

wiring that connects to the TP receiver (with a range of more than

300ft (>100m)), see section 5.1

12V DC power supply to either one of the power terminal blocks

(connect the wire labeled “+” to the +12V pin, and the wire labeled

“–” to the GND pin) taking care that the polarity is correct. You can

use the second power terminal block to power an additional unit (for

example, an adjacent insert on the mounting surface)

4. Insert the four screws to fix the insert in place, and tighten them.

5. Connect the UXGA source to the PC IN connector (for example, a

computer graphics source).

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the F-110

Figure 2: Connecting the F-110 to the TP-120

Connecting the F-110

5.1 Wiring the 9-pin Terminal Block Line Output Connector

The 8-pin terminal block is an easy plug-in connector for attaching the UTP

cable. Follow the colors of the color-coded sticker on these terminals for

proper connection of the UTP cable. Figure 3 defines the pinouts for the

terminal block.

Figure 3: Terminal Block Pinouts

Notes:

•Use the connector clips only when removing wires, not when inserting

them

•Each wire should protrude 9mm (0.35") from the plastic insulation so

that it can be easily connected. To prevent the wires crossing, be sure

that each wire is fully inserted

Orange / White

Green / White

Brown / White

Brown

Green

Blue / White

Blue

Orange

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Using the F-110

5.2 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

Table 2 and Figure 4 define the UTP CAT 5 PINOUT, on the RJ-45

connector:

Table 2: CAT 5 PINOUT Figure 4: CAT 5 PINOUT

EIA /TIA 568A EIA /TIA 568B

PIN Wire Color PIN Wire Color

1 Green / White 1 Orange / White

2 Green 2 Orange

3 Orange / White 3 Green / White

4 Blue 4 Blue

5 Blue / White 5 Blue / White

6 Orange 6 Green

7 Brown / White 7 Brown / White

8 Brown 8 Brown

Pair 1 4 and 5 Pair 1 4 and 5

Pair 2 3 and 6 Pair 2 1 and 2

Pair 3 1 and 2 Pair 3 3 and 6

Pair 4 7 and 8 Pair 4 7 and 8

6 Using the F-110

Table 3 shows examples of how the F-110 dual-slot wall-plate insert can be

installed in various applications.

Table 3: F-110 Applications

F-110 installed in a wall plate

insert frame (for example, the

Kramer FRAME 1G/US):
