Huawei PDU8000 Series Manuel utilisateur

Issue: 05

Part Number: 31508339

Date: 2021-04-13

PDU8000 Modular Precision PDC V2.0

Quick Guide

If not otherwise specified, configurations described in this document are for the dual-input

scenario. Figures in this document are for reference only.

This document uses a 2000 mm high power distribution cabinet (PDC) as an example to describe

how to install the PDC and connect cables.

1Overview

PDU8000 0630 AC V4 SC AY52

Power

distribution

cabinet

Rated input

current

Alternating

current

Rated voltage

level

Precision power

distribution

cabinet

The table describes the model of the PDU8000 series products using PDU8000-0630ACV4-

SCAY52 as an example.

(1) Indicator of route I

(2) Indicator of route II

(3) Input circuit breaker of

route I

(4) Input circuit breaker of route II

(5) SPD and SPD circuit breaker

of route I

(6) SPD and SPD circuit

breaker of route II

(7) Monitoring board 1

(8) Monitoring board 4

(9) Output circuit breaker

of route I

(10) Output circuit breaker of route II

(11) Monitoring board 2

(12) Monitoring board 5

(13) Monitoring board 3

(14) Monitoring board 6

Height: 2000 mm

Height: 2200 mm

Height: 2500 mm

MDU(02312PCE)

Indicator

Status

Meaning

Red A critical alarm has been

generated, and the buzzer is

sounding constantly.

Yellow A major alarm has been

generated, and the buzzer is

sounding at intervals of 0.5s.

Green A warning has been

generated, or the precision

PDC is running properly.

Off The MDU is powered off.

Twinkle The indicator blinks at super

short intervals for 0.5s

(blinking at 10 Hz, on for

0.05s and then off for 0.05s)

and then turns off for 0.5s.

The cycle lasts for 10s.

Used to locate the device.

No.

Port

Function

MUS05A

N/A

Network port connecting to the management system when the PDC uses

Modbus TCP

CAN

Used for connecting to the CAN bus

RS485_1

Northbound serial port connecting to the management system when the

PDC uses Modbus

FE1

Reserved

FE2

Reserved

USB Host

Insert the USB flash drive, import and export the configuration file,

export run logs, and upgrade software

Used for connecting to the SD card

SW1

–4

DIP switch

LEFT FRONT RIGHT

Indicator Status

Description

Blinking green slowly The monitoring board is running properly.

Blinking green fast The communication fails. The MDU generates a monitoring

board communication failure alarm.

Blinking red Power supply to the monitoring board is faulty or there is a

surge current impact alarm.

Off The monitoring board is not working.

Monitoring Board

Indicator

MDU (02310PQR)

Indicator

No.

Port

Function

MUS05A

N/A

Network port connecting to the management system when the

PDU8000 uses SNMP or

Modbus-TCP

CAN

Internal communications and power supply port for the MDU LCD

RS485_1

Northbound serial port connecting to the management system when the

PDU8000 uses

Modbus-RTU

USB Host

Insert the USB flash drive, import and export the configuration file,

export run logs, and upgrade software

RST

Used for resetting the MDU

Installing an SD card

SW1

–4

DIP switch: By setting DIP switch toggles in different combinations, you

can perform operations such clearing historical alarms, clearing logs, and

restoring factory settings

Indicator

Status

Meaning

Red A critical alarm has been

generated, and the buzzer is

sounding constantly.

Yellow A major alarm has been

generated, and the buzzer is

sounding at intervals of 0.5s.

Green A warning has been

generated, or the precision

PDC is running properly.

Off The MDU is powered off.

Twinkle The indicator blinks at super

short intervals for 0.5s

(blinking at 10 Hz, on for

0.05s and then off for 0.05s)

and then turns off for 0.5s.

The cycle lasts for 10s.

Used to locate the device.

2PDC Installation

1. This document describes the process for installing the modular precision PDC. Before

installation, read the

User Manual

to learn the product information and safety precautions.

2. When installing or operating a device, you must use insulated tools.

3. Only engineers certified by the manufacturer or its agents are allowed to perform PDC

installation, commissioning, and maintenance. Otherwise, personal injury or equipment

damage may occur, and Huawei will not be liable for any loss.

4. Sections and steps marked as optional in this document can be performed selectively based

on the actual configuration.

1. Due to the limitations of the door height, you can move the device into the equipment room

by tilting it. Keep it upright in the equipment room.

2. Take protective measures during moving the PDC to prevent toppling and bumping.

3. During movement, be careful to avoid squeezing the MDU screen.

Moving the PDC

2.1

Installing the PDC

2.2

1100 mm deep cabinet 1200 mm deep cabinet

Leveling foot Level

1. Mark the positions for installing the PDC based on the marking-off template. Drill holes and

install expansion sleeves.

2. Place a level on the PDC. Adjust the anchor bolts of the PDC using an adjustable wrench until the

leveling feet are in contact with the floor. Then level the PDC.

(Optional) Combining Cabinets

2.3

3. Secure the PDC.

(Optional) When the PDC installation environment is 5# channel steel and that the PDC cannot

be secured using the mounting holes, secure the PDC using the mechanical part shown in the

following figure.

Scenario 1

Scenario 2

When combining cabinets, ensure that all cabinet

surfaces are at the same level.

1. Open the front and rear

doors. Wrench the anchor

bolts using an adjustable

wrench to adjust the cabinet

height.

2. Remove the cabinet

connecting kits from the rack.

3. Screw the connecting kits in

the connection positions on

the front door.

4. Use the same method to

secure the connecting kit in

the connection positions on

the rear door.

5. Repeat the preceding steps to

combine other PDCs.

6. Use a torque socket wrench

to tighten the bolts in

diagonal order.

3Installing Cables

This document uses the dual-input top cable routing and single-input bottom cable routing as

examples. Cable connections for other scenarios are similar.

1. Ensure that all circuit breakers, including upstream output circuit breakers, are switched to

OFF before connecting cables.

2. The PDC ground cable is secured to the equipment room ground bar. The resistance between

the PDC ground cable and the equipment room ground bar is less than 0.1 ohm.

3. The N and PE cables are bound separately from the L1/L2/L3 or L cables for each circuit

breaker. Cables are converged at the beam and bound in groups by cable ties.

1. Remove the rodent-proof meshes at the top and put them aside.

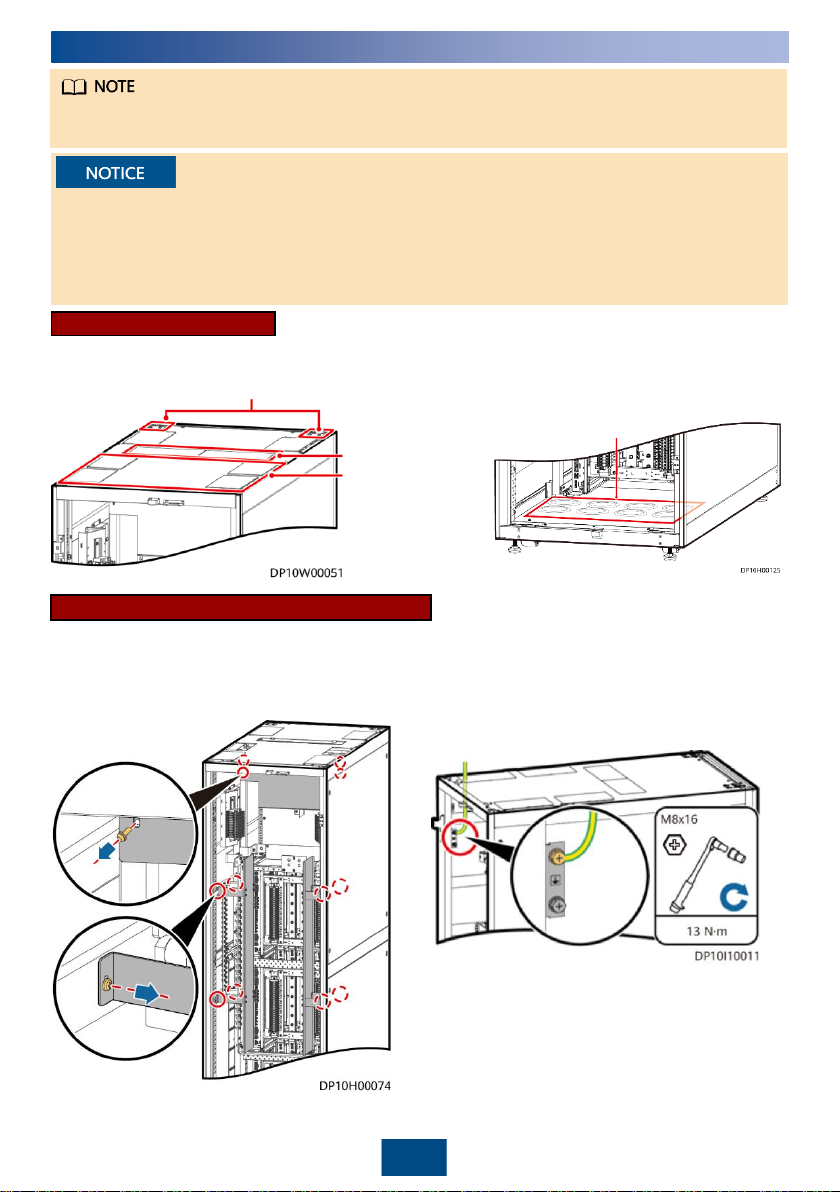

Connecting Cables (Top Cable Routing)

Cable holes at the PDC bottomCable holes on the PDC top

Power cable inlet

Cable Hole Description

Monitoring cable hole

Power cable outlet

2. Remove the transparent covers of the N

bar and input copper bar, and put the

covers aside.

3. Connect cabinet ground cables.

Cable holes at

the bottom

4. Connect the input power cables. 5. Connect the output power cables.

1. In single-input scenarios, connect the input N

cable to 1N.

2. Connect the three-phase cables, N cable, and

PE cable in turn.

6. The following figure shows the overall

effect after cable connection.

7. Connect the PDC monitoring cable to the

RS485_1 or FE port on the MDU side panel.

(1) Monitoring cable outlet

8. (Optional) Connect the fire linkage cable

by referring to Appendix B.

9. Cut suitable holes in the rodent-proof

meshes and reinstall the rodent-proof

meshes.

10.Reinstall the transparent covers of the

input copper bar and N bar.

11.Seal the gap between cables and the

cabinet using flake sealing putty. (Remove

the paper protective film from the sealing

putty and use the aluminum foil film

together with the sealing putty.)

3. Connect the input power cables. 4. Connect the output power cables.

Connecting Cables (Bottom Cable Routing)

1. Remove the transparent covers of the N

bar and input copper bar, and put the

covers aside.

2. Connect cabinet ground cables.

5. The following figure shows the overall

effect after cable connection.

6. Connect the PDC monitoring cable to the

RS485_1 or FE port on the MDU side panel.

(1) Monitoring cable outlet

7. (Optional) Connect the fire linkage cable

by referring to Appendix B.

8. Reinstall the transparent covers of the

input copper bar and N bar.

9. Seal the gap between cables and the

cabinet using flake sealing putty. (Remove

the paper protective film from the sealing

putty and use the aluminum foil film

together with the sealing putty.)

Flake sealing putty

No.

Check Item

Result

All cables are connected properly. □Yes □No

The ground cable is connected properly. □Yes □No

The excess sections of ground cables and power cables are cut off. □Yes □No

Phase cables are connected properly. □Yes □No

All circuit breakers are OFF. □Yes □No

Electrical Connection Checklist

4.2

No.

Check Item

Result

All bolts are tightened, especially the bolts used for electric connection.

Flat washers and spring washers are complete and installed properly.

□Yes □No

Cable installation meets the cable routing requirements. □Yes □No

Cables are routed in a way convenient for maintenance and capacity

expansion.

□Yes □No

There is no unnecessary adhesive tape or cable tie on cables. □Yes □No

Exposed parts of wires and cable lugs near the wiring terminals are

wrapped by insulation tape or heat shrinking tubing.

□Yes □No

The routing of power cables and monitoring cables meets the

requirements for routing signal cables and power cables and complies

with the cable routing planning.

□Yes □No

Cable Installation Checklist

4.3

4Check Before Power-on Commissioning

No.

Check Item

Result

The cabinet is clean and free of foreign matters such as screws and

copper wires. □Yes □No

The paint on the cabinet exterior is intact. □Yes □No

The cabinet door and lock work properly. □Yes □No

All safety warning labels are correct, clear, and complete. □Yes □No

There is no foreign matter such as adhesive tape, cable ties, paper, or

packing materials left around the cabinet. □Yes □No

Hardware Installation Checklist

4.1

Autres manuels pour PDU8000 Series

Table des matières

Autres manuels Huawei Unité de contrôle

Huawei

Huawei RRU3269 Manuel utilisateur

Huawei

Huawei ME936 Instructions d'installation

Huawei

Huawei ME909s-120 Instructions d'installation

Huawei

Huawei EM660 Manuel utilisateur

Huawei

Huawei MU709 Series Instructions d'installation

Huawei

Huawei ME909u-521 Instructions d'installation

Huawei

Huawei UPS5000-E Series Manuel utilisateur

Huawei

Huawei UPS5000-H-1200K-NT Manuel utilisateur

Huawei

Huawei MU509-65 Instructions d'installation

Huawei

Huawei SmartModule1000A01 Manuel utilisateur

Huawei

Huawei UPS5000-E Series Manuel utilisateur

Huawei

Huawei SmartAX MA5606T Caractéristiques techniques

Huawei

Huawei ME906s LTE M.2 Instructions d'installation

Huawei

Huawei ME909u-523 Instructions d'installation

Huawei

Huawei RTN 380H Manuel utilisateur

Huawei

Huawei MU509 Series Manuel utilisateur

Huawei

Huawei CX320 Manuel utilisateur

Huawei

Huawei ME906E Manuel utilisateur

Huawei

Huawei MU709s-2 Instructions d'installation

Huawei

Huawei RRU5303 Manuel utilisateur

Huawei

Huawei SmartLi-ESM-24020P1 Manuel utilisateur

Huawei

Huawei SmartAX MA5600T Mode d’emploi

Huawei

Huawei VP9660 Manuel utilisateur

Huawei

Huawei ME919Bs-567bN Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
