Thank you for purchasing HUAWEI MU609T HSPA LGA

Module (hereinafter referred to as the MU609T)

Note:

This manual briefly describes the preparation, the process for PCB Design, Assembly

and safety precautions.

You are recommended to read the manual before using the MU609T.

Getting to Know the MU609T

The package of the LGA module is 140 pin LGA with a dimension of 40 mm × 40 mm ×

4.0 mm. It is applied to the user interface board, and can be used as a wireless terminal

in a network environment.

35.56

29.26

18.54

30.14

3.25 7 .32

2.44

4X2 .0

4X2.0

35X3.0

35X 3.0

3.0

135!

2.0

3X0 .6

3X1.0

97X 1.8

97X1.2

5:1 B

5:1

Bottom view

PCB Design

PCB Pad Design

To achieve assembly yields and solder joints of high reliability, it is recommended that

the PCB pad size be designed as follows: the sizes of the solder pads on customers'

PCBs are the same as those of the module's solder pads for the high production

efficiency and high reliability of solder joints. For details, see the following figure:

Top view (PCB pad is recommended)

No.

mil

36.65

1442.8

35.56

1400

30.14

1186.8

29.26

1152

2.44

3.71

146

18.54

730

24.38

960

3.25

128

7.32

288

9.76

384

14.64

576

3.05

120

2.03

1.22

1.83

1.02

0.61

Requirements on PCB Layout

The thickness of PCB is more than 1.0 mm (1.2 mm recommended) to reduce the

deformation caused by high temperature welding.

The minimum distance between the LGA module and the PCB edge is 1.5 mm. Other

devices must be located more than 1 mm away from the LGA module (more than 3 mm

recommended if rework is considered).

When the PCB layout is double sided, it is recommended that the LGA module be

placed on the second side for assembly.

Design of Solder Mask

The PCB pad design can be solder mask defined (SMD), or non-solder mask defined

(NSMD).NSMD is recommended. In addition, the solder mask of the NSMD pad design

is larger than the pad so the reliability of the solder joint can be improved.

The solder mask must be 100 µm to150 µm larger than the pad, that is, the single side

of the solder mask must be 50 µm to 75 µm larger than the pad. The specific size

depends on the processing capability of the PCB manufacturer.

Assembly

Stencil Design

It is recommended that the stencil for the LGA module be 0.15 mm in thickness. For the

stencil design, see the following figure：

35.61

35.56

29.26

18.54

30.09

3.30

7.32

2.44

4X2.03

4X2.08

35X3 .05

35X3.05

3.05

2.05

3X0.65

3X1.00

97X1.88

97X1.22

5:1

5:1 E

5:1

3.71

9.76

14.64

36.70

29.26

24.38

2.44

3.71

36.70

30.09

4X0 .2

3X0.2

97X0.2

0.3

0.2

135

1.27

Item

Description

Figure

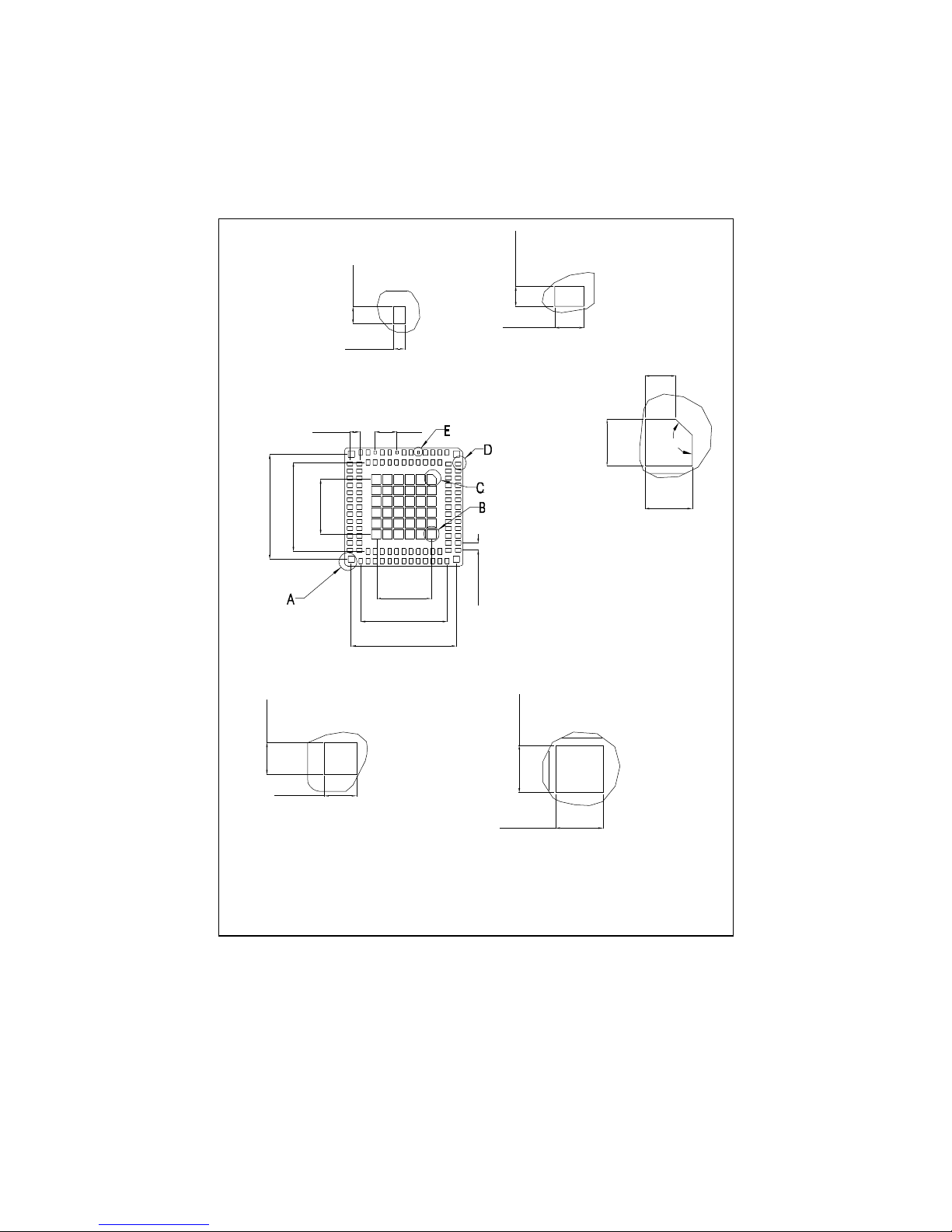

Elongate the stencil opening 0.05 mm

with the direction reverse the center of

the module and add an isolation

bridge with 0.2 mm width at the X axis

direction.

B&C

0.3 mm width stencil opening and 0.2

mm space to divide the pad with the

angle of 45.

Elongate the stencil opening 0.05 mm

with the reverse direction for the

adjacent pad, but will not reduce the

air gap, and add an isolation bridge

with 0.2 mm width at the X axis

direction.

Elongate the stencil opening 0.05 mm

with the X+ direction and add an

isolation bridge with 0.2 mm width at

the axis direction.

Reflow Profile

For the soldering temperature of the LGA module, see the following figure:
