Huawei ATOM GPS Manuel utilisateur

HUAWEI TECHNOLOGIES CO., LTD.

ATOM GPS (Outdoor NE05E and AE 905S)

Quick Installation Guide

Issue: 01

Date: 2016-06-30

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

Installation Flow

PrecautionsPage 1

Cables and ToolsPage 2

Introduction to the ATOM

GPS

Pages

3-4

Installing the NE05E

Pages

9-11

Perform power-on check

and complete the

installation

Pages

13-14

Appendixes

End

Start

Preparation

for

installation

Installing the Power

Terminal to be

Connected to the

NE05E

Page 7

Pages

15-16

Installation Pre-

processing

Pages

7-8

Connecting and Routing

Cables

Page 12

Scenario II: Mounting the

NE05E on a Wall

Pages

10-11

Scenario I: Mounting the

NE05E on a Pole

Pages

9-10

Install the mounting

bracket on the back of

the NE05E

Page 8

Assembling OT

Terminals

Page 15

Installing the GPS

Satellite Antenna System

Pages

4-6

Scenario II: Separated

Installation Scenario

Pages

5-6

Scenario I: Integrated

Installation Scenario

Page 4

Requirements for GPS

Antenna Installation

Positions

Page 16

Precautions

•This document aims to provide simple and distinctive guidelines for hardware installation.

•This document does not describe operations for the pre-delivery installation. Instead, this document

describers only the operations for on-site installation.

•This document describes how to connect the ATOM GPS to the GPS Satellite Antenna System. The ATOM

GPS consists of the outdoor NE05E and AE 905S. NE05E-SJ is used as examples in this document.

•EHS requirements: The installation personnel should wear safety belts, helmets, shoes, and gloves for

climb operations.

•When installing or maintaining fibers, do not look into the optical port without eye protection. The infrared

laser emitted by the optical interfaces can cause permanent eye damage.

•Exercise caution when touching the device with the high temperature identification to avoid scalding.

Use cables delivered with Huawei devices or cables complying with Huawei standards.

NOTE

Cables and Tools

Power cable Fiber Shielded network cable

Diagonal pliers Wire stripper Ratchet crimp tool

Hex key

Paper knife

Multimeter Optical power meter Ladder or ladder truck

PGND cable

Adjustable Wrench

(used in wall-

mounting scenarios)

Level

(used in wall-

mounting scenarios)

Claw hammer

(used in wall-

mounting scenarios)

Hammer drill

(used in wall-

mounting scenarios)

Flathead Screwdriver

(M2-M6) Flathead Screwdriver

(M2-M6)

Marker

(used in

wall-mounting scenarios)

Introduction to the ATN ATOM GPS

FE/GE4 and FE/GE5 are Combo interfaces and either of

them includes one SFP interface and one electrical

interface. The SFP and electrical interfaces cannot be

used at the same time.

a NE05E-SJ

AE 905S

Power supply

interface NM interface

(Console interface)

Optical interface Electrical interface

NOTE

Before inserting an AE 905S to an optical interface, lock the ejector lever. Before

removing an AE 905S from an optical interface, loosen the ejector lever.

An AE 905S module can be installed in any GE optical interface. Installing an AE

905S module on an FE/GE2 interface is recommended to reduce reliability risks

caused by cable bending.

Lock the ejector lever.

Loosen the ejector lever.

Installing the GPS Satellite Antenna System

Install the GPS antenna on the GPS antenna

support, and use four screws to secure it. Install the GPS antenna support on the ground

bar on the right of the device, and use two

screws to secure it.

Remove the rubber plug, and connect the

GPS feeder to the AE 905S. Insert the AE 905S to the optical interface on

the NE05E, with the AE 905S ejector lever

being locked.

Connect the other end of the feeder to the GPS

antenna and secure the joint.

1 Scenario I: Integrated Installation Scenario

Implement 1+3+3 waterproof protection for

the feeder-and-antenna joint. Use one cable

tie on each end of the feeder to secure the

feeder.

GPS

antenna

Cable ties 1+3+3

waterproof

protection

GTS antennas have high requirements on installation positions. For details about the position requirements, see

Appendixes 2.

NOTE

AE 905S

Install the dual-female conversion adapter on

the Protect interface of the lightning protection

component.

Install the lightning protection component.

Secure the nut on the Surge interface of the

lightning protection component.

Connect one end of the coaxial cable to the

Protect interface of the lightning protection

component, and use a wrench to secure the

joint.

Implement 1+3+3 waterproof protection for

the coaxial-cable-and-lightning-protection-

component joint. Use one cable tie on each

end of the tape to secure the adhesive tape.

Install the lightning protection component on the

ground bar on the right of the device and use

screws to secure it.

2 Scenario II: Separated Installation Scenario

Use a lightning-proof ground cable to

connect the GND interface of the lightning

protection component and the ground bar.

Wrap one layer

of insulation

tape.

Wrap three layers

of waterproof

tapes.

Wrap three layers

of insulation

tapes.

Use one

cable tie on

each end.

For requirements on the GPS installation, see GPS Satellite Antenna System Quick Installation Guide.

For requirements on the GPS antenna position, see Appendixes 2.

This document describes how to connect the ATN ATOM GPS to the GPS.

NOTE

Dual-female

conversion

adapter

lightning

protection

component

Protect

Surge

Connect the

GND interface

of the lightning

protection

component to

the ground bar.

Use OT M8 terminals as the lightning

protection component terminals.

NOTE

Insert the AE 905S to the optical interface on

the NE05E, with the AE 905S ejector lever

being locked.

2 Scenario II: Separated Installation Scenario

Remove the rubber plug, and connect the

GPS feeder to the AE 905S.

Use the GPS feeder to connect the Surge interface

of the lightning protection component to the GPS

antenna, and use a wrench to secure the joints.

For requirements on the GPS feeder joint production, see GPS

Satellite Antenna System Quick Installation Guide.

NOTE

10 Implement 1+3+3 waterproof protection. Use

one cable tie on each end of the tape to

secure the adhesive tape.

•Implement waterproof protection for the feeder-

and-lightning-protection-surge joint.

•Implement waterproof protection for the feeder-

and-GPS-antenna-N joint.

Wrap one layer

of insulation

tape.

Wrap three layers

of waterproof

tapes.

Wrap three layers

of insulation

tapes.

Use one

cable tie on

each end.

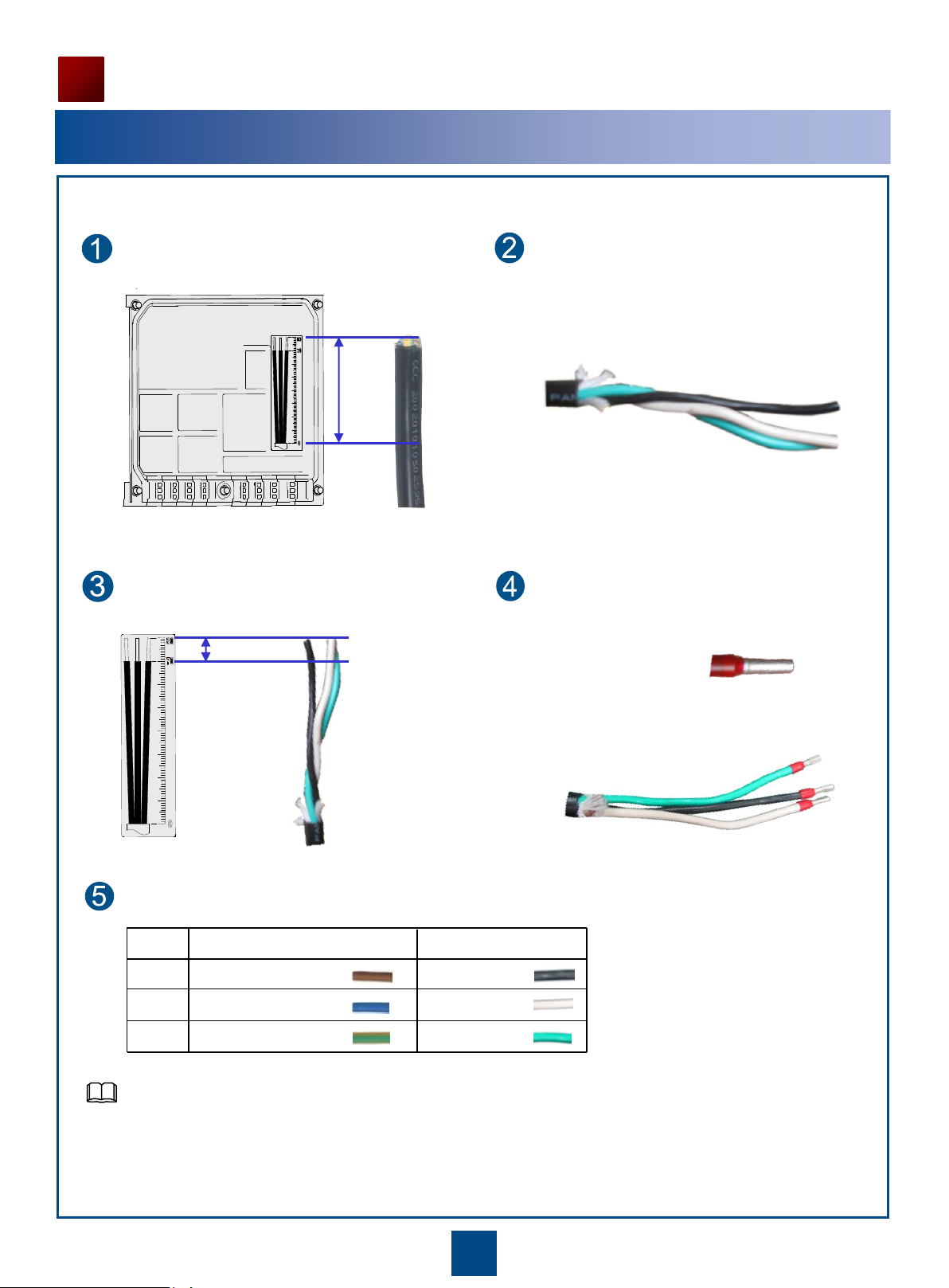

Installation Pre-processing

Open the cover and measure an 80 mm length of

the power cable at one end. Strip an 80 mm length of the black insulation

layer of the power cable.

80mm

10 mm

Strip a 10 mm length of the insulation layers of the

power cable cores. Install the power cable terminal and crimp the

metal part of the terminal.

Power cable terminal:

Expected installation result:

•One of the two power channels is an input channel and provides power for the NE05E, and the other

is an output channel and provides power for another NE05E.

The insulation layers of the power cable cores include two colors according to the

Chinese/European and American standards, as shown in the following table.

•When making power cables, prevent foreign matter from falling into the NE05E.

1 Installing the Power Terminal to be Connected to the NE05E

Chinese/European standard American standard

Mark

Black

White

Green

Brown

Blue

Yellow green

NOTE
