Huawei MU609 Manuel

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Issue 02

Date 2016-12-14

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").

The product described in this manual may include copyrighted software of Huawei and possible licensors.

Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract,

reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by

applicable laws or such actions are approved by respective copyright holders.

Trademarks and Permissions

, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned may be the property of their respective

owners.

Notice

Some features of the product and its accessories described herein rely on the software installed, capacities

and settings of local network, and therefore may not be activated or may be limited by local network

operators or network service providers.

Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.

Huawei reserves the right to change or modify any information or specifications contained in this manual

without prior notice and without any liability.

DISCLAIMER

ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE

LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF

PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS

REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.

THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL

INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING

FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE

AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and be responsible to

obtain all necessary governmental permits and licenses in order to export, re-export or import the product

mentioned in this manual including the software and technical data therein.

To better understand how we protect your personal information, please see the privacy policy at

http://consumer.huawei.com/privacy-policy.

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

About This Document

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

About This Document

Revision History

Document

Version

Date Chapter Descriptions

01 2013-03-30 Creation

02 2016-12-14 1.3 Updated Table 1-1 Components of

the DVK

2.2 Updated the instructions of installing

the DVK kit

3.2 Updated Figure 3-2 Layout of the

DVK (BOTTOM VIEW)

3.3.3 Deleted the section 3.3.3 in issue 01:

Audio Port

3.3.9 Updated Figure 3-3 64-pin sockets

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Contents

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

Contents

1 Overview................................................................................................................................5

1.1 About This Chapter..........................................................................................................................5

1.2 Introduction to the DVK...................................................................................................................5

1.3 Components of the DVK..................................................................................................................5

2 Installation and Use Guide...................................................................................................8

2.1 About This Chapter..........................................................................................................................8

2.2 Setting Up the DVK.........................................................................................................................8

3 Description of the DVK......................................................................................................16

3.1 About This Chapter........................................................................................................................16

3.2 DVK Structure...............................................................................................................................16

3.3 Interface Functions........................................................................................................................17

3.3.1 Power Interface ....................................................................................................................17

3.3.2 USB Communications Port...................................................................................................17

3.3.3 Buttons .................................................................................................................................17

3.3.4 POWER_ON_OFF Button....................................................................................................17

3.3.5 RESET Button......................................................................................................................17

3.3.6 SIM Card Interface................................................................................................................18

3.3.7 Antenna Connector...............................................................................................................18

3.3.8 UART....................................................................................................................................18

3.3.9 Pin Socket............................................................................................................................18

4 Acronyms and Abbreviations.............................................................................................20

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Overview

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

1 Overview

1.1 About This Chapter

This chapter provides a brief description of the MU609 LGA module development kit

(DVK), including:

Introduction to the DVK

Components of the DVK

In the following chapters and sections, "module" refers to the MU609 LGA module; "DVK"

refers to the MU609 LGA module development kit.

1.2 Introduction to the DVK

The DVK provides a complete solution based on the data functions of the module.

For designers who adopt the module in their designs, the DVK facilitates their

module-based programming and troubleshooting at the project development stage.

The DVK consists of two development boards, which are named as ME0MC509M

and MD0MC609TM respectively.

Consisting of a dedicated interface board and accessories, the DVK provides the

following interfaces:

One USB interface

Two standard RS-232 interfaces: one is 2-line (UART1) and the other is 8-line

(UART0).

One monitor RS-232 interface which monitored the UART0.

Standard Subscriber Identity Module (SIM) card interface

Three antenna connectors

1.3 Components of the DVK

Table 1-1 lists the components of the DVK.

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Overview

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

Check the components and their quantities after you obtain the DVK. If any

component is missing or damaged, contact with your DVK supplier.

Table 1-1 Components of the DVK

Number Item Quantity (pcs) Category

1 Mother Board 1 Mandatory

2 Interface Board 1 Mandatory

3 USB cable

(one mini USB and one

micro USB)

2 Mandatory

4 Adapter 1 Mandatory

5 External antenna 2 Mandatory

Figure 1-1 Components of the DVK

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Overview

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

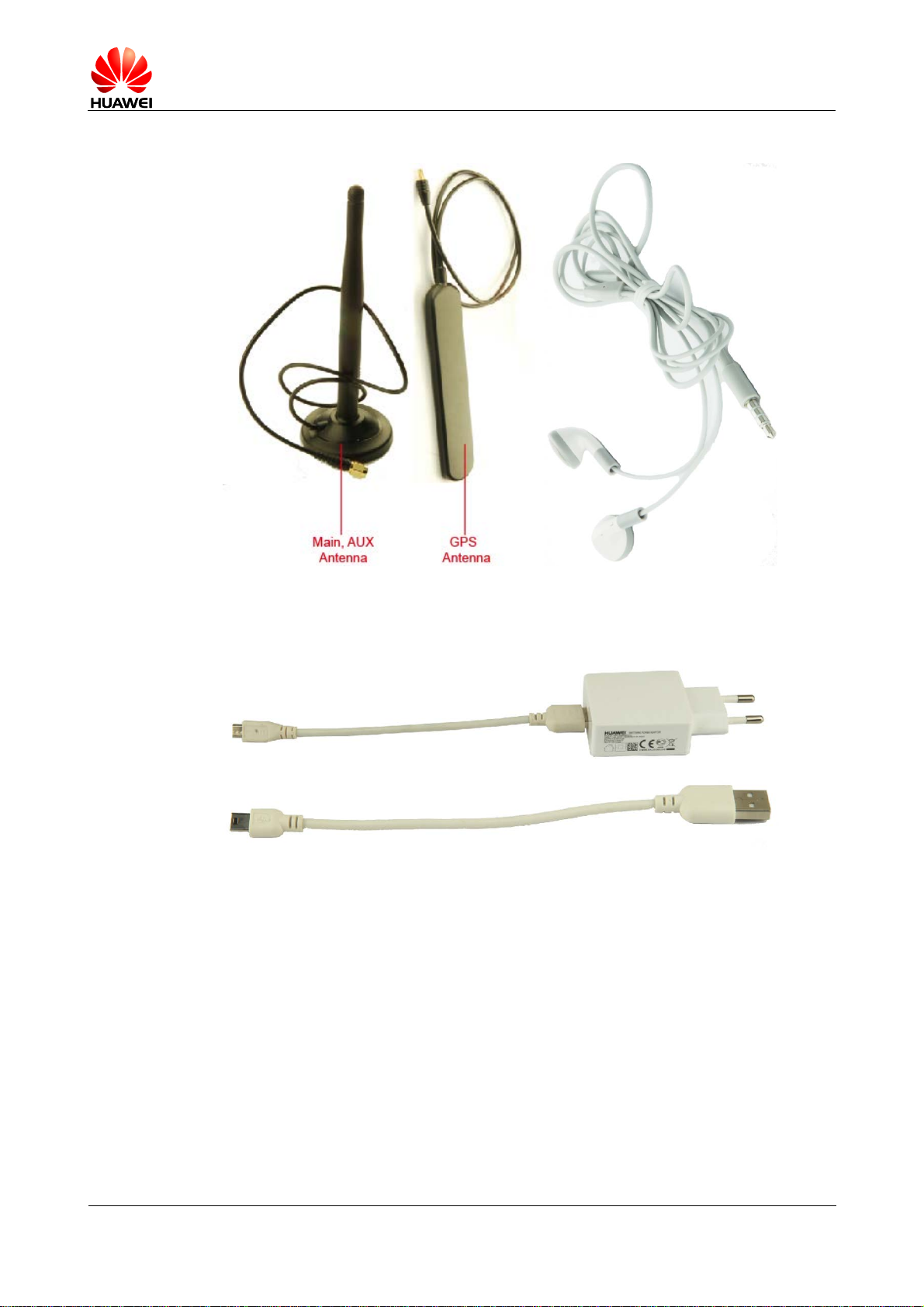

Figure 1-2 External antenna and D3.5 4P Plug Earphone

Figure 1-3 Mini USB and micro USB connected adapter

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Installation and Use Guide

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

2 Installation and Use Guide

2.1 About This Chapter

This chapter describes how to install and use the LGA module's DVK.

2.2 Setting Up the DVK

Please install the DVK kit by the following instructions.

1. The interface board is ME0MC509M as shown in the following figure. The

MU609 LGA module is soldered to this board.

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Installation and Use Guide

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

2. The mother board is the universal board for the different LGA modules with silk-

screen of MD0MC609TM as shown in the following figure.

3. The two boards must be assembled together to achieve the function of the DVK.

HUAWEI MU609 HSPA LGA Module

Development Kit Guide

Installation and Use Guide

Issue 02 (2016-12-14) Huawei Proprietary and Confidential

The DVK will be provided to you just as above, so you have no need to do the assembling by

yourself.

4. Connect the USB cable to the Micro USB port on the mother board of the DVK.

The LGA module can be supplied power directly.

5. Before turn on the module, insert a SIM card into the SIM card slot (if

communication is required).

Micro USB

port
