CYP CH-352TX Manuel utilisateur

Operation Manual

Dual HDMI to IP Transmitter with USB KVM Extension

CH-352TX

DISCLAIMERS

The information in this manual has been carefully checked and is believed

to be accurate. Cypress Technology assumes no responsibility for any

infringements of patents or other rights of third parties which may result from

its use.

Cypress Technology assumes no responsibility for any inaccuracies that

may be contained in this document. Cypress also makes no commitment to

update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express written

permission and consent from Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document are trademarks of

the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply. Please keep the

following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain, moisture

or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings

or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it

is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to

be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings

in the unit housing that provide ventilation and allow for su󰀩cient space

for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in use to

avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2020/03/10 Preliminary release

CONTENTS

1. Introduction...................................................... 1

2. Applications ..................................................... 1

3. Package Contents ........................................... 1

4. System Requirements..................................... 2

5. Features............................................................ 2

6. Operation Controls and Functions ................ 3

6.1 Front Panel.................................................. 3

6.2 Rear Panel................................................... 4

6.3 IR Cable Pinouts.......................................... 5

6.4 RS-232 Pinout and Defaults........................ 5

6.5 WebGUI Control .......................................... 6

6.5.1 System Tab......................................... 8

6.5.2 Network Tab ..................................... 11

6.5.3 Functions Tab ................................... 12

6.6 Telnet Control ............................................ 14

7. Connection Diagram ..................................... 20

8. Specications ................................................ 21

8.1 Technical Specications ............................ 21

8.2 Video Specications .................................. 22

8.3 Audio Specications .................................. 24

8.3.1 Digital Audio ..................................... 24

8.3.2 Analog Audio .................................... 24

8.3.3 AVoIP Audio Availability (Auto Mode)25

8.4 Cable Specications.................................. 26

9. Acronyms ....................................................... 27

1. INTRODUCTION

This Dual HDMI to IP Transmitter solution is designed to independently

extend a pair of HDMI sources to a pair of remote HDMI outputs via a

standard Gigabit Ethernet network connection. Both HDMI inputs provide

support for resolutions up to 1920x1200@60Hz along with many audio

formats including 8 channel LPCM and standard Bitstream. Transmitter 1

also adds support for analog audio, USB 2.0, IR and serial data extension,

making it ideal for KVM or touch panel extension projects.

When using standard Ethernet cables, this unit supports the extension of

AVoIP signals up to 100 meters and the extension distance can be further

extended (up to 100m per segment) by using Gigabit Ethernet network

switches. This allows the user to cascade the system without signal loss

or introducing delay. Conguration information is provided via On Screen

Display (OSD) and control is by WebGUI and Telnet.

2. APPLICATIONS

• HDMI, USB, Audio, IR, and RS-232 extension

• Broadcasting dual sources over a standard Ethernet connection

• Touch panel point-of-sale or advertising kiosk extension

• Long distance data and video transmission via cascading

• Remote KVM control of a system

3. PACKAGE CONTENTS

• 1× Dual HDMI to IP Transmitter with USB KVM Extension

• 1× 5V/2.6A DC Power Adapter

• 1× Power Cord

• 1× IR Blaster

• 1× Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI source equipment such as media players, video game consoles,

PCs or set-top boxes.

• A compatible dual-AVoIP receiver

• Analog audio receiving equipment such as headphones, audio ampliers

or powered speakers.

• A Gigabit Ethernet network switch with jumbo frame support is required. (8K

jumbo frames are strongly recommended)

• A Gigabit Ethernet switch with “IGMP snooping” enabled is strongly

recommended.

5. FEATURES

• HDMI 1.4 compatible, DVI 1.0 compatible with the use of an HDMI-DVI

adaptor.

• HDCP 1.x compliant.

• 2 HDMI inputs

• Each HDMI input is connected to an independent AVoIP transmitter

• Video, audio, and control transmission over TCP/IP in Unicast (point-to-

point) mode

• Supports video resolutions up to 1080p@60Hz and PC resolutions up to

WUXGA (1920×1200@60Hz)

• Supports extension of many audio formats including 8 channel LPCM and

standard Bitstream

• External analog audio embedding support for HDMI input 1

• Optional analog audio bypass from receiver to transmitter

• Supports USB keyboard, mouse and storage extension

Note: Not compatible with USB hubs or USB 2.0 devices with high power

requirements such as external hard drives

• Supports IR and RS-232 bypass.

• Supports external EDID bypass and an optional internal default EDID

• Controllable via WebGUI or Telnet

• Supports the use of an external control center (IP Master Controller) to

provide expanded functionality (Contact your authorized dealer for more

information)

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER LINK 1

2 31

1POWER LED: This LED will ash while the unit is powering on and will

illuminate solidly once it is ready to be used.

2LINK 1 LED: If the unit has no network connection this LED will not

illuminate. While the unit is attempting to establish a connection with

a receiver this LED will ash. When the unit has established stable

connection with a receiver this LED will illuminate solidly.

3Reset Pinhole: Press this recessed button to reset the unit’s power

supply and reboot the unit.

Note: Settings will not be reset.

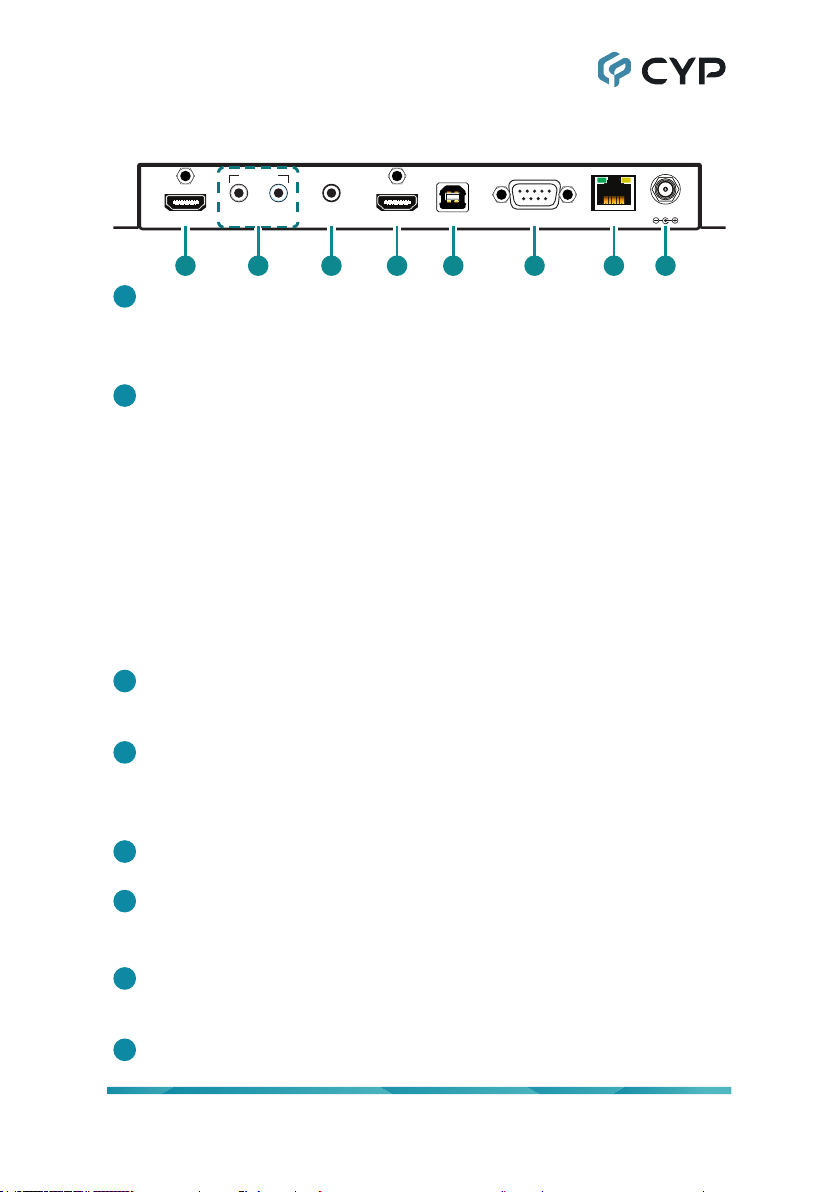

6.2 Rear Panel

RS-232 LAN

DC 5V

IN 1 IN 2

OUT

AUDIO

OUTIN USB

82 763 4 51

1OUT 1 Port: Connect to HDMI source equipment such as a media

player, game console or set-top box.

Note: When paired with it’s standard dual HDMI receiver, this input will

route directly to the Out 1 port on the connected receiver.

2AUDIO IN Port: Connect to the stereo analog output of a device such as

a CD player or PC.

Note: When a live audio source is connected to the Audio In port, it

will be automatically embedded into the transmitted signal, and will

completely replace any existing HDMI audio when the unit is in “Auto”

Audio over IP mode.

AUDIO OUT port: Connect to powered speakers or an amplier for

stereo analog audio output. This will output the audio from the Audio In

on the connected receiver.

Note: The Audio In audio channel from the receiver is only active

when an analog source is also connected to the Audio In port on the

transmitter.

3IR OUT Port: Connect to the provided IR Blaster to transmit IR signals

sent from the associated receiver to devices within direct line-of-sight of

the IR Blaster

4IN 2 Port: Connect to HDMI source equipment such as a media player,

game console or set-top box.

Note: When paired with it’s standard dual HDMI receiver, this input will

route directly to the Out 2 port on the connected receiver.

5USB 2.0 (Type-B) Port: Connect directly to a PC host to extend its USB

functionality to the USB device ports on the connected receiver.

6RS-232 Port: Connect to a PC, laptop, or serial controllable device for

the extension of RS-232 signals.

 Note:Thebaudrateiscongurable,butthedefaultbaudrateis115200.

7LAN Port: Connect via a Gigabit Ethernet switch to compatible receiver

to transmit video and data, and to a PC/laptop to control the unit via

WebGUI or Telnet.

8DC 5V Port: Plug the 5V DC power adapter into this port and connect it

to an AC wall outlet for power.

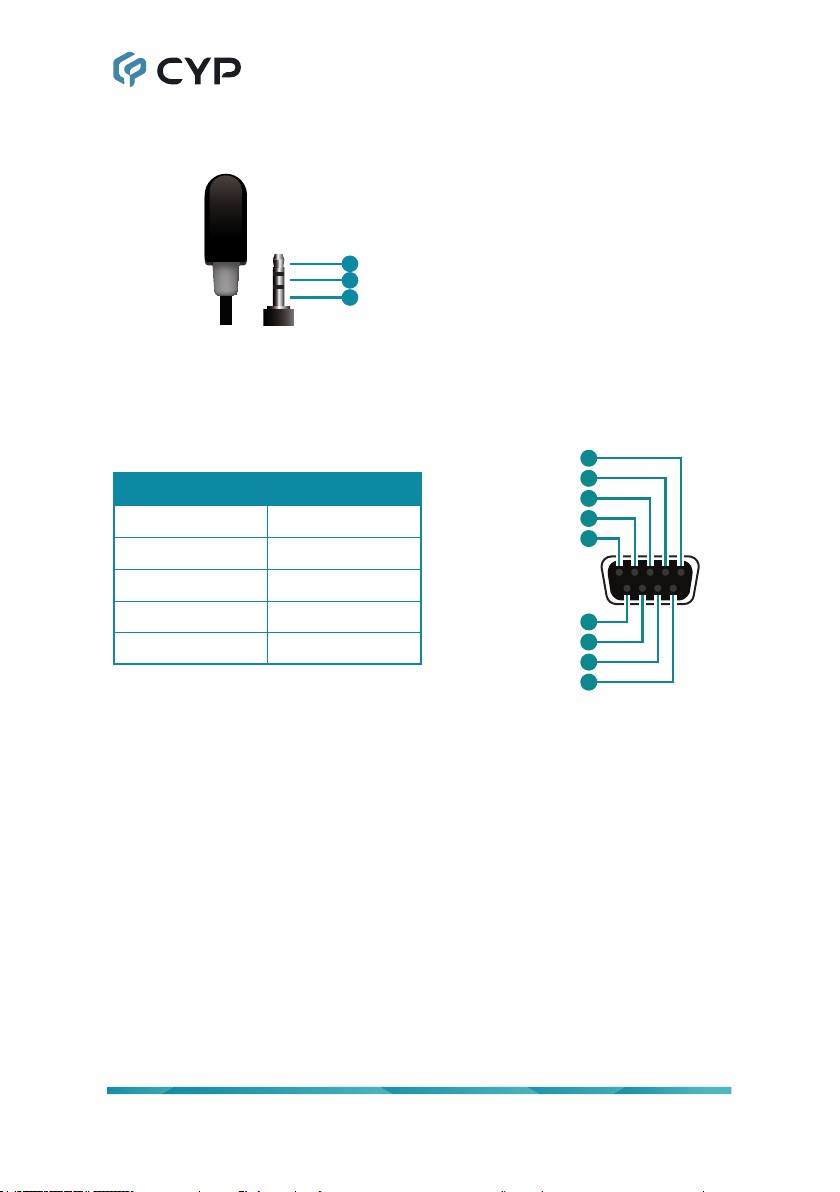

6.3 IR Cable Pinouts

IR Blaster

Cabl

Infrared

Power

Not Use

6.4 RS-232 Pinout and Defaults

Serial Port Default Settings

Baud Rate 115200

Data Bits 8

Parity Bits None

Stop Bits 1

Flow Control None

DCD

RxD

TxD

DTR

GND

CTS

RTS

DSR

DE-9 Female Port
