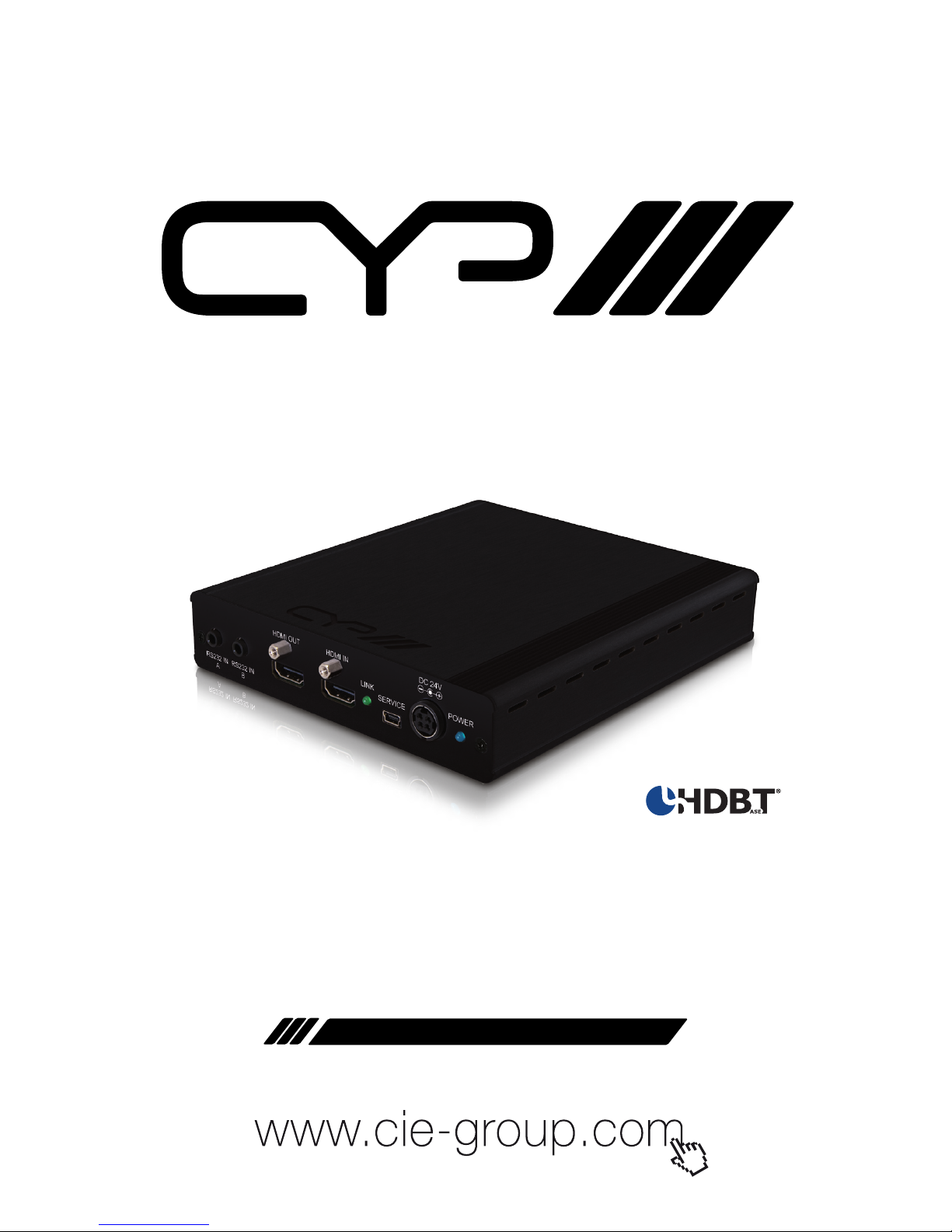

PU-1H2HBTE

1 HDMI to 2 HDBaseT™ Splitter (100m) including HDMI

output bypass

OPERATIONS MANUAL

5-Play™

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 29/01/13 First Release

CONTENTS

1. Introduction ...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features ..................................................7

6. Operation Controls and Functions .......8

6.1 Front Panel ................................................... 8

6.2 Rear Panel ..................................................... 9

6.3 IR Pin Assignment ....................................10

7. Connection Diagram .......................... 11

8. Specications ...................................... 12

9. Acronyms ............................................. 13

1. INTRODUCTION

The PU-1H2BTE splitter accepts 1x HDMI input and distributes to 2

HDBaseT™ outputs, plus 1 HDMI bypass output. The HDBaseT™ outputs

allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be

transmitted over a Single CAT5e/6/7 cable up to 100m. Installers can

condently distribute HDMI signals to 3 displays, and if required, use

the HDMI bypass output to cascade the HDMI signal up to 5 times with

additional HDBaseT™ splitters.

PU-507RX Receivers are recommended to utilise the full 5-Play™

functionality of the HDBaseT™ outputs of this device.

2. APPLICATIONS

Household entertainment sharing and control

Lecture room display and control

Showroom display and control

Meeting room presentation and control

Classroom display and control

3. PACKAGE CONTENTS

1 x HDMI over HDMI & CAT5e/6/7 Transmitter

2 x IR Extender

1×IR Emitter 'Y' Cable

2 x 3.5mm phone jack to D-Sub 9-pin adaptor cable

24V/2.7A DC Power Adaptor

Power Cord

Operation Manual

4. SYSTEM REQUIREMENTS

Source equipment with HDMI output connector

Display TV/monitor with HDMI input connector

HDMI over CAT5e/6/7 receivers with industry CAT5e/6/7 cables

5. FEATURES

Supports all v1.4 HDMI resolutions plus 4k.

HDMI, HDCP, & DVI compliant

Supports uncompressed video/audio up to 10.2Gbps

Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,

1080p, 1080p24, 4K2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA,

WUXGA.

Supports HDCP repeating and CEC functions

Uncompressed data transfer over single CAT cable (100m - CAT6/7;

80m - CAT5e)

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

Supports full 5-Play™ Convergence : HDMI / LAN / PoE (Power over

Ethernet) / IR / RS-232

Supports 3D signals

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

RS232 IN

HDMI OUT HDMI IN

REWOPKNIL

SERVICE

DC 24V

1 2 3 4 5 6 7

1 RS232 IN A/B: Connect to a PC/laptop or RS-232 control system

(with supplied 3.5mm phone jack to D-Sub 9 pin adaptor) for the

transmission of RS-232 commands.

2 HDMI OUT: Connect to a HDMI equipped TV/monitor for display of

the HDMI input source signal.

3 HDMI IN: Connect to HDMI source equipment such as a DVD or Blu-

ray player.

4 LINK LED: The yellow LED will illuminate when both the input and

output signals are connected.

5 SERVICE: Reserved for service only.

6 DC 24V: Connect the 24 V DC power supply to the unit and plug the

adaptor into an AC outlet.

7 POWER LED: The LED will illuminate when the device is connected to

a power supply.

6.2 Rear Panel

IR A1

Extender

IR B1

Extendrt

IR A2

Blaster

IR B2

Blaster

LAN TUO 6/e5TACTUO 6/e5TAC

MODE

LINK

MODE LINK

21 3 4 6 4 625 3 5

1 LAN: Connect to an active network for LAN serving. When any

compatible LAN equipped receivers are connected, this allows the

network access (including internet access if available) to be shared

between any connected LAN equipped receivers. Connect any

Ethernet equipped device e.g. a Smart TV or games console to the

LAN port of a receiver for that device to share the network/internet

access.

2 IR A1/B1 IR Extender: Connect the IR extenders for IR signal reception

. Ensure that the remote being used is within the direct line-of-sight of

the IR extender.

3 IR A2/B2 IR Blaster: Connect to the IR blasters for IR signal

transmission. Place the IR blaster in direct line-of-sight of the

equipment to be controlled. Use the supplied IR 'Y' Cable to ensure

control from each HDBaseT zone.

4 MODE LED: When the device is powered the LED will ash.

5 CAT5e/6 OUT A & B: Connect to HDMI to CAT5e/6/7 receivers (with or

without PoE function) with CAT5e/6/7 cable to extend the signal up to

100m.

NOTE: Non PoE receivers will require their own power supply

6 LINK LED: When the device is powered on and this slot is connected

to a compatible receiver device with CAT5e/6/7 cable the LED will

illuminate.

6.3 IR Pin Assignment

1Power 5 V

IR Blaster Signal

IR Signal

Power 5 V

Grounding

IR Extender

Twin IR Blaster

7. CONNECTION DIAGRAM
