CYP CDPS-UH4H1HFS Manuel utilisateur
DRAFT
CDPS-UH4H1HFS
4 By 1 HDMI UHD Switcher with
Fast Switching and Control System
Operation Manual
Operation Manual
DRAFT
DRAFT
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
DRAFT
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 10/11/14 Preliminary release
RDV2 29/06/15 Add Commands
DRAFT
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................5
6.3 Remote Control................................6
6.4 IR Cable Pin Assignment..................7
6.5 RS-232 Protocol.................................7
6.6 RS-232 and Telnet Commands .......8
6.7 Software Application.....................13
6.8 Telnet Control .................................14
6.9 WebGUI Control .............................16
7. Connection Diagram .......................... 20
8. Specications ...................................... 21
8.1 Technical Specications ...............21
8.2 Supported Resolutions...................22
8.3 Supported Audio Formats .............23
8.4 Audio Performance .......................23
9. Acronyms ............................................. 24
DRAFT
1
1. INTRODUCTION
This 4 by 1 HDMI UHD Switcher allows four HDMI sources to be routed
to an HDMI display. The Fast Switching Technology greatly reduces
the time required to swap between inputs. The Control System not
only provides direct control but also indirect control interfaces for all
your connected devices. Supporting traditional direct control systems
like IR, Relay and DC and indirect control systems like IR Learning, RS-
232, Telnet/WebGUI controls, it allows the user with PC or APP based
control systems great exibility over devices. The operation of the
system can be easily managed through software application on PC/
Laptop or APP on mobile devices, on-panel buttons, IR remote control,
RS-232, Telnet or Ethernet protocols.
2. APPLICATIONS
• Home entertainment & security control
• Showroom display & control
• Educational demo & control
3. PACKAGE CONTENTS
• 1×4 By 1 HDMI Matrix with Fast Switch & Control System
• 1×IR Blaster
• 1×3.5mm phone jack to D-sub 9-pin male cable
• 1×Remote Control
• 1×24 V/3.75 A Power Adaptor
• 4×Terminal Block Connectors
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as DVD/Blu-ray player and output HD
display/Monitor with HDMI cables. Control system input sources such
as light, TV, power switch and etc… and PC/Laptop for output control.
DRAFT
2
5. FEATURES
• HDMI (with 3D & 4K2K supported) and HDCP compliant
• Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30 Hz &
50/60 Hz with YUV420 or 4096×2160@24 Hz & 50/60 Hz with YUV420)
• Supports HDMI data rate from 300Mbps to 3Gbps and ‘Deep Color’
up to 1080p/36-bit
• Supports simultaneous audio outputs on both HDMI and analog R/L
• HDMI inputs support ‘Standard’ and ‘Apple’ HDCP modes. Selecting
‘Apple mode guarantees the compatibility of Apple devices
• Support RS-232, IR, Telnet and WebGUI controls
• Supports four inputs control with voltage of 0~3.3v
• Supports control system with 5 IR outputs, 4 Trigger inputs, 4 Relay
outputs and 2 COM ports
• Supports COM port’s Baud rate from 4800~115200bps
• Supports auto source detection with the latest input signal
• Speaker supports LPCM 2CH
DRAFT
3
6. OPERATION CONTROLS AND FUNCTIONS

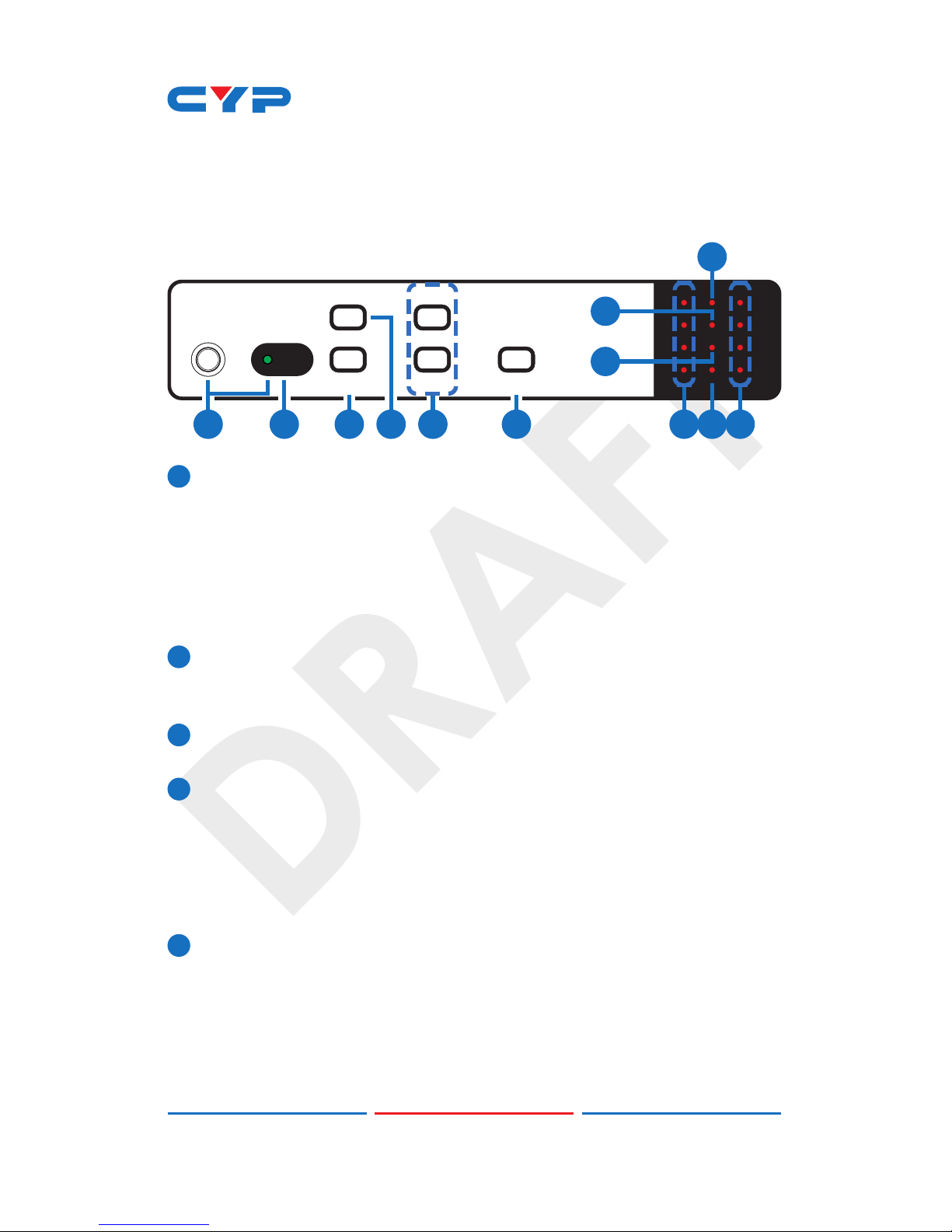

6.1 Front Panel
POWER
MUTE
+
-
IN
OPT.
11
22
33
4
SYNC
MUTE
IR 4
TRIG IN
OPTICAL
IN
HDMI
IN
1 2 3 4
7
6
5 6 2
3
4 8
1POWER Button and LED: Press this button to switch On or set the
device to standby mode. The LED will illuminate in green when the
device is power On and if it is switched to standby mode the LED
will turn red.
Note: For IP reset from Static to DHCP mode, press and hold the
power button for 3 seconds while the device is ON and the LED will
blink once.
2IR Window and LED: This IR Receiver receives the remote control
signal from the package included remote control only and the LED
will blink when IR signal is receiving.
3OPTICAL IN Button and LED: Press this button to select output audio
from optical source and the LED will illuminate.
4HDMI IN Button and LEDs 1~4: Press this button to select an input
from the input sources 1~4 and the LED will illuminate according to
the selection.
Note: For rmware update, press and hold this button then plug-
in the AC power into the device and then the USB ash driver with
updated rmware(s) inside.
5+/-: Press these buttons to adjust up/down the output audio sound.
DRAFT
4
6MUTE Button and LED: Press this button to mute the SPEAKER output
sound. The LED will illuminate when audio is set to mute either from
front-panel’s mute button, IR, Telnet, WebGUI or RS-232 and when
the input audio format is non-PCM the LED will be blinking. Press it
again to unmute and the LED will switch off.
Note: For restore back to factory default, press and hold this button
then plug-in the AC power into the device.
7SYNC LED: This LED will illuminate when the input detected HDMI
signal from source equipment.
8TRIGGER IN LED 1~4: These LEDs will illuminate when IN connection
obtain active low DC voltage of 0~0.5V which is also when signals
has been triggered. Under normal operation, the voltage is about
3.3V.
DRAFT
5

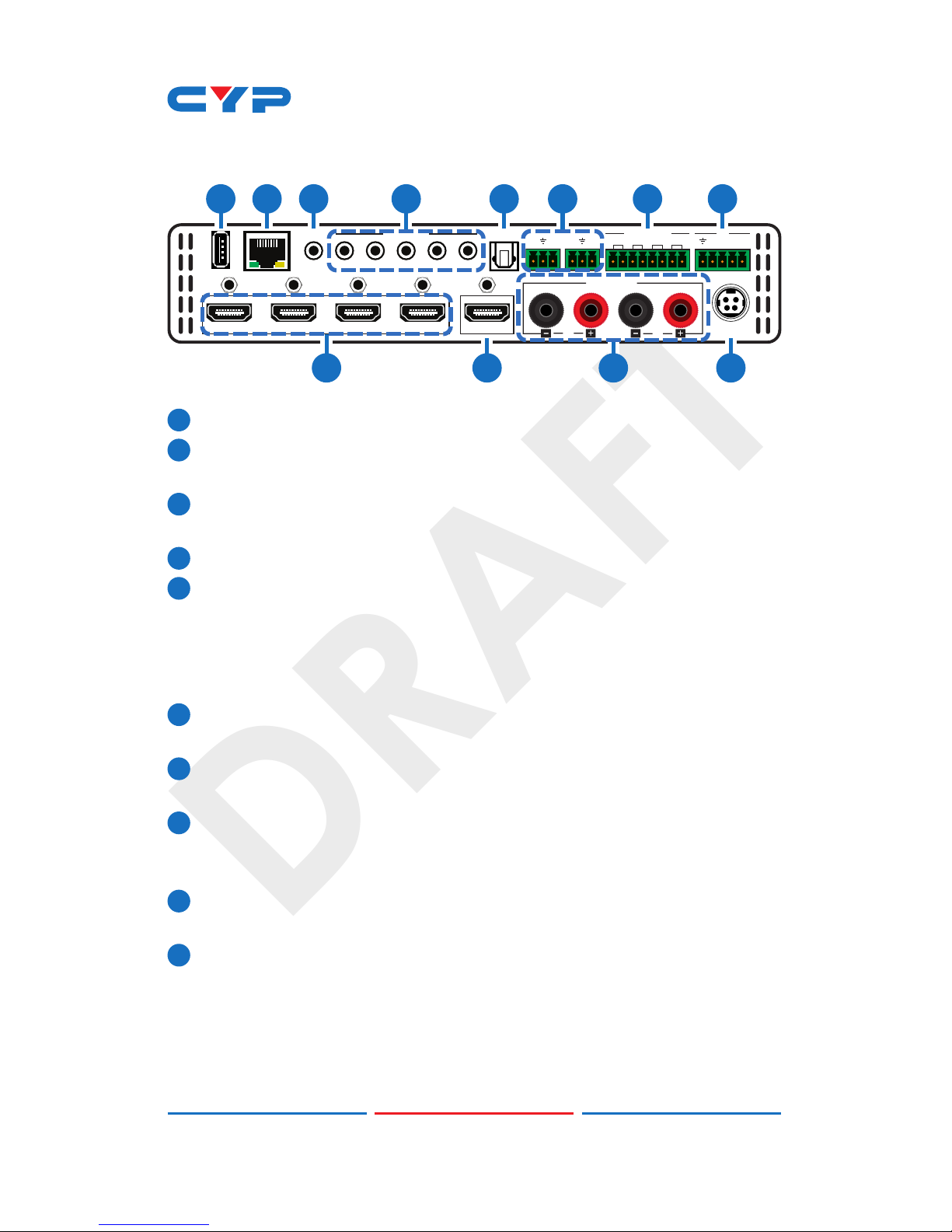

6.2 Rear Panel
12HDMI IN 34HDMI OUT
USB
RS-232
CONTROL
INFRARED OPT. IN RELAY OUTCOM 1 COM
2I
N
R1TX RX TX RX R2 R3
1234
R4
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5
RL
SPEAKER
DC 24V
5 6 12
1 2 3 4 7 8 9 10
11
1USB: This slot is reserved for rmware update use only.
2CONTROL: Connect from PC/Laptop with active internet service
for Telnet or WebGUI control with RJ-45 terminated cable.
3RS-232: Connect from PC/Laptop for RS-232 command sending to
control the device.
4INFRARED OUT 1~5: Connect with IR Blaster for IR signal transmitting.
5HDMI IN: Connect from source equipment such as Blu-ray/DVD/
PS3 players, Set-Top-Box or any HDMI equipped source device
for input signal sending. This device has source auto-detection
function from the latest input and when the latest input has been
pulled out it will follow the number sequence.
6HDMI OUT: Connect to HDMI TV/display or HD Amplier for output
image and or audio display.
7OPT. IN: This slot is to connect with audio source equipment such as
Blu-ray/PS3 player for audio signal input through optical cable.
8COM 1~2: Connect from other devices that are to be controlled
with 3.5mm terminal block cable for control through RS-232
commands.
9RELAY OUT R1~4: Connect with control device’s DC power such as
curtain or projector screen.
10 TRIGGER IN 1~4: Connect with event device’s signal lines such as
window security alarm, door switch, and etc… for trigger signal
sending back to Control System and or run the macro commands.
