CYP EL-41S-4K22 Manuel utilisateur
EL-41S-4K22
4-Way HDMI Switcher (4K, HDCP2.2, HDMI2.0, IR)
OPERATION MANUAL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
•
electrical shock and injury to persons.
•
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 03/10/16 Preliminary Release
RDV1a 02/10/16 Amends to YUV Colourspace
CONTENTS
1. Introduction..........................................................................1
2. Applications.........................................................................1
3. Package Contents ..............................................................1
4. System Requirements..........................................................2
serutaeF.5 ................................................................................2
6. Operation Controls and Functions.....................................3
6.1 Front Panel ......................................................................3
6.2 Rear Panel ......................................................................4
6.3 Remote Control..............................................................5
6.4 IR Pin Definitions..............................................................5
6.5 RS-232 Protocols .............................................................6
6.6 RS-232 Commands.........................................................7
6.7 Factory Default settings ................................................8
7. Connection Diagram ..........................................................9
8. Specifications ....................................................................10
9. Timing .................................................................................11
1
1
1. INTRODUCTION
This 4-Way HDMI Switcher is designed to enable the user to switch
between any of the four connected HDMI sources to send video and
audio to a single HDMI display. This switcher fully supports 4K
resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring
maximum compatibility with the latest 4K UHD sources and displays.
The EL-41S-4K22 supports all the latest features of the HDMI 2.0
specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR
(High Dynamic Range), 'Deep Color', and High Definition audio. In
addition, this switcher also features an Auto-Switching function which
detects the last active input and switches to this input automatically
for display. Control is via IR remote control and RS-232.
2. APPLICATIONS
• Demo Room Displays
• Hotel Lobby Information Displays
• Showrooms and Demo Rooms
• Public Commercial Displays
• Home Theaters
3. PACKAGE CONTENTS
• 4 by 1 HDMI Switcher
• 5V/2.6A DC Power Adaptor
• Operation Manual
• IR Remote control (battery included)
2
2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as UHD media players, video
game consoles or set-top boxes.
• HDMI receiving equipment such as HDTVs, monitors or audio
amplifiers.
• The use of “Premium High Speed HDMI” cables is highly
recommended.
5. FEATURES
•HDMI2.0, HDCP 2.2 and DVI compatible
•Supports 4 HDMI inputs and 1 HDMI output
•Supports CEC pass-through
•Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 &
4096x2160 @24/25/30/50/60Hz) including HDR
•Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital
2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and
DTS-HD Master Audio
•Supports control via IR remote and RS-232
•Supports Auto-switching which can send the signal of the latest active HDMI
input source to output port
•3D signal support (with 3D source and compatible 3D TV)
3
3
6. OPERATION CONTROLS AND FUNCTIONS

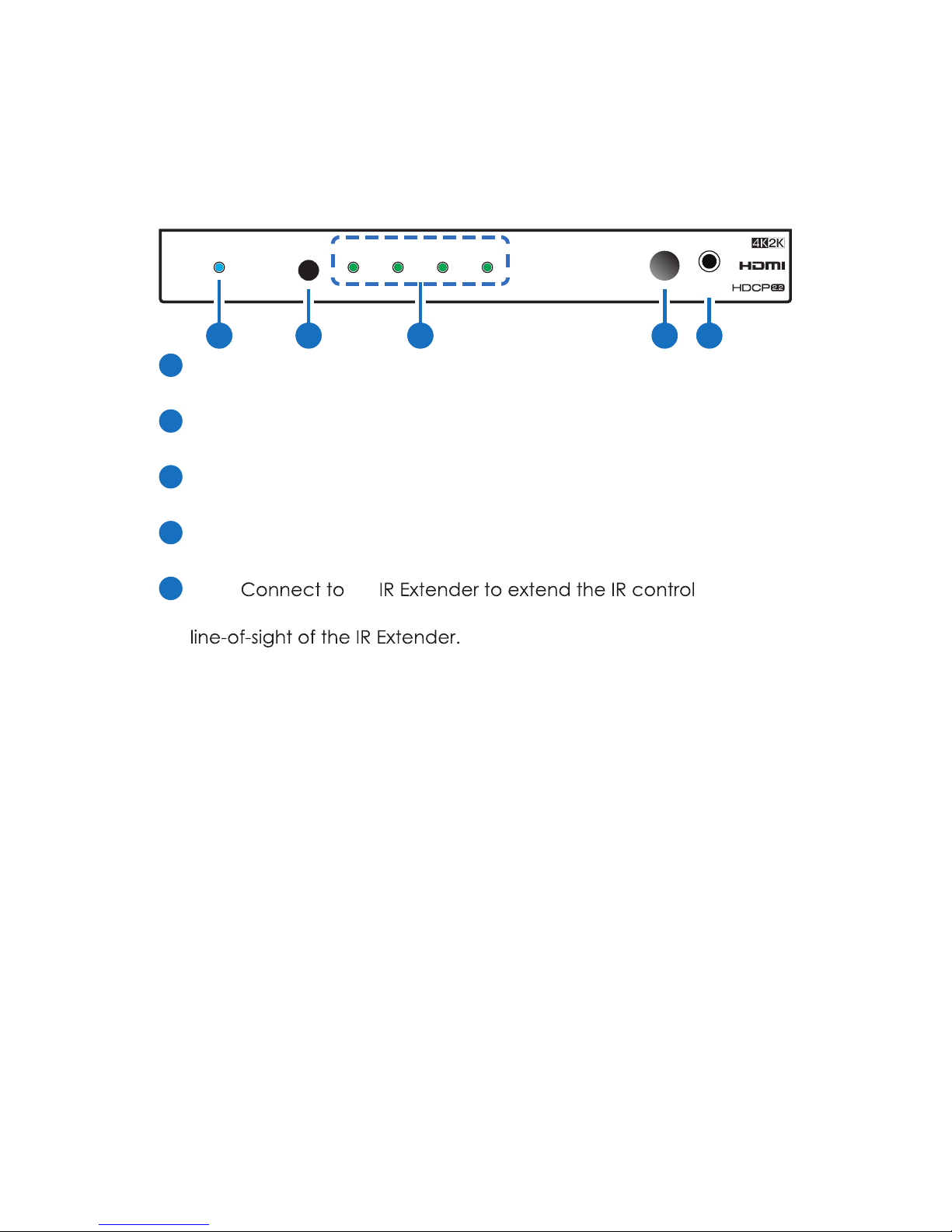

6.1 Front Panel
POWER
IR IN
123 4INPUT
321 4 5
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2INPUT: Press this button to sequentially switch through the available
inputs.
31~4: The illuminated LED indicates which source is currently
selected.
4IR Window: Accepts IR signals from the included IR remote for
control of this unit only.
5IR IN: an
range of the unit. Ensure that the remote being used is within direct
POWER
IR IN
123 4INPUT
321 4 5
•HDMI2.0, HDCP 2.2 and DVI compatible
•Supports 4 HDMI inputs and 1 HDMI output
•Supports CEC pass-through
•Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 &
4096x2160 @24/25/30/50/60Hz) including HDR
•Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital
2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and
DTS-HD Master Audio
•Supports control via IR remote and RS-232
•Supports Auto-switching which can send the signal of the latest active HDMI
input source to output port
•3D signal support (with 3D source and compatible 3D TV)
4
4

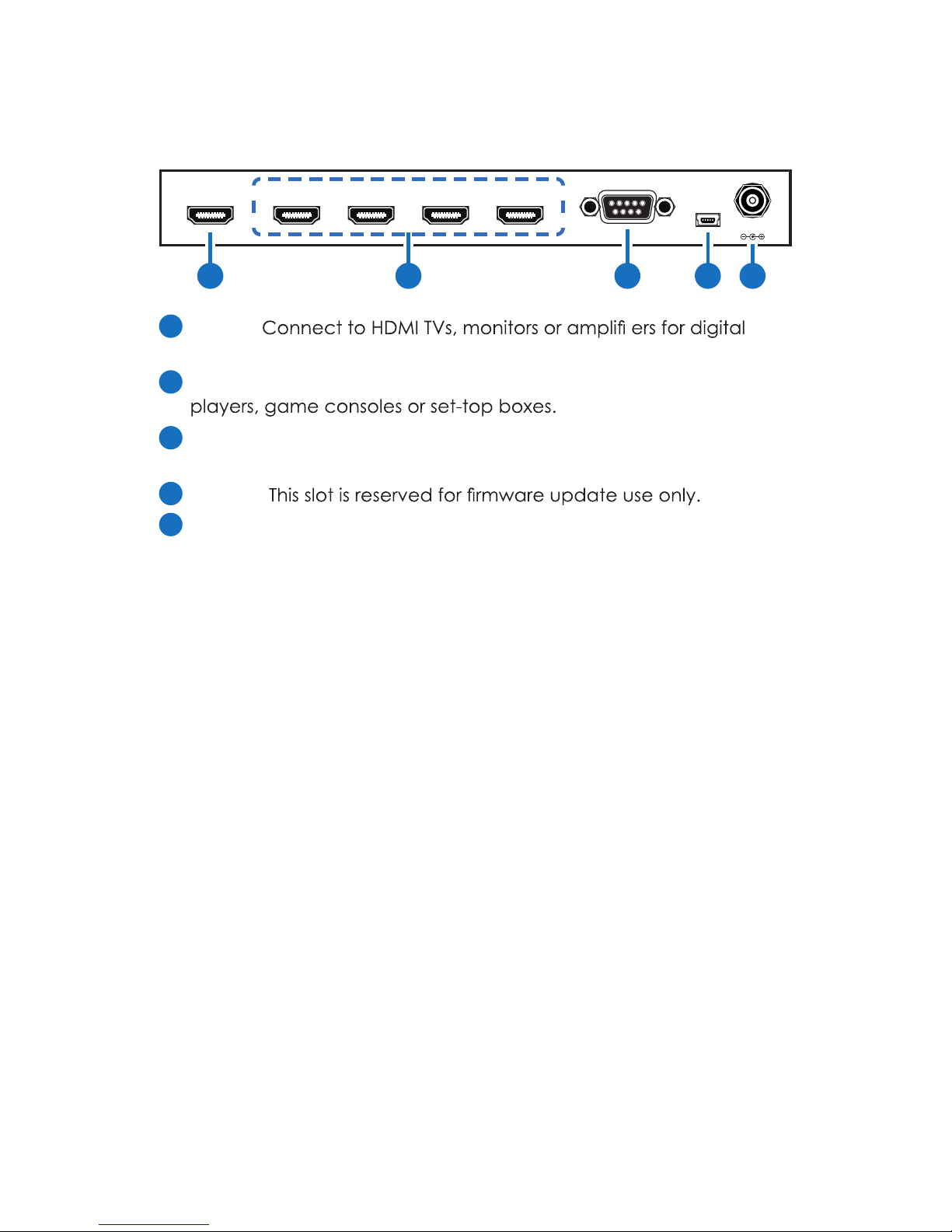

6.2 Rear Panel
INPUT 4 INPUT 3 INPUT 2 INPUT 1
RS-232
SERVICE
DC 5V
OUTPUT
1 2 3 4 5
1OUTPUT:
video and audio output.
2INPUT 1~4: Connect to HDMI source equipment such as media
3RS-232: Connect directly to your PC/laptop to send RS-232 commands
to control the unit (refer to Sections 6.5 & 6.6 for details).
4SERVICE:
5DC 5V: Plug the 5V DC power adapter into the unit and connect it to
an AC wall outlet for power.
s 6.5 & 6.6 for details).
5
5

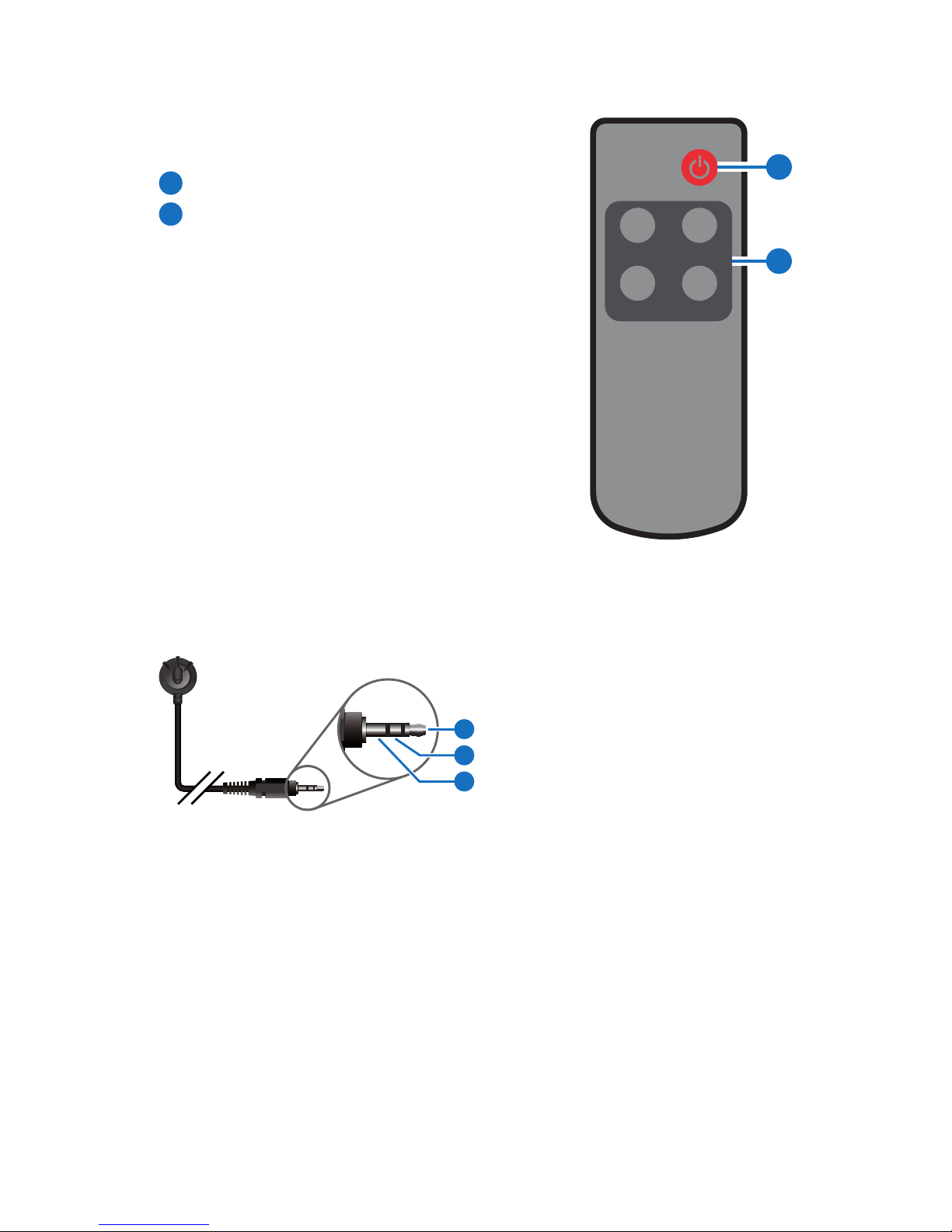

6.3 Remote Control
1POWER: No function
2INPUT 1~4: Press any of these buttons to
switch to the corresponding input.
6.4 IR Pin Definitions
3
1
2
3
2
1
IR Signal
Power
Ground
IR Extender
CR-72
POWER
INPUT
3 4
1 2
1
2
s 6.5 & 6.6 for details).
6
6
6.5 RS-232 Protocols
MATRIX
►
◄
REMOTE CONTROLLER
PIN Definition PIN Definition
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 115200bps
Data bits: 8
Parity: None
Flow Control: None
Stop Bits: 1
