CYP CPLUS-V3H1H-TB Manuel utilisateur

CPLUS-V3H1H-TB

UHD+3×1 HDMI Switcher Table Box

Operation Manual

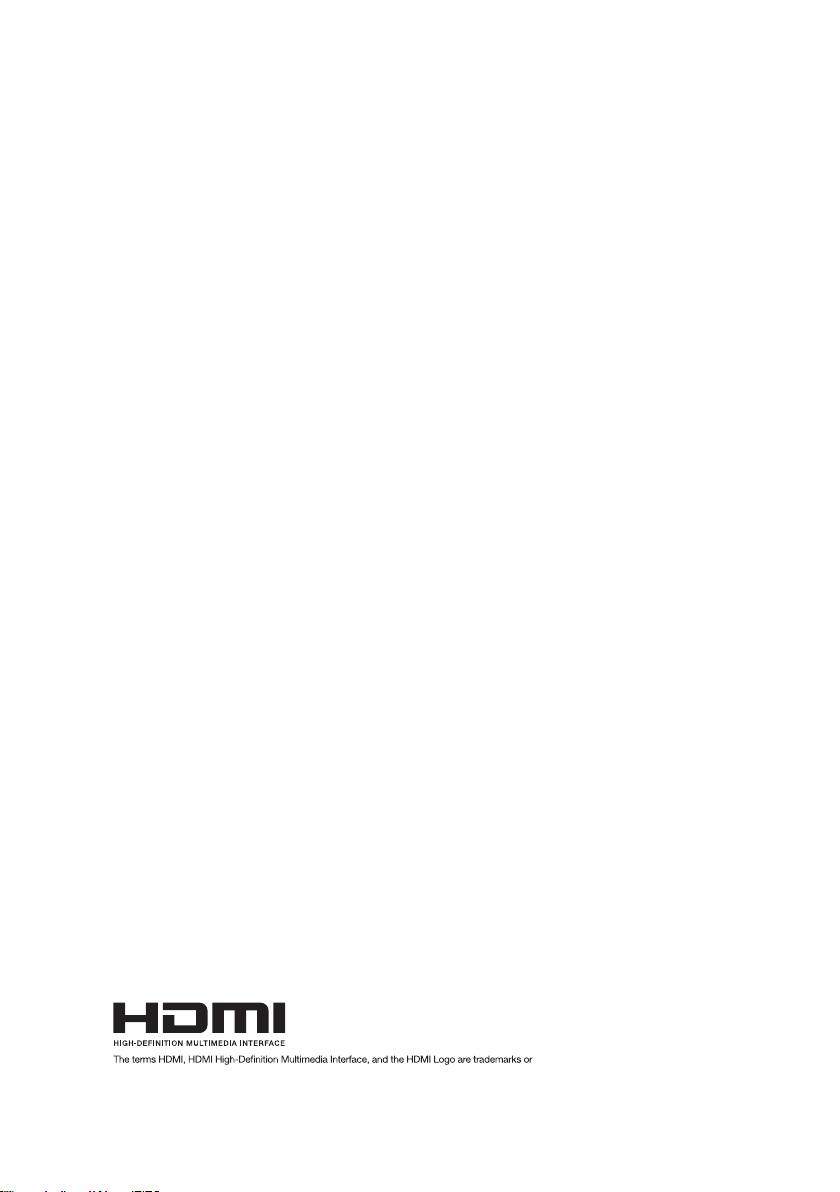

registered trademarks of HDMI licensing Administrator, Inc.

DISCLAIMERS

The information in this manual has been carefully checked and is believed

to be accurate. Cypress Technology assumes no responsibility for any

infringements of patents or other rights of third parties which may result from

its use.

Cypress Technology assumes no responsibility for any inaccuracies that

may be contained in this document. Cypress also makes no commitment to

update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express written

permission and consent from Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document are trademarks of

the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply. Please keep the

following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain, moisture

or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings

or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it

is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to

be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings

in the unit housing that provide ventilation and allow for su󰀩cient space

for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in use to

avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2019/09/19 Preliminary release

CONTENTS

1. Introduction...................................................... 1

2. Applications ..................................................... 1

3. Package Contents ........................................... 1

4. System Requirements..................................... 1

5. Features............................................................ 2

6. Operation Controls and Functions ................ 3

6.1 Front Panel.................................................. 3

6.2 Rear Panel................................................... 4

6.3 Side Panel ................................................... 4

6.4 RS-232 Pinout and Defaults........................ 5

6.5 Serial Commands........................................ 6

7. Connection Diagram ....................................... 9

8. Specications ................................................ 10

8.1 Technical Specications ............................ 10

8.2 Video Specications .................................. 11

8.3 Audio Specications .................................. 13

8.3.1 Digital Audio ..................................... 13

8.4 Cable Specications.................................. 13

9. Acronyms ....................................................... 14

1. INTRODUCTION

This UHD+ 3×1 HDMI Switcher Table Box features three HDMI inputs and

one HDMI output with manual or automatic source switching. Every input and

output supports full bandwidth 4K@60Hz (4:4:4, 8-bit) HDMI 2.0 with HDCP

2.2 signals. Automatic source management allows for hands-free switching

based on input signal and hot plug detection with a “Last Memory” switching

feature upon signal loss. This switch is an ideal addition to any conference

room, lecture hall or home entertainment setup with its portable and easy to

install design. The table box is designed to be placed on a table, or mounted

to any typical table edge using a clamp. Control is via a front panel button

and RS-232.

2. APPLICATIONS

• Conference rooms and boardrooms

• Lecture halls, auditoriums and classrooms

• Household entertainment sharing and control

• Hotel event spaces

3. PACKAGE CONTENTS

• 1× UHD+ 3×1 HDMI Switcher Table Box

• 1× 5V/1A DC Power Adapter (2-pin Terminal Block)

• 1× Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI source equipment such as media players, video game consoles or

set-top boxes.

• HDMI receiving equipment such as an HDTV, monitor or audio amplier.

• The use of Premium High Speed HDMI cables is highly recommended.

5. FEATURES

• HDMI 2.0 and DVI 1.0 compatible

• HDCP 1.x and HDCP 2.2 compliant

• 3 HDMI inputs, 1 HDMI output

• Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input

and output

• Supports Deep Color input and output up to 12-bit

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

• Supports pass-through of many audio formats including 8 channel LPCM,

Bitstream, and HD Bitstream

• Supports manual input selection or automatic input selection with hot plug

detection and “Last Memory” feature

• Sophisticated EDID management ensures optimal compatibility

• LED indicators provide input selection as well as automatic switch status

information

• Convenient table box design

• Control via front panel button and RS-232

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

HDMI 1 HDMI 2 HDMI 3 IN SEL.

AUTO1 2

HDMI

3 x 1 HDMI SWITCHER

1 2

3 4

1HDMI 1~3 Ports:Connect to HDMI source equipment such as media

players, game consoles or set-top boxes.

2IN SEL. Button: Press this button to sequentially switch through the

available inputs or select auto switch. This button will also illuminate to

indicate the unit is on and receiving power.

Note: The sequence is: HDMI 1 > HDMI 2 > HDMI 3 > Auto > HDMI 1

3AUTO LED: This LED will illuminate when the auto switch function is

active. While active, the input source will be selected based on the most

recently connected live source.

4HDMI 1~3 LEDs: The LED of the currently selected input will illuminate

green. When an input has an active source, but is not currently selected,

it will illuminate red. When no source is detected the LED will remain o󰀨.

6.2 Rear Panel

HDMI OUT

RS-232

DC 5V

123

1HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for digital

video and audio output.

2RS-232 Port: Connect directly to a PC, laptop, or other serial control

device with a 3.5mm mini-jack adapter cable to send RS-232 commands

to control the unit.

3DC 5V 2-pin Terminal Block: Connect a 5V DC power adapter into this

terminal block and connect it to an AC wall outlet for power.

6.3 Side Panel

1Micro USB Port: This port is reserved for rmware update use only.

6.4 RS-232 Pinout and Defaults

Serial Port Default Settings

Baud Rate 19200

Data Bits 8

Parity Bits None

Stop Bits 1

Flow Control None

3.5mm to DE-9

dapter Cable

RxD

TxD

GND
