OPERATION MANUAL

EL-41SY

4 in, 1 out

v1.3 HDMI Switcher

1. Introduction 1

2. Features 1

3. Package Contents 1

4. Operation Controls and Functions 2

4.1 Front Panel Diagram 2

4.2 Rear Panel Diagram 3

5. Remote Control 3

6. Connection Diagram 4

7. Specication 5

Table of Contents

Finden Sie ab Seite 7.

1. Introduction

The EL-41SY is a high performance HDMI switcher with IR control.

It allows you to connect up to four hdmi sources to a single hdmi input on a HDTV.

A simple remote control selects your required HDMI source for display on the HDTV.

2. Features

• v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.

• Supports ‘Deep Colour’ (10/12/16 bit)

• Supports High Denition audio - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus

and DTS-HD master audio.

• Auto Signal Enhancement feature can improve signal quality after long distance

transmission.

• LED indicators.

• Ideal for home theatre integration.

• Supports high resolution input:

PC: VGA, SVGA, XGA, SXGA, UXGA (1600 x 1200) & WUXGA (1920 x 1200).

HDTV: 480i, 480p, 576i, 576p, 720p, 1080i,1080p and 1080p24fps

• Infra red control via supplied remote.

• Easy to install and simple to operate.

3. Package Contents

• EL-41SY

• 5V DC power supply adaptor.

• Operation Manual.

Page 1

Page 2

4. Operation Controls and Functions

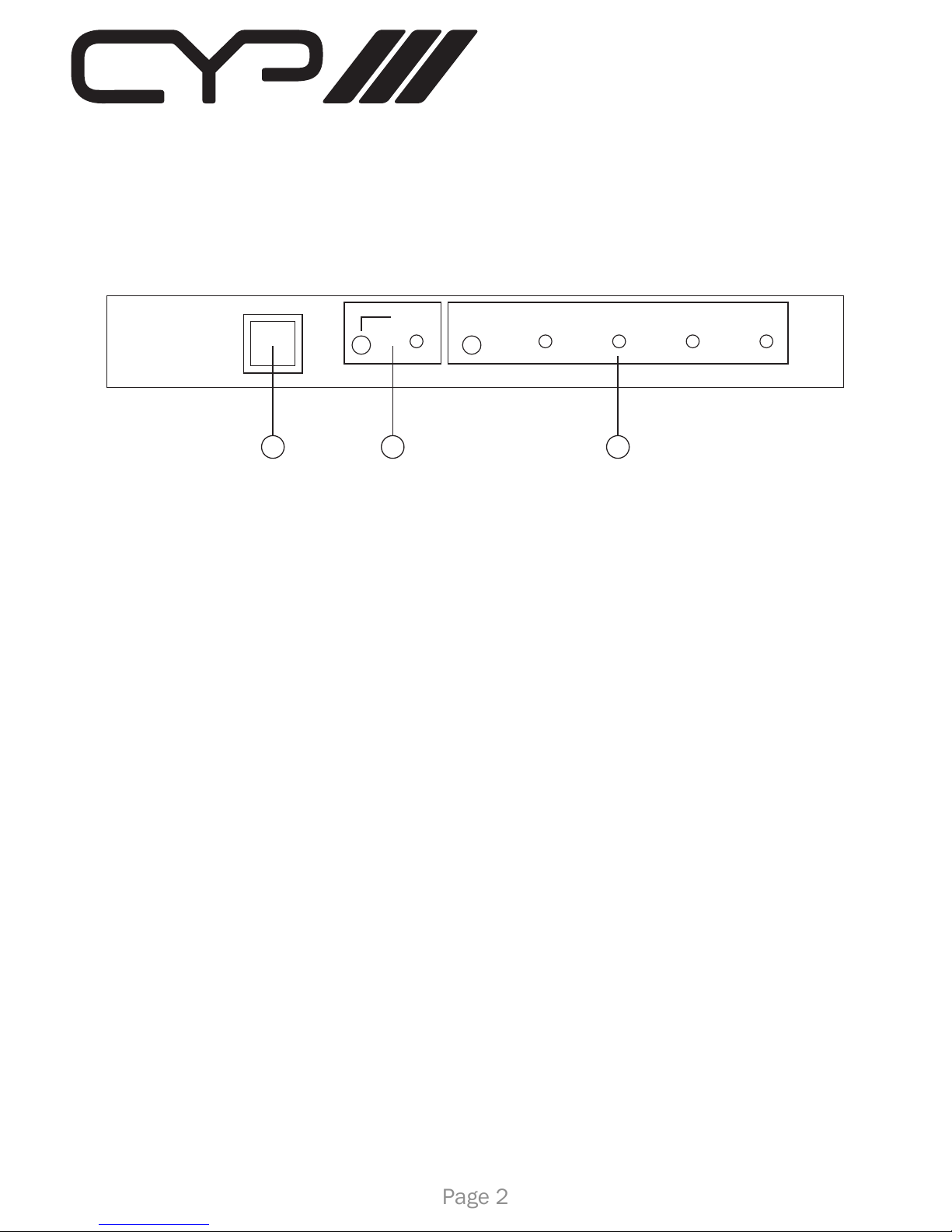

4.1 Front Panel

1. Remote control sensor.

2. Power LED Indicator/ Power Button: The LED will illuminate when the

power is turned on. Press the power button to switch the unit On/Off.

3. Input select Button/Indicators: Press the “INPUT” button repeatedly

to cycle through the inputs to your required input source. The relevant

LED will illuminate to indicate which input source has been selected.

EL-41SY

POWER INPUT IN1 IN2 IN3 IN4

1 2 3

Page 3

4.2 Rear Panel

1. HDMI output: Connect the HDMI output of the unit to the HDMI input

of your display using a HDMI cable.

2. HDMI inputs: Connect your various HDMI sources to the 4 HDMI

inputs using HDMI cables.

3. Power: Plug the 5VDC power supply into the unit and connect the

adaptor to an AC wall outlet.

5. Remote Control

1. Power: Press to turn the unit On/Off

2. Direct input selector: Press 1, 2, 3 or 4 to

select the required input source.

3. These buttons have no function for this

model.

CR-22

OUTPUT IN3 IN2 IN1

DC 5V

IN4

21 3

6. Connection Diagram

Page 4

Input Ports 4 x HDMI female ports

HDCP Version v1.1

Output Port 1 x HDMI female port

HDMI Specication v1.3

Frequency bandwidth 2.25Gbps

Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL Certied)

Dimensions (mm) 200 (W) x 104 (D) x 25(H)

Chassis Colour Black

Chassis Material Aluminium

Operating Temperature Operating from 0°C ~ 48°C

Gross Weight (g) 900

Net. Weight (g) 600

7. Specications

Page 5

www.cypeurope.com

Page 6
