Creality CR-10 S5 Manuel utilisateur

3D Printer User Manual

V.6.6

CREATE REALITY，ACHIEVE DREAMS

CR-10 S5

Thank you for choosing our products.For the best experience,please read the instructions before operating the

Printer. Our teams will always be ready to render you the best services. Please contact us via the phone number

or e-mail address provided at the end when you encounter any problem with the printer.

For a better experience in using our product, you can also learn how to use the printer in the following ways:

View the accompanied instructions and videos in the storage card.

Visit our oﬃcial website www.creality.com to ﬁnd relevant software/hardware information,contact details，

operation and maintenance instructions.

Dear Consumers,

Firmware Upgrade

Please login the oﬃcial website https://www.creality.com/download, switch the language and select the relevant printer and

model and download the required ﬁrmware.

NOTES

Do not use the printer any way other than described herein in order to avoid personal injury or property damage.

Do not place the printer near any heat source or ﬂammable or explosive objects. We suggest placing it in a well-ventilated, low-dust

environment.

Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.

Please use recommended resin to in case damage of machine.

Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.

Please do not open the plastic cover during usage, otherwise the printing will be interrupted.

Do not wear cotton gloves when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns,

possible bodily injury, or printer damage.

Please wait a moment after the print is ﬁnished. And please wear gloves to take out the print by tools.

Children under 10 years should not use the printer without supervision.

This machine is equipped with a security protection mechanism. Do not manually move the nozzle and printing platform mechanism

manually while booting up, otherwise the device will automatically power oﬀ for safety.

Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide

by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes.

Creality will not be responsible for any violators' legal liability under any circustance.

Clean the printer frequently. Always turn the power oﬀ when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics

or any other material oﬀ the frame,guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface.

Introduction 01-03

General List 04-04

Device Installion 05-06

Contents

08-08

Loading Filament

09-09

Platform Adjustment 10-10

07-07

11-11

12-12

Screen Information

First Printing

V wheel leveling

Software Installation

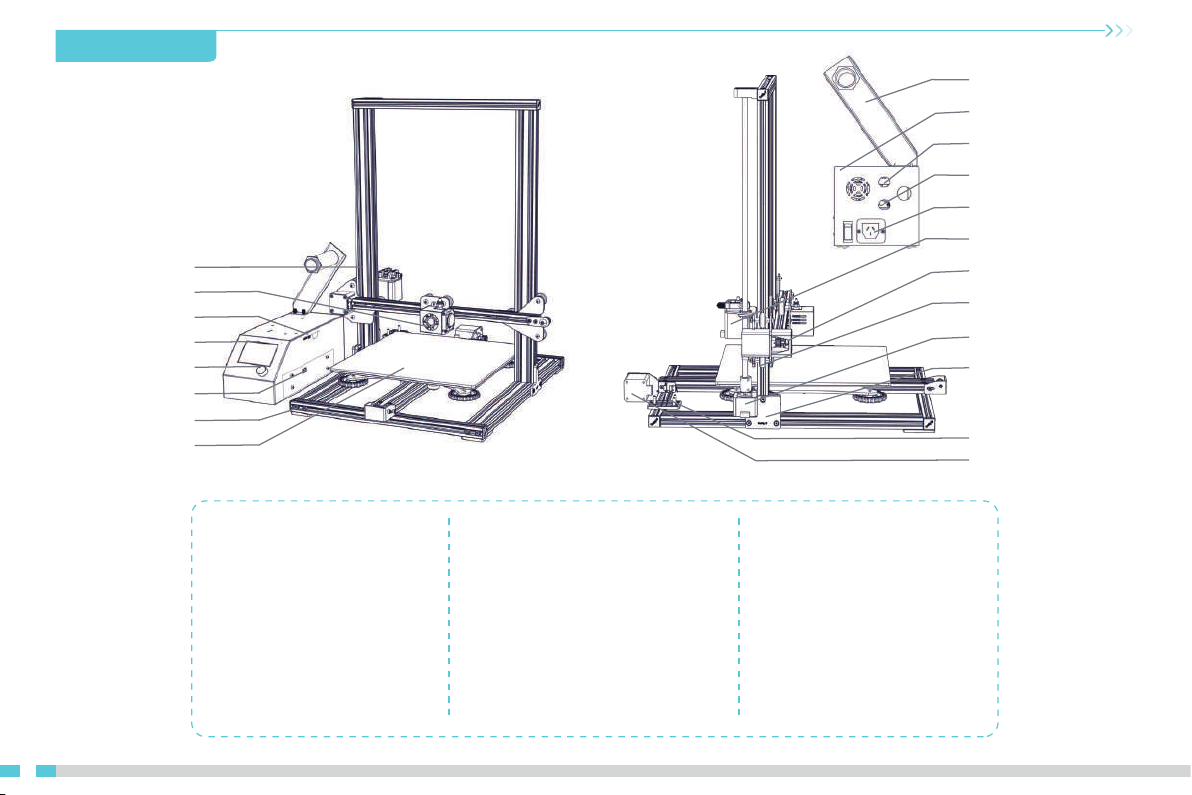

1. Introduction

Display Screen

TF Slot and USB Port

Nozzle Kit

Z Gantry Frame Platform

Filament Holder

Control Box

Nozzle Assembly

Connectiom

Platform Connection

Power Cable Connection

Extruder(E) Stepper

X Limit Switch

Z Limit Switch

Y Limit Switch

X Stepper

Z Stepper

Y Stepper

Control Knob

Voltage Selection

Base Frame

2. Equipment parameters

Basic Parameters

Model CR- 10 CR- 10S CR- 10 S4 CR- 10 S5 CR- 10mini

Printing Size 300*300*400mm 300*300*400mm 400*400*400mm 500*500*500mm 300*220*300mm

Molding Tech. FDM

Nozzle Number 1

Slice Thickness 0.1mm- 0.4mm

Nozzle Diameter Standard 0.4mm

Precision ±0.1mm

Fliament 1.75mm PLA

File Format STL/OBJ/AMF

Working Mode Online or TF card offline

Slice Software Creality Slicer/Cura/Repetier- Host/Simplify3D

Power Supply Input:AC 115V/230V 50/60Hz

Output:DC 12V

Total Power 270W 270W 27 0W 270W 270W

Bed Temp. ≤100℃ ≤100℃ ≤60℃ ≤60℃ ≤100℃

Nozzle Temp. ≤250℃

Resume Print NO Yes Yes Yes Yes

Filament Detector NO Yes Yes Yes NO

Daul Z- Axis NO Yes Yes Yes NO

NOlanguage Selection NO EN/CN

Operating System Windows XP/Vista//7/8/10 MAC/Linux

Printing Speed ≤180mm/s，Normal 30- 60mm/s

Connect the aviation connectors to the

ports with corresponding pins

Y Stepper and Limit Switch

Extruder (E) Stepper

X Stepper and Limit Switch

Z Stepper and Limit Switch

Connect the Stepper Motors according to

the yellow labels on the 6pin (4- wire) side.

Connect the Limit Switches according to the

yellow labels on the 3pin (2- wire) side.

• Select the correct input voltage to match your local

mains (230V or 115V)

• Damage can occur if voltage is set incorrectly.

• Make sure the power cable is connected.

3.Introduction

Tool list

Tool Box Control Box

No. Image Name Qty No. Image Name Qty No. Image Name Qty

1 Spool & Nuts 1 7 Power Cable 1 13 Spade 1

2 Spool Holder 1 8 USB Cable 1 14 Cable Ties 1

TF Card & Card

Reader 19 PTFE Tubing

(spare part) 115 Hex keys, Wrench

& Screwdriver 1

4 T- Bracket (Right) 1 10 Nozzle Cleaner 1 16 Spare Parts 1

T- Bracket

& Z Limit Switch

(Left)

111 Filament（200g） 1 17 Decorative Strip 1

6M5X25 Bolt & Lock

Washer 4 12 Diagonal Pliers 1 18 Thumb Screw 3

Base Frame Gantry Frame

*CR- 10 mini without T- Bracket (Right) & Decoration Strip.

4.General List

Tips: the above accessories are for reference only, please refer to the physical accessories!

Note: M ake sure that the nut for

prof ile has bee n turned by 9 0 °

before fastening the

T- shaped fixing block.

M5X25

4pcs *CR- 10 mini without T- Bracket (right).

Install the Gantry Frame

Install the T- shaped fixing block.

5.Device Installtion


