Dear customer,

The product user guide contains product features, how to use, and the operating

procedure. Read the user manual carefully to get the best experience and avoid

unnecessary damage. Keep this manual for future reference. If you have any questions

or comments about the device, please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Notes

•Do not use the printer any way than described in order to avoid personal injury or

property damage.

•Do not place the printer near any heat source or explosive objects. We suggest

placing it in a well-ventilated, low-dust environment.

•Do not expose the printer to violent vibration or any unstable environment, as this

may cause poor print quality.

•Before using experimental or exotic filaments, we suggest using standard filaments

such as ABS or PLA to calibrate and test the machine.

•Do not use any other power cable except the one supplied. Always use a grounded

three-prong power outlet.

•Do not touch the nozzle or printing surface during operation as they may be hot

keep hands away from machine while in use to avoid burns or personal injury.

•Do not wear gloves or loose clothing when operating the printer. Such clothes may

become tangled in the printer moving parts leading to burns, possible bodily injury,

or printer damage.

•When cleaning debris from the printer hotend, always use the provided tools. Do

not touch the nozzle directly when heated. This can cause personal injury.

•Clean the printer frequently. Always turn the power off when cleaning, and wipe

with a dry cloth to remove dust, adhered printing plastics or any other material off

the frame, guide rails or wheels. Use glass cleaner or isopropyl alcohol to clean the

print surface before every print for consistent results.

•Children under 10 years of age should not use the printer without supervision.

•This machine is equipped with a security protection mechanism. Do not manually

move the nozzle and printing platform mechanism manually while booting up,

otherwise the device will automatically power off for safety.

•Users shall comply with related nation and region’s laws, regulations and ethical

codes where the equipment or produced prints by it is used, and users of our

product shall not use a foresaid products to print any end-use products, objects,

parts or components or any other physical prints that violate the national regional

laws, regulations and ethical codes where herein referred product and produced

prints by it is located.

Introduction

1X motor

2 Nozzle kit

3Printing platform

4Bed leveling nut

5Belt tensioning

screw

6Manual power

switch

7X axis limit switch

8Extruder

9Y motor

10 Material rack and

material tube

11 Knob screen

12 Knob

13 Storage card slot

and USB socket

14 Y-axis limit

adjustment

component

15 Z axis belt motor

16 Power cable

connection

































Parameters

Model

3DPrintMill

Print size

Infinite length *200*170mm

(length*width*height)

Moulding technology

FDM

Number of nozzle

Layer thickness

0.1mm-0.4mm

Nozzle Diameter

Standard 0.4mm

XY axis precision

±0.1mm

Filament

PLA/TPU/PETG

File Format

STL/OBJ/AMF

File transfer

Storage card

Compatible slicing software

CrealityBelt

Power specification

Input:100-120/200-240V 50/60Hz Output:

24/14.6A

Total Power

350W

Hotbed temperature

0-100°C

Nozzle temperature

0-240°C

Resume printing function

Yes

Filament sensor

Yes

Dual z-axis screws

Language switch

English

Computer operating system

Windows XP/Vista/7/10

Print Speed

⩽180mm/s,30-60mm/s normally

Parts List

1 X/Y axis belt

assembly x1

2 Bottom

belt

assembly x1

3 Display

kit x1

4 Spool holder

5Filament x1

6 Profile bracket 1

7 Profile bracket 2 x1

Accessory tool list

8Storage card and card

reader x1

9 Diagonal pliers x1

10 Cable tie x 10

11 Needle x 1

12 Blue line claw

x 2

13 Pneumatic connector

x 2

14 Power cord x 1

15 Wrenches and

screwdrivers x 1

16 M5T nuts x 6

17 Photoelectric switch

line x 1

18 Hexagon socket flat

round head screw M5X8

x 6

19 Hexagon socket flat

round head screw

M5X12 x 6

20 Hexagon socket flat

round head screw

M5X18 x 10

21 Hexagon socket

head spring washer

combination screw

M5X45 x4

22 Hexagon socket

head spring washer

combination screw

M5X12 x 4

23 Teflon tube x 1

24 Nozzles x 2

25 Socket wrench

x 1

26 Feeler x 1

*Tips: the above accessories are for reference only, please refer to the physical

accessories !

Install the Profile Support Frame

2Bottom belt

assembly x 1

6 Profile bracket 1

x 1

7 Profile bracket 2

x 1

19 Hexagon socket

flat round head

screw M5X12 x 4

Step: Install the profile support 1 and profile support 2 to the bottom of machine

with four hexagon flat head screws M5x12 (As shown in the figure above).

Install X/Y Axis Belt Assembly

1 X/Y axis belt

assembly x 1

20 Hexagon socket

flat round head

screw M5X18 x 8

22 Hexagon socket

head spring washer

combination screw

M5X12 x 2

21 Hexagon socket

head spring washer

combination screw

M5X45 x2

Install with M5 * 45 socket head cap

screws with spring washer.

Install the Spool Holder

4 Spool holder x 1

16 M5T nuts x 2

18 Hexagon socket flat

round head screw M5X8 x 2

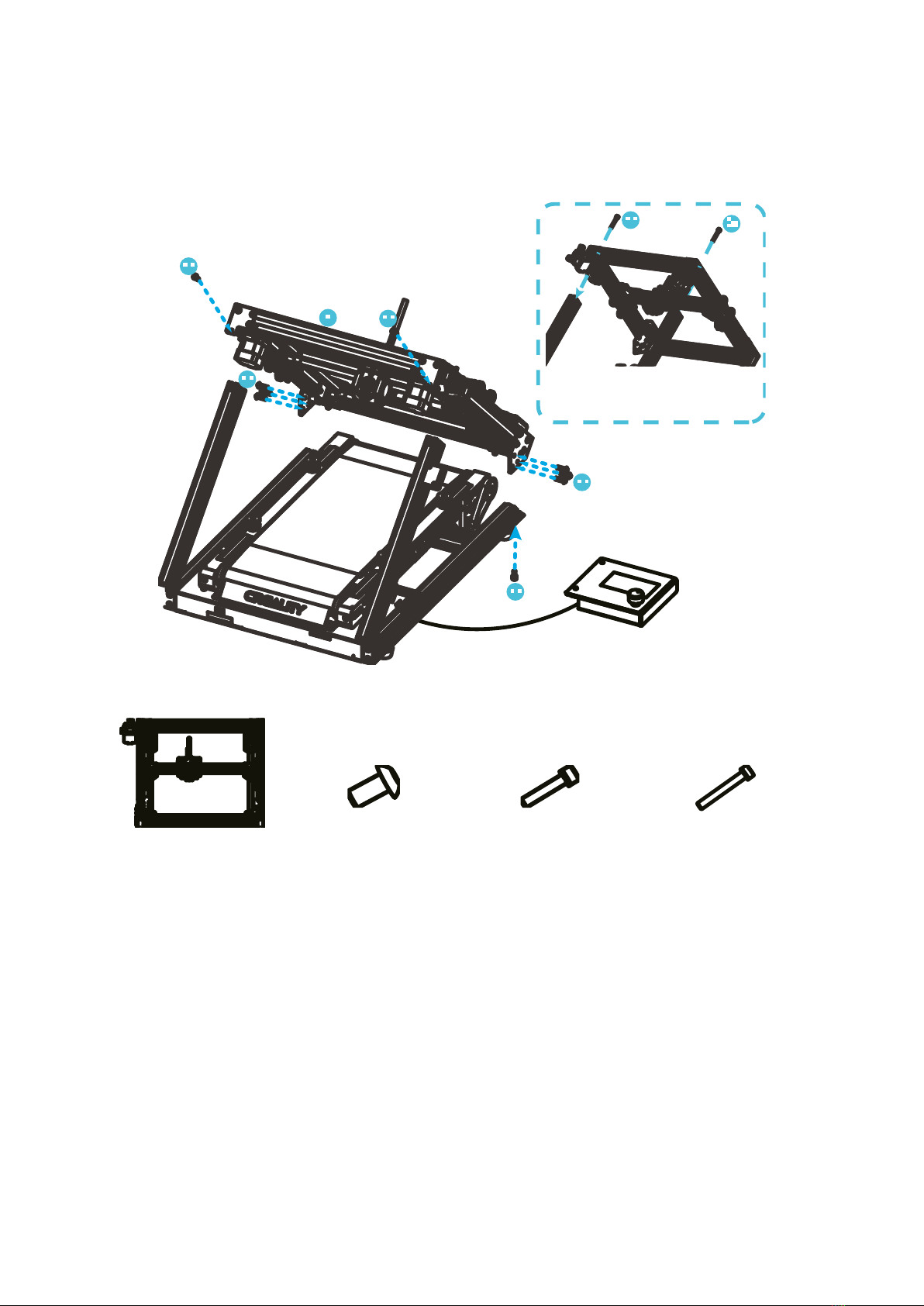

Install the Display

16 M5T nuts M5 T x 2

18 Hexagon socket flat round head screw

M5X8 x 2

Step: Lock the display assembly with two M5X8 flat head screws and two M5 T-nuts,

as shown in the figure above;
