ZYYX Pro II Manuel utilisateur

User Manual - English - v2022.4A

ZYYX article number: D2.0412

User's Manual

The ZYYX Pro II

The fume free desktop 3D Printer

Version 2022.4A

NOTICE

Microsoft and Windows are trademarks of Microsoft Corporation, registered in the United States

and other countries.

Apple and OS/X are trademarks of Apple Inc., registered in the U.S. and other countries.

Linux is a registered trademark of Linus Torvalds.

Ubuntu is a registered trademark of Canonical Ltd.

Notice

This document is copyrighted and contains proprietary information that is the

property of ZYYX Labs AB. This document is subject to change without notice.

ZYYX Labs AB reserves all rights to make changes in the ZYYX Pro II 3D printer

and the information in this document without prior notice.

ZYYX Labs AB assumes no responsibility for any errors or consequential

damages that may result from the use or misinterpretation of any information

contained in this document.

Content of this document may not be reproduced for any other purpose than

supporting the use of the ZYYX products without prior written consent of ZYYX

Labs AB.

ZYYX Labs AB

Britta Sahlgrens gata 1

SE-421 32 VÄSTRA FRÖLUNDA

Sweden

Phone: Int. +46 31 799 57 17

E-mail

sales@zyyxlabs.com

support@zyyxlabs.com

Contact Information -

World Headquarters

www.zyyxlabs.comWeb site:

III

ZYYX - User Manual

Shipping Address:

ZYYX Labs AB

Britta Sahlgrens gata 1

SE-421 32 VÄSTRA FRÖLUNDA

Sweden

This page is intentionally blank.

Version 2022.4A

Contents

ZYYX - User Manual

Table of Contents

........................................................................................... 21. Getting Started

............................................................................................................ 21.1 Specifications

............................................................................................................ 31.2 Unpacking Your Printer

............................................................................................................ 41.3 What Is Included?

............................................................................................................ 61.4 Before Starting the ZYYX Pro II for the First Time

........................................................................................... 62. Product Overview

............................................................................................................ 82.1 User Interface

..................................................................................................................82.1.1 Keyboard Operation

............................................................................................................ 82.2 Setting Up the ZYYX Pro II Printer

............................................................................................................ 102.3 Setting Up the Simplify3D Slicer Software and ZYYX Pro II Profiles

............................................................................................................ 112.4 Slicing a First Print File

............................................................................................................ 132.5 Printing

............................................................................................................ 142.6 SwiftTool24s

............................................................................................................ 152.7 Swapping SwiftTools

............................................................................................................ 162.8 Filament Handling

............................................................................................................ 172.9 Tips and Tricks

..................................................................................................................182.9.1 Maintenance

..........................................................................................................182.9.1.1 Build-Plates

..........................................................................................................182.9.1.2 Air Filter Cartridge Ultra

..........................................................................................................192.9.1.3 Monthly Cleaning Routine

..........................................................................................................192.9.1.4 Adjusting Z-Axis Offset

........................................................................................... 193. Troubleshooting

........................................................................................... 204. Warranty

........................................................................................... 215. Standards and Compliances

............................................................................................................ 225.1 Manufacturer Declaration of Conformity

............................................................................................................ 235.2 Filament Safety Data Sheet (SDS)

................................................................................................... 24Index

ZYYX - User Manual

1. Getting Started

Specifications

Version 2022.4A

1 Getting Started

Specifications1.1

Print technology

Fused Filament Fabrication (FFF)

Build volume

285×235×210 mm

Filament diameter

1.75 mm

Nozzle diameter

Variable with exchangable SwiftTool

Max resolution

50 µm layer thickness, 11 µm XY positioning

Speed

up to 150 mm/s print speed, 200 mm/s travel speed

Printing temperature

100 - 275 °C

Chamber temperature

room - 75 °C

Filament types

proNylon, proCarbon, proGlass

Additional filament types

ZYYX-PLA, ZYYX-ASA, ZYYX ABS, ZYYX-FLEX, ZYYX-PETG, ZYYX-PETG-CF

(available with optional with Multi-Material Extension Kit)

Interfaces

USB, SD Card, Ethernet

Stepper motor type

1.8° Step angle, 1/16 micro stepping

Build surface (plate)

MagFlex glass build-platform with to spring-steel top layers.

Firmware

Custom Sailfish Open Source FW

Desktop software

Simplify3D or Cura

Computer requirements

Intel Pentium 4 or higher processor, 4 GB or more of RAM (8 GB

recommended), Windows Vista or greater (32 or 64 bit), Apple OS X 10.7 or

later, Ubuntu Linux 14.04 or later (32 or 64 bit). OpenGL 2.0 capable system

Supported file types

STL, X3G, 3MF

Product size (W×H×D)

44×46.6×45.7 cm (61 incl. filter)

Product weight

25.5 kg

ZYYX - User Manual

1. Getting Started

Specifications 3

Version 2022.4A

Unpacking Your Printer1.2

1. Place the box on the ground with text facing up and open it up, by removing the tape. Be careful with

sharp tools.

2. Remove the top cardboard plate and then remove the foam parts securing the printer inside the box.

3. Find the handles in the printer sides near the bottom and lift out the printer out of the box.

4. Place the printer on a sturdy, flat surface and carefully remove all packaging materials, including the

zip ties around the printhead axis, holding the axis to the front frame of the printer.

5. Remove the foam blocks inside the printer. Start with the small foam part near the back pressing down

the build triangle platform. Then lift the platform and find a block inside to the right behind the spool

holder, as it locks the big part with the filter. It needs to be moved up above the spool holder metal.

After that you can easily get out the remaining big block. Embedded in the top foam you will find the

air filter box, power cable, and optional toolkit box. Below that you will find the MagFlex build-

platform and theprint layers.

ZYYX - User Manual

1. Getting Started

Unpacking Your Printer

Version 2022.4A

Please keep all packaging materials, as they provide the required means of transporting your printer, should

the need arise.

What Is Included?1.3

The product comes with the following accessories. If anything is missing or damaged, please contact your

sales representative from whom you purchased the printer.

SD card

USB cable

Power cord

ZYYX - User Manual

1. Getting Started

What Is Included? 5

Version 2022.4A

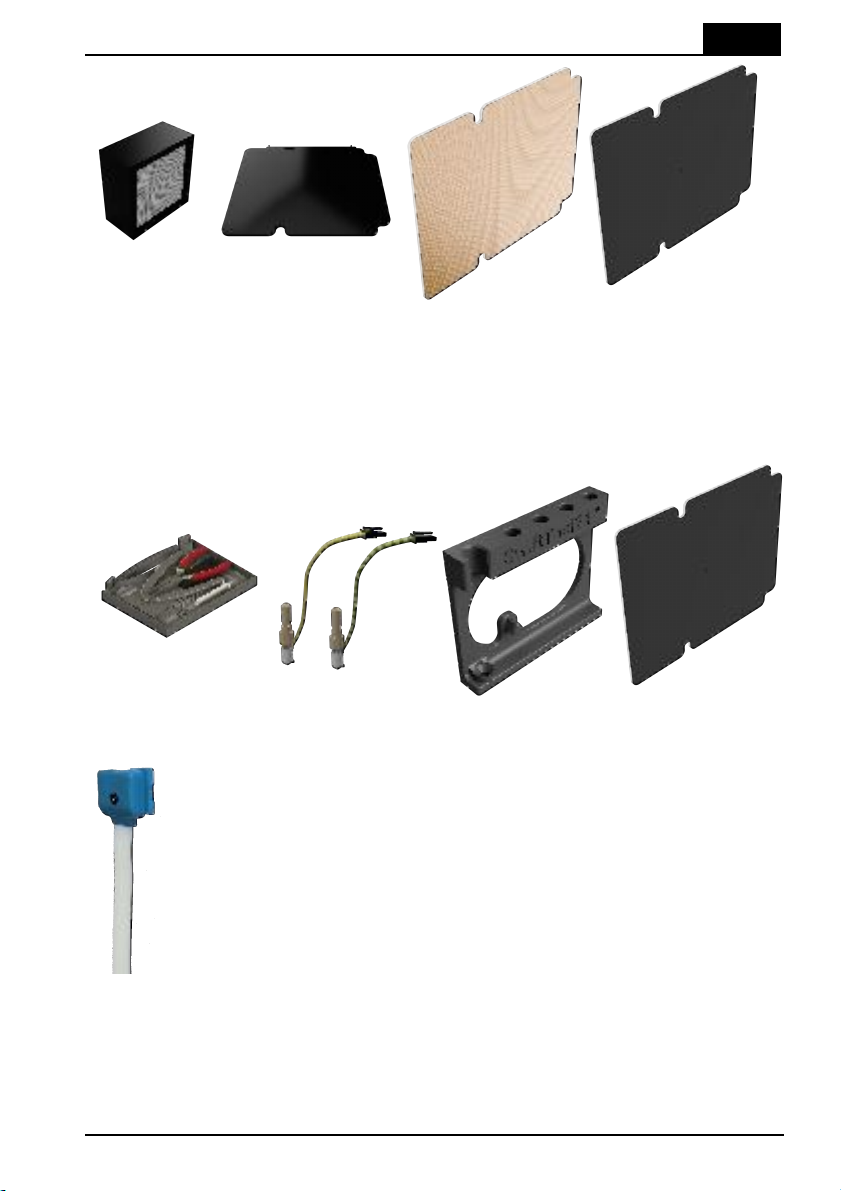

Ultra Air filter

and filter box

Magnetic build-platform

Standard build-layer

Nylon/PA based filament

Multi-material build-layer

You will also find this manual. The Simplify3D license will be sent to you via email. The SwiftTool24

Carbon0.6 comes pre-installed.

Optional parts

Toolkit with tools

Multi-material

SwiftTool24 set

Magnetic SwiftTool24

accessory holder

Perforated

build-plate

ZYYX Connect

web cam

ZYYX - User Manual

1. Getting Started

Before Starting the ZYYX Pro II for the First Time

Version 2022.4A

Before Starting the ZYYX Pro II for the First Time1.4

Before using the ZYYX Pro II for the first time, make sure to remove all transport seals. See Unpacking Your

Printer .

Note that during printing, the SwiftTool24 nozzle and SwiftTool24 nozzle

heater are very hot (up to 270 °C) and will burn if touched. We highly

recommend keeping the lid and doors closed during the whole printing

process for all filaments requiring a heated chamber.

Please also allow time to cool down before making a SwiftTool24 exchange.

See section Swapping SwiftTools .

Please also note that metal components within the printer body will become warm (up to 60-70 °C) when

the heated chamber is used. Even after printing, these parts - such as the x/y-axes rods, interior metal

frame, z-screw, etc. - will be warm until the interior has cooled. Therefore, we highly recommend that you

allow the interior to cool before touching any metal components and, if you must touch a metal component

before the printer is completely cool, that you do so with caution.

2 Product Overview

FRONT/SIDE VIEW
