Creality CR-10S Pro Manuel
CR-10S Pro Printer
Guide Book
◆This guide book is for standard CR-10S Pro.
◆Please plug the power cord into a three-hole power jack.
◆Detailed instructions for use are available on the TF card.
V.1.0
To be the Chief Evangelist
To make Top-quality 3D printer
Contents
1. Introduction....................................1
2. General List.....................................2
3. Device Installation..........................3
4. Cable Connection............................4
5. Screen Information.........................5
6. Loading Filament............................6
7. Bed Leveling......................................7
8. Software Installation........................9
9. For the First Printing........................10
10. Circuit Wiring...................................11
11. After-Sales Services..........................12
Preface
Dear consumers,
Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer.
Our 3D team will always be ready to give you the best service. Please contact us via the phone number or e-mail address
provided at the end when you encounter any problem with the Printer.
For a better experience in using our product, you may learn how to use the Printer in the following ways:
1. View the accompanied instructions and videos on the TF card.
2. Visit our official website at www.creality3d.cn You will find relevant software/hardware information, contact details and
operation and maintenance instructions on the website.
Notes
1. Do not use the printer any way other than described herein in order to avoid personal injury or property
damage.
2. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a
well-ventilated, low-dust environment.
3. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print
quality.
4. Before using experimental or exotic filaments, we suggest using standard filaments such as ABS or PLA to
calibrate and test the machine.
5. Do not use any other power cable except the one supplied. Always use a grounded three-prong power
outlet.
6. Do not touch the nozzle or printing surface during operation as they may be hot. Keep hands away from
machine while in use to avoid burns or personal injury.
7. Do not wear gloves or loose clothing when operating the printer. Such cloths may become tangled in the
printers moving parts leading to burns, possible bodily injury, or printer damage.
8. When cleaning debris from the printer hotend, always use the provided tools. Do not touch the nozzle
directly when heated. This can cause personal injury.
9. Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to remove
dust, adhered printing plastics or any other material off the frame, guide rails, or wheels . Use glass cleaner
or isopropyl alcohol to clean the print surface before every print for consistent results.
10. Children under 10 years of age should not use the printer without supervision.
1. Introduction
2
1
4
38
56
7
1
1. X Limit switch
2. Nozzle kit
3. Hot bed
4. Touch screen
5. TF slot & USB port
6. Z-axis motor (Z2)
7. Z-axis coupler (Z2)
8. Power switch & Power socket
9. Filament holder
10. Y Limit switch
11. Z-axis motor (Z1)
12. Coupler (Z1)
13. XL bed-leveling nut
14. Extruder (E) motor
15. Filament detector
16 X-axis motor
9
13
10
11
14
15
16
12
No.
Name
Qty
1
Wrench & Screw
driver
8
2
TF Card & Reader
2
3
Spatula
1
4
Pliers
1
5
0.4mm
Nozzle Cleaner
1
No.
Name
Qty
6
Filament Holder
Bracket
1
7
Filament Holder
Tube
1
8
Filament Holder
Tube Nuts
2
9
Power Cable
1
10
USB Cable
1
No.
Name
Qty
11
PTFE Tube
1
12
X-Axis Spacer
1
13
Feeler
1
14
Spare Parts
2
15
M5X25 black Hex-
Bolt and Lock
Washer
4
16
M4X8 Screw and
M4 T- nut
2
Gantry Frame
Base Frame Tool Box
uTool List
2.General List
Filament (200g）
2
uFilament Holder Installation
u Gantry Frame Installation
3. Device Installation
M5X25 4pcs
2pcs
M4X8
M4 T-nut
2pcs
M4X8 & T-nut
M5X25
uX axis adjustment
3
X-Axis Spacer
100mm 100mm
2pcs
4. Cable Connection
Ribbon Cable
Z1
Z2
4
*Plug the power cord into
a three-hole power jack.
Fan
Manual
Cooling
Automatic
Levelling
Refuel
Motor
Printer info
Moving
Language
Choose to Print
5. Screen Information
Set temperature of
the Hot Bed
Set temperature of
Nozzle
Current temperature
of Nozzle
Current temperature
of the Hot Bed
5
Screen Information
Main
Menu
Sub
Menu
Explanation
TF card
Selected file
Stop
Pause/Continue
Adjust
Print speed
Nozzle temp.
Hot-bed temp
Z offset
fan
Temp
Automatic
PLA\ABS（195°\240°）
Manual
Nozzle preheat
Hot-bed preheat
Cooling
Cool down? Yes\No
Fan
Turn on\Shut down
Setting
Levelling
Z-axis：Z home，+0.1mm,-0.1mm
AUX
leveling
Please click numbers to assist
levelling（①~⑤）
AUTO leveling
Auto leveling, please
wait...
Check level（Measurement parameters）
Refuel
Withdraw
Feed
Moving
X-axis
Y- axis
Z-axis
Z home
Motor off
yes\no
Language
English\Chinese
Printer
info
Machine type、Firmware version、Printing size、
website
200
uFeeding
6. Loading Filament
uPreheat
Method 1
Method 2
Press and hold the extruder lever and insert the 1.75mm
filament through the filament detector and through the
extruder motor. Continue feeding until you see filament
extrude from the nozzle.
Replacing Filament During Print:
1、Cut the previous filament near the extruder and slowly
feed new filament though the filament sensor and
extruder, until the new filament is fed into the PTFE tube.
(OR)
2、Preheat the nozzle and withdraw the used filament.
Feed the new filament as pictured above.
6
3. Adjust the platform height by turning the knob underneath. Use a
piece of A4 paper (standard printer paper) to assist with the
adjustment, making sure that the nozzle lightly presses on the
paper.
4. Complete the adjustment on all 4 corners.
5. Click the number ① to test the platform height in the middle.
6. Repeat above steps one or two times if necessary.
7. Bed Leveling pt.1
1. Slightly tighten the four levelling nuts at the bottom of the platform before initial levelling.
2. Select "Settings" → “Level mode” , click on the number ②.
1
2
4
3
5
7
Autres manuels pour CR-10S Pro
3
Table des matières
Autres manuels Creality Imprimante 3D
Creality
Creality CR-Laser Falcon Manuel utilisateur
Creality
Creality Ender Manuel utilisateur
Creality
Creality CR-1000 Pro Manuel utilisateur
Creality
Creality CR-10 S5 Manuel utilisateur
Creality
Creality 3D Pad Manuel utilisateur
Creality
Creality 3D Print Mill Manuel utilisateur
Creality
Creality HALOT-LITE Manuel utilisateur
Creality
Creality CR-10 Smart Manuel utilisateur
Creality
Creality 3dpRINTmILL Manuel utilisateur
Creality
Creality Halot-Sky Manuel utilisateur
Creality
Creality CR-10S Pro Manuel utilisateur
Creality
Creality CR-3040 Pro Manuel utilisateur
Creality
Creality CR-200B Pro Manuel utilisateur
Creality
Creality Ender 3 Pro Manuel utilisateur
Creality
Creality CR-10 Max Manuel utilisateur
Creality
Creality Sprite Extruder Pro Kit Manuel utilisateur
Creality

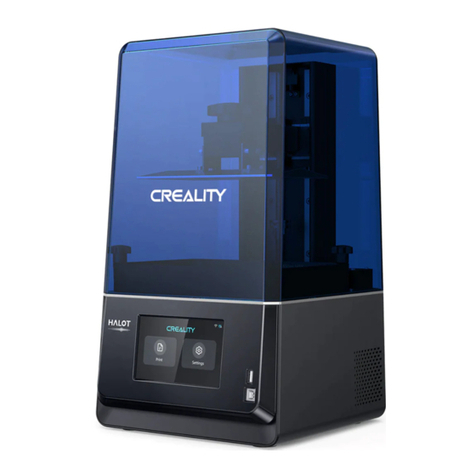

Creality HALOT-ONE PLUS Manuel utilisateur
