Advantech MOS-1130Y-0201E Manuel utilisateur

MOS-1130 User Manual 1

1.Packing List

2.Initial Inspection

MOS-1130Y-0201E Isolated CANBus iDoor Module

User Manual

MOS-1130Y-0201E is a 2-Ports Isolated CANBus mini- PCIe, DB9.

This manual covers the pin assignment for the CAN connector,and the wiring of the two transmission wires.

MOS-1130

miniPCIe Card x 1

DB37 I/O Plate x 2 with iDoor bracket x 1

FPC cable x 2

Startup Manual x 1

Note: If any of these items are missing or damaged, please contact your distributor or sales representative immediately.

You should find the following items inside the shipping package:

Mini-PCIe communication interface card

Industrial Communication Driver, Utility and mini-PCIe communication card user's manual in DVD-ROM

MOS-1130 was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and

scratches and in perfect working order when received.

As you unpack the MOS Module, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is

damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also

notify the carrier. Retain the shipping carton and packing material for inspection by the carrier.

After inspection we will make arrangements to repair or replace the unit. When you handle the MOS Module, remove

it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove

the card from the PC, store it in this package for protection.

Warning!

Discharge your body’s static electric charge by touching the back of the grounded chassis of the system unit

(metal) before handling the board. You should avoid contact with materials that hold a static charge such as

plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits.

Avoid touching the exposed circuit connectors.Wealso recommend that you use a grounded wrist strap and place

the card on a static dissipative mat whenever you work with it.

MOS-1130 User Manual 2

Please follow the steps below to install Advantech CAN WDM Driver.

For driver download, please visit Advantech website:

http://support.advantech.com/Support/SearchResult.aspx?keyword=MOS-1130Y-0201E&searchtabs=BIOS,Certificate,Dat

asheet,Driver,Firmware,Manual,Online%20Training,Software%20Utility,Utility,FAQ,Installation,Software%20API,Software

%20API%20Manual,3D%20Model&select_tab=Driver

1. Select “Next” to continue the installation.

2. After a while, the installation will be complete.

3. After the physical hardware has been installed, the card will be automatically detected.

Advantech provides WDM CAN driver that allows you to configure your hardware and store the settings in your Windows

registry. You must install the WDM CAN driver if you want to add and manage Advantech CAN cards.

3. Driver and Advantech Device Manager

MOS-1130 User Manual 3

4.1

How to Set Jumpers

Figure 1 CAN-bus transceiver board silk screen

You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of

electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over

the pins to connect them. To “close” a jumper you connect the pins with the clip. To “open” a jumper you remove the

clip.

Figure 2 How to set the jumpers

4.2

Terminator Resistor Setup (JP1)

You can set the terminator resistor if necessary to match impedance. Each port has a separate resistor located on its

own transceiver board.

Note!

Table 1: MOS-1130 Terminator Resistor Jumper Setting

is suggested to set the terminator resistor to 120 Ohm to maintain a satisfactory baud rateperformance.

4. Jumper and Switch Settings

Table 1: MOS-1130Y-0201E Terminator Resistor Jumper Setting

Status

Value of Terminator Resistor (Ohm)

Pin 2-3

Open mode

None

Pin 1-2

Close mode

120 Ohms

MOS-1130 User Manual 4

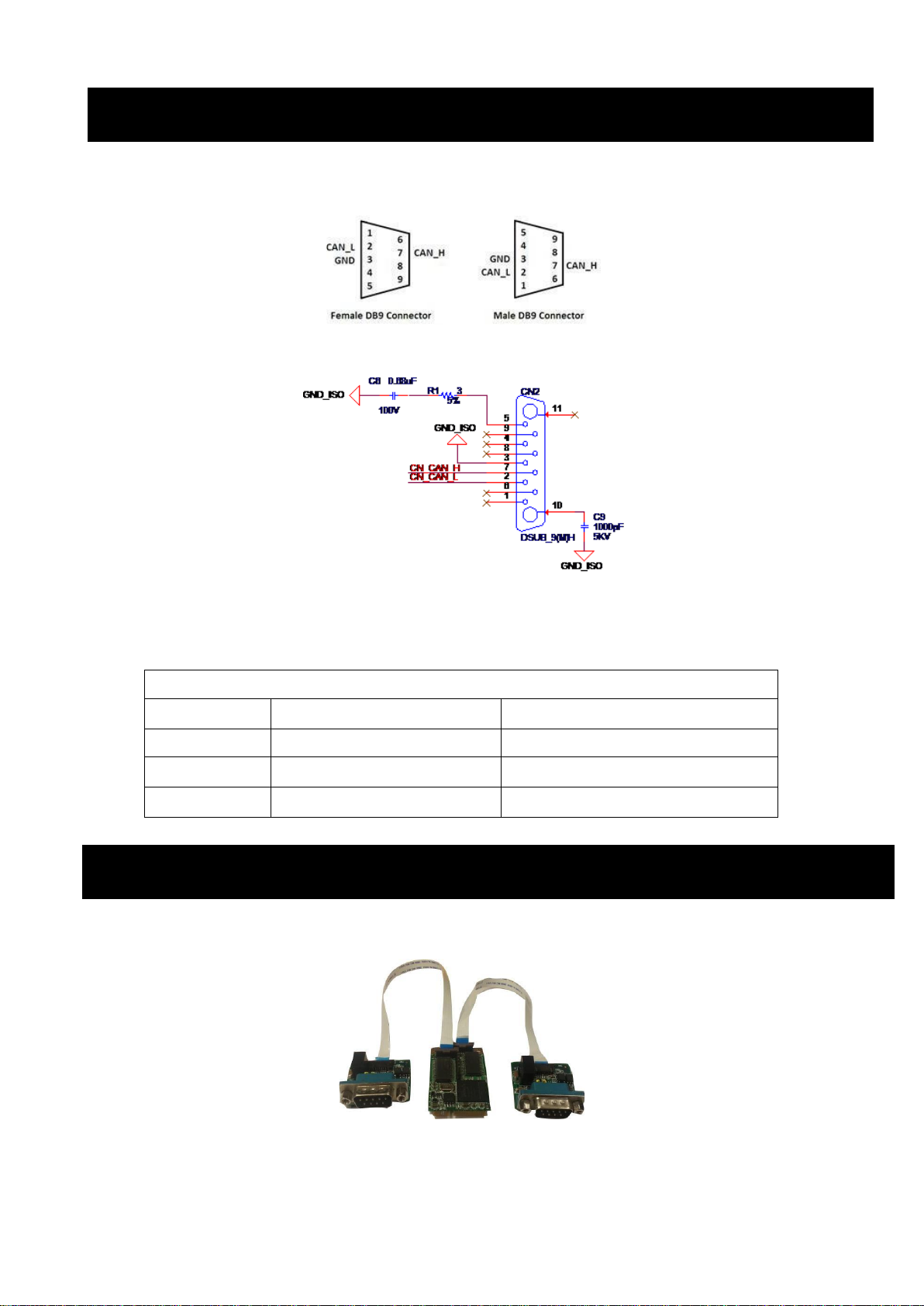

6. Wiring

Figure 3 shows the pin assignment for the card’s male DB-9 connectors and corresponding pin assignments of female

DB-9 connectors of the cable.

Figure 3 MOS-1130Y-0201E DB-9 connector pin assignments

Figure 4 MOS-1130Y-0201E DB-9 connector schematics

The CAN standard supports half–duplex communication. This means that just two wires are used to transmit and receive

data.

CAN-bus main board has two FPC connectors for wiring to two CAN-bus transceiver boards through

FPC cables. Please ensure to follow Figure 5 and Figure 6 for appropriate wiring in between.

Figure 5 FPC cable wiring

5. Pin Assignments

Table 2: MOS-1130Y-0201E Terminator Resistor Jumper Setting

Signal

Description

CAN_L

LOW-level CAN voltage input/output

GND

Ground

CAN_H

HIGH-level CAN voltage input/output

MOS-1130 User Manual 5

Figure 6 Wiring on module side
