MIO-6255 Startup Manual 1

MIO-6255 MIO/160 Module with 2 Cardbus

Startup Manual

The most flexible interface for Embedded

Applications

Today is an embedded world, but many standard embed-

ded single board computers cannot 100% meet application

specifications because they are not flexible enough to

expand and develop the system.

A system design short cut

MIO/160 (Module I/O 160) is an open pin definition inter-

face from Advantech. The MIO/160 interface integrates the

most popular data buses into a high-density 160-pin con-

nector, including, PCI, USB, DVO, SMBus, LPC, and

AC97. With MIO/160, board engineers can speed up sys-

tem project design and expand the system easily.

Before you begin installing your card, please make

sure that the following materials have been shipped:

If any of these items are missing or damaged, contact

your distributor or sales representative immediately.

• Chipset: Richo R5C486 Cardbus controller

• 2 Cardbus solt: Accepts type I/II/III PCMCIA Card.

When type III Card used in slot 2, the slot 1 will be occu-

pied.

• 16-bit Legacy Mode: YES(3E0/3E2 I/O port) support

• Data bus: 32-bit data bus (Compliant with PCI Bus

Specification 2.1)

• PCI Interface: 3.3V interface(5V tolerant)

Mechanical and Environmental

• Dimensions (L x W): 120mm x 85mm, 4.7” x 3.3”

• Operating Temperature: 0 ~ 60°C operation

• Operating Humidity: 10%~90% relative humity, non-

condensing

• Complies with PC Card 95/97/98, Card-32(32bit), PCM-

CIA V2.1/JEIDA4.2(16bit)

• Support 2 PCMCIA slot, accepts type I/II/III PCMCIA

Cards

• MIO/160 interface

Introduction Specifications

Packing list

• 1 MIO-6255

• 1 Start-up manual

• 1 Screw kit p/n: 9660250000

- copper stud x 6 pcs p/n: 1930000058

- screw x 6 pcs p/n: 1935030500

Note 1: Acrobat Reader is required to view any PDF

file. Acrobat Reader can be downloaded at:

http://www.adobe.com/products/acrobat/

readstep2.html(Acrobat is a trademark of

Adobe.)

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the MIO-6255 series Rev. A1.

Part No.2006625500 1st Edition

May. 2006

Features

MIO-6255 MIO/160 Module with 2 Cardbus IC

2 MIO-6255 Startup Manual

Connectors on the board link it to external devices, such as

hard disk drives, a keyboard or expansion bus connectors.

In addition, the board has a number of jumpers that allow

you to configure your system to suit your application.

The table below lists the function of each of the jumpers

and connectors.

Locating connector (component side)

Locating connector (solder side)

Jumpers & Connectors

Connectors

Label Function

CN1 MIO/160 bus

CN2A/CN2B PCMCIA slot1/slot2

CN1 MIO/160 bus

Part Number 1654000071

Description B/B CONN. 80*2P 180D(M) SMD 0.8mm QTE-

080-05-F-D-A

CN2A/CN2B PCMCIA slot1/slot2

Part Number 1654268101/1654268102

Description PCMCIA 68P 90D(M) SMD DUAL SLOTS

1473283-1AMP

Description PCMCIA 68P 180D(F) SMD DUAL SLOTS

1123215-1AMP

Board Layout

MIO-6255 Startup Manual 3

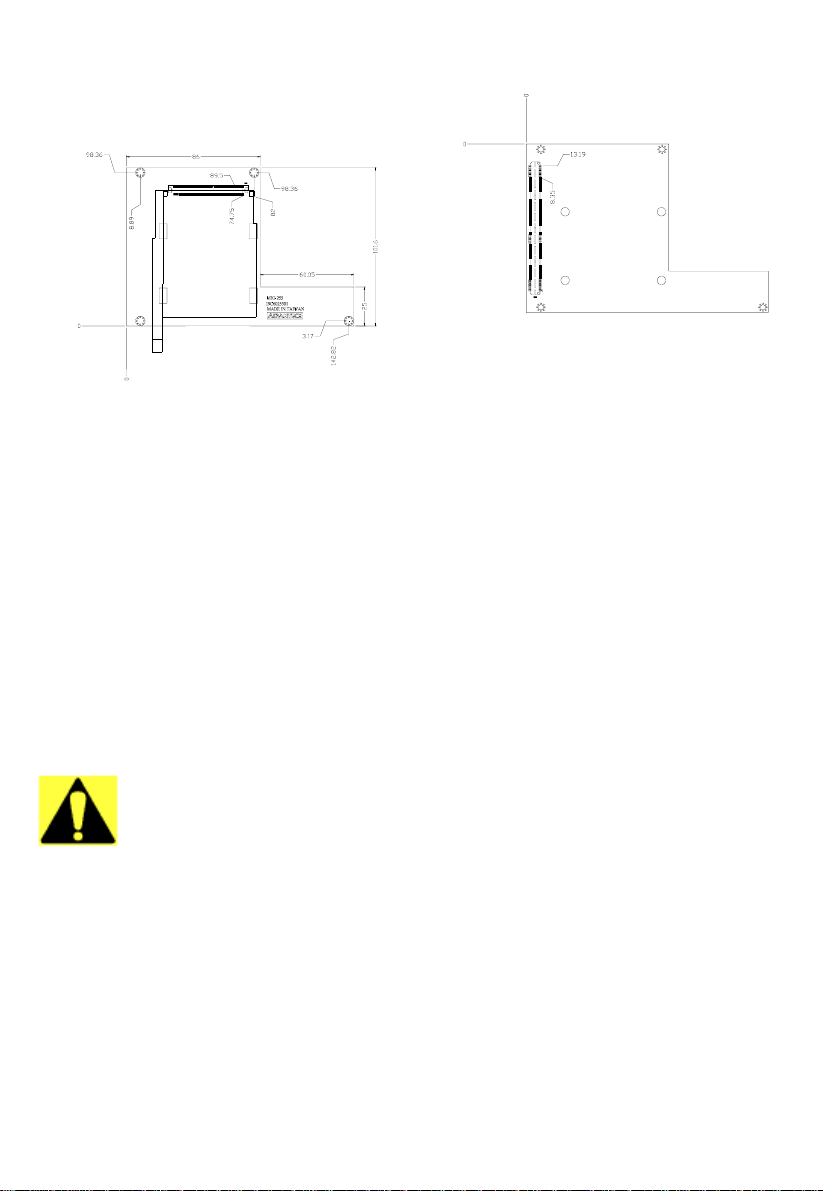

Mechanical Drawing (component side) Mechanical Drawing (solder side)

FCC This device complies with the requirements in part 15 of the FCC rules: Operation is subject to the fol-

lowing two conditions:

1.This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undes-

ired operation

This equipment has been tested and found to comply with the limits for a Class A digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of

this device in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his/her own expense. The user is advised that any equipment

changes or modifications not expressly approved by the party responsible for compliance would void

the compliance to FCC regulations and therefore, the user's authority to operate the equipment.

Caution!

Achtung!

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge,

force open, or heat the battery. Replace the battery only with the same or equivalent type recom-

mended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
