Advantech MOS-1120Y-0201E Manuel utilisateur

MOS-1120Y-0201E

Isolated RS-232

iDoor Module,

MOS-1120Y-1401E Non-Isolated RS-232 iDoor Module,

MOS-1121Y-0201E Isolated RS-422/485 iDoor Module,

MOS-1121Y-1401E Non-Isolated RS-422/485 iDoor Module

User Manual

MOS-1120Y/MOS-1121Y is serie of industrial Serial Communication Module.

P/N

Description

MOS-1120Y-0201E

Isolated RS-232, 2-Ch, DB9, PCIe I/F

MOS-1121Y-0201E

Isolated RS-422/485, 2-Ch, DB9, PCIe I/F

MOS-1120Y-1401E

Non-Isolated RS-232, DB37, 4-Ch, PCIe I/F

MOS-1121Y-1401E

Non-Isolated RS-422/485, DB37, 4-Ch, PCIe I/F

This manual gives you inspection and installation of hardware and drivers.

MOS-1120/MOS-1121

miniPCIe Card x 1

DB37 I/O Plate x 1 with iDoor bracket x 1

Wire cable x 1

Startup Manual x 1

DB37 to DB9(4 ports) cable (MOS-1121Y-1401E only)

Note: If any of these items are missing or damaged, please contact your distributor or sales representative immediately.

MOS-1120/MOS-1121 was carefully inspected mechanically and electrically before it was shipped. It should be

free of marks and scratches and in perfect working order when received.

As you unpack the MOS Module, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is

damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also

notify the carrier. Retain the shipping carton and packing material for inspection by the carrier.

After inspection we will make arrangements to repair or replace the unit. When you handle the MOS Module, remove

it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove

the card from the PC, store it in this package for protection.

2. Initial Inspection

1. Packing List

MOS-1120/MOS-1121 User Manual 1

Warning!

Advantech provides WDM CAN driver that allows you to configure your hardware and store the settings in your Windows

registry. You must install the WDM CAN driver if you want to add and manage Advantech CAN cards.

Please follow the steps below to installAdvantech CAN WDM Driver.

For MOS-1120/MOS-1121 series driver download, please visit Advantech website:

http://support.advantech.com/Support/SearchResult.aspx?keyword=MOS-1120Y-1401E&searchtab

s=BIOS,Certificate,Datasheet,Driver,Firmware,Manual,Online%20Training,Software%20Utility,Utility,

FAQ,Installation,Software%20API,Software%20API%20Manual,3D%20Model&select_tab=Driver

1. Download and double click the .exe file from the website, then the driver will begin to setup.

2. In the Control Panel, click Advantech PCI ICOM Driver then uninstall.

3. Choose "Remove" then click "Next" then start to remove all installed components.

3. Driver Setup & Installation

Installation

Discharge your body’s static electric charge by touching the back of the grounded chassis of the system unit

(metal) before handling the board. You should avoid contact with materials that hold a static charge such as

plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits.

Avoid touching the exposed circuit connectors.We also recommend that you use a grounded wrist strap and place

the card on a static dissipative mat whenever you work with it.

MOS-1120/MOS-1121 User Manual 2

4.1 MOS-1120Y-0201E

The following table and figure shows the pin assignments of two male DB9 connectors on the iDoor bracket for

MOS-1120Y-0201E card in RS-232 Mode.

Table 4.1: MOS-1120Y-0201E Male DB9 on iDoor bracket

4.2 MOS-1121Y-0201E

The following table and figure shows the pin assignments of two male DB9 connectors on the iDoor bracket for

MOS-1121Y-0201E card in RS-422 and RS-485 Modes.

Table 4.2: MOS-1121Y-0201E Male DB9 on iDoor Bracket

4. Pin Assignments

MOS-1120/MOS-1121 User Manual 3

4.3 MOS-1120Y-1401E

The following tables and figures show the pin assignments of 1 female DB37 connector one the iDoor bracket to male

DB9 for MOS-1120Y-1401E card in RS-232 mode.

Table 4.3: MOS-1120Y-1401E Male DB9 on Cable

Table 4.4: MOS-1120Y-1401E Female DB37 on iDoor bracket

4.4 MOS-1121Y-1401E

The following tables and figures show the pin assignments of 1 female DB37 connector one the iDoor bracket to male

DB9 for MOS-1121Y-1401E card in RS‐422 and RS‐485 modes.

MOS-1120/MOS-1121 User Manual 4

Table 4.5: MOS-1121Y-1401E Male DB9 on Cable

Table 4.6: MOS-1121Y-1401E Female DB37 on iDoor bracket

MOS-1120/MOS-1121 User Manual 5

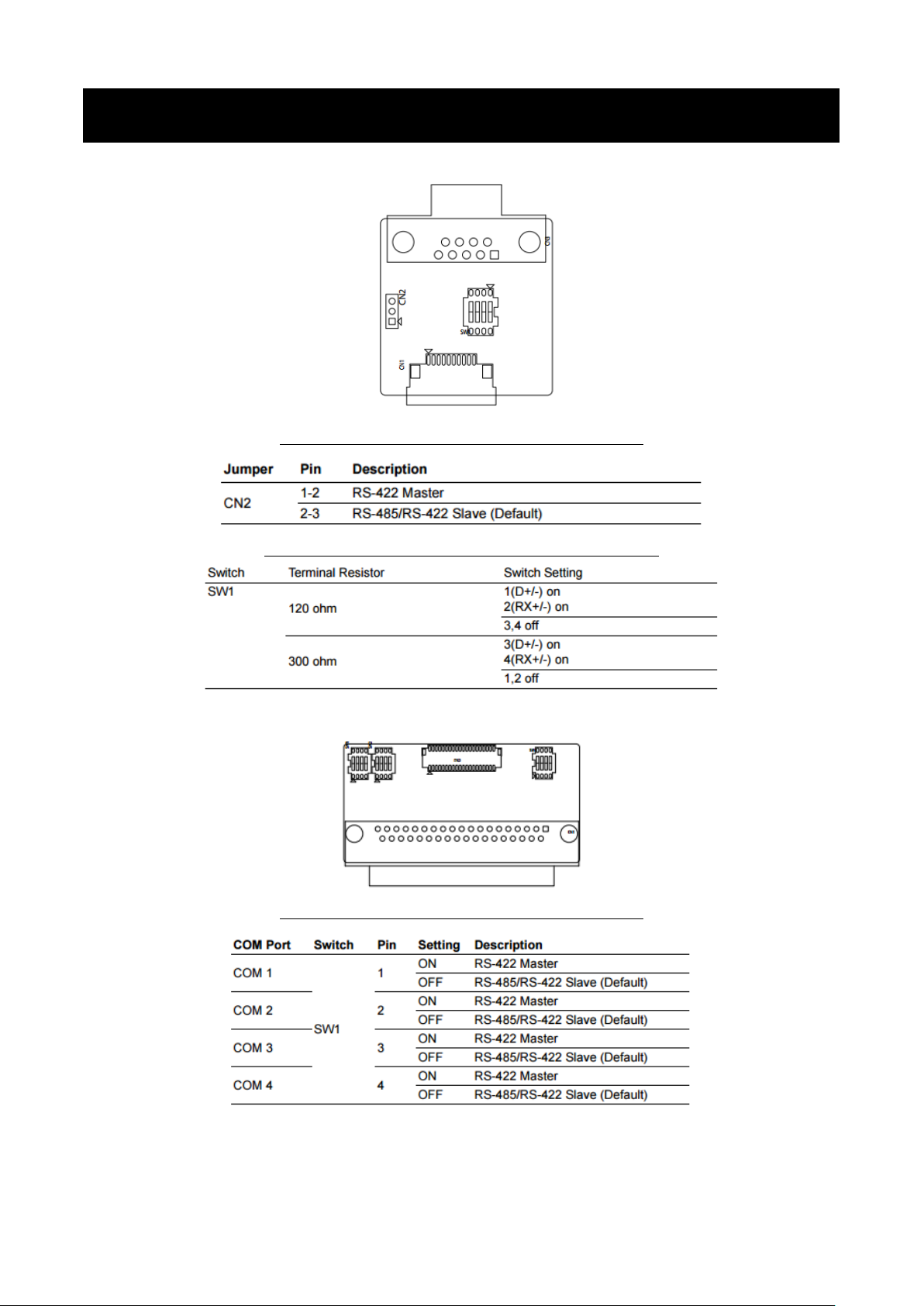

5.1 MOS-1121Y-0201E Settings

Table 5.1: MOS-1121Y-0201E Master/Slave Settings

Table 5.2: MOS-1121Y-0201E Terminal Resistor Settings

5.2 MOS-1121Y-1401E Settings

Table 5.3: MOS-1121Y-1401E Master/Slave Settings

5. Jumper and Switch Settings

MOS-1120/MOS-1121 User Manual 6

Table 5.4: MOS-1121Y-1401E Terminal Resistor Settings

6.1 RS-232 Signal Wiring

Since the RS-232 interface is not strictly defined, many devices have their own connection methods which may

ignore some signal lines or define reserved lines for other functions. It is best to refer to the user’s manual for your

device for installation instructions. You may find the following helpful.

In general, DTE (Data Terminal Equipment) refers to the device that is leading the communication. Examples

include PC’s, terminals and some printers. DCE refers to the device being communicated with or controlled.

Examples include modems, DSU’s (digital service units), printers and lab/factory equipment.

In some situations you may be able to get by with just three lines: data on TXD, a signal ground and a handshaking

line. Examples are printer or plotter connections, troubleshooting and situations where you require only one-wire

communication.

Table 6.1 Terminal or PC (DTE) Connections

6. Wiring

MOS-1120/MOS-1121 User Manual 7

Table 6.2: Modem Connections

For DTE to DCE connections, use a straight through cable (i.e., you don't have to reverse lines 2 and 3, lines 4 and

5, and lines 6 and 20 since, in general, the DCE RS-232 interfaces are reversed themselves).

Table 6.3: Terminal without Handshake

Therefore, if you are not using CTS, RTS, DSR,DTR and DCD signals, short pins 4 and 5 together, and please short

pins 6, 8,and 20 together.

6.2 RS-422 Signal Wiring

The RS-422 interface wiring is based on one-to-one principles. The transmit lines on one side connect to the receive

lines on the other side, and vice versa. With RS-422, you can transmit and receive data simultaneously (full duplex).

The connections are as follows:

Table 6.4:RS-422 DB9 Pin Assignment

Terminator Resistors Setup

The signals DSR, DTR and DCD are shorted internally on the PCM-24D2R4/24D4R4 cards when operating in

RS-422 mode. A user can solder in termination resistors if necessary for impedance matching. The card has two

mounting spaces for termination resistors, but no resistors are installed at the factory. Each pair of signal lines has a

separate resistor (RxD+/-, TxD+/-).

MOS-1120/MOS-1121 User Manual 8

6.3 RS-485 Signal Wiring

The RS-485 standard supports half-duplex communication. This means that just two wires are needed to both

transmit and receive data. Handshaking signals (such as RTS, Request To Send) are normally used to control the

direction of the data flow and to switch the transmission accordingly. In RS-485 mode, the PCM-24D2R4/24D4R4

cards automatically sense the direction of the data flow and switch the transmission direction —no handshaking is

necessary. This means a user can build an RS-485 network with just two wires. This RS-485 control is completely

transparent to the user. The software written for half duplex RS-232 works without any modification.

Termination Resistor Setup

You can install termination resistors if necessary for impedance matching. The card has mounting spaces for

termination resistors, but no resistors are installed at the factory. Depending on your application you may need to

solder in a single resistor to handle the DATA+/DATA- pair (and a corresponding resistor on the other end of the

connection). The value of the resistor should equal the characteristic impedance of the signal wires (approximately

120 Ohms or 300 Ohms).

MOS-1120/MOS-1121 User Manual 9
