ADAM 4000

Series

Data Acquisition Modules

User's Manual

ADAM 4000 Series

Data Acquisition Modules

User's Manual

This document is copyrighted, 1997, by Advantech Co., Ltd. All rights are

reserved. Advantech Co., Ltd., reserves the right to make improvements to

the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmitted

in any form or by any means without the prior written permission of

Advantech Co., Ltd. Information provided in this manual is intended to be

accurate and reliable. However, Advantech Co., Ltd. assumes no respon-

sibility for its use, nor for any infringements upon the rights of third parties

which may result from its use.

CE Notification

The ADAM-4000 series developed by Advantech Co., Ltd. has passed the

CE test for environmental specifications when operated within an industrial

enclosure (ADAM-4950-ENC). Therefore, in order to protect the ADAM

modules from being damaged by ESD (Electric Static Discharge), we

strongly recommend that the use of CE-compliant industrial enclosure

products when using any ADAM module.

Acknowledgments

ADAM is a trademark of Advantech Co., Ltd.

IBM and PC are trademarks of International Business

Machines Corporation.

Part No.2001400006 Seventh Edition

Printed in Taiwan Sept. 2002

Table of Contents

Chapter 1 Introduction ................................................................1-1

1.1 Overview ............................................................................................... 1-2

1.2 Applications ......................................................................................... 1-4

Chapter 2 Installation Guideline ................................................2-1

2.1 System Requirements to set up an ADAM network ............................ 2-3

2.2 Basic configuration and hook-up ........................................................ 2-6

2.3 Baud rate and Checksum ................................................................... 2-9

2.4 Multiple Module Hookup .................................................................... 2-11

2.5 Application Example .......................................................................... 2-12

Chapter 3 I/O Modules.................................................................3-1

3.1 ADAM-4011/4011D/4012/4013/4015 Analog Input Modules............... 3-2

3.2 ADAM-4016 Analog Input/Output Module .......................................... 3-15

3.3 ADAM-4017/4017+/4018/4018M/4018+

8-channel Analog Input Modules....................................................... 3-20

3.4 ADAM-4019 8-channel Universal Analog Input Module .................... 3-32

3.5 ADAM-4021 Analog Output Module ................................................... 3-35

3.6 ADAM-4050/4051/4052/4053/4055 Digital I/O Modules .................. 3-38

3.7 ADAM-4060/4068 Relay Output Module ............................................ 3-50

3.8 ADAM-4080/4080D Counter/Frequency Input Modules .................... 3-54

Chapter 4 Command Set.............................................................4-1

4.1 Introduction .......................................................................................... 4-2

4.2 Syntax ................................................................................................... 4-2

4.3 I/O Module Commands Search Table................................................. 4-4

4.4 Analog Input Module Command........................................................ 4-41

4.4.1 Analog Input Command Set ...................................................... 4-41

4.4.2 Data Conversion and Display Command Set........................... 4-77

4.4.3 Analog Input Data Logger Command Set ................................. 4-89

4.4.4 Digital I/O, Alarm and Event Command Set ............................ 4-103

4.4.5 Excitation Voltage Output Command Set ................................ 4-119

4.5 Analog Output Module Command ................................................... 4-127

4.6 Digital I/O and Relay Output Module Command ............................. 4-151

4.7 Counter/Frequency Module Command........................................... 4-167

4.7.1 Configuration, Counter Input and Display Command Set ...... 4-167

4.7.2 Counter Setup Command Set ................................................. 4-179

4.7.3 Digital Filter and Programmable Threshold Command Set .. 4-189

4.7.4 Digital Output and Alarm Command Set................................. 4-201

Chapter 5 Calibration ..................................................................5-1

5.1 Analog Input Module Calibration ......................................................... 5-2

5.2 Analog Input Resistance Calibration .................................................. 5-7

5.3 Analog Output Calibration ................................................................... 5-9

Appendix A Technical Specifications........................................... A-1

A.1 ADAM-4011 Thermocouple Input Module ............................................ A-2

A.2 ADAM-4011D Thermocouple Input Module with LED Display ............ A-5

A.3 ADAM-4012 Analog Input Module ........................................................ A-8

A.4 ADAM-4013 RTD Input Module .......................................................... A-10

A.5 ADAM-4014D Analog Input Module with LED Display....................... A-12

A.6 ADAM-4016 Strain Gauge Input Module ............................................ A-14

A.7 ADAM-4017, 4017+ 8-Channel Analog Input Module....................... A-16

A.8 ADAM-4018, 4018+ 8-channel Analog Input Module ....................... A-18

A.9 ADAM-4018M 8-channel Analog Input Data Logger.......................... A-20

A.10 ADAM-4021 Analog Output Module ................................................... A-22

A.11 ADAM-4050 Digital I/O Module........................................................... A-26

A.12 ADAM-4052 Isolated Digital Input Module ......................................... A-28

A.13 ADAM-4053 16-channel Digital Input Module ................................... A-30

A.14 ADAM-4060 Relay Output Module ..................................................... A-32

A.15 ADAM-4080 Counter/Frequency Input Module .................................. A-34

A.16 ADAM-4080D Counter/Frequency Input Module with LED Display... A-36

Appendix B Data Formats and I/O Ranges .................................. B-1

B.1 Analog Input Formats ..........................................................................B-2

B.1.1 Engineering Units........................................................................ B-2

B-3

B.1.2 Percent of FSR .............................................................................B-3

B.1.3 Twos complement hexadecimal .................................................B-5

B.1.4 Ohms ...........................................................................................B-7

B.2 Analog Input Ranges ...........................................................................B-8

B.3 Analog Output Formats......................................................................B-13

B.3.1 Engineering Units......................................................................B-13

B.3.2 Percent of Span .........................................................................B-14

B.3.3 Hexadecimal ..............................................................................B-14

B.4 Analog Output Ranges ......................................................................B-15

Appendix C Technical Diagrams .................................................. C-1

C.1 ADAM Dimensions...............................................................................C-2

C.2 Installation ...........................................................................................C-3

C.2.1 DIN-Rail Mounting........................................................................C-3

C.2.2 Panel Mounting ............................................................................C-5

C.2.3 Piggyback Stack ...........................................................................C-7

Appendix D Utility Software .......................................................... D-1

D.1 ADAM-4000Utility Software .................................................................D-1

D.2 ADAM-4018MUtilitySoftware...............................................................D-7

Appendix E RS-485 Network ......................................................... E-1

E.1 Basic Network Layout ..........................................................................E-2

E.2 Line Termination .................................................................................. E-5

E.3 RS-485 Data Flow Control...................................................................E-8

Appendix F How to use the Checksum feature ........................... F-1

F.1 Checksum Enable/Disable .................................................................... F-2

Introduction

1-2 ADAM 4000 Series User's Manual

Introduction

1.1 Overview

The ADAM Series is a set of intelligent sensor-to-computer interface

modules containing built-in microprocessor. They are remotely controlled

through a simple set of commands issued in ASCII format and transmitted

in RS-485 protocol. They provide signal conditioning, isolation, ranging,

A/D and D/A conversion, data comparison, and digital communication

functions. Some modules provide digital I/O lines for controlling relays

and TTL devices.

Software Configuration and Calibration

ADAM modules contain no pots or switches to set. By merely issuing a

command from the host computer, you can change an analog input module

to accept several ranges of voltage input, thermocouple input or RTD

input. All the module’s configuration parameters including I/O address,

speed, parity, HI and LO alarm, calibration parameters settings may be set

remotely. Remote configuration can be done by using either the provided

menu-based software or the command set’s configuration and calibration

commands.

By storing configuration and calibration parameters in a nonvolatile

EEPROM, modules are able to retain these parameters in case of power

failure.

Watchdog Timer

A watchdog timer supervisory function will automatically reset the ADAM

modules in the event of system failure. Maintenance is thus simplified.

Power Requirements

Although the modules are designed for standard industrial unregulated 24

VDC power supply , they accept any power unit that supplies power within

the range of +10 to +30 VDC. The power supply ripple must be limited to 5

V peak-to-peak, and the immediate ripple voltage should be maintained

between +10 and +30 VDC.

Chapter 1 Introduction 1-3

Chapter 1

Connectivity and Programming

ADAM modules can connect to and communicate with all computers and

terminals. They use RS-485 transmission standards, and communicate with

ASCII format commands. The command set for every module type consists

of approximately ten different commands. The command set for input

modules is larger because it incorporates alarm functions. All communica-

tions to and from the module are performed in ASCII, which means that

ADAM modules can be programmed in virtually any high-level language.

RS-485 Network

The RS-485 network provides lower-noise sensor readings, as modules can

be placed much closer to the source. Up to 256 ADAM modules may be

connected to an RS-485 multi-drop network by using the ADAM RS-485

repeater, extending the maximum communication distance to 4,000 ft. The

host computer is connected to the RS-485 network with one of its COM

ports through the ADAM RS-232/RS-485 converter.

To boost the network’s throughput, the ADAM RS-485 repeaters use a

logical RTS signal to manage the repeater’s direction. Only two wires are

needed for the RS-485 network: DATA+ and DATA-. Inexpensive

shielded twisted pair wiring is employed.

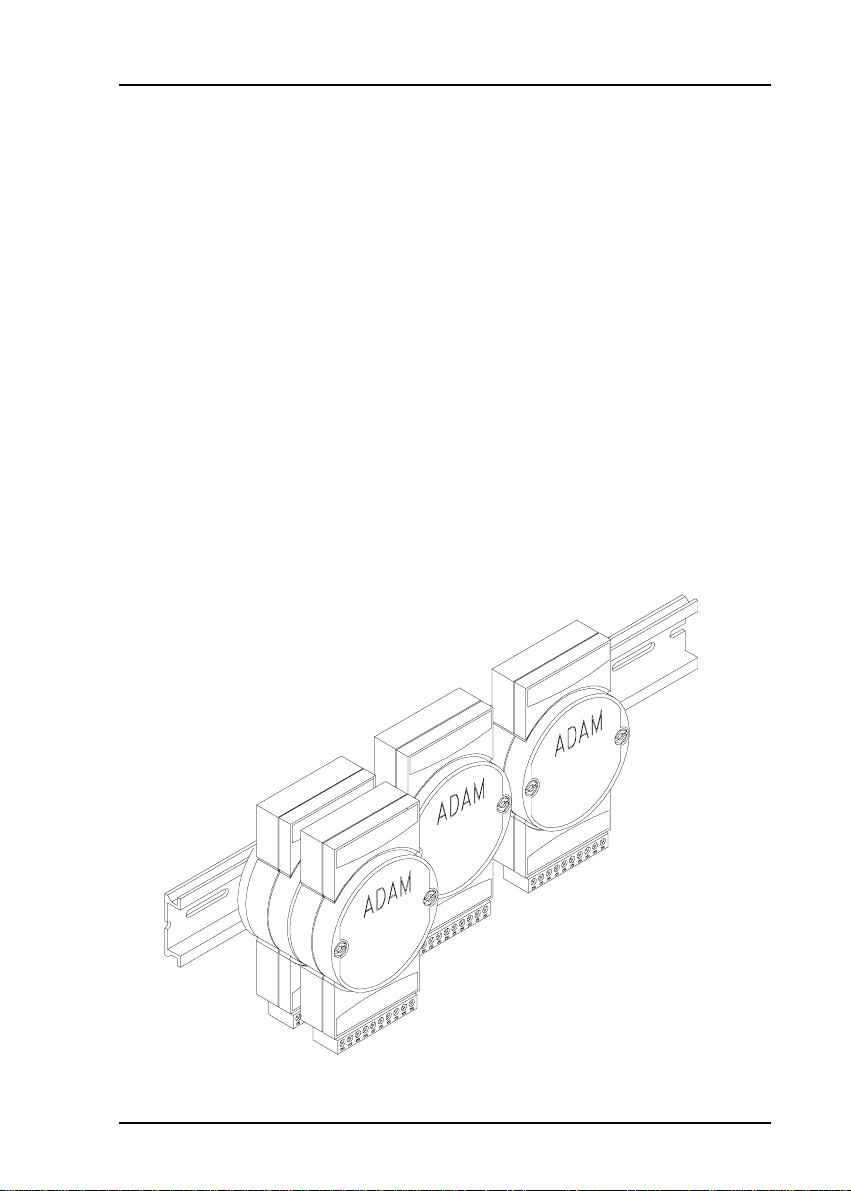

Panel/DIN Rail mounting

ADAM modules mount on any panel, on provided brackets, on DIN rails

or may be stacked together.

1-4 ADAM 4000 Series User's Manual

Introduction

The RS-485 network, together with screw-terminal plug connectors, allows

for system expansion, reconfiguration and repair without disturbing field

wiring.

Protection against the environment

Hardened plastic packing forms the outer shell of every module. Since all

configuration is controlled by software, the module is not designed to be

opened. This greatly enhances resistance against corrosive materials,

moisture and vibration. ADAM modules’ low power requirements help

them to operate in temperatures from 0 to 70oC,and in humidities from 0 to

95% (non-condensing). They’re built compactly using automated SMT

technology so you can pack them into water-tight and explosion-proof

industrial enclosures.

1.2 Applications

•Remote data acquisition

•Process monitoring

•Industrial process control

•Energy managment

•Supervisory control

•Security systems

•Laboratory automation

•Building automation

•Product testing

•Direct digital control

Autres manuels pour Adam 4000 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Advantech Unité de contrôle

Advantech

Advantech MIO-6254 Manuel d'installation et d'exploitation

Advantech

Advantech USB-4711A Manuel utilisateur

Advantech

Advantech MIC-75M40 Manuel d'installation et d'exploitation

Advantech

Advantech SOM-5897 Manuel utilisateur

Advantech

Advantech PCM-3810I Manuel d'installation et d'exploitation

Advantech

Advantech SOM 144 Mode d’emploi

Advantech

Advantech USB-4716 Manuel d'installation et d'exploitation

Advantech

Advantech PCM-3531 Manuel d'installation et d'exploitation

Advantech

Advantech MIC-75M11 Manuel utilisateur

Advantech

Advantech SOM-5892 Manuel utilisateur

Advantech

Advantech AMAX-175 Series Manuel utilisateur

Advantech

Advantech PCM-3526 Manuel d'installation et d'exploitation

Advantech

Advantech B+B SmartWorx iMcV-Giga-MediaLinX TX/SFP Manuel utilisateur

Advantech

Advantech B+B SmartWorx 232PTC9 Manuel utilisateur

Advantech

Advantech EDG-4100 Series Guide de démarrage rapide

Advantech

Advantech iDAQ-815 Manuel utilisateur

Advantech

Advantech PCM-3116 Manuel d'installation et d'exploitation

Advantech

Advantech USB-4716 Manuel utilisateur

Advantech

Advantech PCM-3910 Manuel d'installation et d'exploitation

Advantech

Advantech PCM-24BXWF Manuel d'installation et d'exploitation

Advantech

Advantech Qseven SOM-3567 Manuel utilisateur

Advantech

Advantech IPMI-1000 Manuel d'installation et d'exploitation

Advantech

Advantech ADAM-6217 Manuel utilisateur

Advantech

Advantech PCM-3612I Manuel d'installation et d'exploitation

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
