ZALMAN ZM-2HC2 Manuel utilisateur

User

’’

s Manual

User

’’

s Manual

(English Edition)

NP Heatpipe HDD Cooler

Model : ZM-2HC2

* Please read before installation

http:// www.zalman.co.kr http:// www.zalmanusa.com

All manuals and user guides at all-guides.com

all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

1. Product Features

2. Specifications

. Patent Applications

●

Cools HDD for more stable operation

●

Reduces HDD noise and vibration

●

Fanless design ensures noiseless, maintenance-free operation

󳢮NP is an Acronym for “Noise Prevention .

󳣍

Patent Applications Pending in over 20 nations around the world,

including the U.S.A., EU, and Japan

󳣍

Korean Patent Applications : No. 03-26421

4. Compatible HDDs

3.5-inch Hard Disk Drive for PCs

Standard Size : 146 X 101.6 X 25.4 (20) mm

Name

Weight

Materials

Dimensions

Heat Dissipating Area

NP Heatpipe HDD Cooler

270g

Aluminum, Copper, ubber

143.5(L) X 146.5(W) X 36.5(H) mm

415 cm

All manuals and user guides at all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

5. Exploded View

Damper

Heatpipe

Damper

B-Type Bolt Ground Wire Mounting

Hole Sticker

Manual

Al Bar

A-Type Bolt

<Fig. 1. Exploded View>

All manuals and user guides at all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

6. Components

●

Assembed NP Heatpipe HDD Cooler

- Two (2) Al Bars

- Eleven (11) Heatpipes

●

Four (4) A-Type Bolts : For fastening the HDD

●

Four (4) B-Type Bolts : For installing the HDD Cooler

●

Four (4) Dampers : For reducing the HDD noise and vibration

●

One (1) Ground Wire : For Grounding the HDD

●

Spare Parts : A-Type Bolt, B-Type Bolt, Damper (One of Each)

●

Mounting Hole Sticker : For indicating the drilling positions on the case

●

User’s Manual

󳢮See the <Fig. 1. Exploded View> on page 2 to identify the above components.

Before Installing

1) Use a small amount of force : if excessive force is used when installing, the product

may warp or be deformed.

2) Zalman Tech. Co., Ltd. is not responsible for any problems arising from using the

product outside its intended purpose.

3) HDD coupled with NP Heatpipe HDD Cooler should always be installed in the case

with the heatpipes facing up. [Refer to pictures below]

( O ) ( X )

All manuals and user guides at all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

8. Installing the HDD

9. Installing the HDD Cooler

in the 5.25-inch Drive Bay

1) Seat the NP Heatpipe HDD ooler

Seat the NP Heatpipe HDD Cooler on

the HDD as shown in the diagram.

(Note the locations of the holes)

Install the Dampers & the Ground Wire

Install the 4 Dampers in the NP Heatpipe

HDD Cooler. Insert the thread of one of the

dampers through the ground wire’s round

terminal for the ground. [Refer to arrow A]

2) Fasten the HDD

Screw the 4 A-Type Bolts into the holes

and firmly tighten.

Holes

HDD

Al Bar HDD

Damper

A-Type

Bolt

Ground Wire

All manuals and user guides at all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

10. Installing the HDD Cooler in the Case

Install the Dampers & the Ground Wire

Install the 4 Dampers in the holes on the bottom side of the HDD. Insert the thread of one of

the dampers through the ground wire’s round terminal for the ground. [Refer to arrow C]

Install into 5.25-inch Drive Bay

Slide the completed assembly into the

PC’s 5.25-inch drive bay and firmly fasten

with 4 B-Type Bolts. Use one of the

B-Type Bolts to link the ground wire’s

Y-terminal to the chassis. [Refer to arrow B]

Note) Tighten the B-type bolts enough so

that they are firm, but do not cause

distortion of the dampers.

B-Type

Bolt

Damper

Ground Wire

All manuals and user guides at all-guides.com

all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

22)) DDrriillll 44 HHoolleess iinn tthhee CCaassee

Attach the Mounting Hole Sticker to the case in

which you wish to install the HDD Cooler and drill

4 holes with 4Ødrill.

33)) IInnssttaallll iinn tthhee CCaassee..

Put the HDD Cooler on the frame of the case and firmly fasten with 4 B-Type Bolts. Use one

of the B-Type Bolts to link the ground wire’s Y-terminal to the chassis.

Note) Tighten the B-type bolts enough so that they are firm, but do not cause distortion of

the dampers.

Power Supply

Mounting Hole Sticker

Power Supply

B-Type Bolt

All manuals and user guides at all-guides.com

* The specifications of any product may change without prior notice to improve the performance thereof.

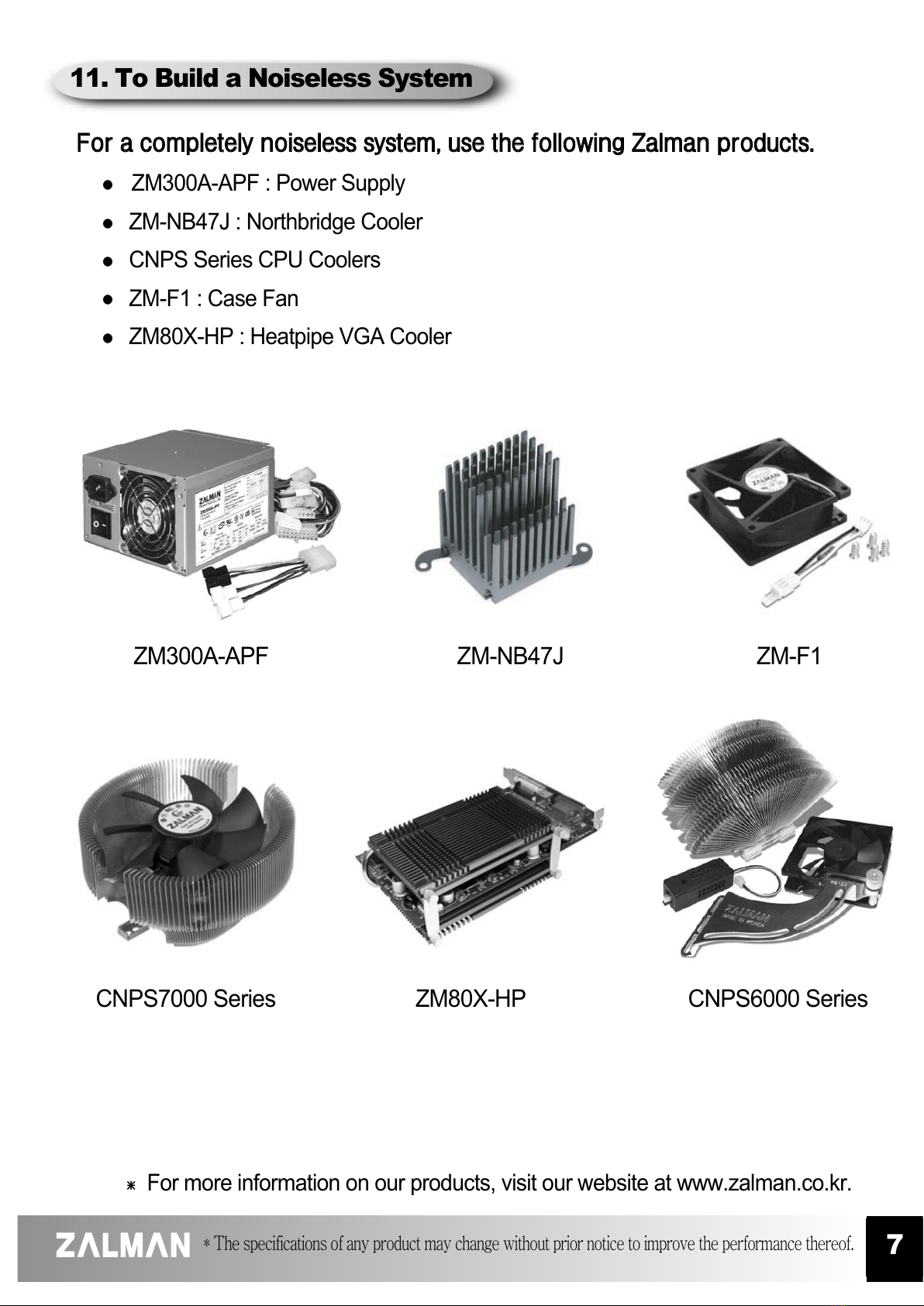

11. To Build a Noiseless System

FFoorr aa ccoommpplleetteellyy nnooiisseelleessss ssyysstteemm,, uussee tthhee ffoolllloowwiinngg ZZaallmmaann pprroodduuccttss..

●

ZM300A-APF : Power Supply

●

ZM-NB47J : Northbridge Cooler

●

CNPS Series CPU Coolers

●

ZM-F1 : Case Fan

●

ZM80X-HP : Heatpipe VGA Cooler

󳢮For more information on our products, visit our website at www.zalman.co.kr.

ZM300A-APF

CNPS7000 Series CNPS6000 Series

ZM-NB47J

ZM80X-HP

ZM-F1

All manuals and user guides at all-guides.com
