ZALMAN CNPS12X Manuel utilisateur

User's Manual

CNPS12X

Ver.160309

To ensure safe and easy installation, please read

the following precautions.

www.ZALMAN.com

AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU&APUs

Intel Socket 2011 V3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 CPUs

WWW.ZALMAN.COM

1. Precautions

2. Specications

1) Avoid inserting objects or hands into the fan while it is in operation to prevent

product damage and injuries.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If

contact is made with skin, wash off with water. If ingested or irritation persists,

seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this product.

4) Excessive force exerted on the fan may cause damage to the fan and/or

system.

5) Use and keep product away from reach of children.

6) Check the components list and condition of the product before installation. If

any problem is found, contact the retailer to obtain a replacement.

7) During transportation of the system, the cooler must be removed. Zalman is

not responsible for any damages that occur during the transport of a system.

8) Product design and specications may be revised to improve quality and

performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to

external causes, including but not limited to, improper use, problems

with electrical power, accident, neglect, alteration, repair, improper

installation, or improper testing.

Model

Spec. CNPS12X

Material Pure Copper and Aluminum

Weight 1000g

Dimensions 151(L) Ⅹ 132(W) Ⅹ 154(H)㎜

Dissipation Area 9,635㎠

Fan

Bearing Long Life Bearing

Quiet

Mode

RPM 850 ~ 1,1000rpm ±10%

Noise Level 22dBA ±

10%

Normal

Mode

RPM 950 ~ 1,2000rpm ±10%

Noise Level 24dBA ±

10%

Thermal Grease

[ZM-STG2]

Contents 3.5g

Temperature

Range

-40℃ ~ +150℃ (-40 ~ +302℉)

WWW.ZALMAN.COM

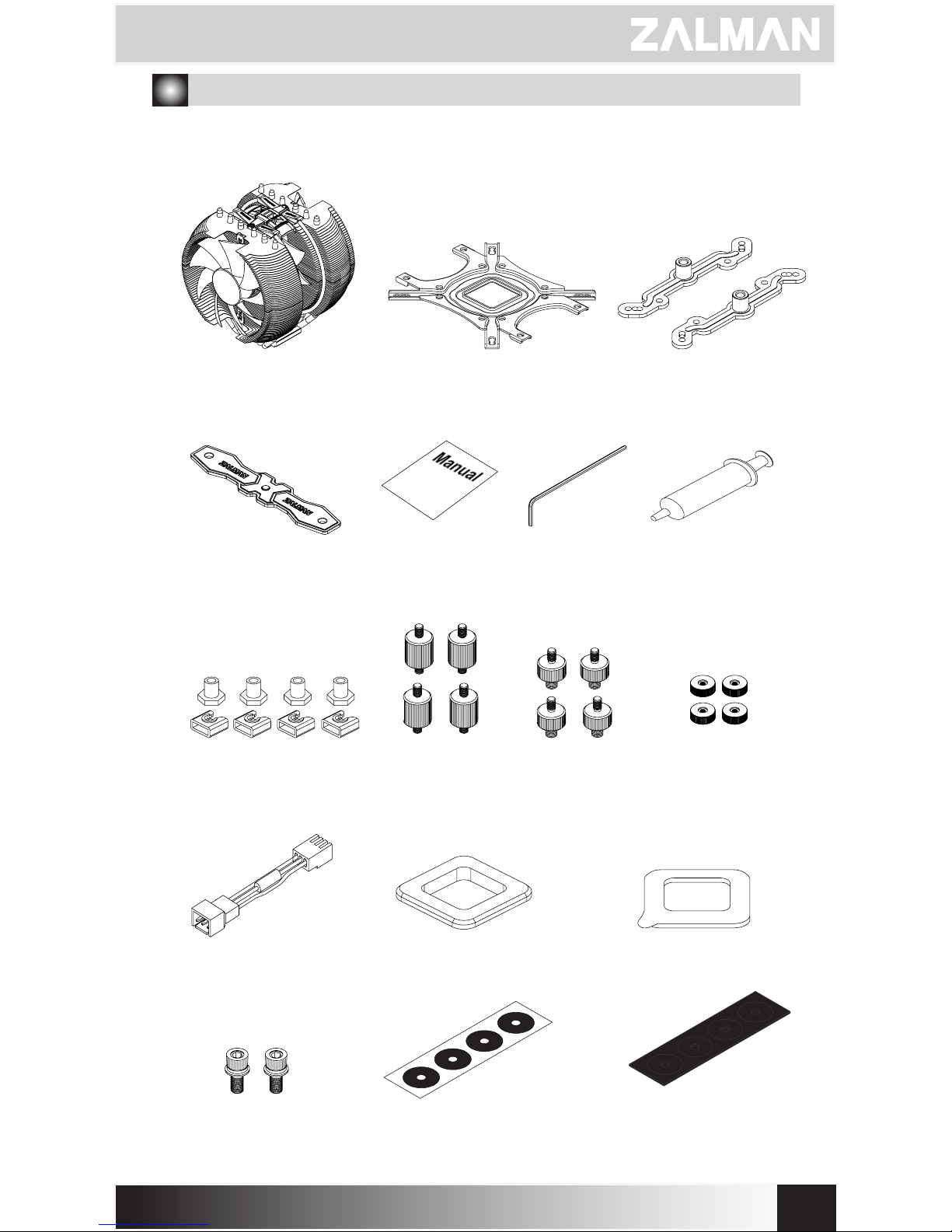

3. Components

Thermal Grease

[ZM-STG2]

Loading Block

Nuts & Side Caps Nipple A Nipple B Nuts

Double-sided Tape

Backplate Clip Support

Resistor [RC5]

Bolts Intel Washer (Black lm) AMD Washer

(Black rubber)

WrenchUser’s ManualClip

Cooler

WWW.ZALMAN.COM

4. Installation Requirements

1) Space Requirements

2) Air Guide Removal

3) Cooler Orientation

132 mm

151 mm

154 mm

The cooler’s installation requires an unobstructed space of 151mm(width),

154mm(length), and 132mm(height), with the CPU as a central reference point.

Please check if components such as ODDs and PSU protrude into the required space.

Air guides on enclosures must be removed before the cooler’s installation since

they protrude into the cooler’s required space.

As shown in the diagram below, the cooler's Reverse Fan (distinguished by Comb Shape

Blades) should face the case's exhaust rear fan so that air ows from the cooler toward

the case's exhaust rear fan to be released.

※

Reverse Fan has comb shaped blades.

Case Exhaust Rear Fan

Case Cover

Air Guides

Comb Shape

WWW.ZALMAN.COM

5. Installation

A. Clip support installation according to the Socket Types

※

Chose the appropriate installation method on the pages depending on

a user’s socket type, and then install clip support.

1) Intel Socket 2011 V3 / 2011 Installation

①Fasten Nipple B to the clip support’s hole on the motherboard.

※

Socket 2011 Installation does not require the Backplate, Loading Block and

Washer(black im) used for Intel’s Socket.

②Install the clip support on the motherboard using nuts.

Please make a note of the orientation of

the Clip Support.

Caution

Nipple B

Nut

Clip Support

WWW.ZALMAN.COM

2) Intel Socket 1366 / 1156 / 1155 /1151 / 1150 Installation

① Install Bolts to the Backplate according to the Socket Type

and secure with Side Caps.

② Attach Double-sided Tape to the center of the Backplate and remove

the Double-sided Tape’s Cover.

※ Socket 1366/1156/1155/1151/1150 Installation does not require the Loading Block.

③Align the Backplate’s nuts

with motherboard’s clip support holes,

attach it to the back side of the motherboard,

and then x it with Intel’s washer and Nipple A.

Please make a note of the orientation

of the Clip Support.

Caution

Double-sided Tape

Nut

Nipple A

Clip Support

Intel

Washer

(Black lm)

④Install the clip support on the motherboard using nuts.

Socket 775

Socket 1156 /1155

/1151 / 1150

Socket 1366

WWW.ZALMAN.COM

3) Intel Socket 775 Installation

① Install Bolts to the Backplate according to the Socket Type and secure

with Side Caps.

② Remove the Sticker Cover from the Lower Tier of the Loading Block

and attach it to the Backplate.

③

Attach Double-sided Tape to the Loading Block and remove

the Double-sided Tape Cover.

Loading Block

Double-sided Tape

Please make a note of the orientation of the Loading Block.

Caution

Socket 775

Socket 1156/1155

/1151 / 1150

Socket 1366

WWW.ZALMAN.COM

④ Align the Backplate’s nuts with motherboard’s clip support holes,

attach it to the back side of the motherboard, and then x it with Intel’s

washer and Nipple A.

⑤ Install the clip support on the motherboard using nuts.

Nipple A

Intel washer (Black lm)

nut

Clip Support

Please make a note of the orientation

of the Clip Support.

Caution

WWW.ZALMAN.COM

4) AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 Installation

① Install Bolts to the Backplate according to the Socket Type and secure

with Side Caps.

②Remove the Sticker Cover from the Lower Tier of the Loading Block and

attach to the Backplate.

③Attach Dobule-sided Tape to the Loading Block and remove

the Double-sided Tape Cover.

Loading Block

Double-sided Tape

Please make a note of the orientation of the Loading Block.

Caution

WWW.ZALMAN.COM

④ Take away the xed Clip support from the motherboard, and then install

the included Clip support using Nipple A, AMD’s Black rubber washer and nuts.

Nipple A

AMD washer

(Black rubber)

Nut

Clip support

Please make a note of the orientation

of the Clip Support.

Caution
