ZALMAN CNPS7X Manuel utilisateur

User’s Manual

CNPS7X

www.ZALMAN.com

V 1.1

To ensure safe and easy installation,

please read the following precautions

Intel Socket 1155 / 1156 / 1366 / 775 CPU

Core i7 Extreme

Core i7

Core i5

Core i3

Core 2 Extreme

Core 2 Quad

Core 2 Duo

Dual Core Pentium

Pentium D

Pentium 4

Celeron D

AMD Socket AM3 / AM2+ / AM2 CPU

Phenom II

Phenom

Athlon II

Athlon X2

Athlon FX

Athlon

Opteron

Dual-Core Opteron

Sempron

.COM

1. Precautions

2. Specifications

CNPS7X Performa CNPS7X LED

Material Pure Copper and Aluminum

Weight 360g

Dimensions 90(L) Ⅹ 127(W) Ⅹ 135(H)㎜

Fan

Bearing-Type Long Life Bearing

RPM 1,700 ~ 2,350rpm ± 10% 1,500 ~ 1,950rpm ± 10%

Noise Level 22 ~ 33dBA ± 15% 20 ~ 25dBA ± 15%

RPM [w/ Register] 1,350 ~ 1,700rpm ± 10% 1,250 ~ 1,500rpm ± 10%

Noise Level

[w/ Register] 18 ~ 22dBA ± 15% 17 ~ 20dBA ± 15%

Input Voltage 12V

Function PWM Control, Auto Restart

1) Avoid inserting objects or hands into the fan while it is in operation

to prevent product damage and injuries.

2) Do not ingest the Thermal Grease, and avoid its contact with skin

and eyes. If contact is made with skin, wash off with water. If

ingested or irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan

and/ or system.

5) Use and keep product away from reach of children.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) During transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

8) Product design and specifications may be revised to improve quality

and performance.

9) Enable PWM function in BIOS settings after installation.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration,

repair, improper installation, or improper testing.

.COM

4. Installation Requirements

3. Components

100㎜

135㎜

140㎜

User’s Manual Thermal Grease Resistor Cable

A-type Clip Support

& Pushpins

[For LGA 1155 / 1156 / 775]

B-type Clip Support

& Pushpins

[For LGA 1366]

Cooler

Thermal Grease

1) Space Requirements

2) Air Guide Removal

The cooler’s installation requires an unobstructed space of 135㎜

(width), 100㎜(length), and 140㎜(height), with the CPU as a central

reference point. Please check if components such as ODDs and PSU

protrude into the required space.

Air guides on enclosures must be removed before the cooler’s

installation since they protrude into the cooler’s required space.

.COM

1) Intel Socket 1155 / 1156 / 775 / 1366 Installation

①-ⓐ A-type Clip Support Installation(Socket 1155/1156/775)

Align the A-type Clip Support’s lever with the socket type and

fasten to the motherboard with pushpins.

5. Installation

3) Cooler Orientation

As shown in the diagram below,

it is recommended that the

cooler be installed so that air

flows from the cooler toward the

enclosure’s rear exhaust fan to

be released.

※ Recommended cooler

orientation may differ

according to the motherboard

model.

Socket 775

Socket 1155 / 1156

M/B

.COM

② Clear off any particles

or residue from the CPU’

s surface. Then spread a

thorough layer of Thermal

Grease on the CPU and the

base of the cooler.

①-ⓑ B-type Clip Support Installation(Socket 1366)

Fasten the B-type Clip Support to the motherboard with pushpins.

M/B

③ Completely unfasten the 2 bolts already assembled on the clip and adjust the

position to fit the Intel socket.

Socket 1155 / 1156 / 775

Socket 1366

.COM

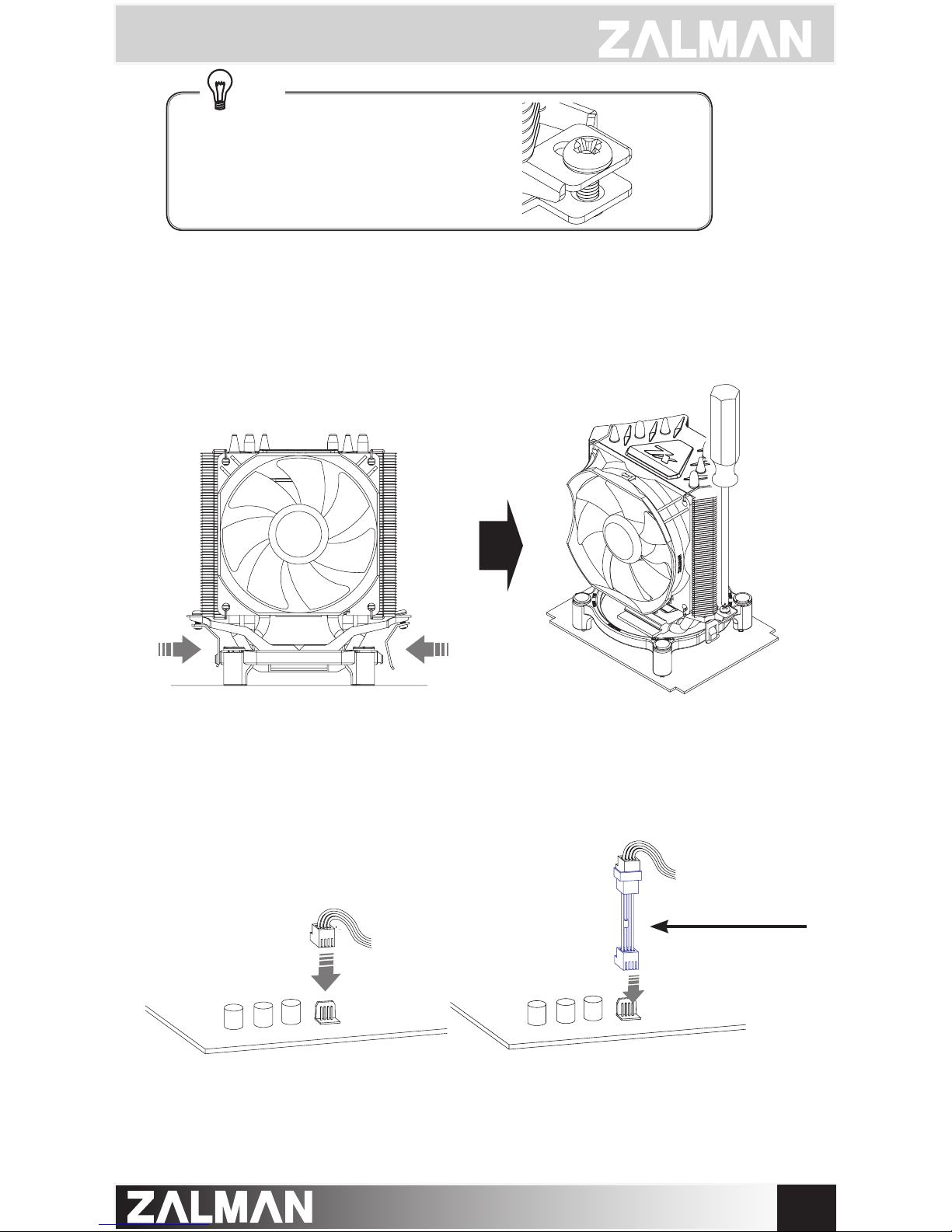

④ Install the cooler on the Clip support as shown in the picture and connect

the lug slot of the clip on to the lug on the clip support. Then fasten the

bolts on each side a few turns at a time.

⑤ Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan Header.

When reassembling the bolt, be sure

to assemble only half way of the total

length.

Tip

Fan RPM resistor

M/B

.COM

AMD Socket AM3 / AM2+ / AM2 Installation

① Clear off any particles or residue from the CPU’s surface. Then spread a

thorough layer of Thermal Grease on the CPU and the base of the cooler.

② Completely unfasten the 2 bolts already assembled on the clip and adjust

the position to fit the AMD socket.

③ Install the cooler on the Clip support as shown in the picture and connect

the lug slot of the clip on to the lug on the clip support. Then fasten the

bolts on each side a few turns at a time.

Socket AM3 / AM2+ / AM2

When reassembling the bolt, be sure

to assemble only half way of the total

length.

Tip

.COM

④ Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan header.

Fan RPM resistor

M/B
